FreeCAD Part Modeling Tutorial 131

Hello friends welcome to  FreeCAD tutorial in our previous tutorial we have learned FreeCAD Part Modeling Tutorial 130. In this tutorial we will do modeling  in  FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Also Read-:

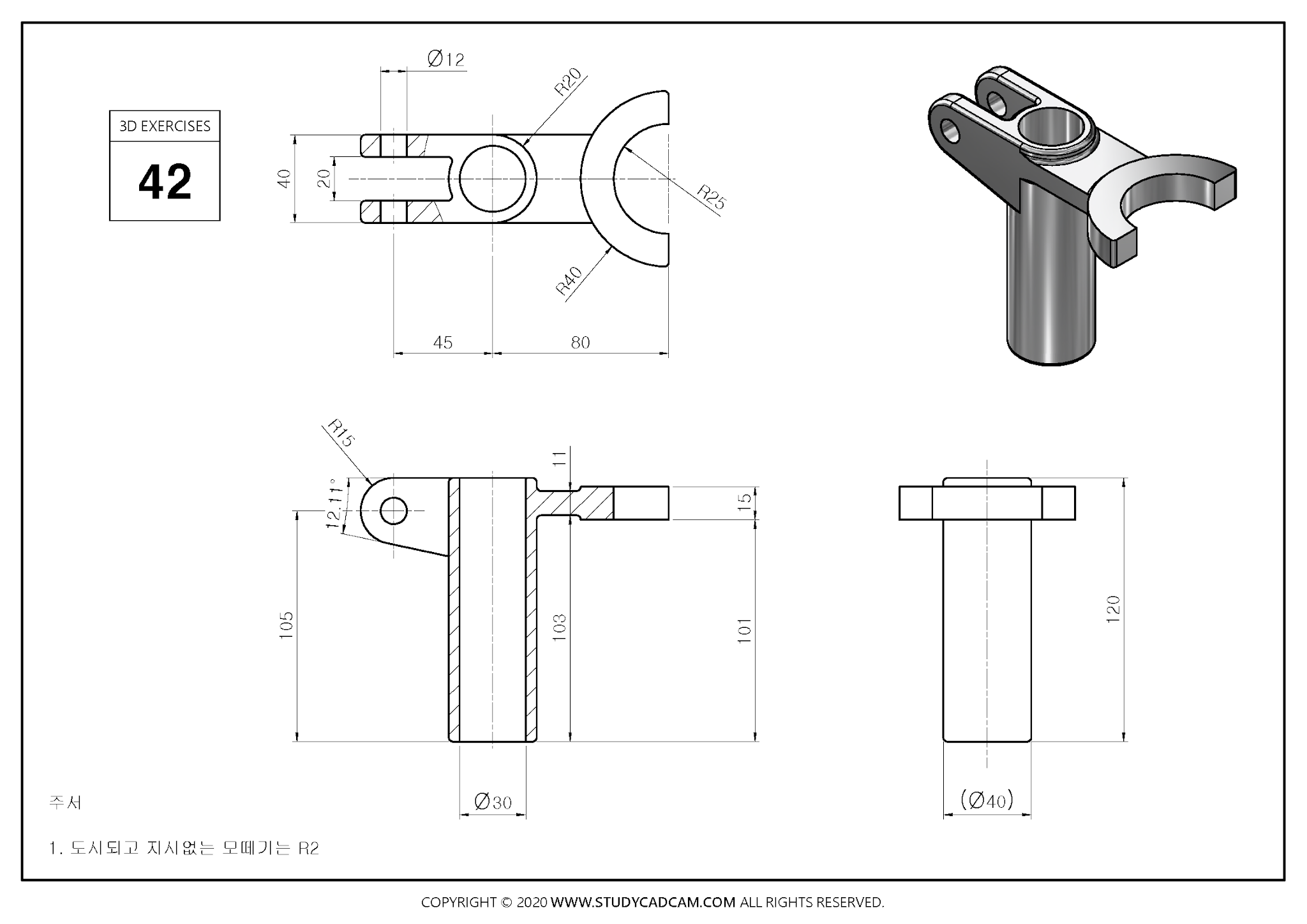

Step by Step Guide to Convert below drawing into 3D Model -:

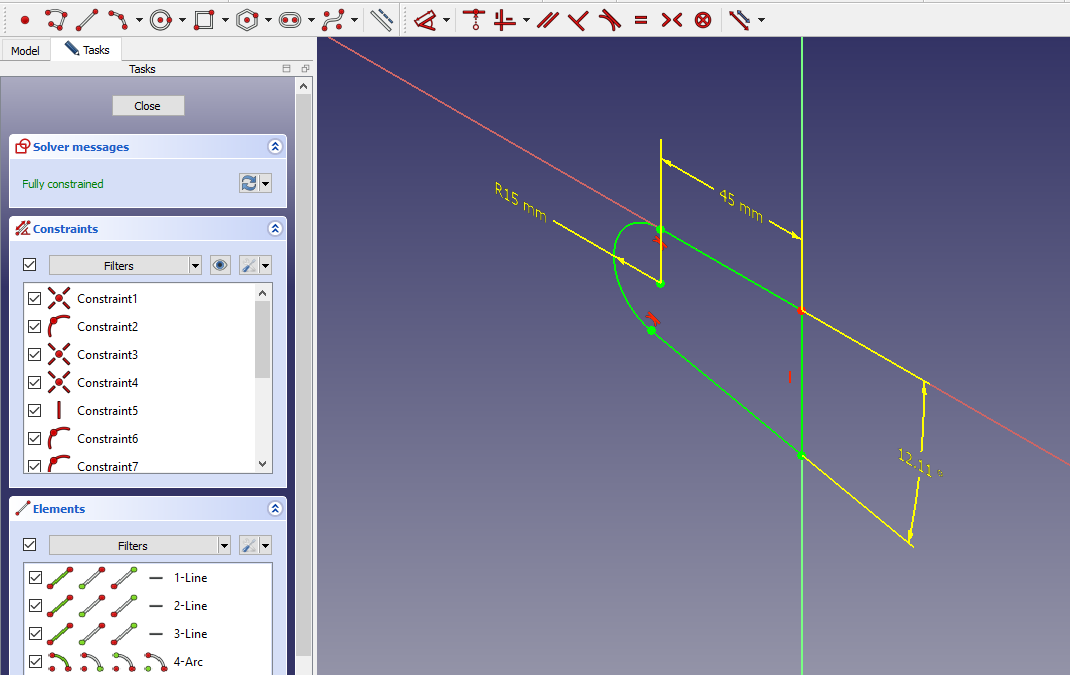

Select the Front Plane and Create below sketch.

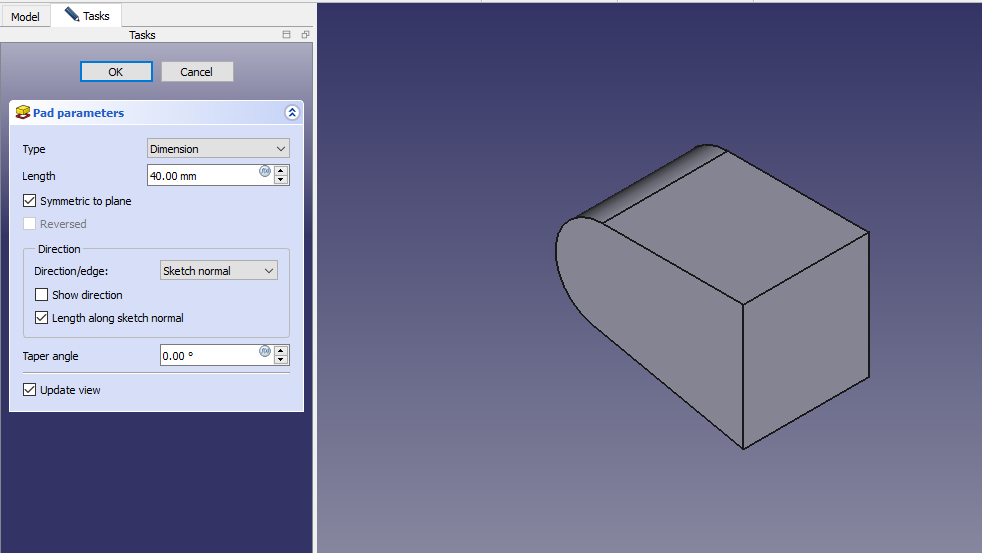

Now create the Pad of 40mm as shown in below image and keep pad symmetric to plane.

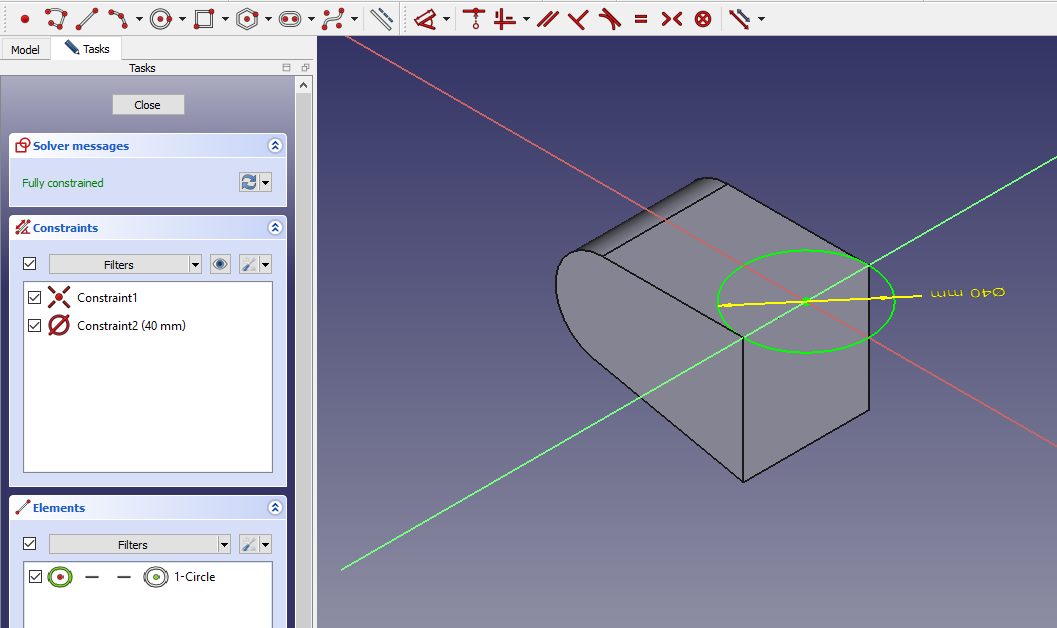

Now select the top face and create diameter of 40mm as shown in below image.

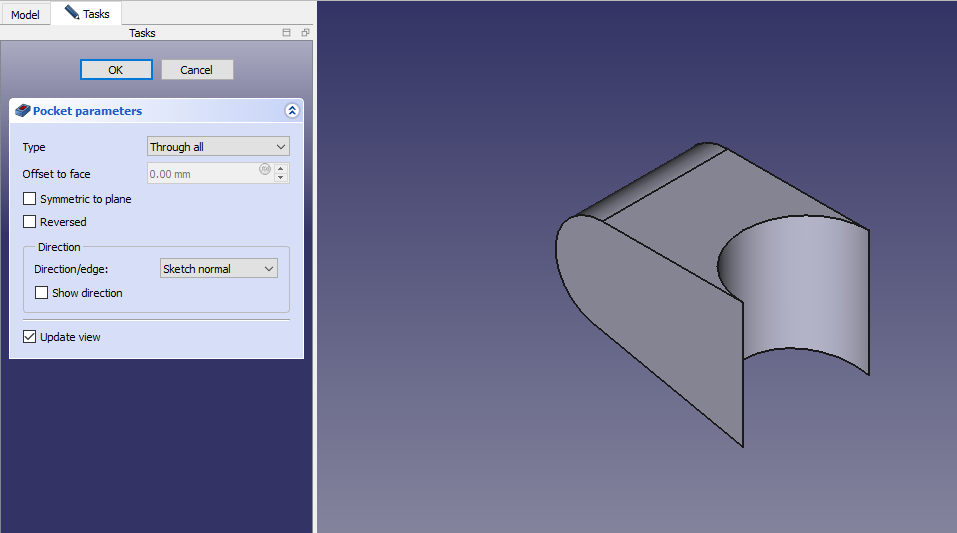

Now create the cut as shown in below image.

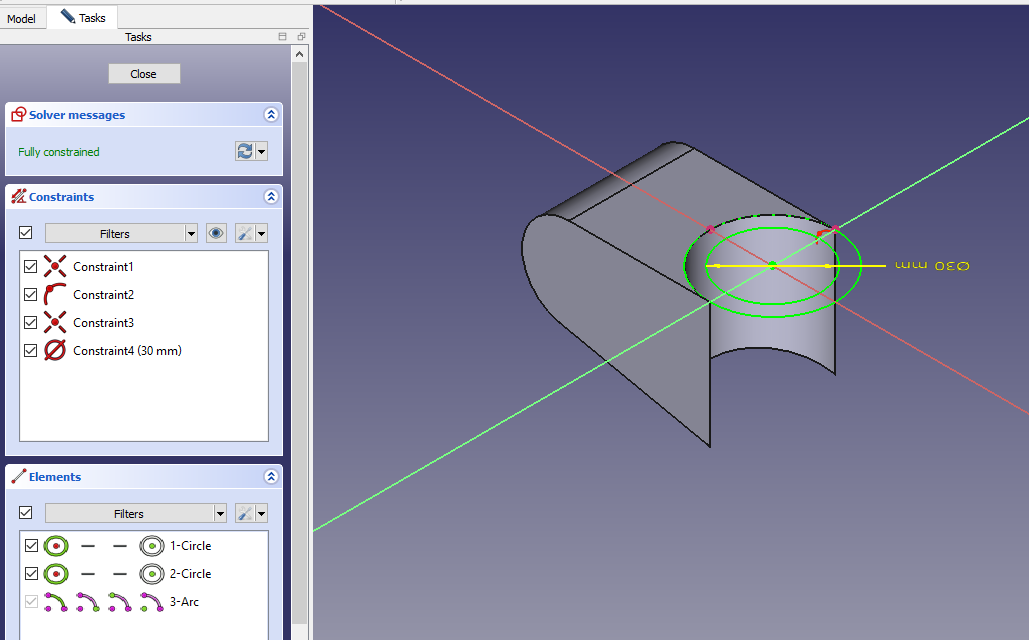

Now select the face and create below sketch.

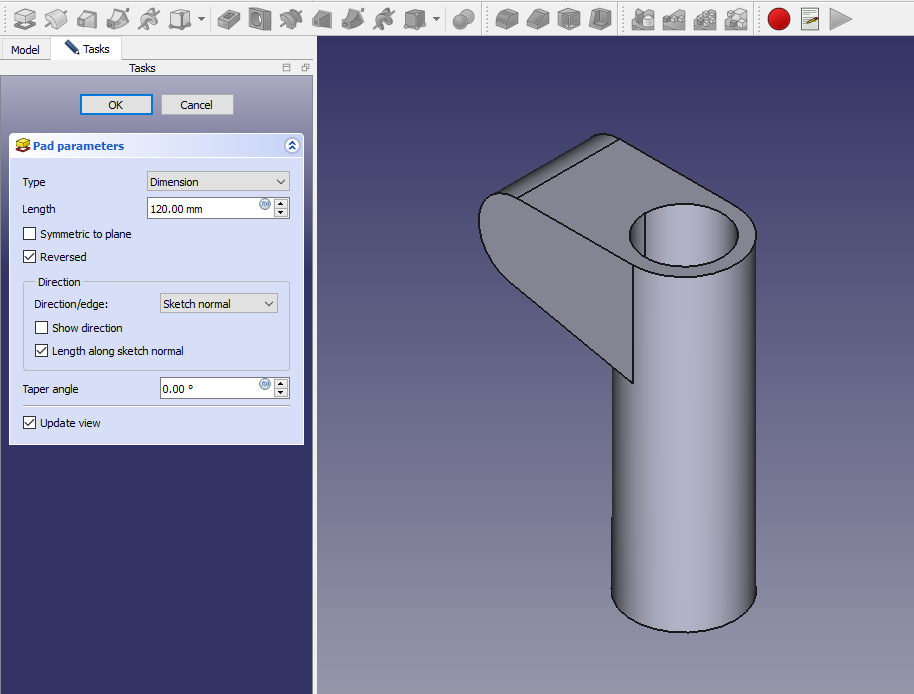

Now create the Pad of 120mm as shown in below image and never forget to make it reversed.

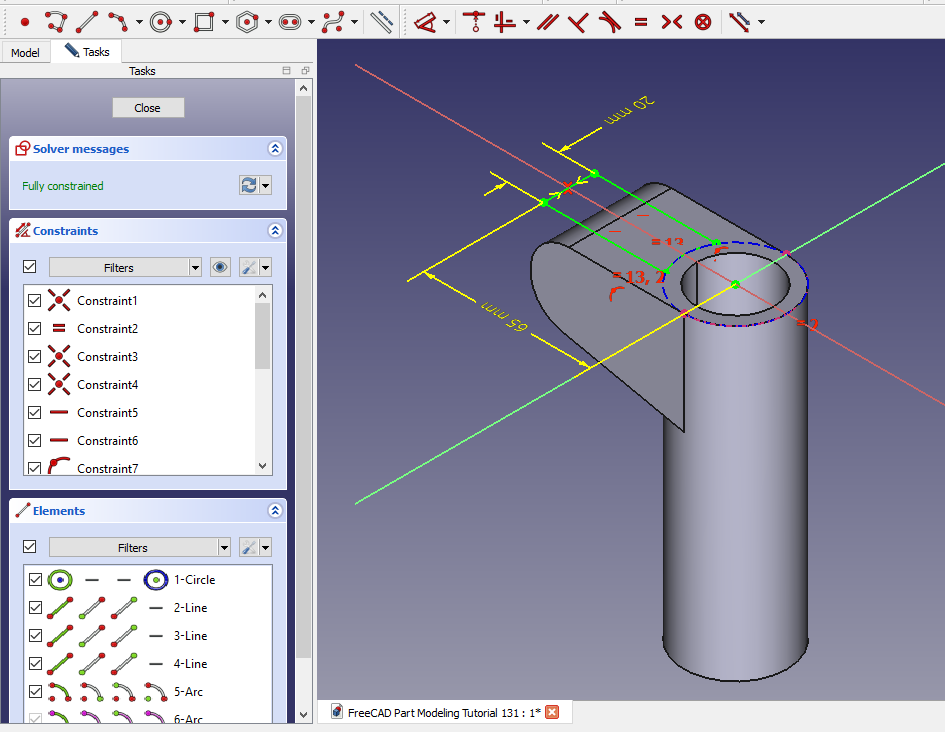

Select the face and create the below sketch never forget to make dimension 20mm symmetric.

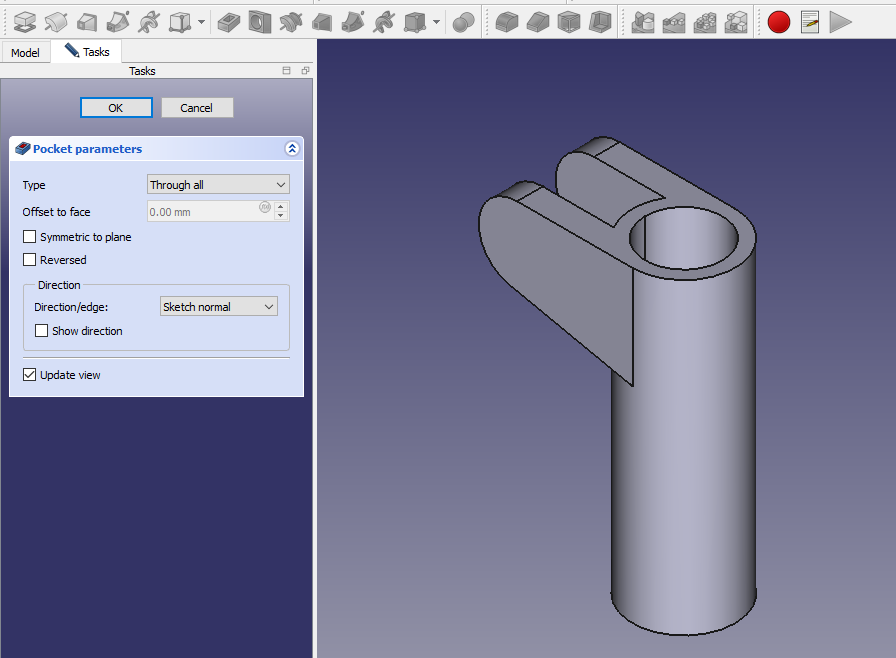

Now create the cut as shown in below image.
Now create datum plane as shown in below image.
Now on datum plane create below sketch and create two separate profile.

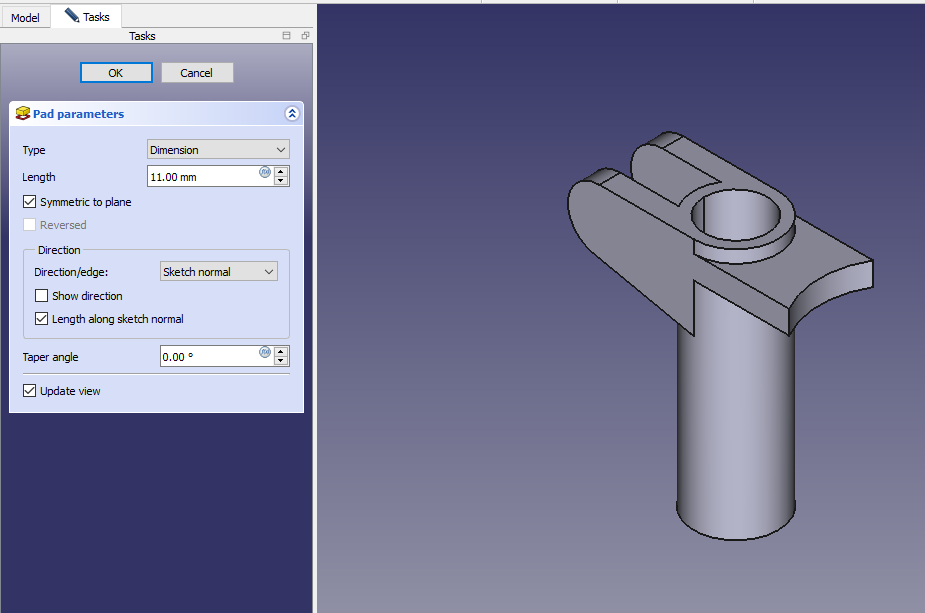

Now create the pad of 11mm as shown in below image.

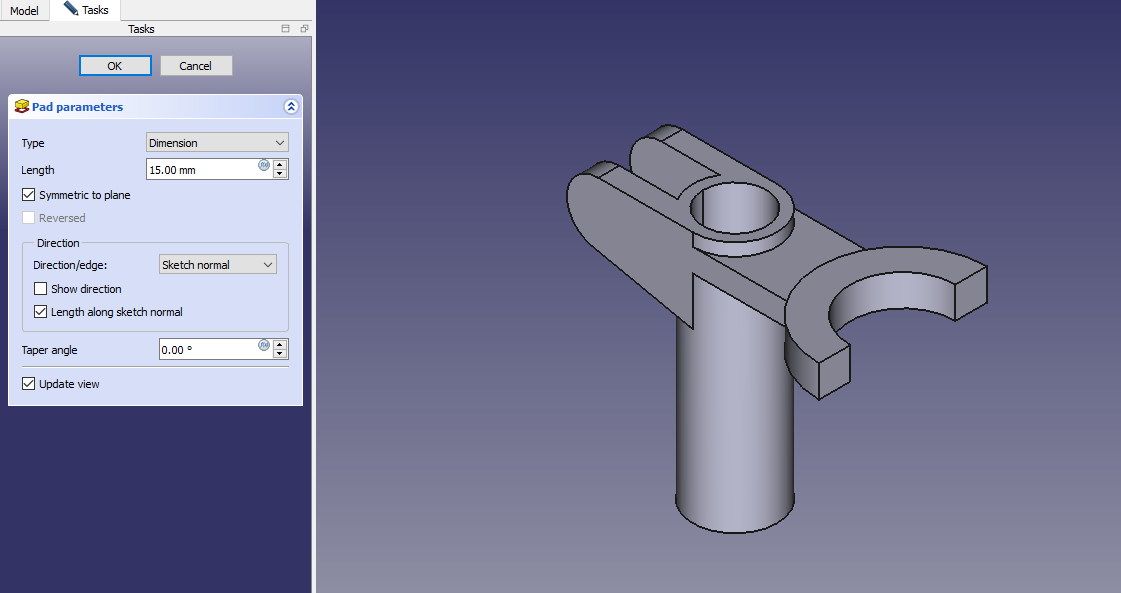

Now create the pad of 15mm as shown in below image.

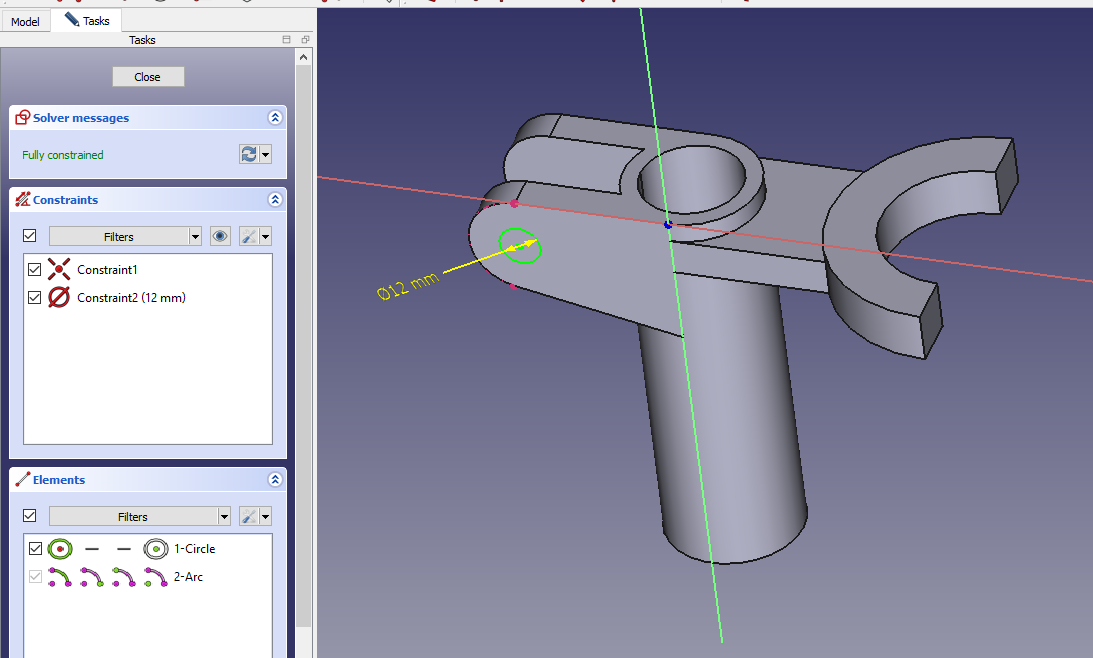

Now select the face and create hole sketch.
Create the hole as shown in below image.

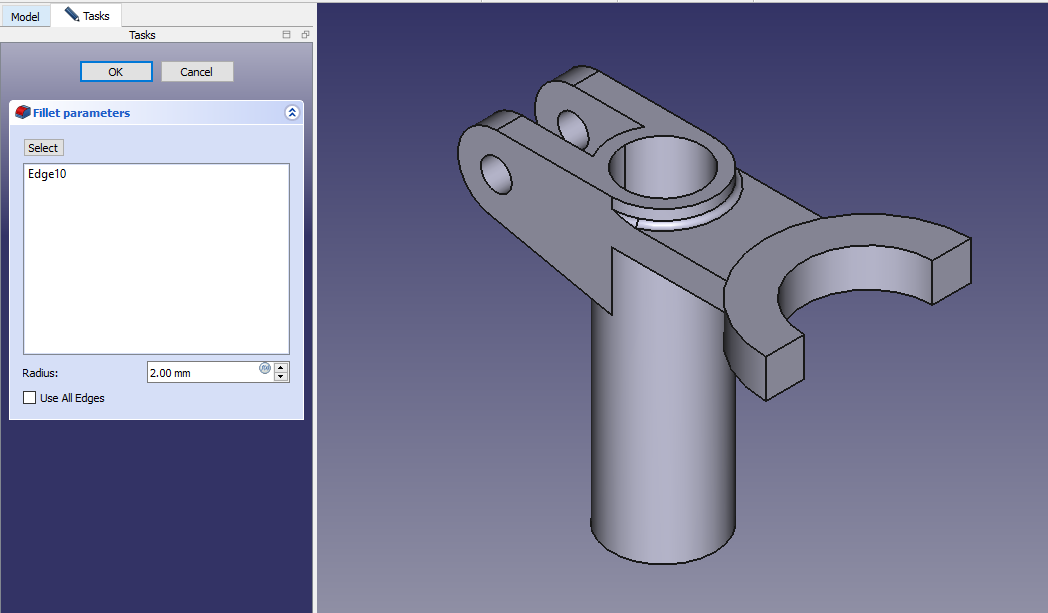

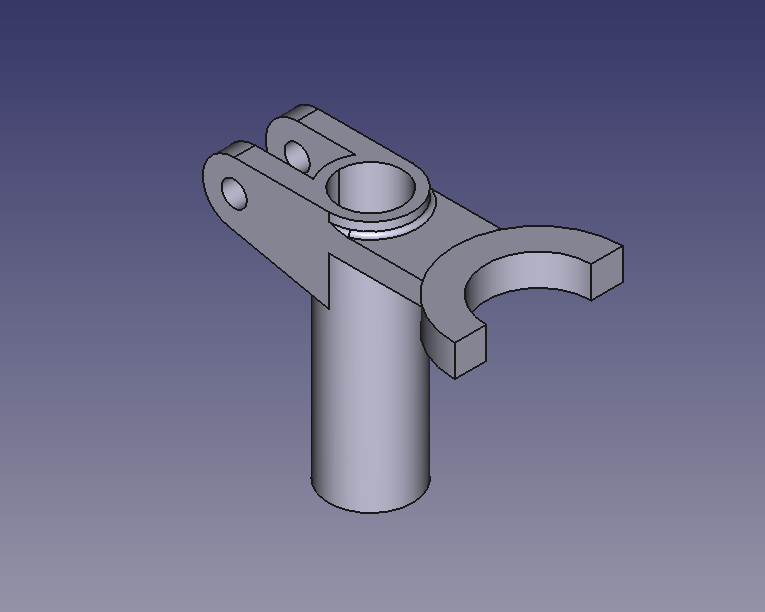

Now create the fillet of 2mm as shown in below image.
