Hello friends welcome to  FreeCAD tutorial in our previous tutorial we have learned FreeCAD Part Modeling Tutorial 141. In this tutorial we will do modeling in  FreeCAD with the help of Part design workbench of  FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Also Read-:

Join the FreeCAD Community: A Guide to Connecting and Collaborating with Users
Getting Started with FreeCAD: Your No-Cost Introduction to 3D Design
Mastering FreeCAD: Essential Tips for Designing with Precision and Efficiency

Ko fi complete course 0925 r2

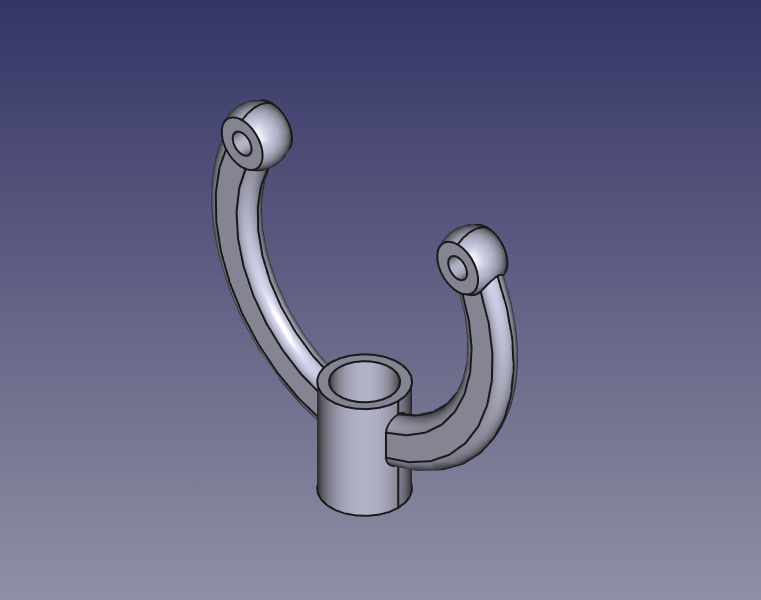

Step by Step Guide to Convert below drawing into 3D Model -:

3d cad exercises (www.studycadcam.com) 281

00

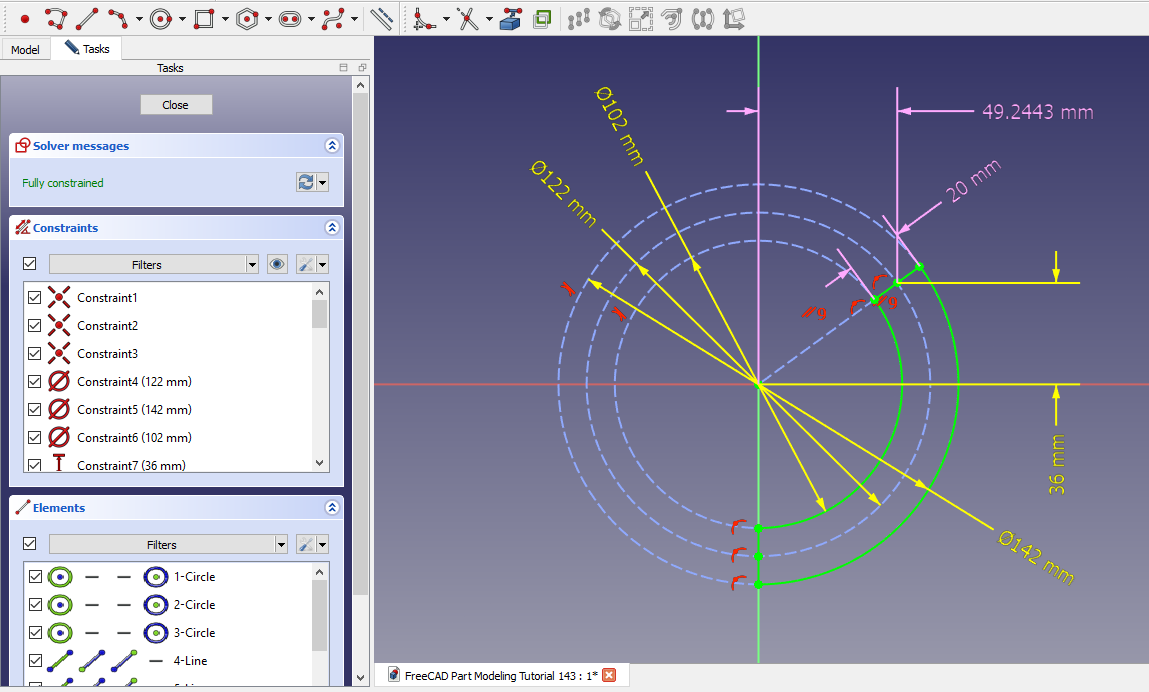

Select the front plane and create below sketch.
01

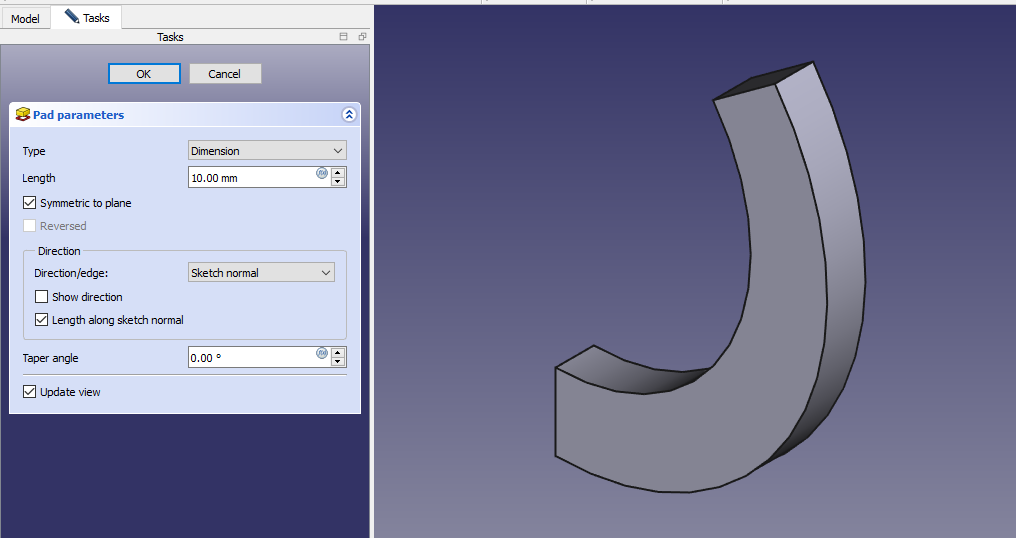

Now create the Pad of 10mm as shown in below image.
02

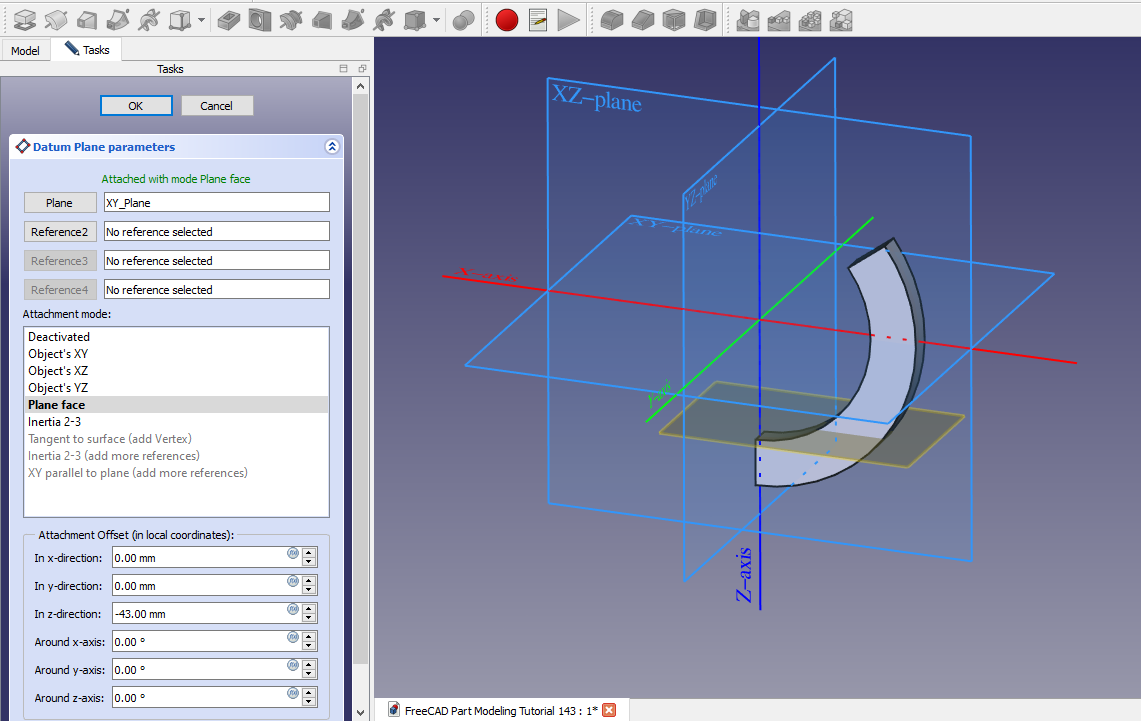

Create the datum plane as shown in below image to distance of 43mm.

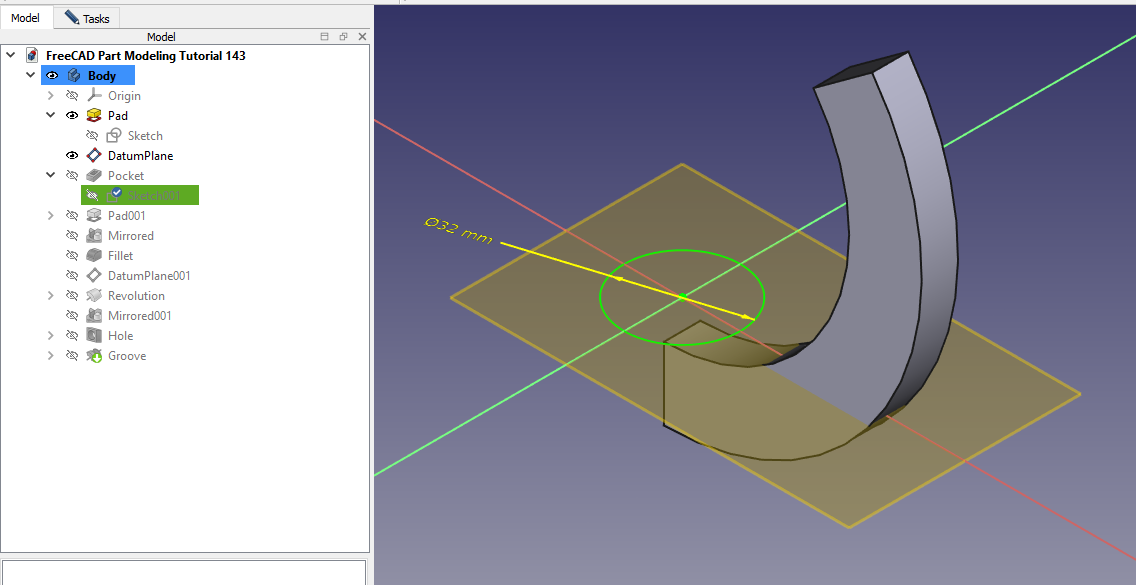

03Select the datum plane and create circle of 32mm as shown in below image.

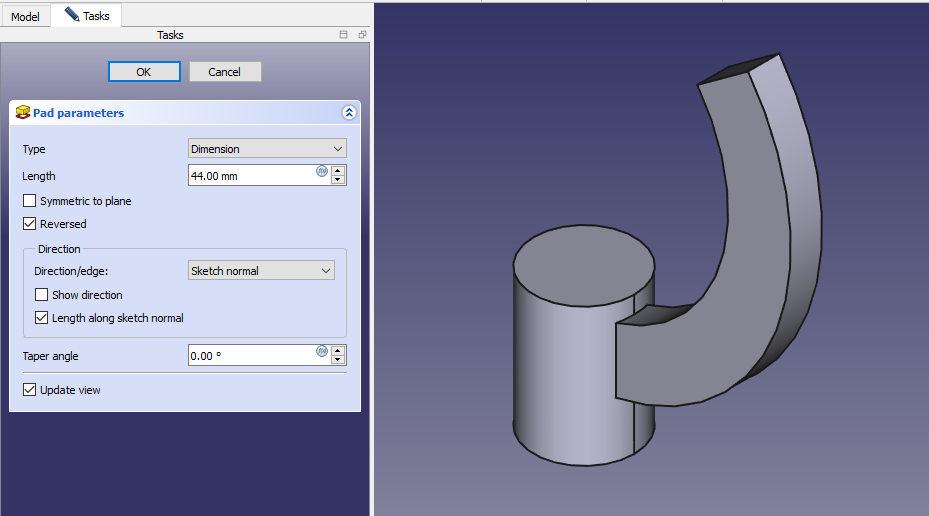

04Create the pad of 44mm As shown in below image.

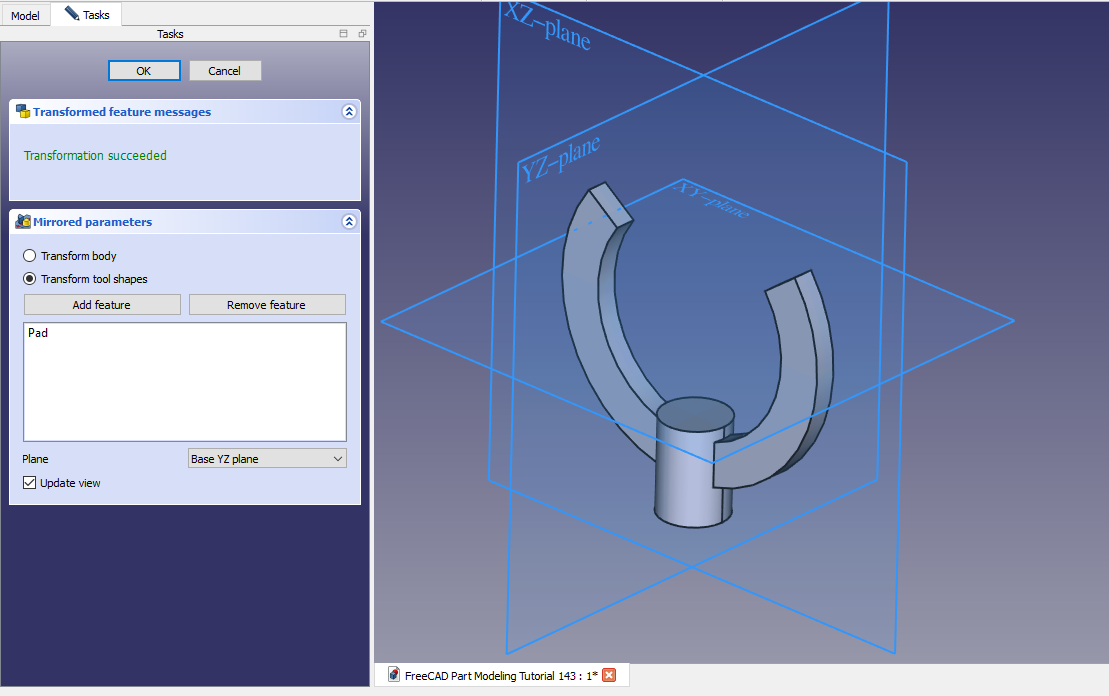

05Create the mirror as shown in below image.

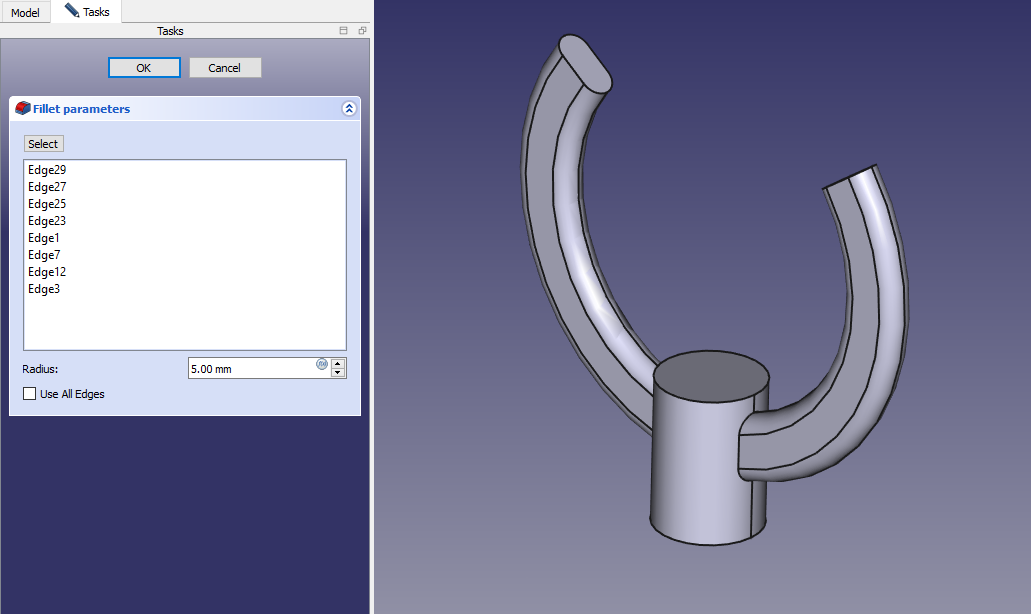

06Create the fillet of 5mm As shown in below image.

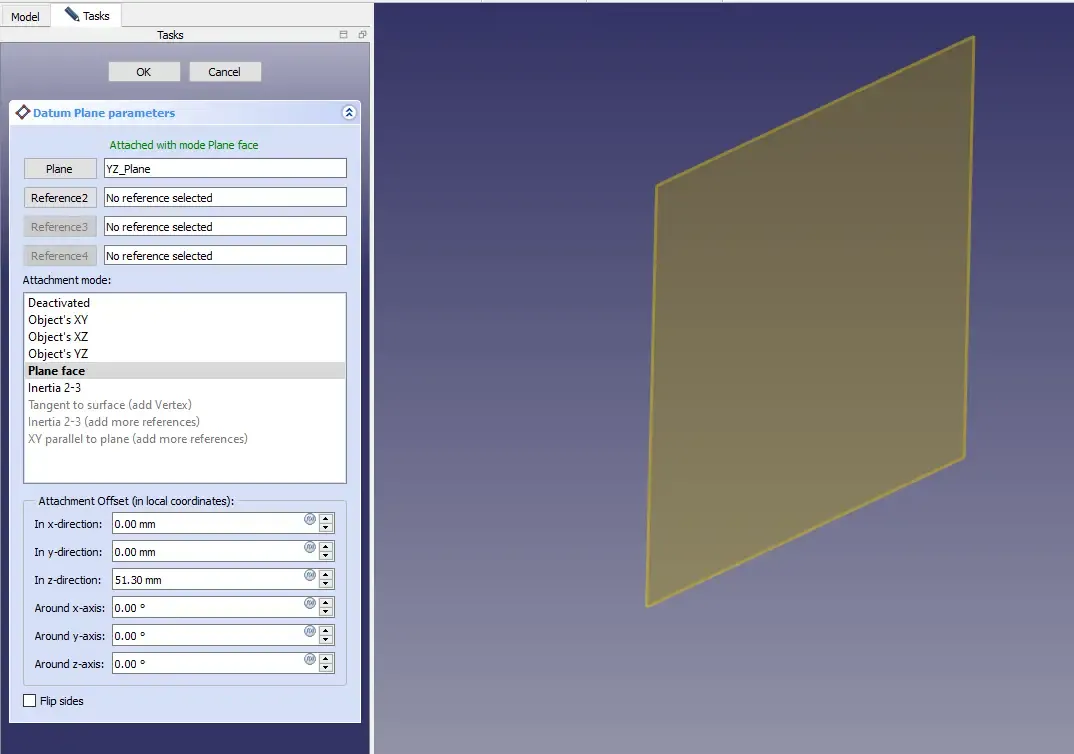

07Create the datum plane as shown in below image to the distance of 51.3mm As shown in below image.

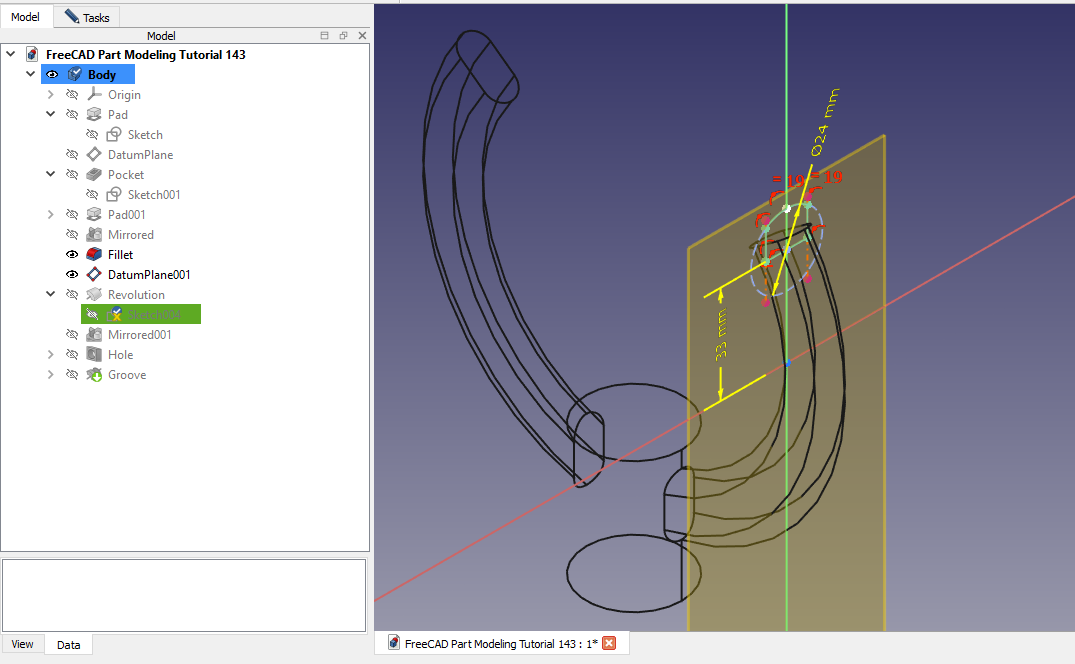

15Select the datum plane as shown in below image.

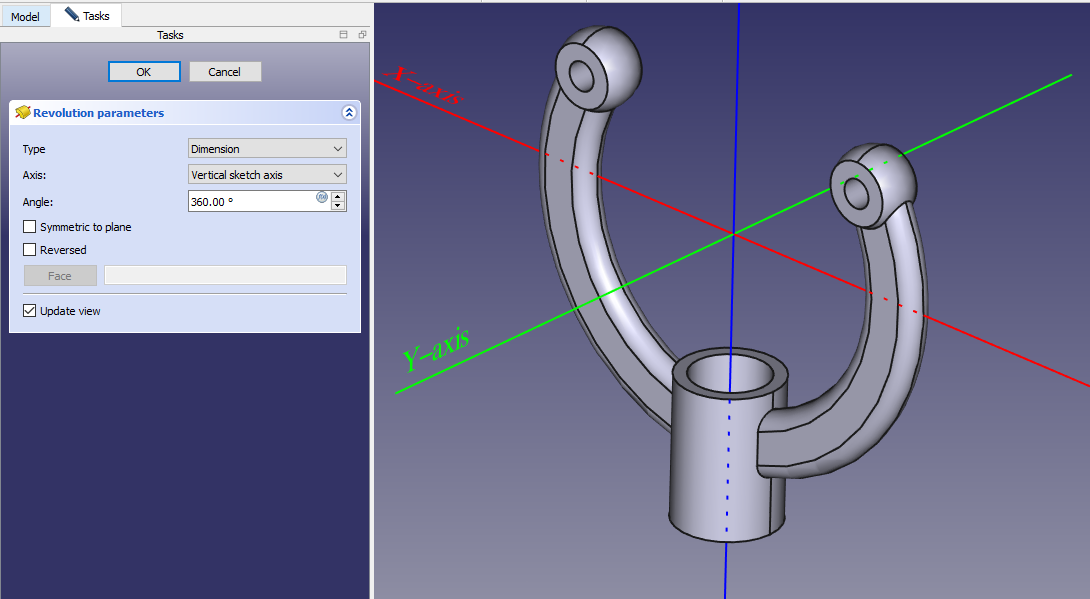

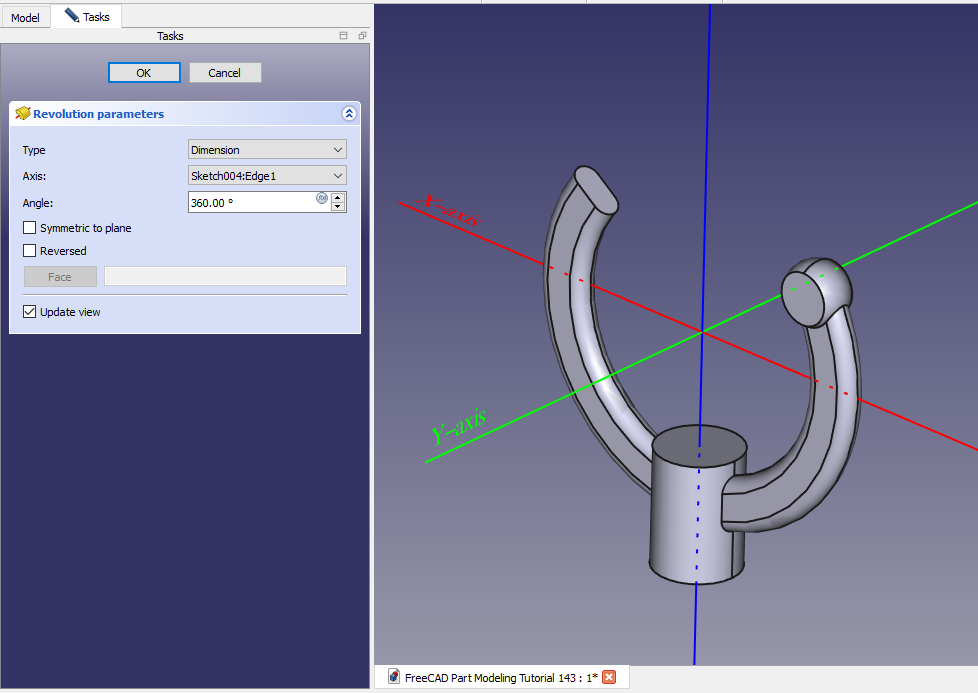

09Now create the revolve feature as shown in below image.
10Now mirror the above feature as shown in below image.

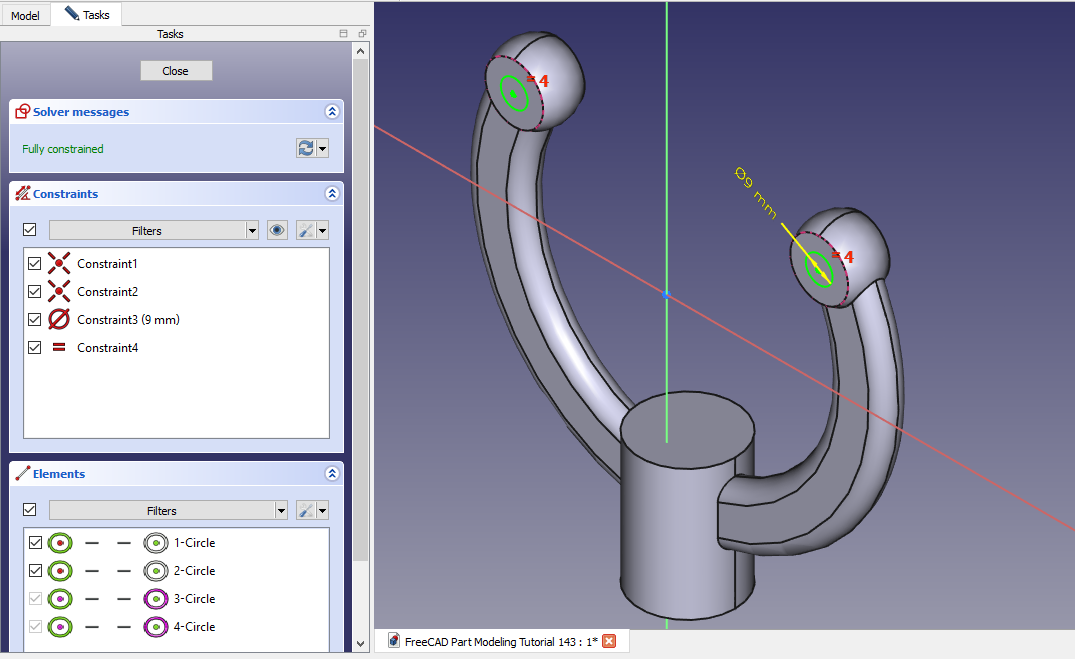

11Select the face and create circle of diameter of 9mm As shown in below image.
12

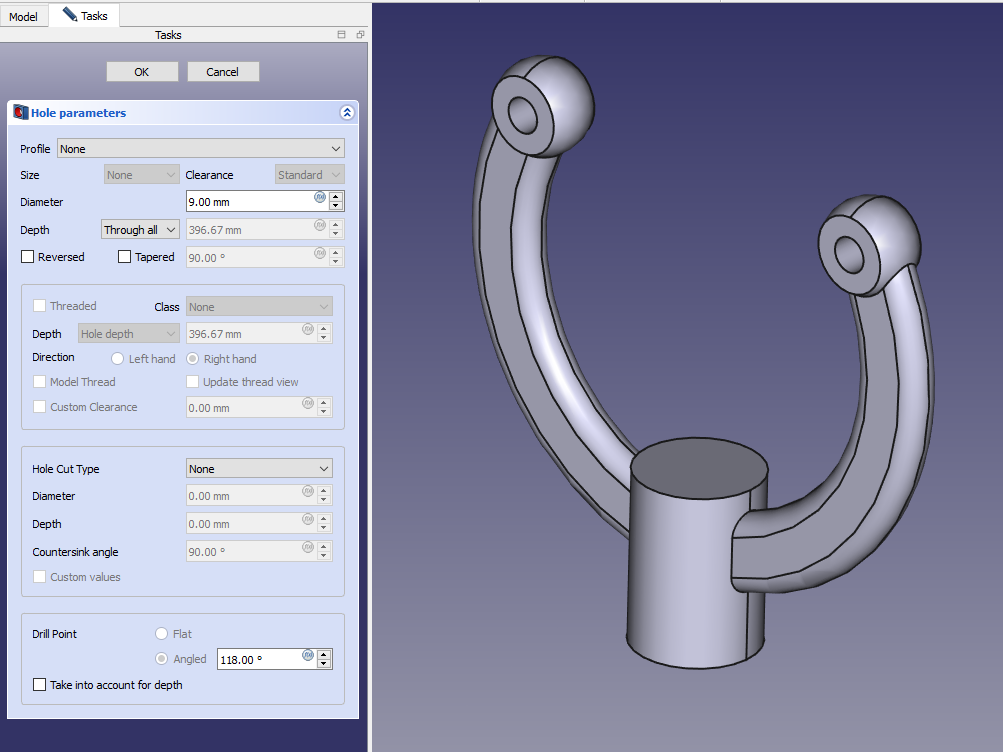

Now create the hole As shown in below image.

17

Select the front plane  and Create profile As shown in below image.

13Create the groove As shown in below image.
14
