Hello friends welcome to   FreeCAD tutorial in our previous tutorial we have learned  FreeCAD Part Modeling Tutorial 140. In this tutorial we will do modeling  in  FreeCAD with the help of Part design workbench of  FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Also Read-:

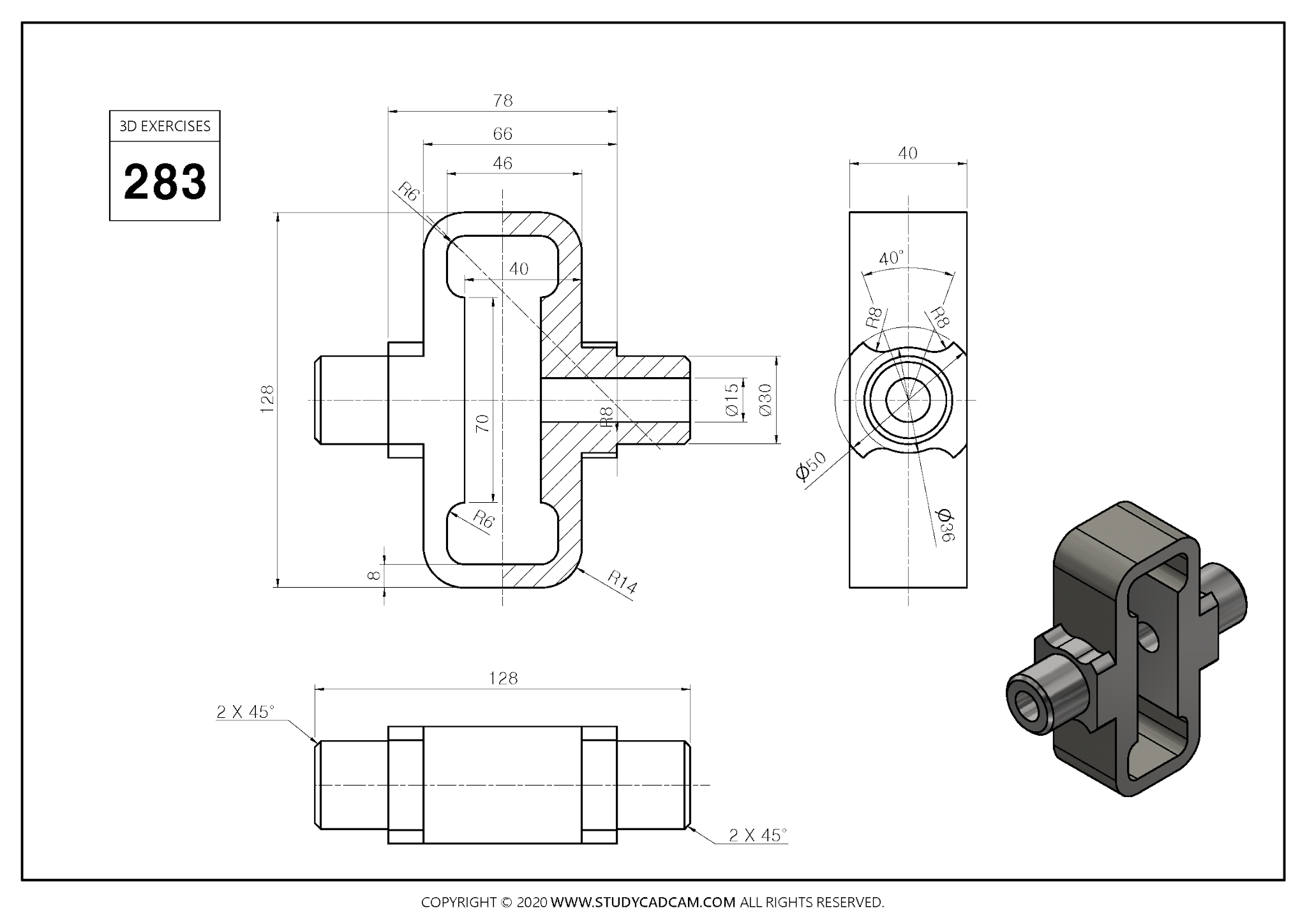

Step by Step Guide to Convert below drawing into 3D Model -:

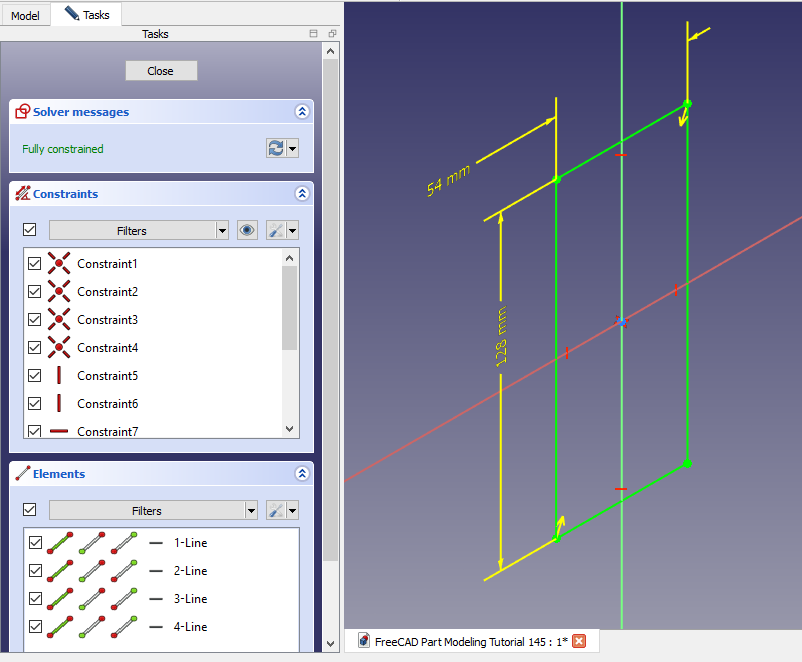

Select the right plane and create create below sketch.

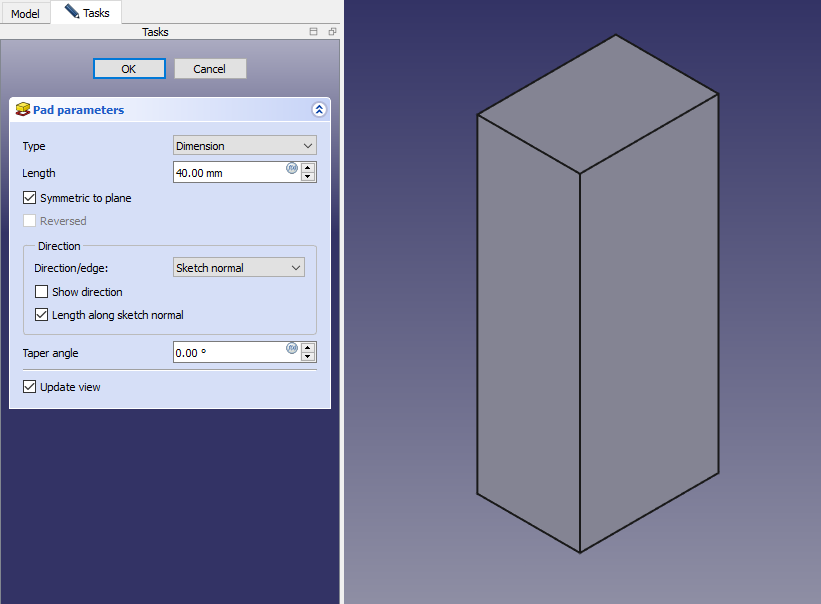

Create the Pad of 40mm and keep it symmetric to plane As shown in below image.

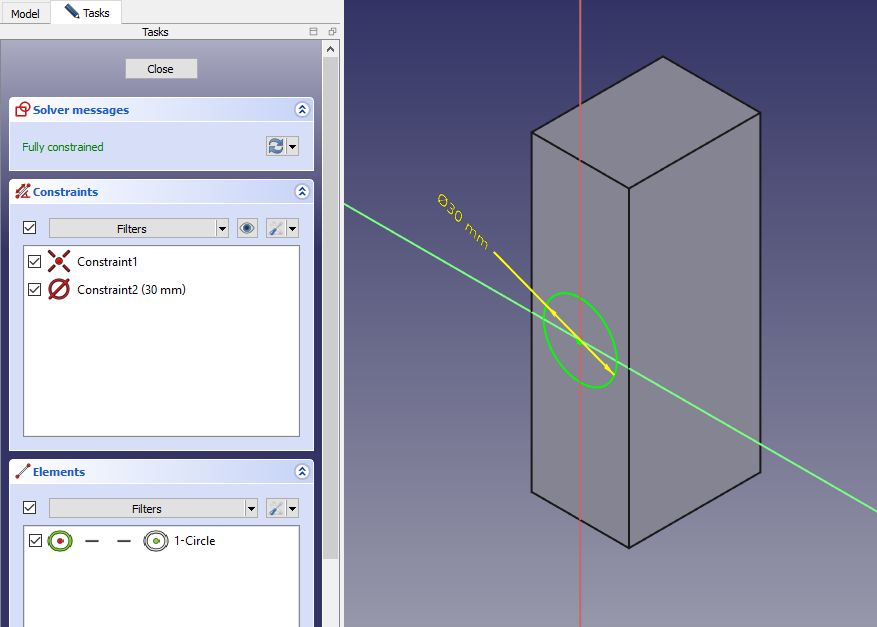

Select the face and create circle of 30mm As shown in below image.

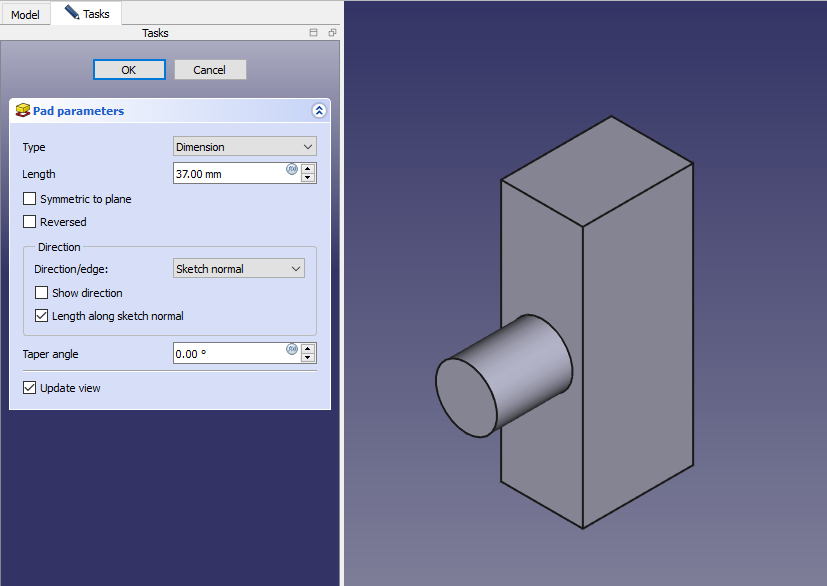

Now create the Pad of 37mm as shown in below image.

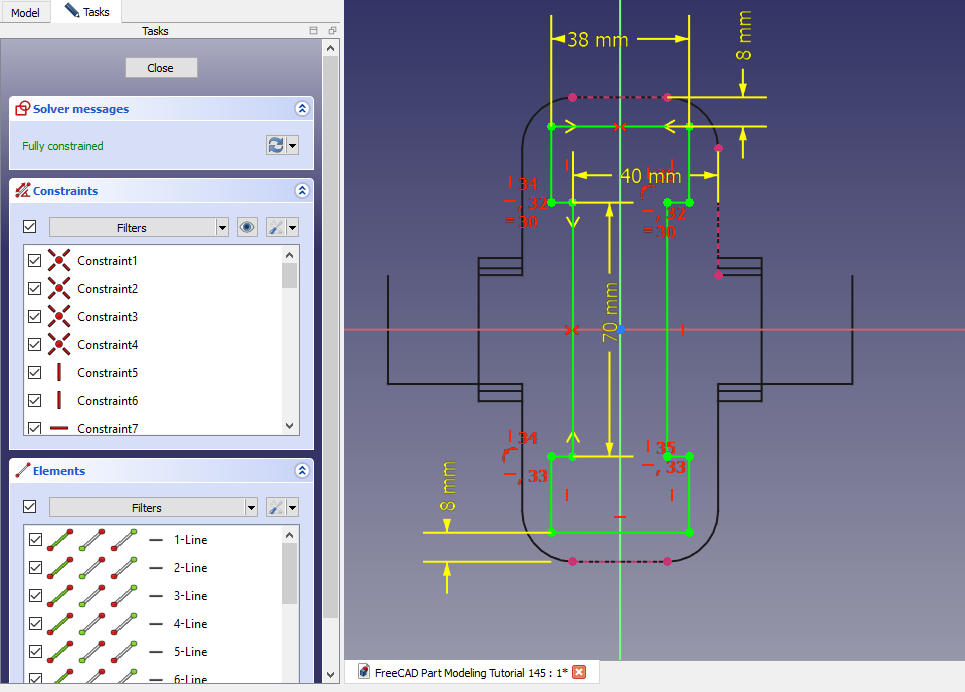

Now select the face and create below sketch.

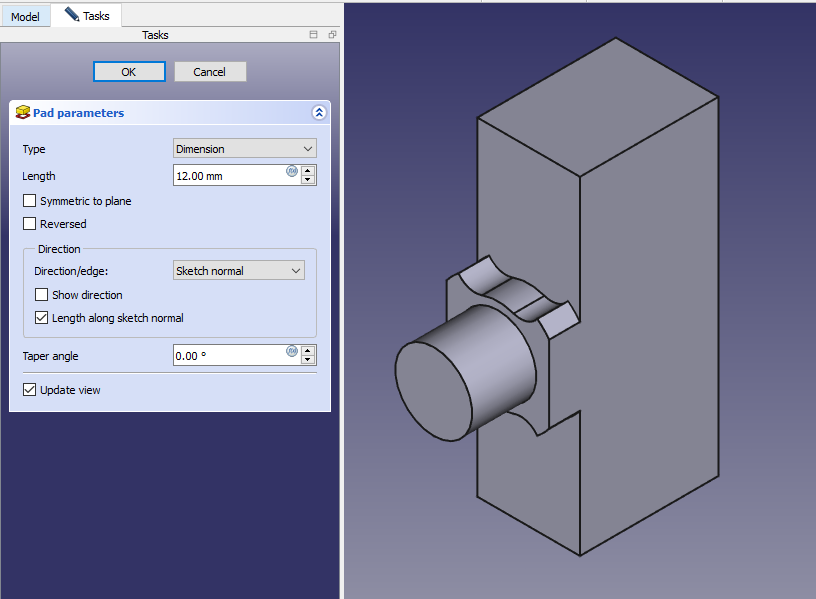

Create the Pad of 12mm As shown in below image.

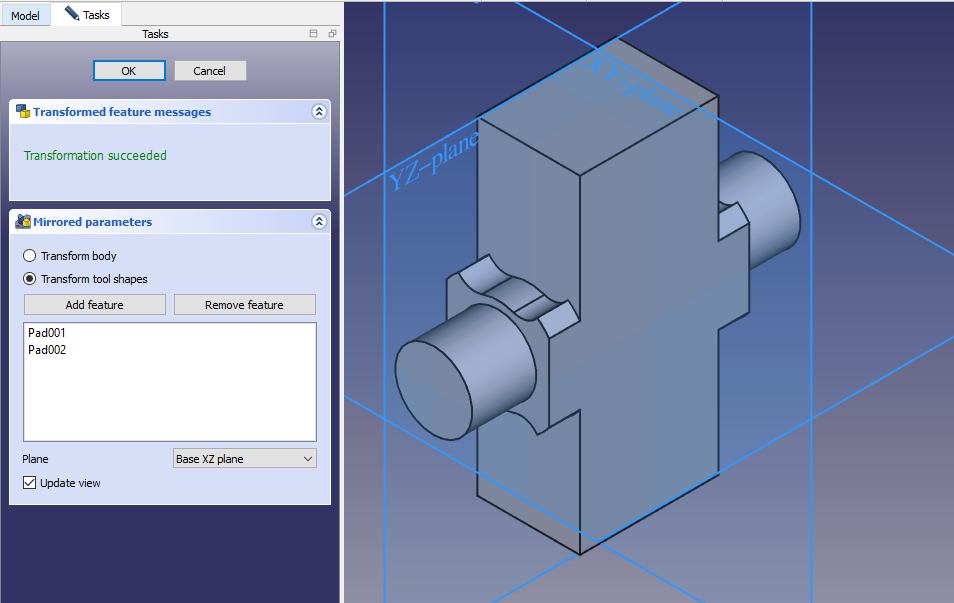

Now mirror the above feature As shown in below image.

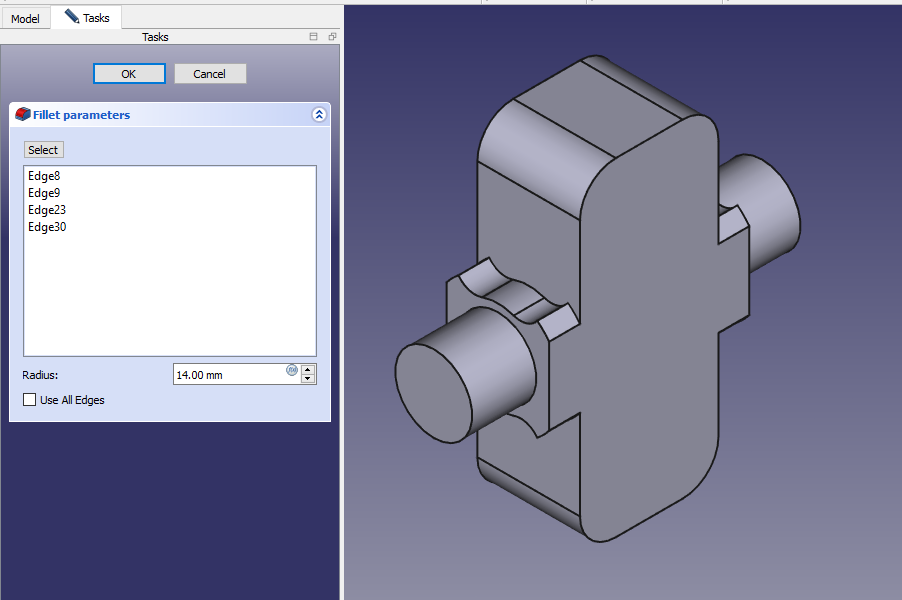

Now create the fillet of 14mm As shown in below image.

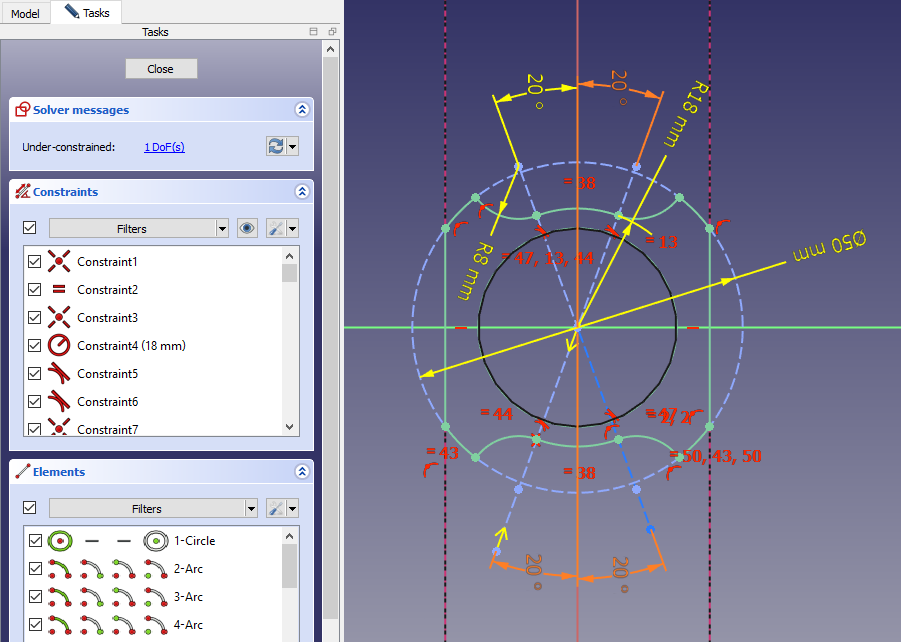

Select the face and create the below sketch.

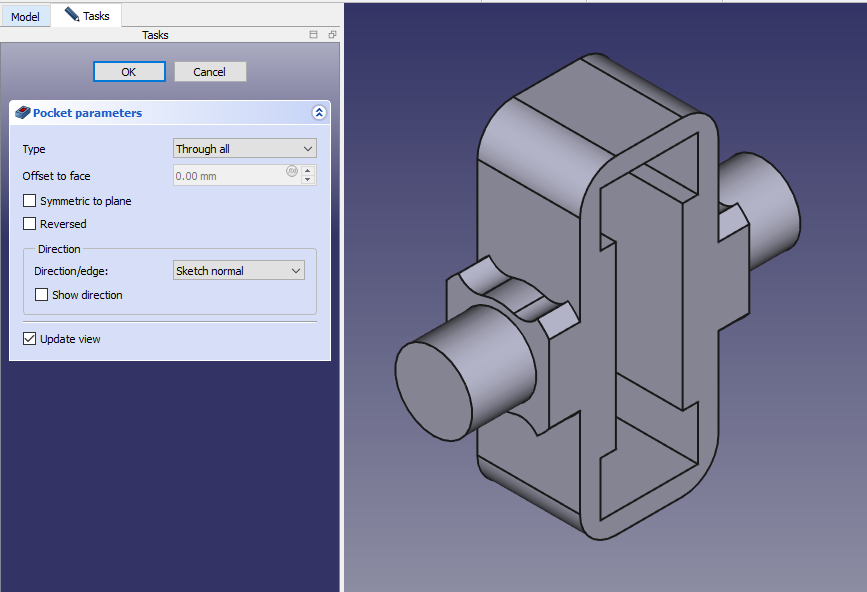

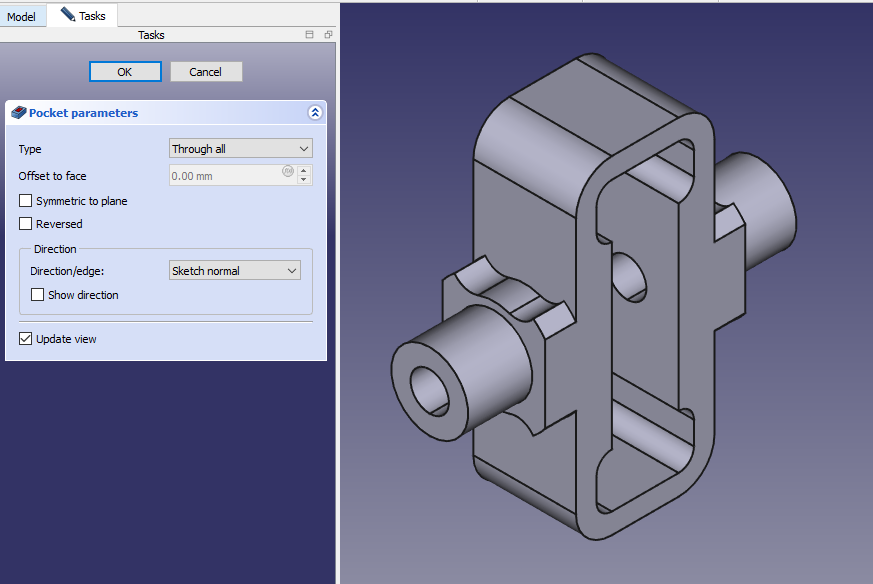

Create the cut As shown in below image.

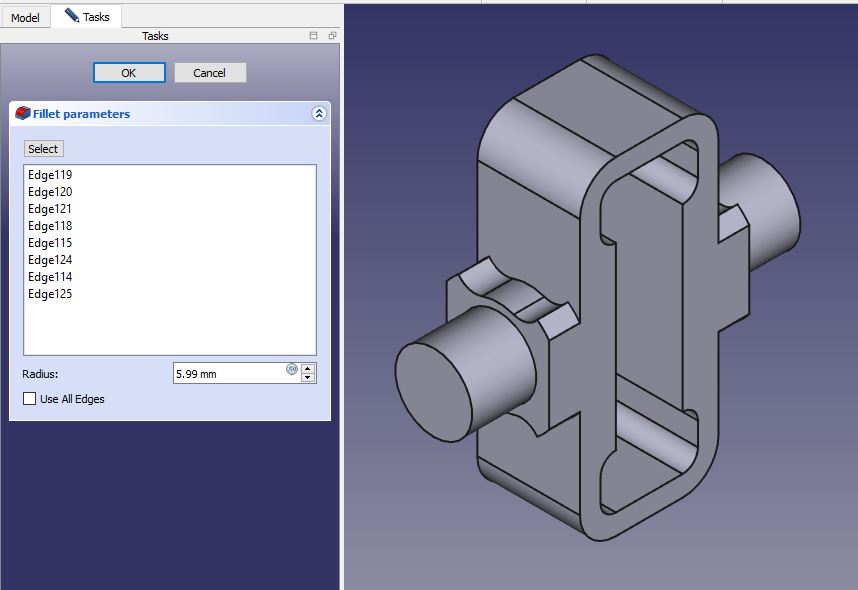

Create the fillet of 6mm As shown in below image.

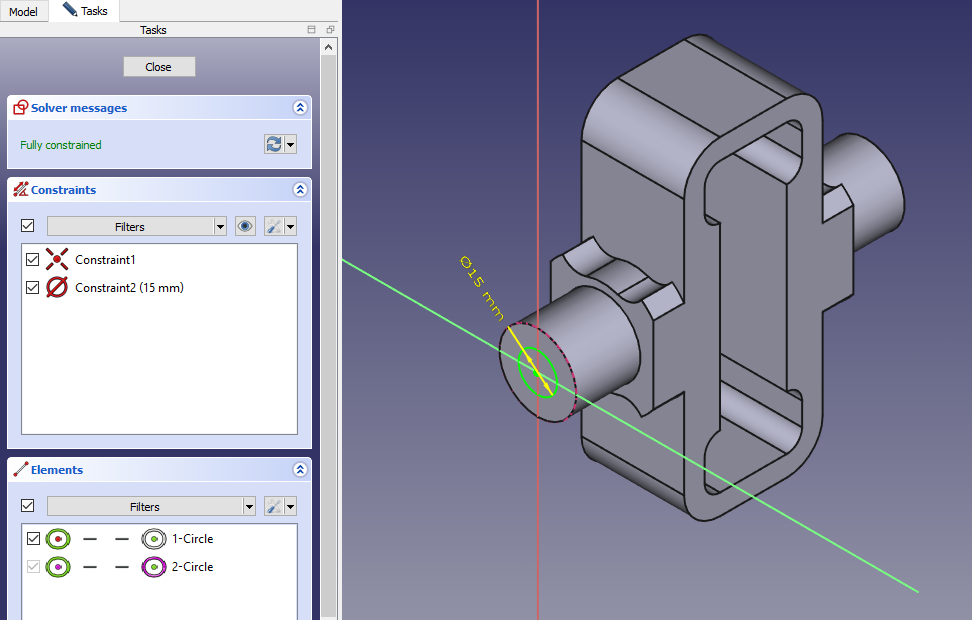

Select the face and create circle of 15mm As shown in below image.

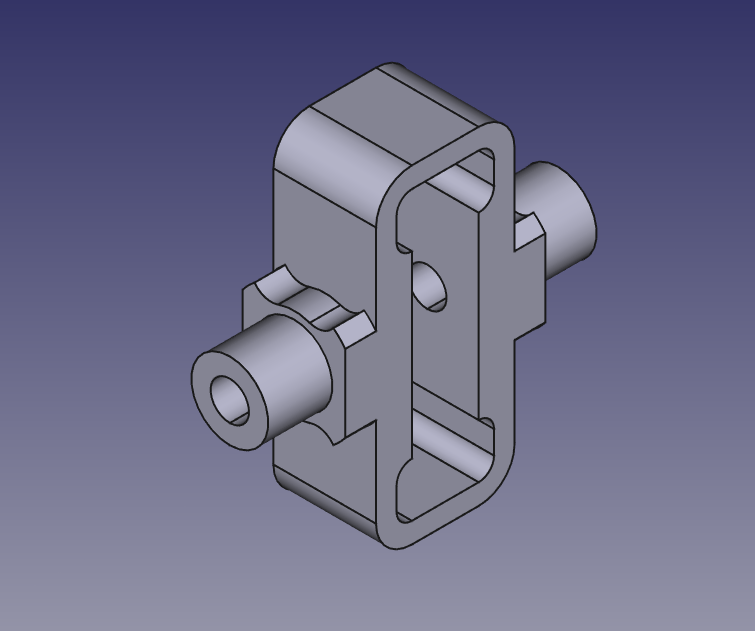

Create the hole As shown in below image.
