Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned FreeCAD Part Modeling Tutorial 145. In this tutorial we will do modeling in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.
Also Read-:

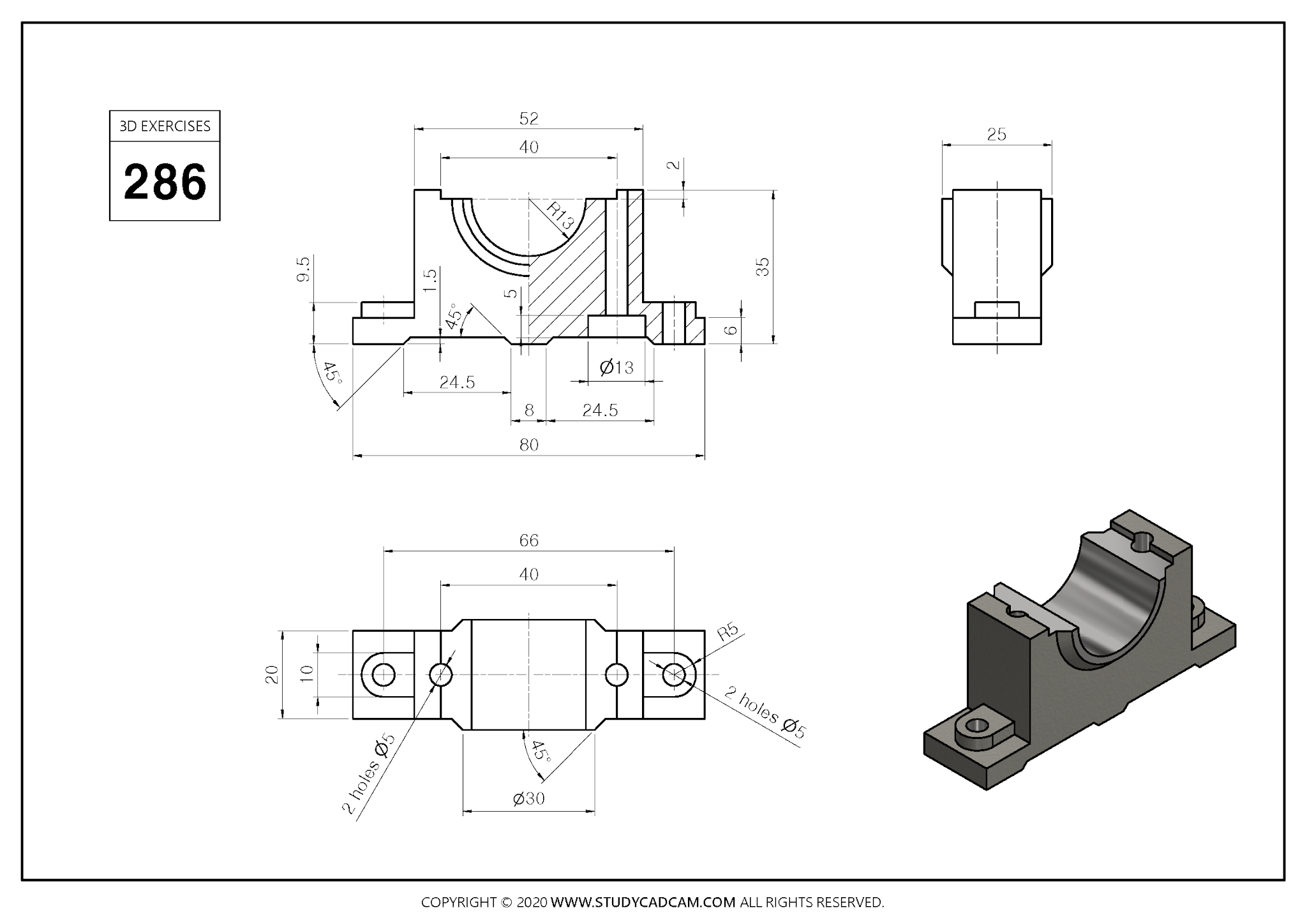

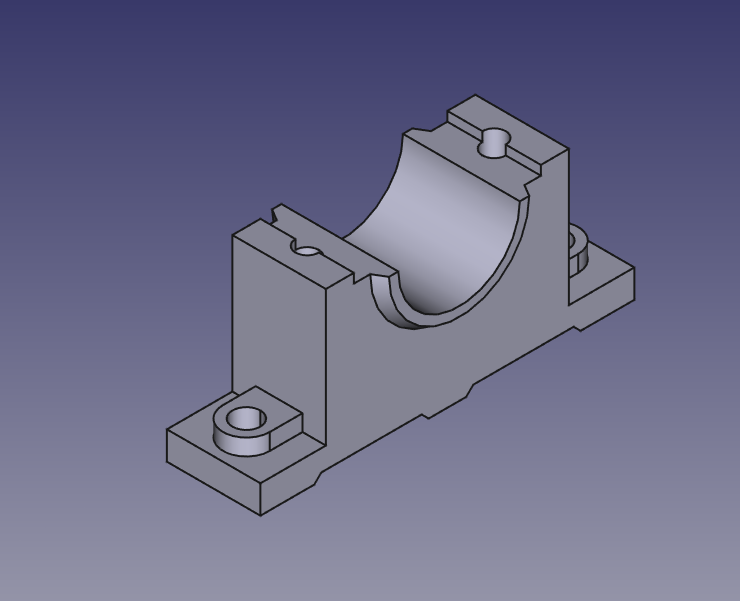

Step by Step Guide to Convert below drawing into 3D Model -:

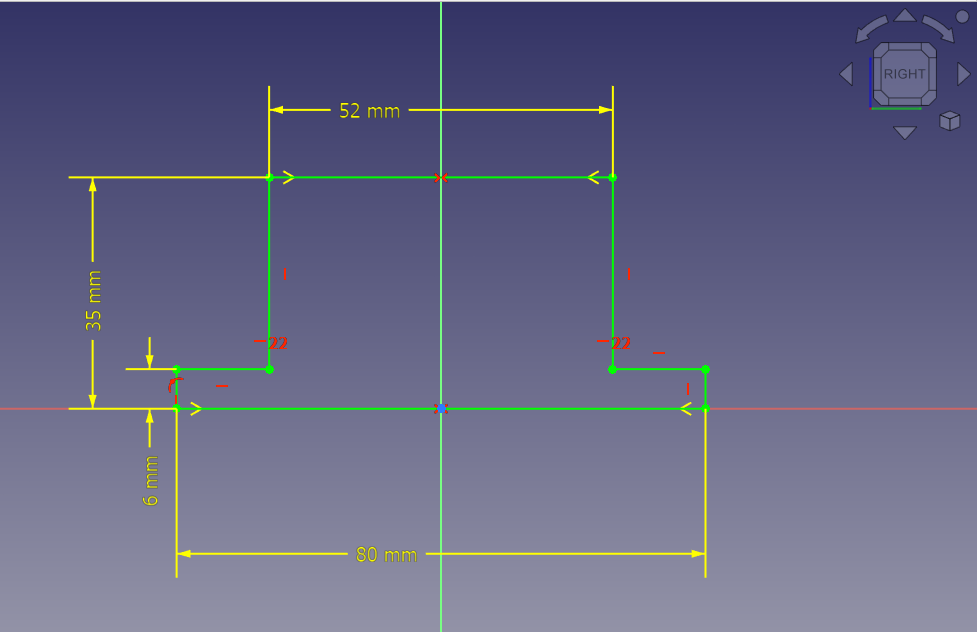

Select the right plane and create the below sketch.

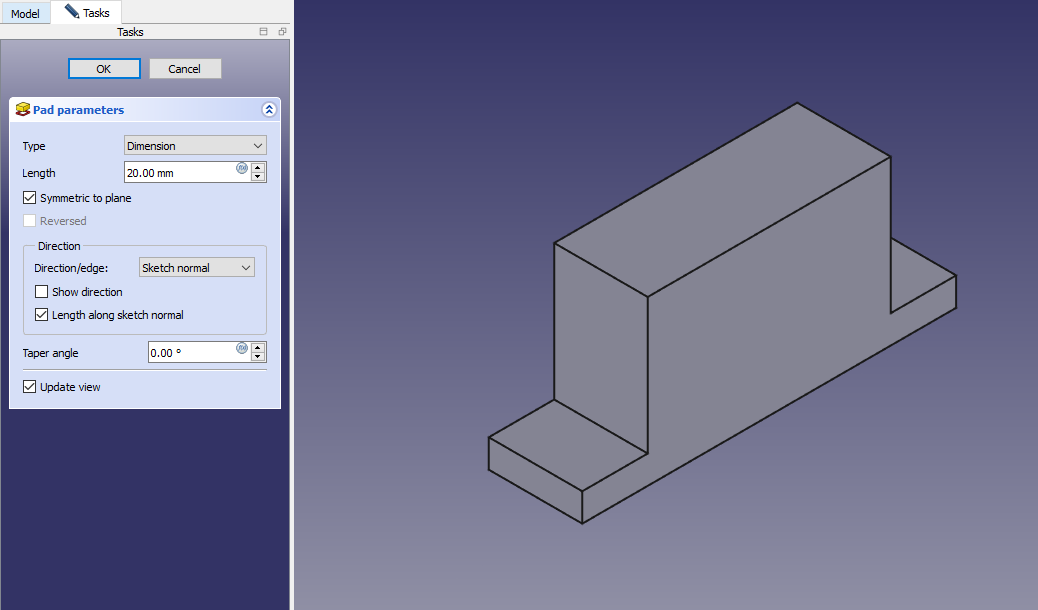

Create the Pad of 20mm As shown in below image.
Create the pad of of 3.5mm As shown in below image.

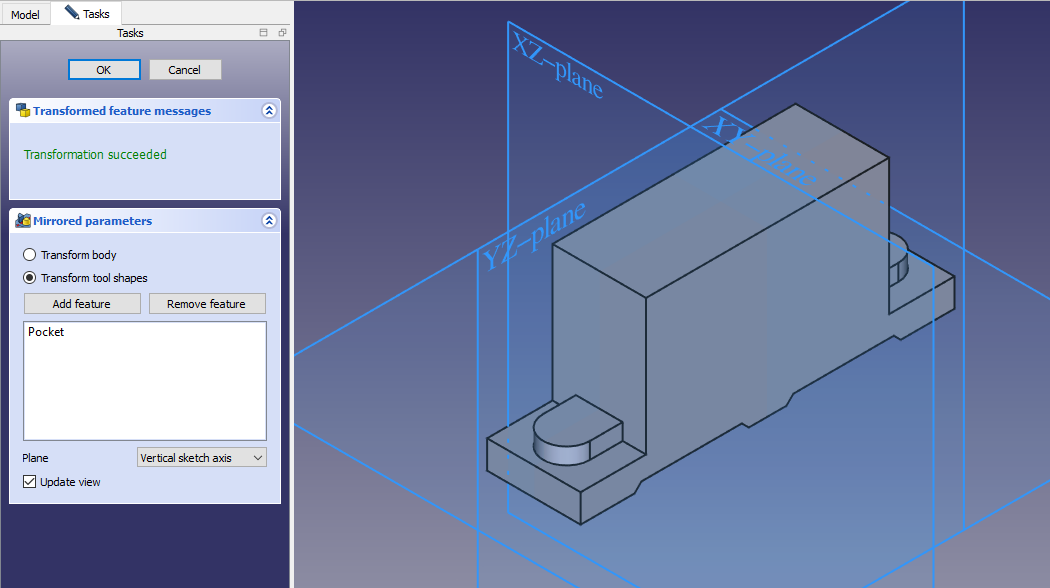

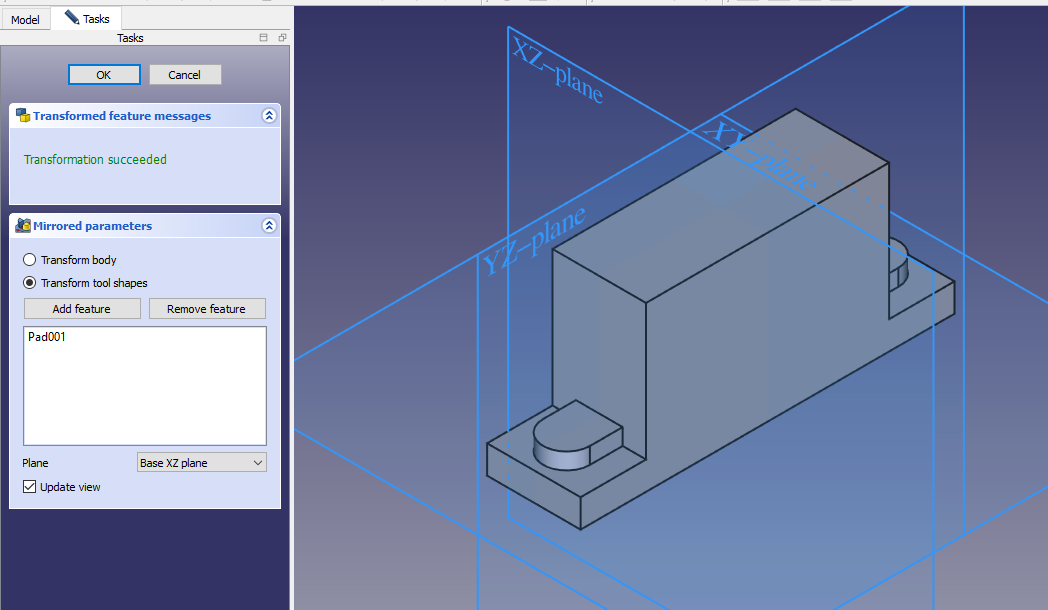

Create the mirror As shown in below image.

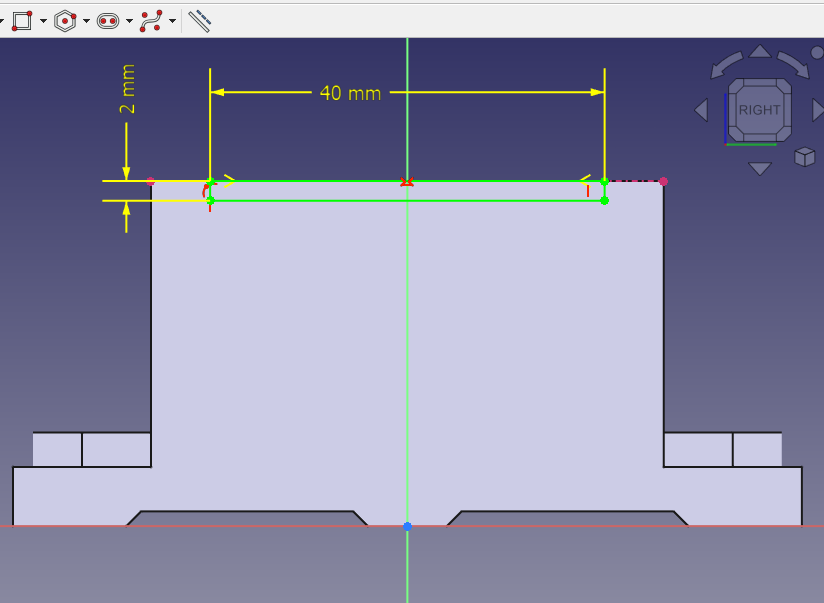

Select the face and create the below sketch.

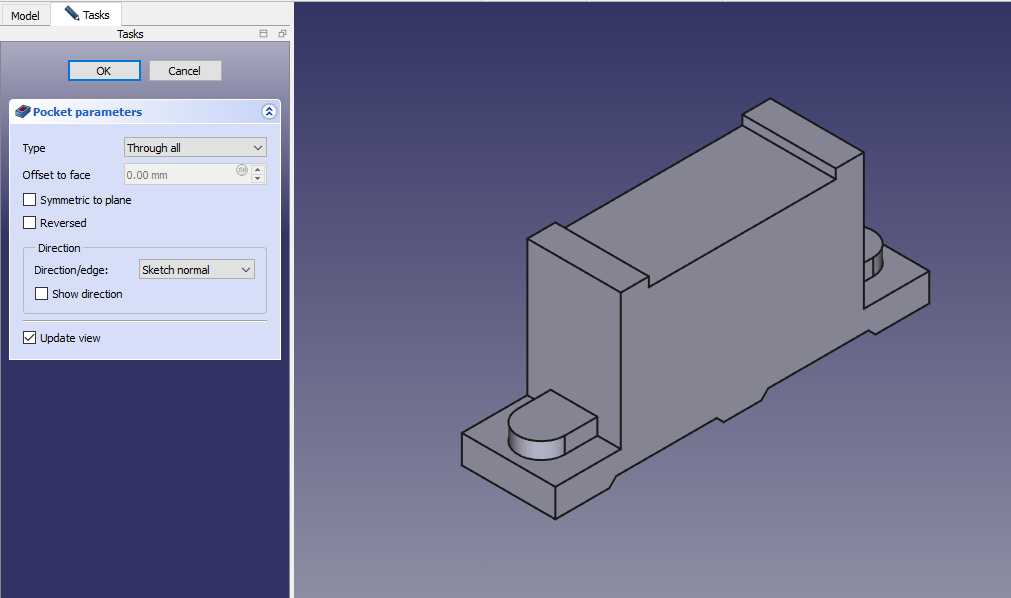

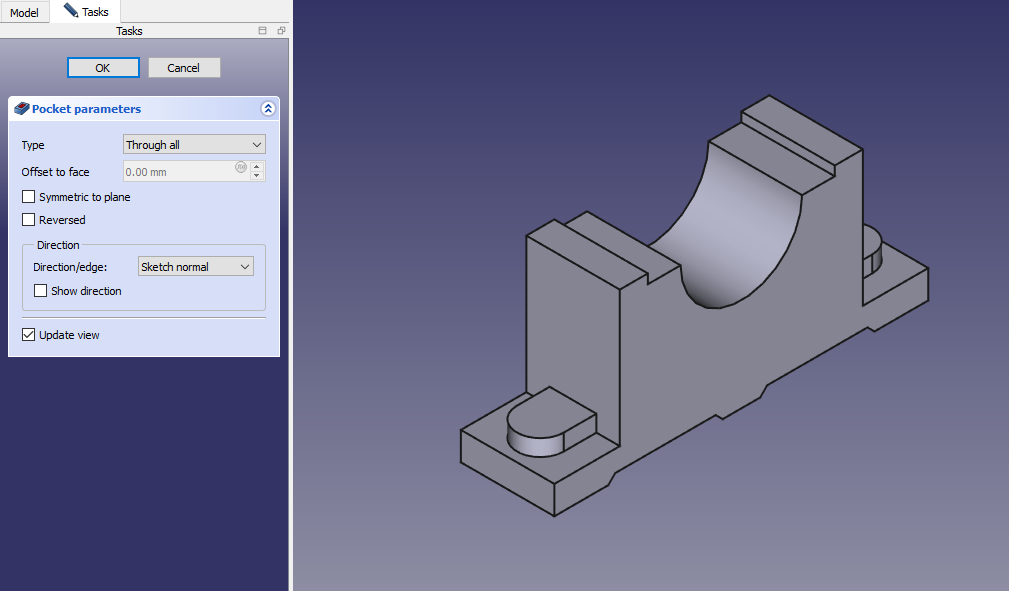

Create the cut As shown in below image.

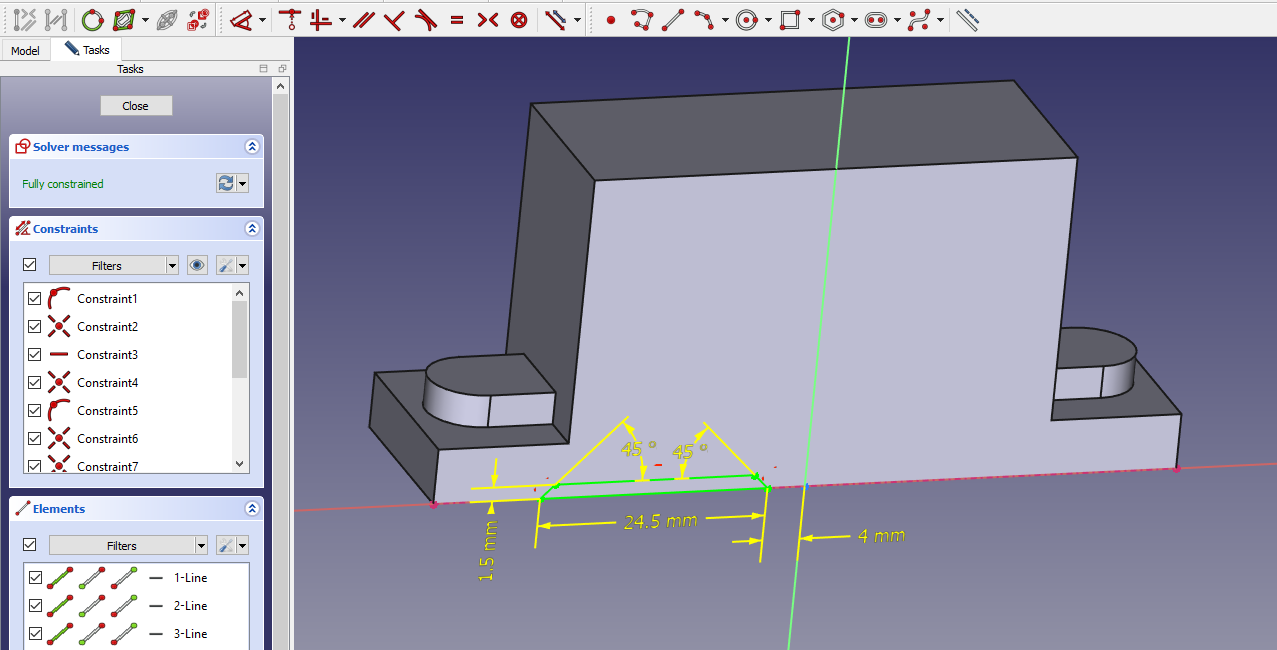

Select the face and create the below sketch.
Create the cut As shown in below image.

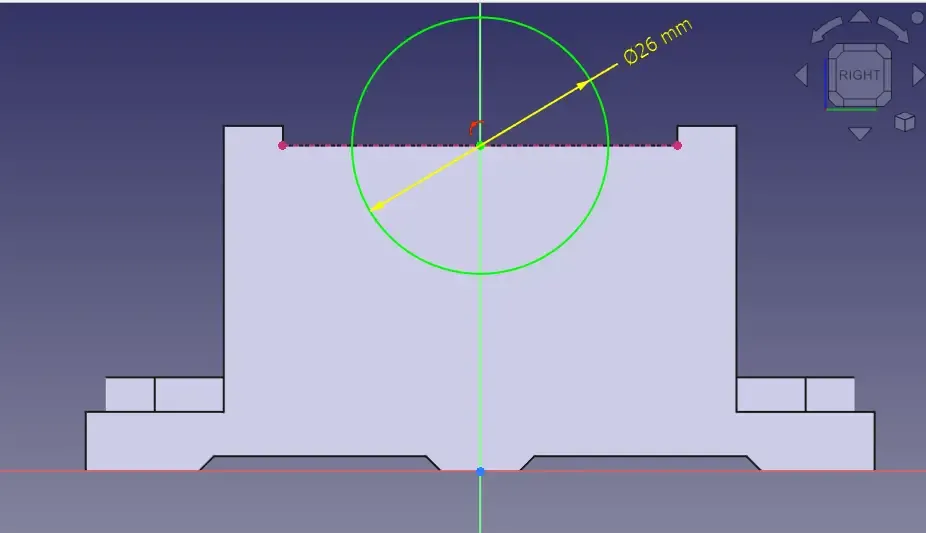

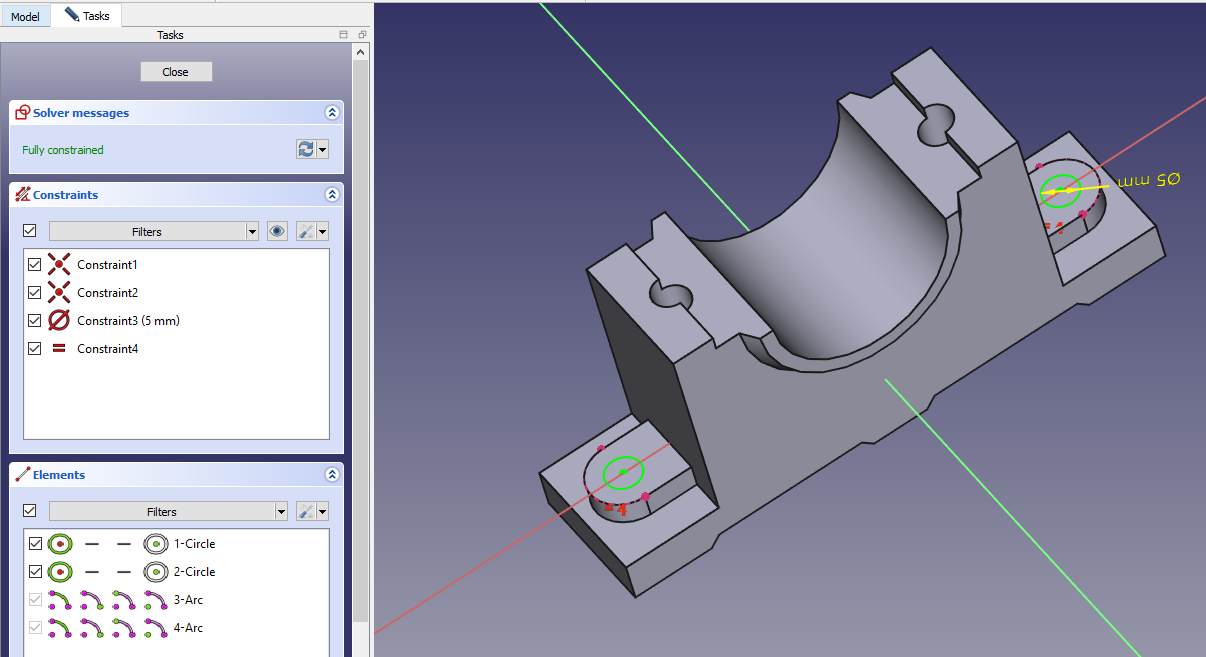

Select the face and create the hole sketch of diameter 26mm.
Create the cut As shown in below image.

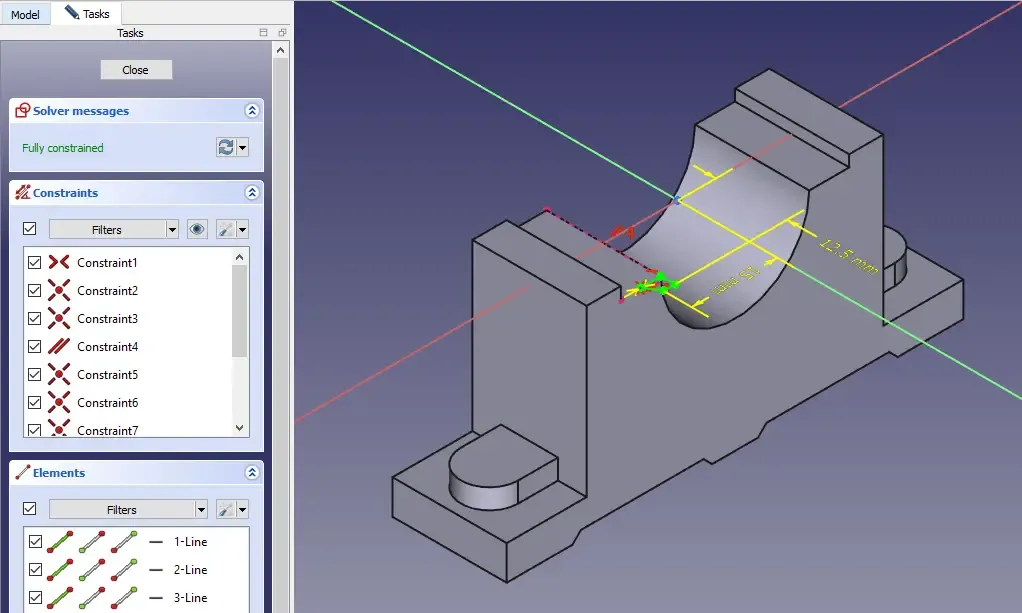

Select the top face and create the below sketch.

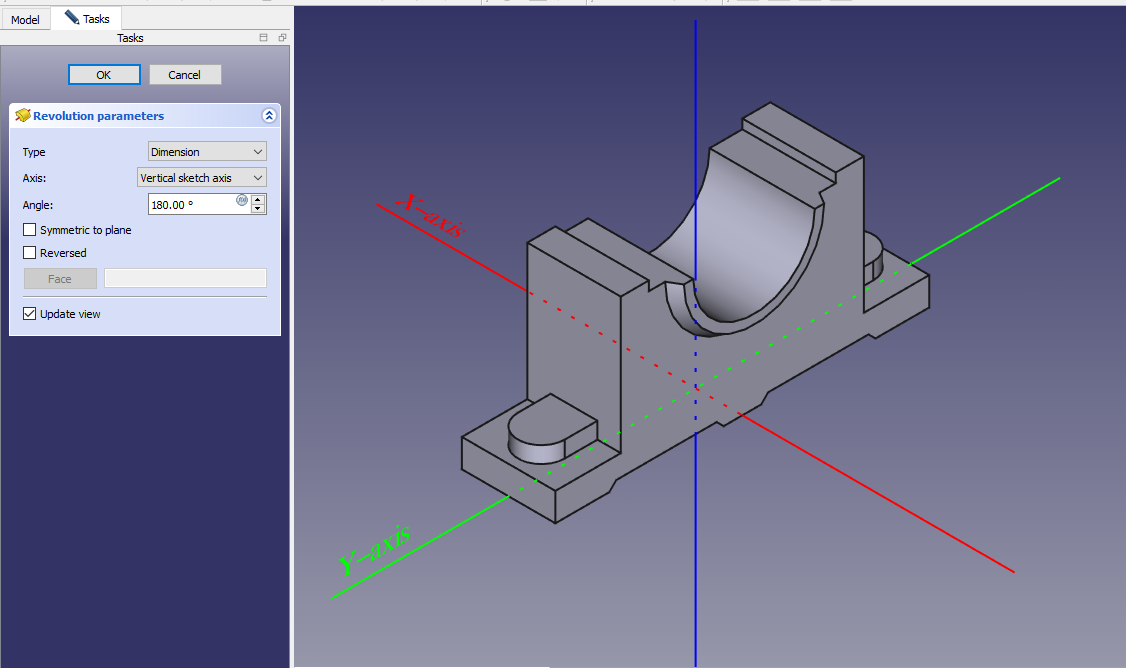

Create the revolve feature As shown in below image.
Now create the mirror As shown in below image.

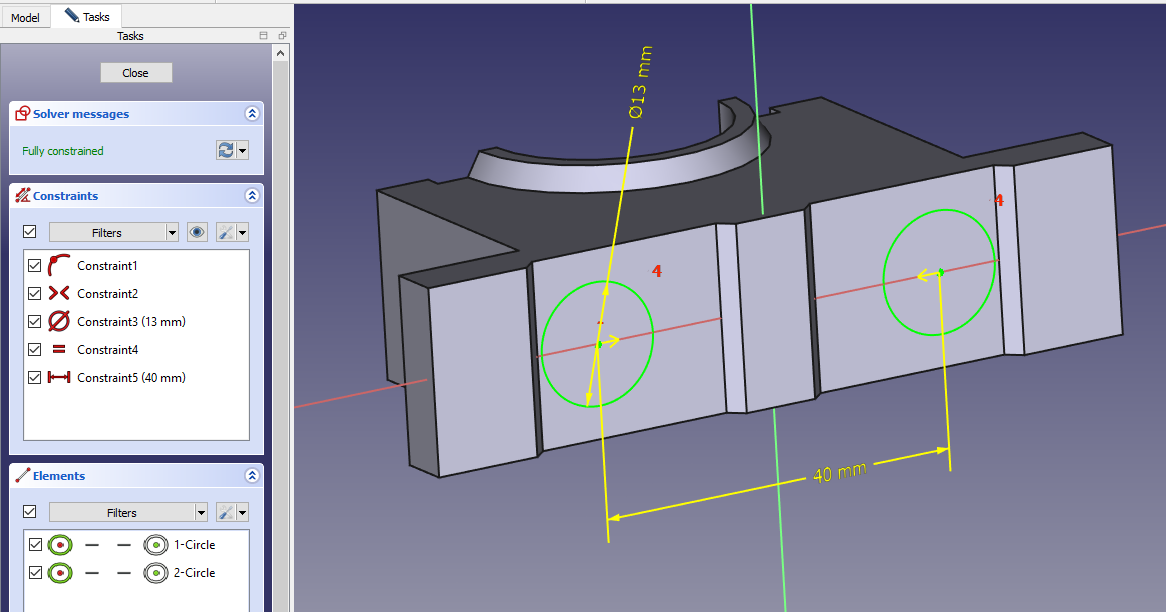

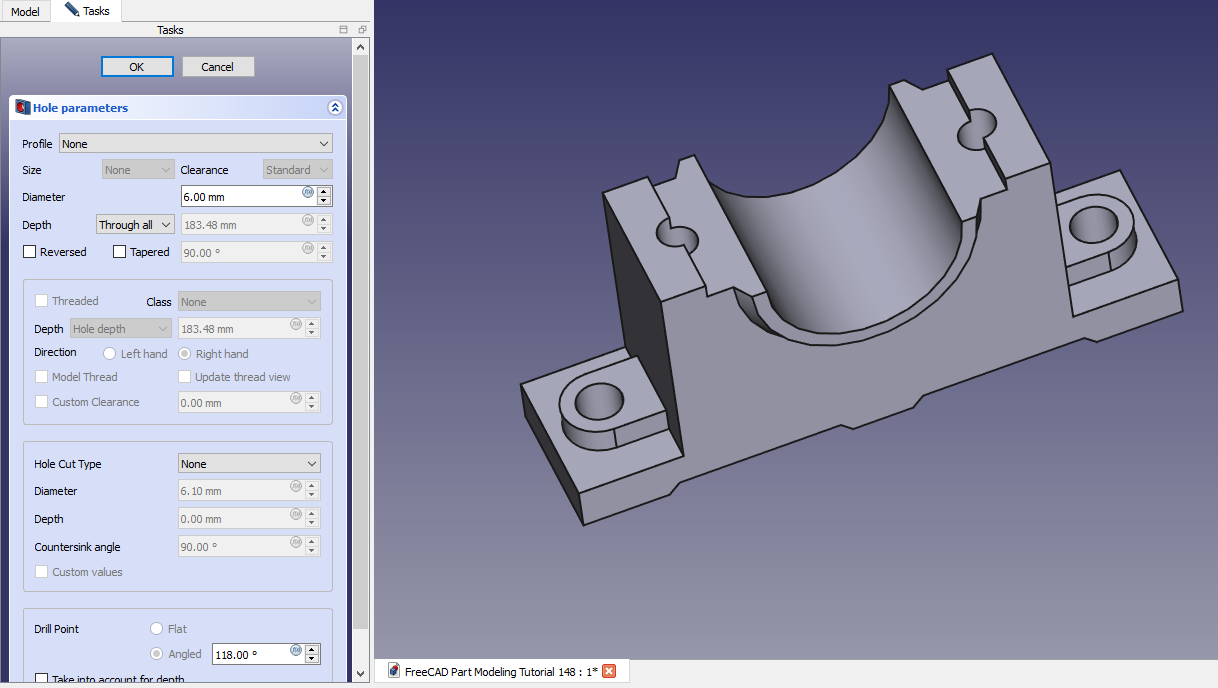

Create the below hole sketch As in below image.

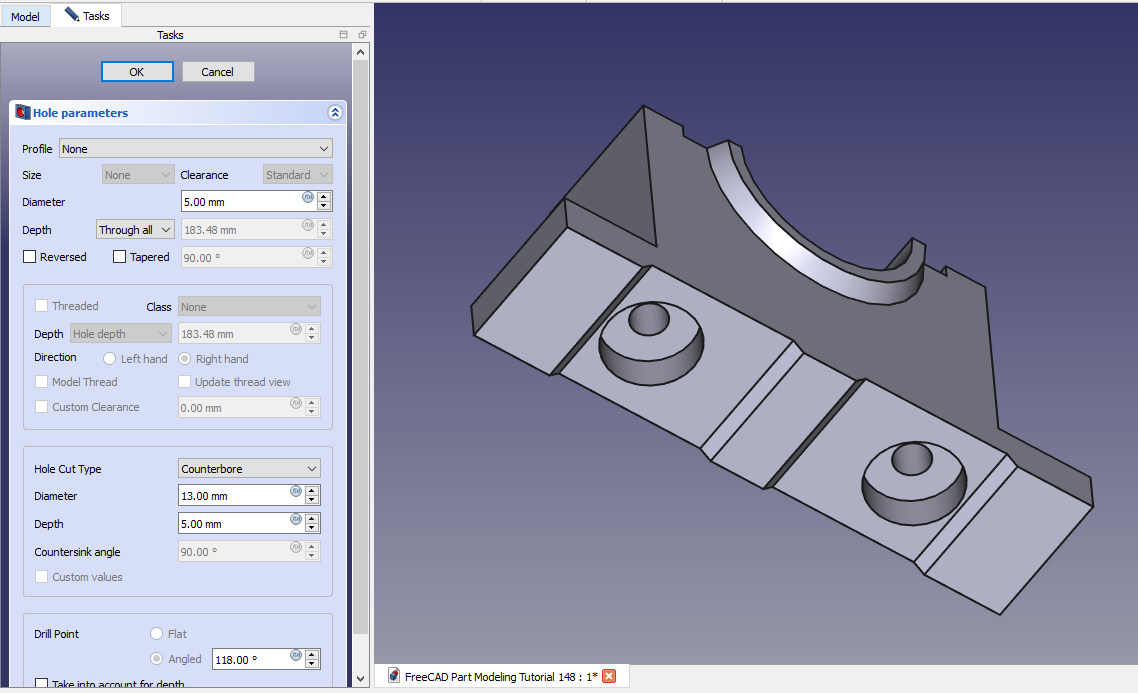

Create counterbore hole As shown in below image.
Select the top face and create the below sketch.
Create the hole As shown in below image.
