Hello friends welcome to FreeCAD Part Modeling tutorial. In this tutorial we will do modeling of Fixture Block in FreeCAD with the help of Part Design Workbench. If you want to learn FreeCAD from scratch you can buy my Complete FreeCAD 1.0 Course : From Zero to Expert! on Udemy.
Related Posts-:

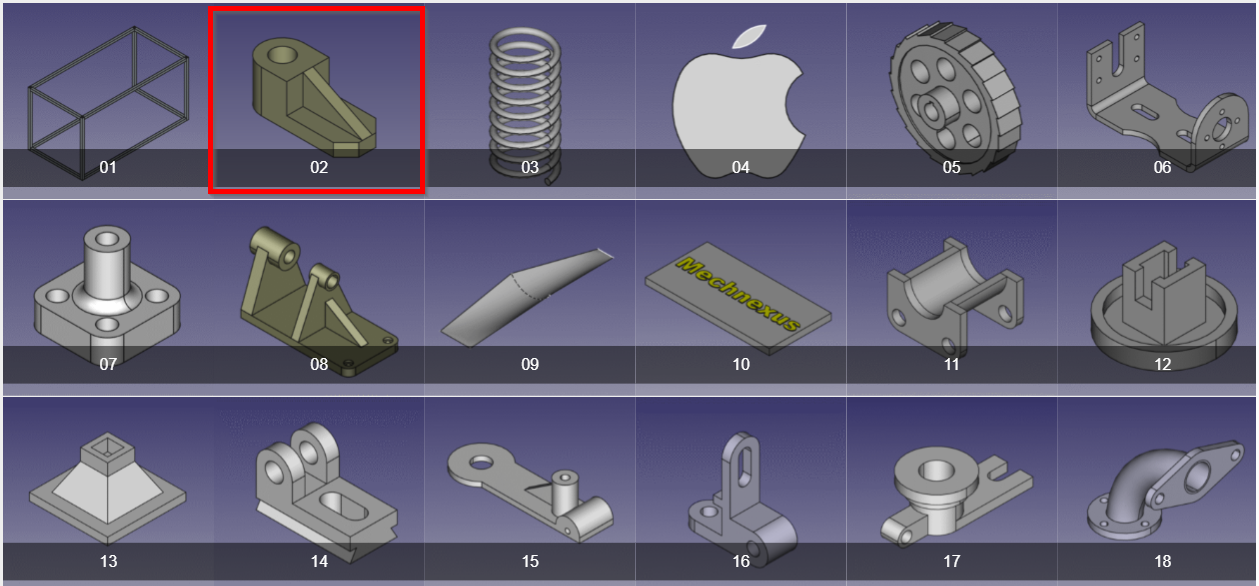

You can download this tutorial FreeCAD model with my FreeCAD 3D Model Library with Serial No.02 As shown in below image. once you click on image you will directed to Google drive folder where you will get FreeCAD model and it’s 2D Drawing. If you like my work please support me on ko-fi.com even if it’s just enough to Buy me a Coffee every little helps and this will be repaid in full through my sharing of knowledge.
Step by Step Guide to Model Fixture Block in FreeCAD -:
Select the top plane and create sketch As shown in below image.

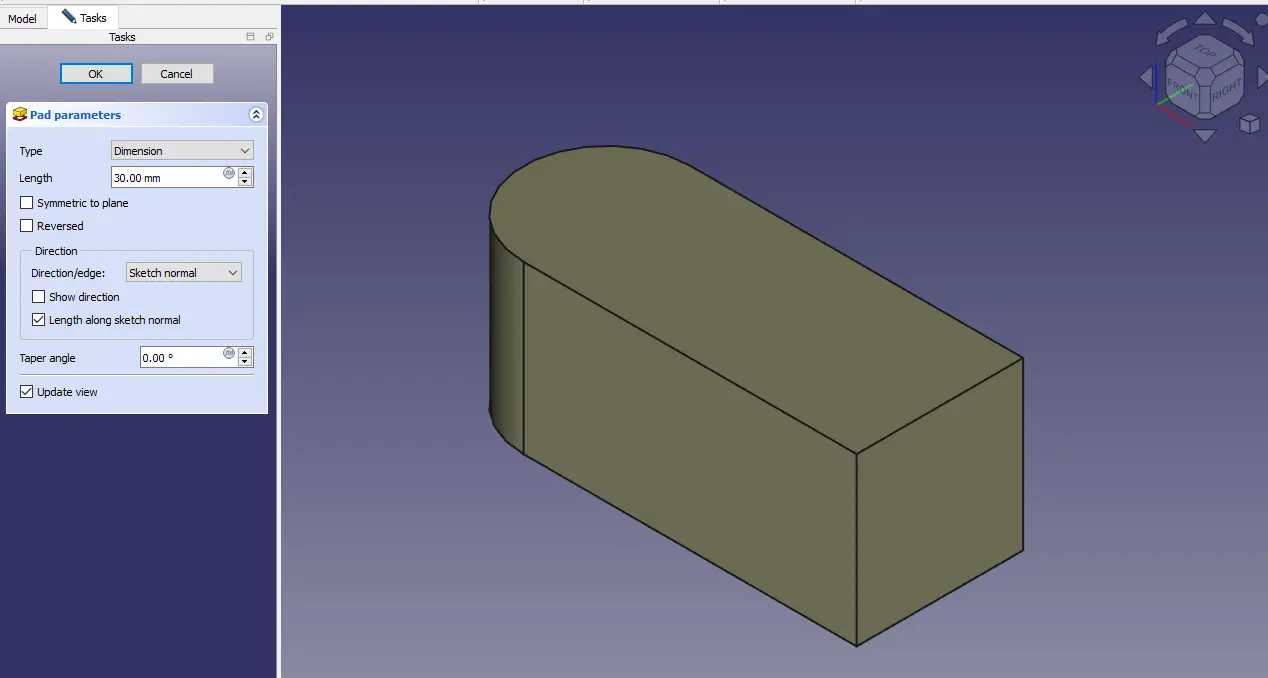

Now create Pad of 30 mm As shown in below image.

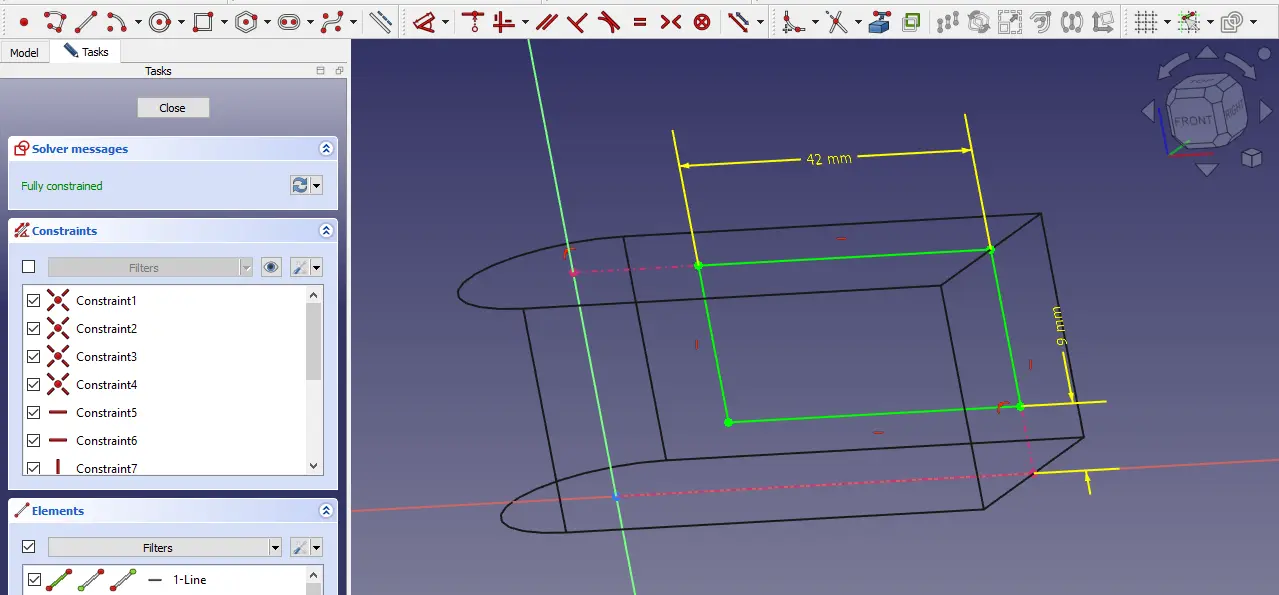

Now select the mid plane and create below sketch.
Now create the cut As show in below image.

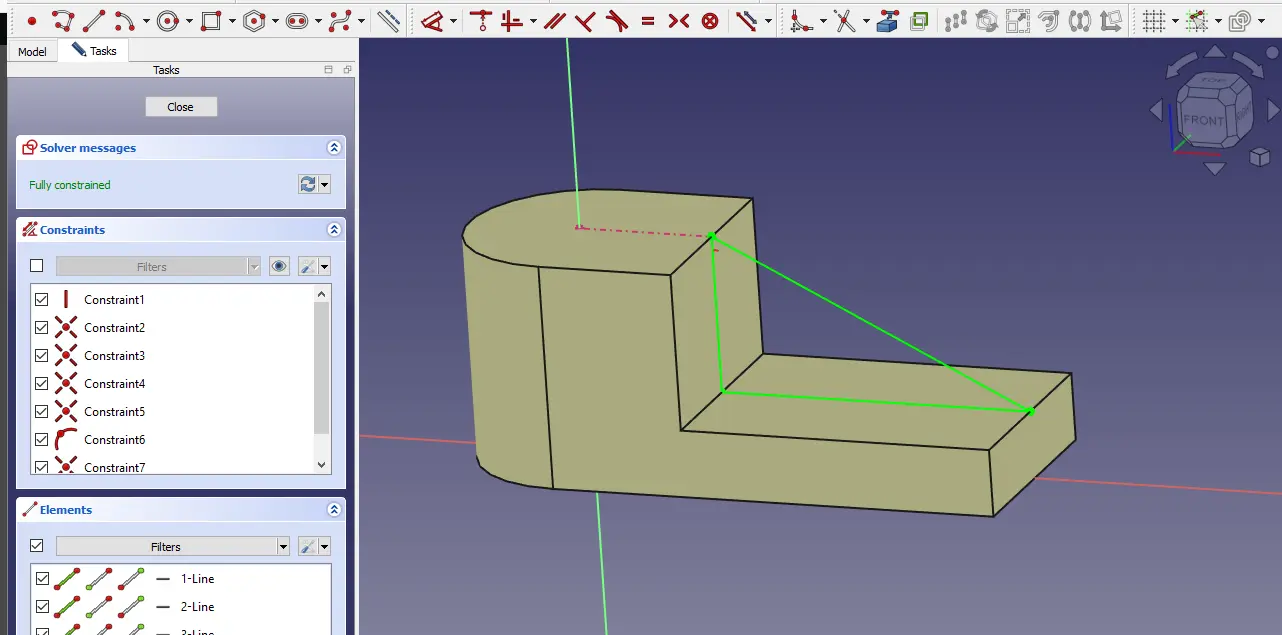

Now on mid plane create Triangular profile As shown in below image.

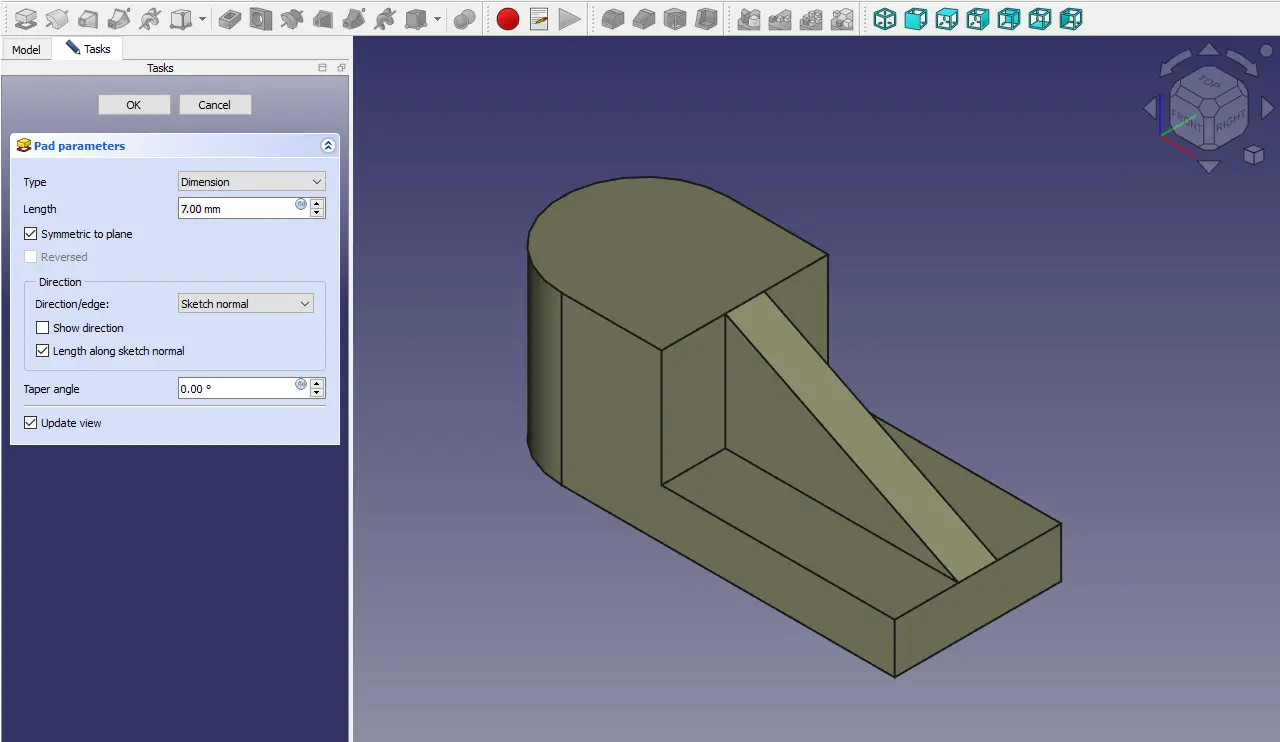

Now extrude above triangular profile to 7mm As shown in below image. Keep it symmetric to plane.

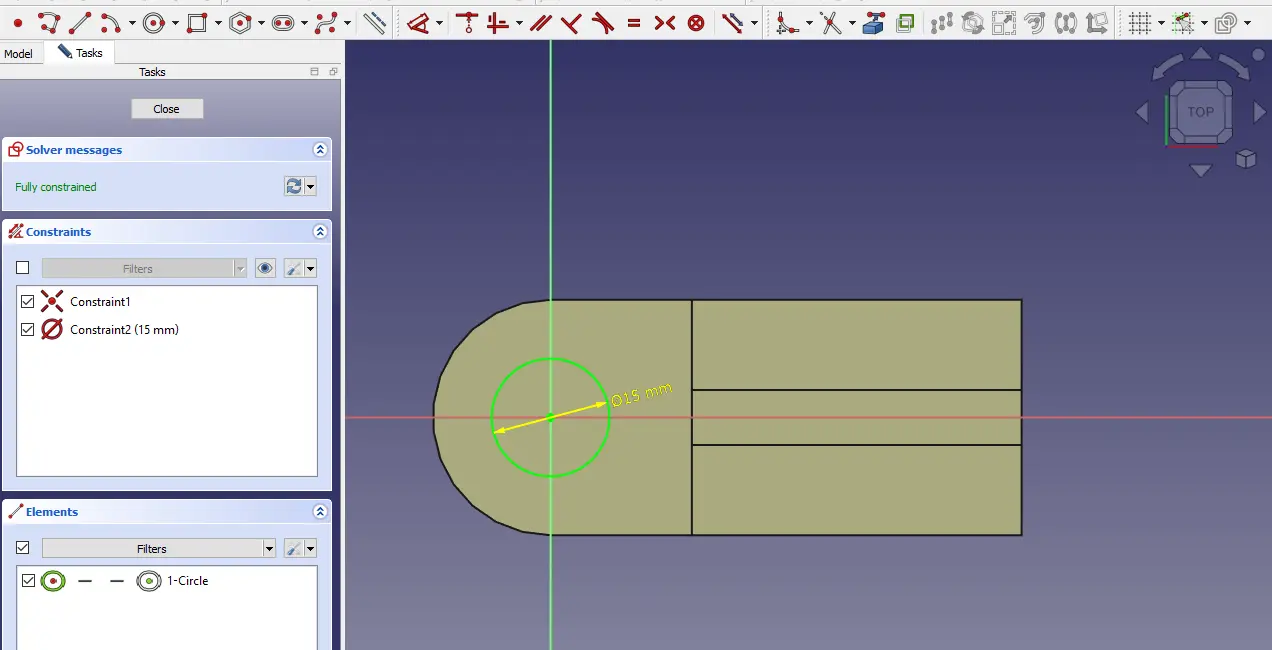

Now select top face of part and create circle of 15mm As shown in below image.

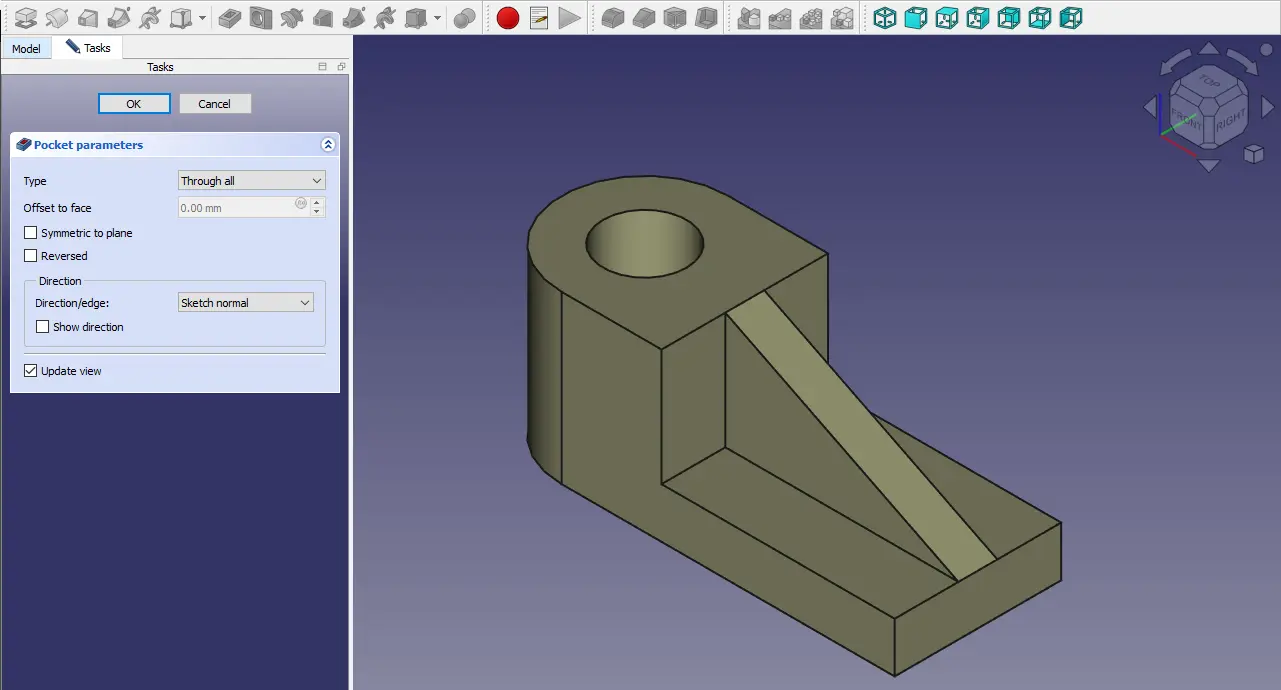

Now create the hole cut As shown in below image.

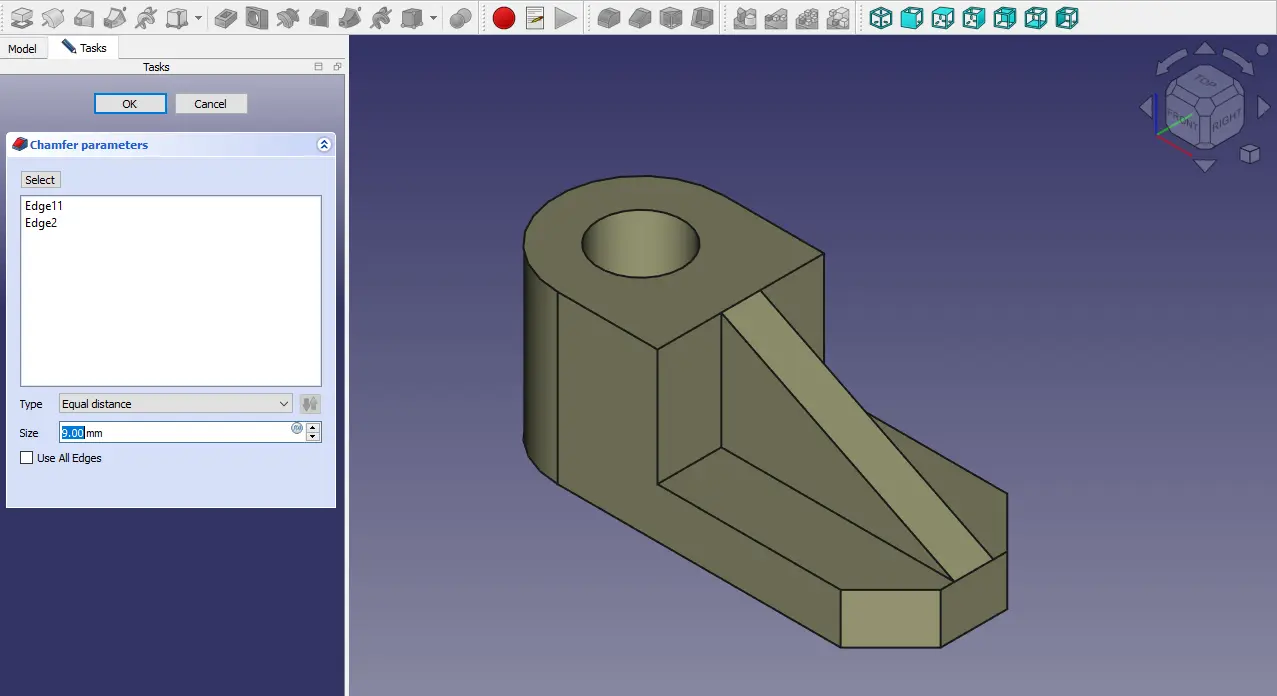

Now select the both edge and create chamfer of 9mm As shown in below image.
