Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned Model V Block in FreeCAD. In this tutorial we will do modeling of V Block with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.
Also Read-:
| FreeCAD as An Open-Source Parametric 3D Modeling Software |
| How to Import and Export Files in FreeCAD |
| FreeCAD Part Modeling Tutorial 81 |
Also Read-:
| Model Hinge Block in FreeCAD |
| Model Socket Bearing in FreeCAD |
| Model V Block in FreeCAD |
Step by Step Guide to Convert below drawing into 3D Model -:
Select Front Plane create below sketch.
Extrude the above sketch to 13 mm as shown in below image.
Give fillet to all 4 corner as shown in below image.
Select the face and create the below sketch.
Extrude the above sketch to 3 mm as shown in below image.
Create the below sketch on slot face.
Create the Cut Through All as Shown in below image.
Select the mid plane and create below sketch.
Extrude the above sketch to 30 mm as shown.
Select the Face and Create the sketch as Shown.
Remove the material for above profile.
Project the cut edge and create below sketch.
Extrude the above profile in two direction as shown in below image.

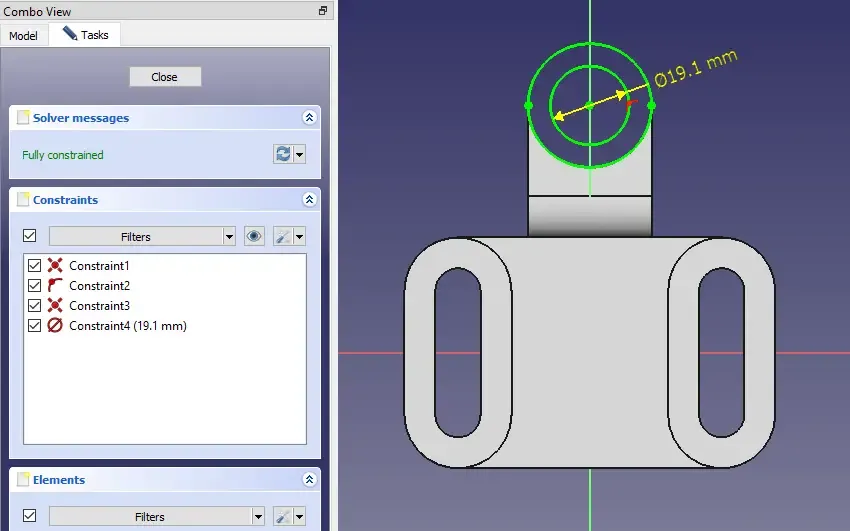

Now select the face and create the below sketch profile.
Now remove the material and set condition through all as shown in below image.
