Model Bracket in FreeCAD : (Gallery Serial No.12)

Hello friends welcome to FreeCAD Part Modeling tutorial. In this tutorial we will Model Bracket in FreeCAD with the help of Part Design Workbench. If you want to learn FreeCAD from scratch you can buy my Complete FreeCAD 1.0 Course : From Zero to Expert! on Udemy.

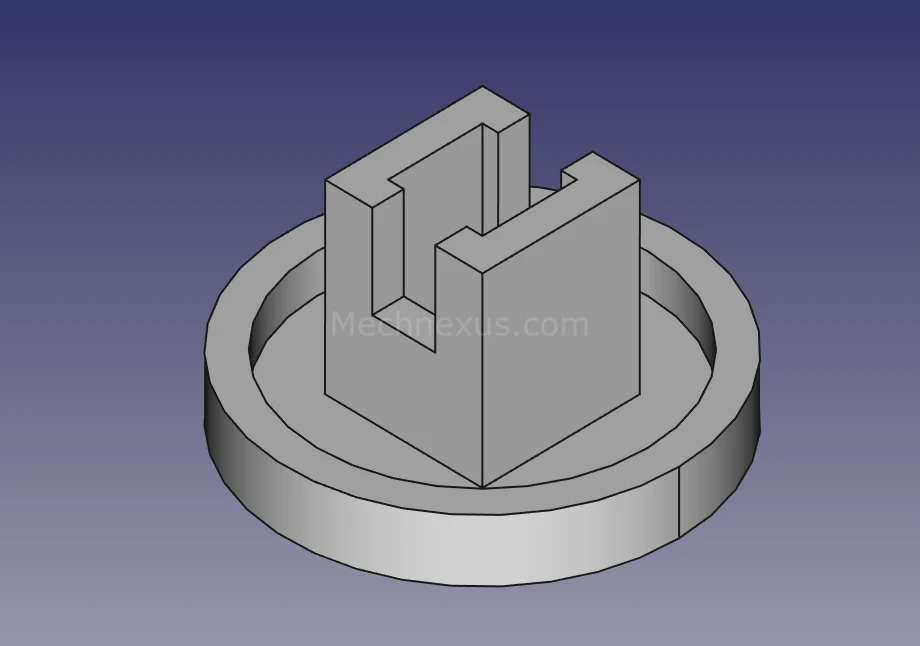

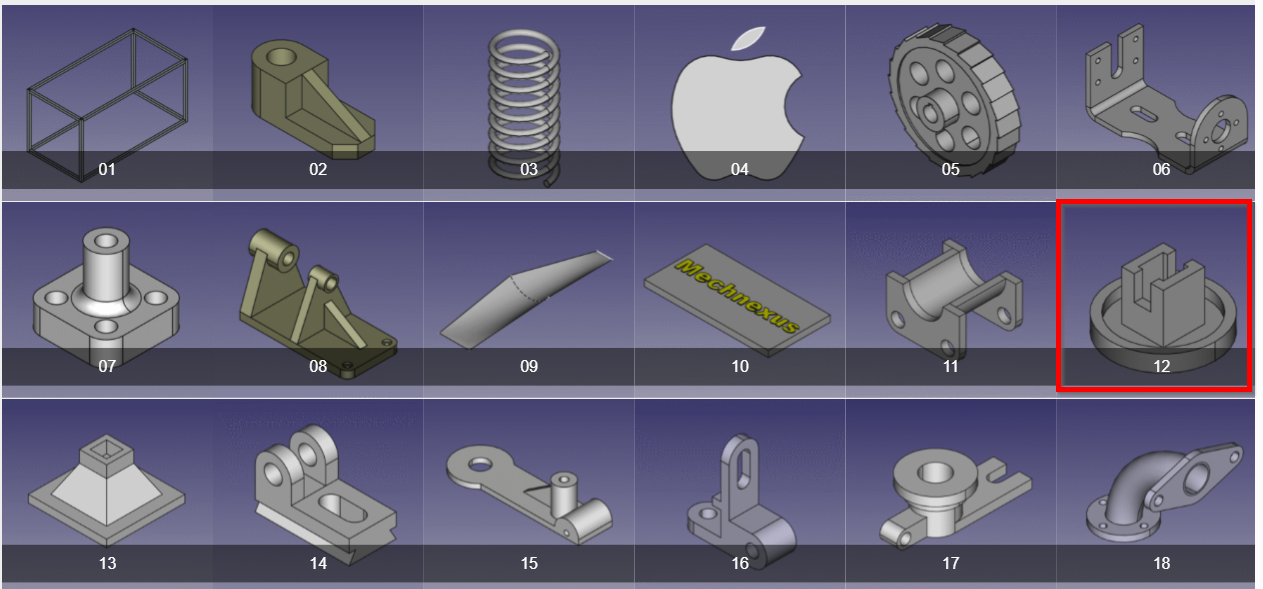

You can download this tutorial FreeCAD model with my FreeCAD 3D Model Library with Serial No.12 As shown in below image. once you click on image you will directed to Google drive folder where you will get FreeCAD model and it’s 2D Drawing. If you like my work please support me on ko-fi.com even if it’s just enough to Buy me a Coffee every little helps and this will be repaid in full through my sharing of knowledge.

Step by Step Guide to Model Bracket in FreeCAD-:

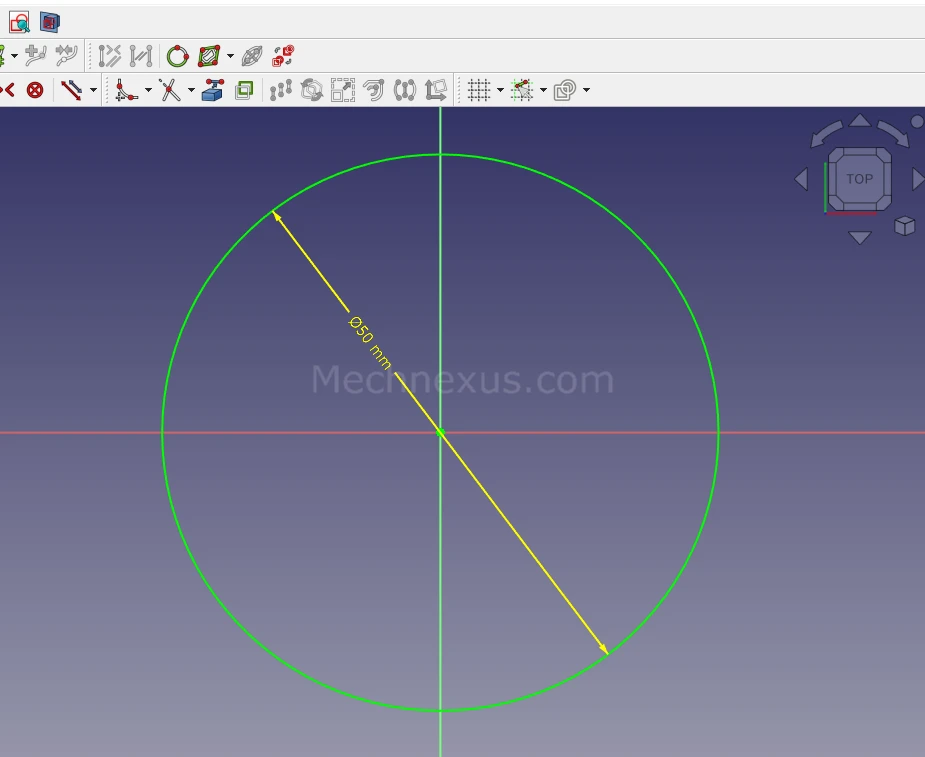

Select the top plane and create circle of 50mm As shown in below image.

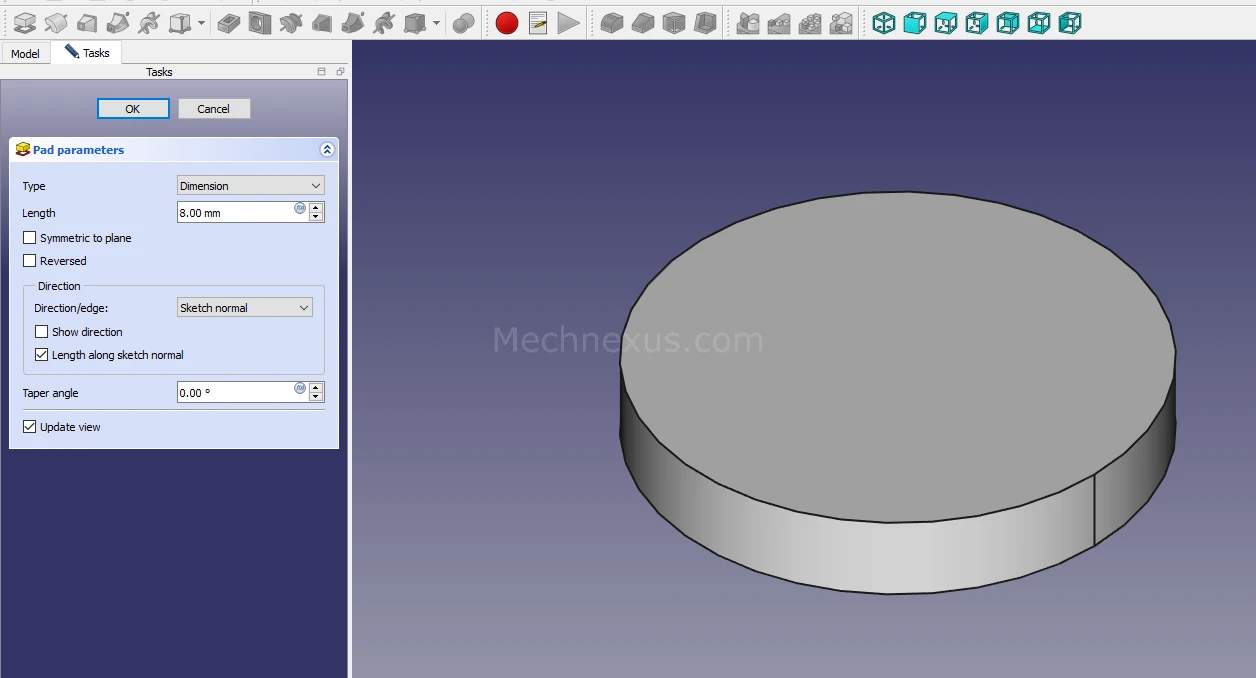

Create the pad of 8mm As shown in below image.

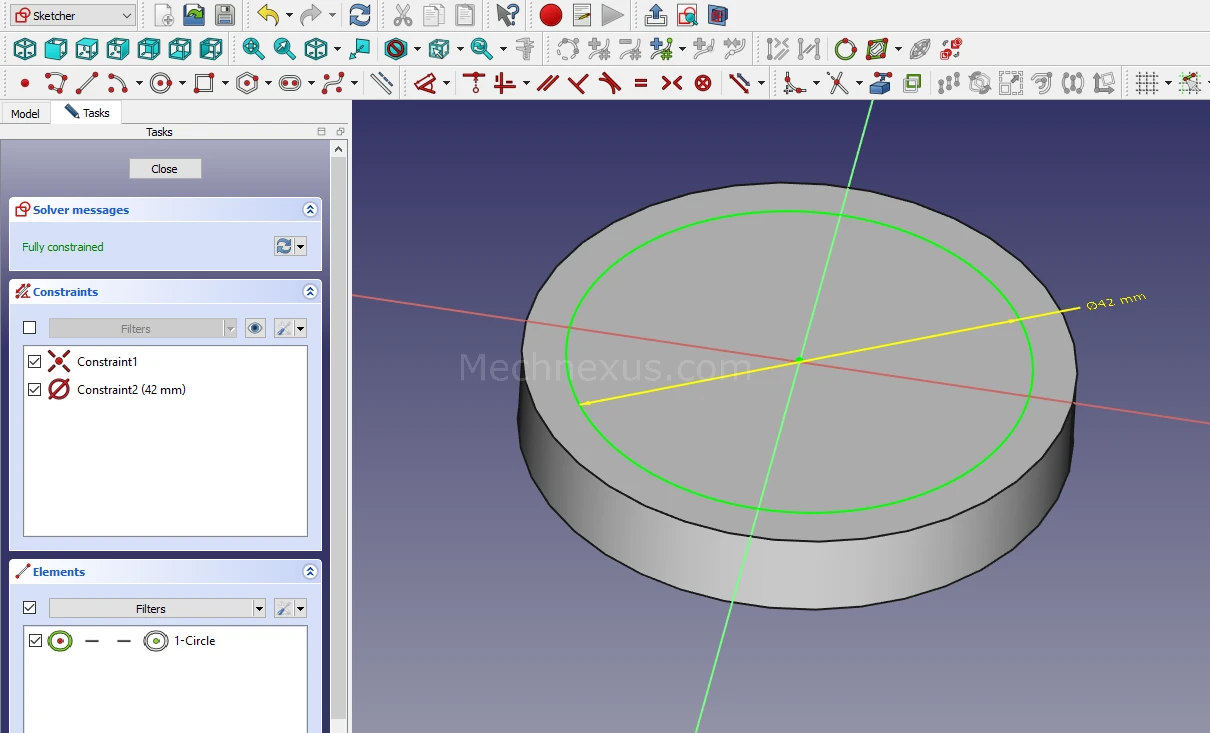

Now select the top face and create circle of 42mm As shown in below image.

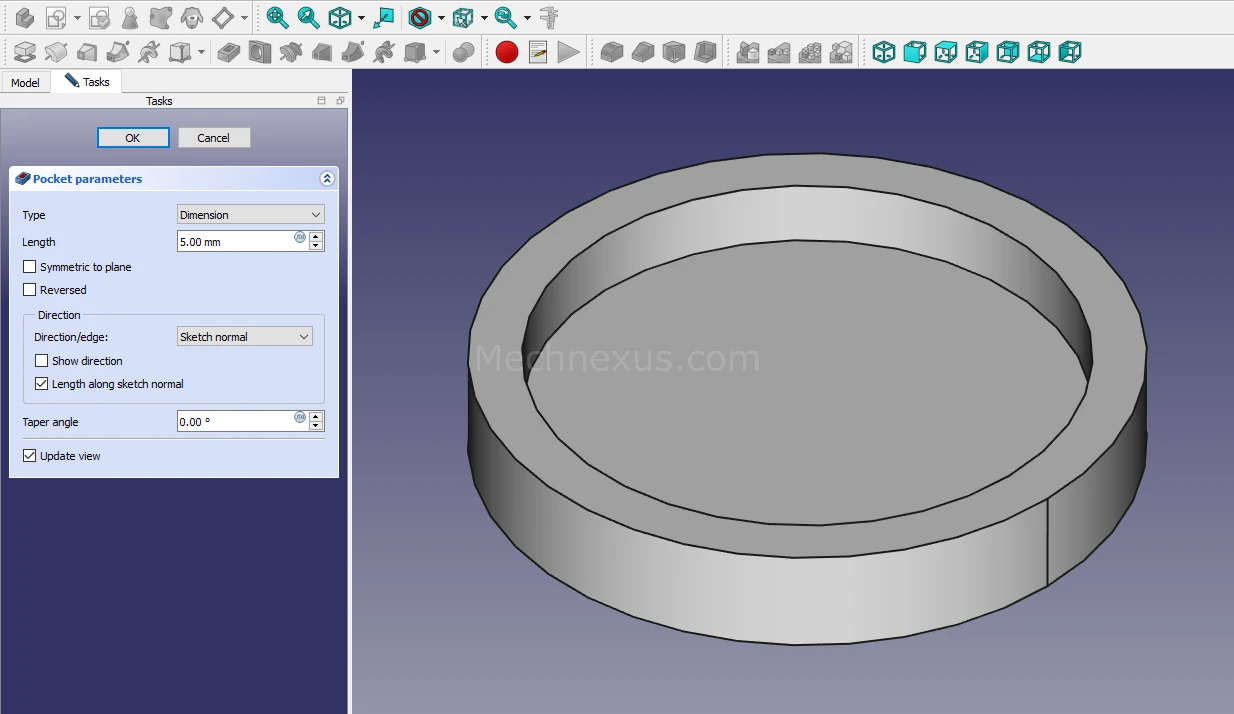

Now create cut of 5mm depth As shown in below image.

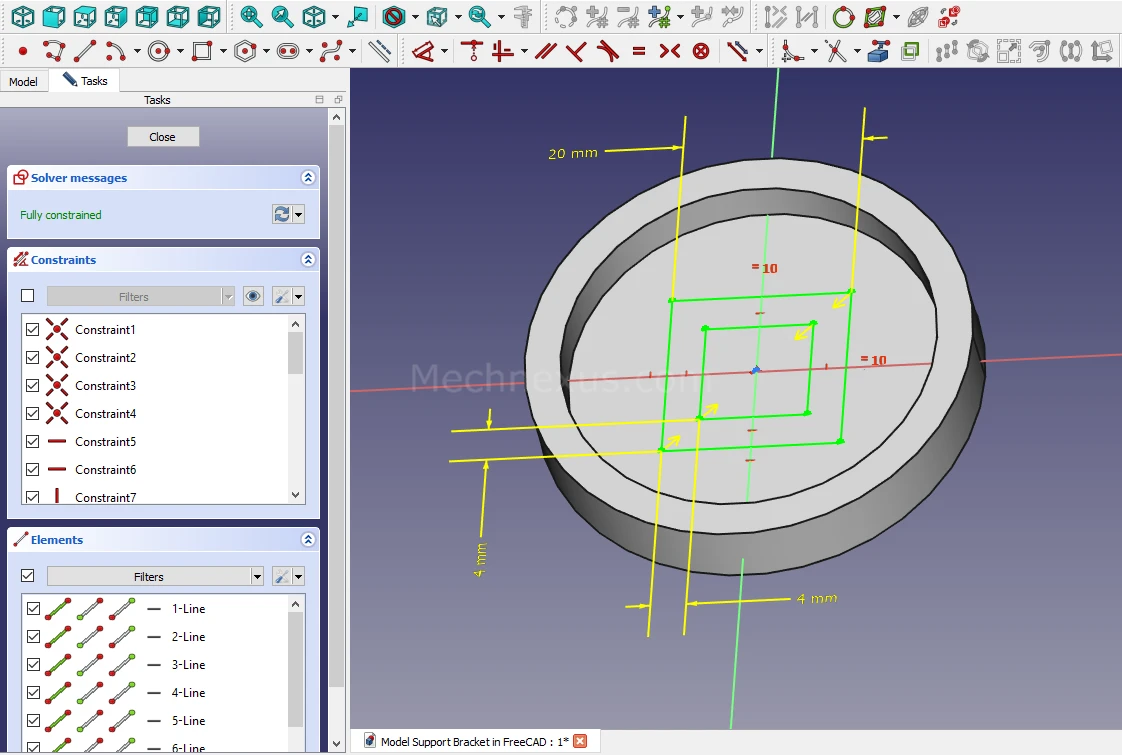

Now select the top face and create below sketch.

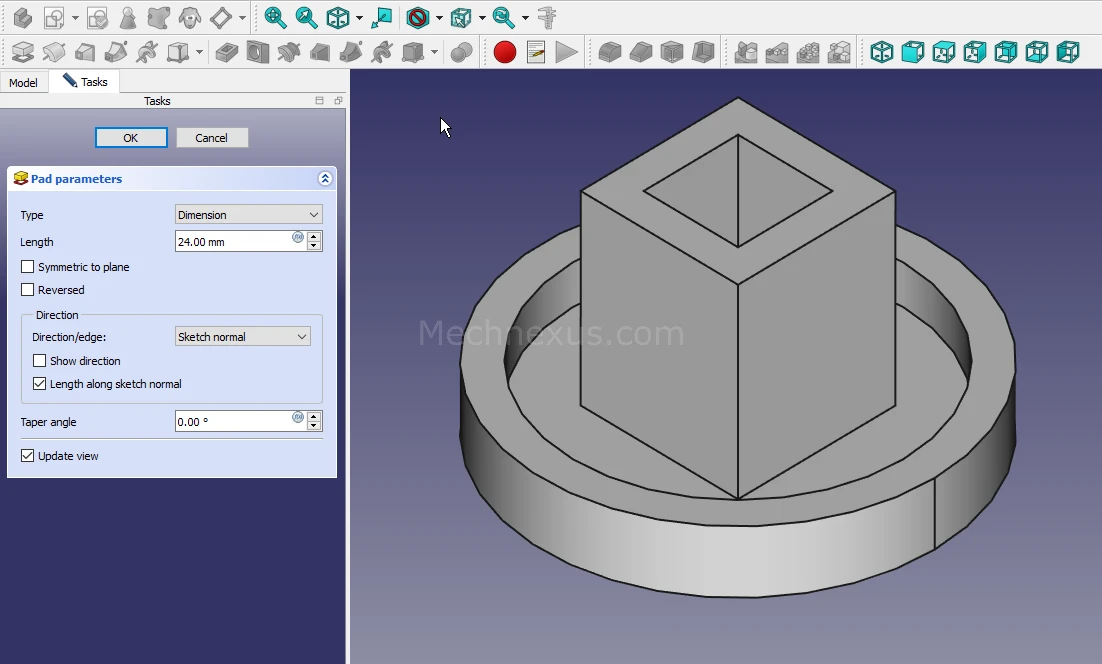

Now add the material to distance of 24mm As shown in below image.

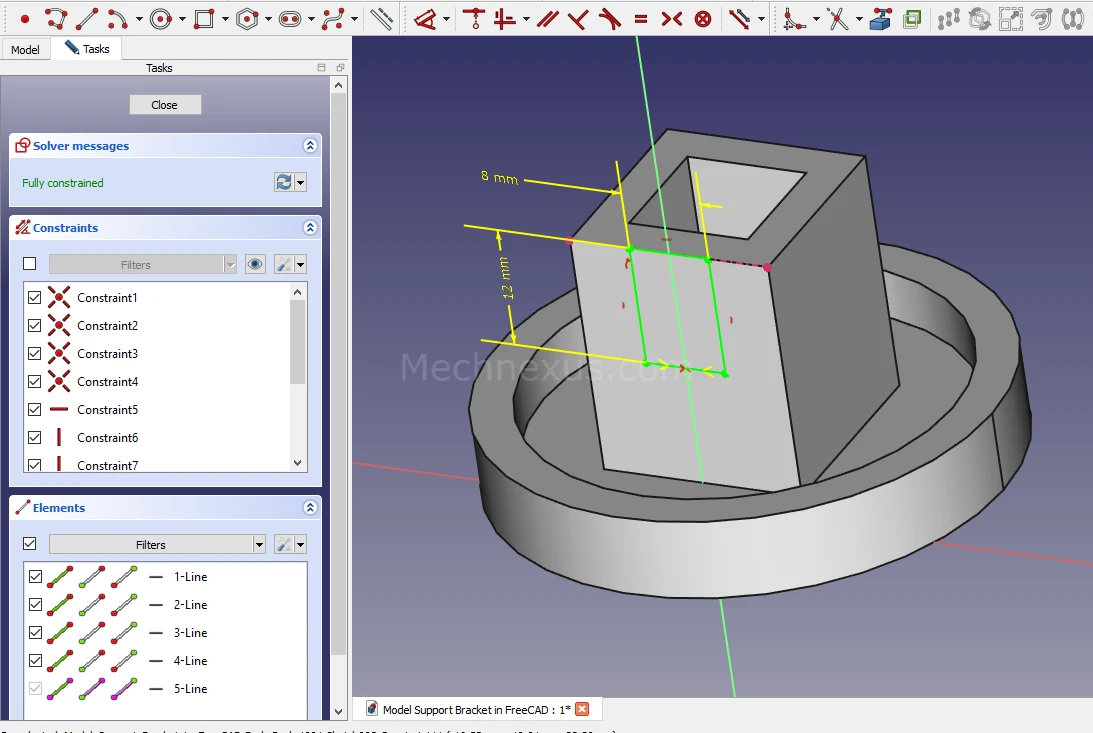

Now select the side face and create sketch As shown in below image.

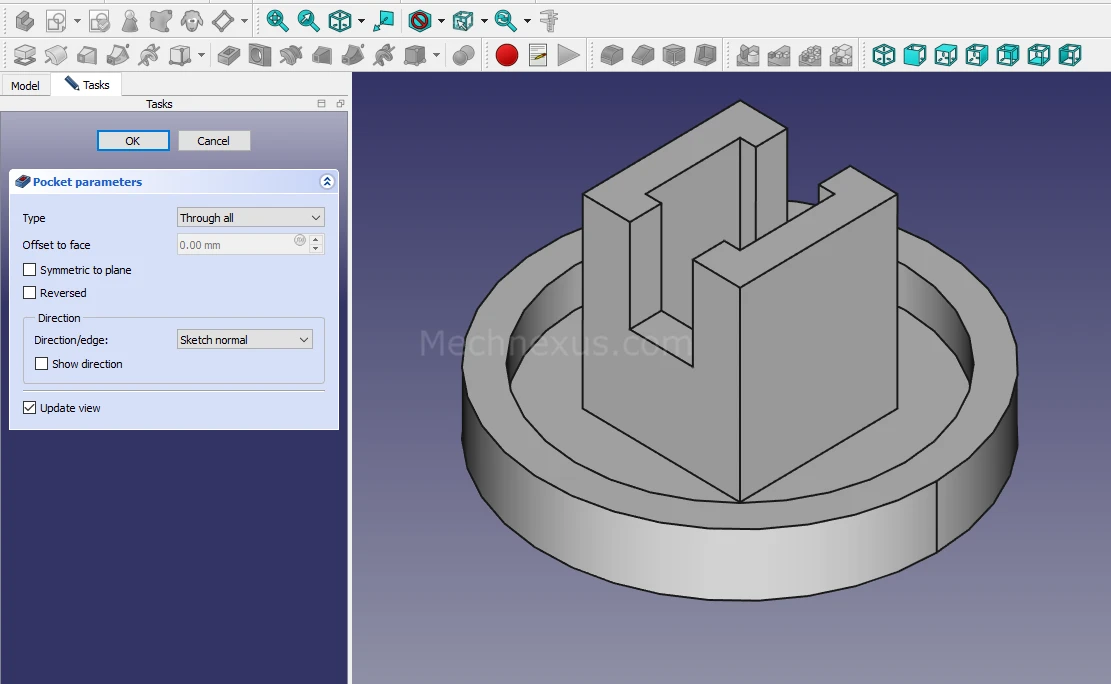

Now create through all cut As shown in below image.
