Model Bracket in FreeCAD : (Gallery Serial No.13)

Hello friends welcome to FreeCAD Part Modeling tutorial. In this tutorial we will model Apple Logo in FreeCAD with the help of Part Design Workbench. If you want to learn FreeCAD from scratch you can buy my Complete FreeCAD 1.0 Course : From Zero to Expert! on Udemy.

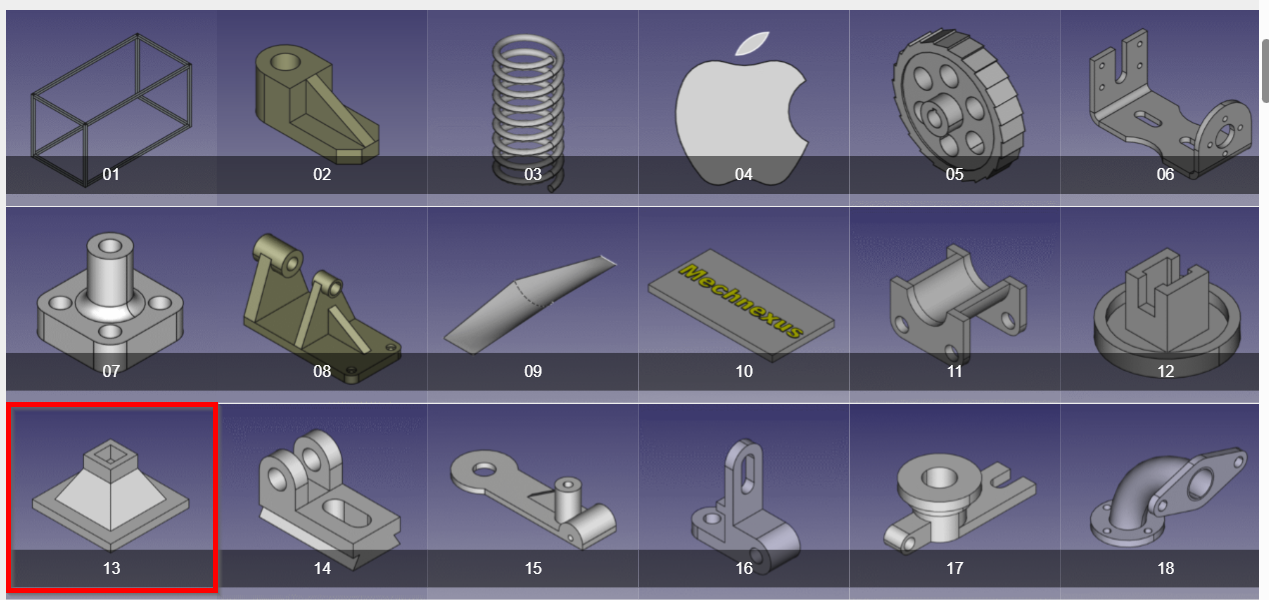

You can download this tutorial FreeCAD model with my FreeCAD 3D Model Library with Serial No.13 As shown in below image. once you click on image you will directed to Google drive folder where you will get FreeCAD model and it’s 2D Drawing. If you like my work please support me on ko-fi.com even if it’s just enough to Buy me a Coffee every little helps and this will be repaid in full through my sharing of knowledge.

Step by Step Guide to Model Bracket in FreeCAD-:

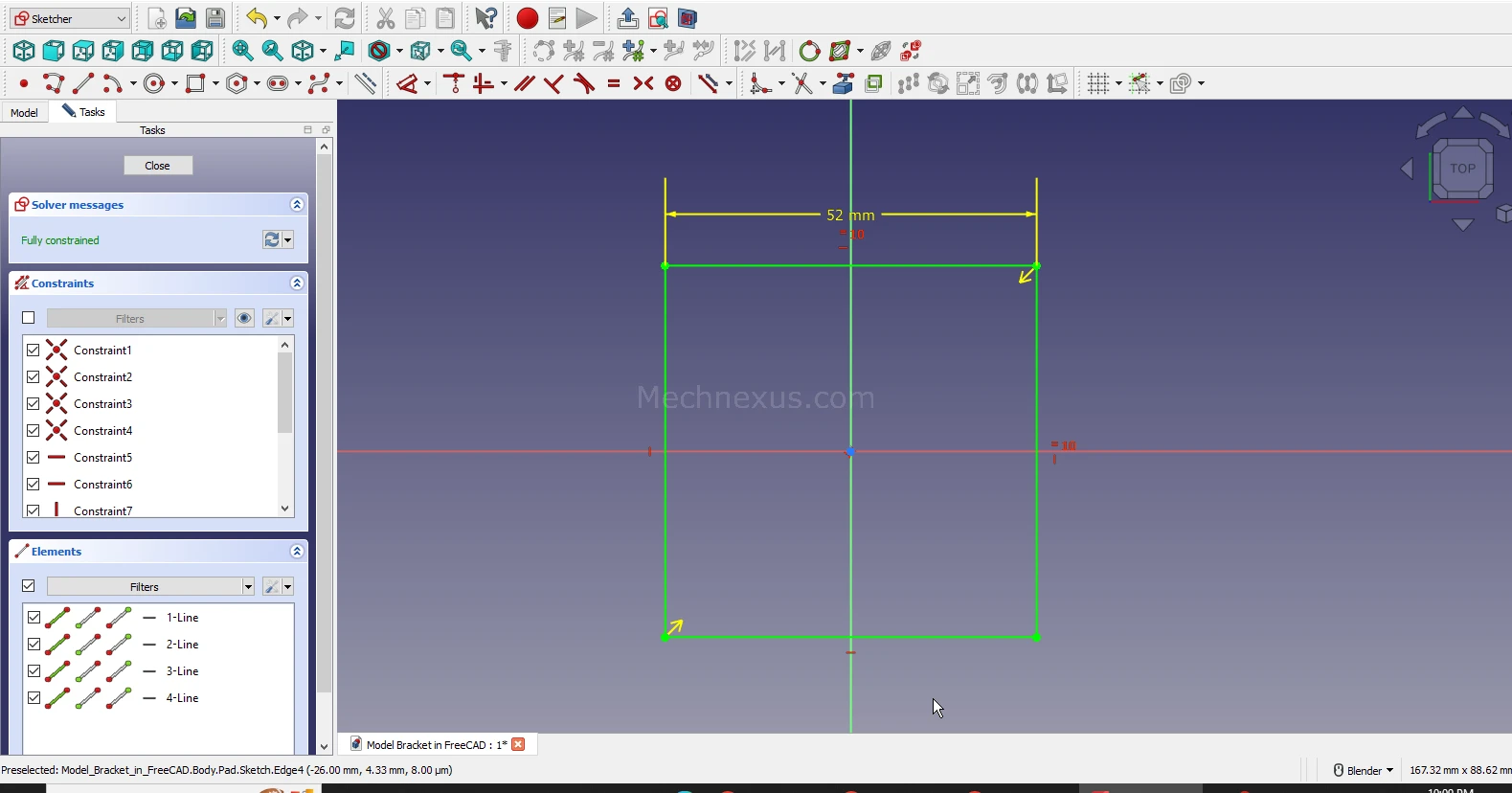

Select the top plane and create square of 52mm As shown in below image.

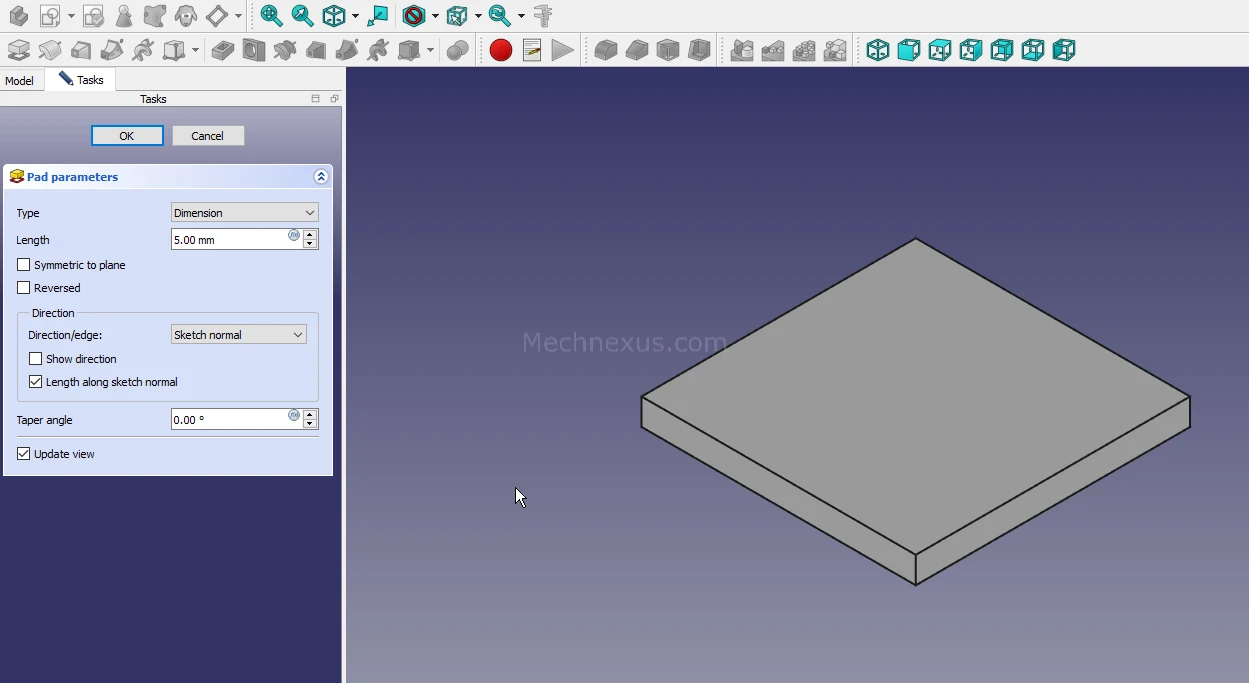

Now create Pad of 5mm As shown in below image.

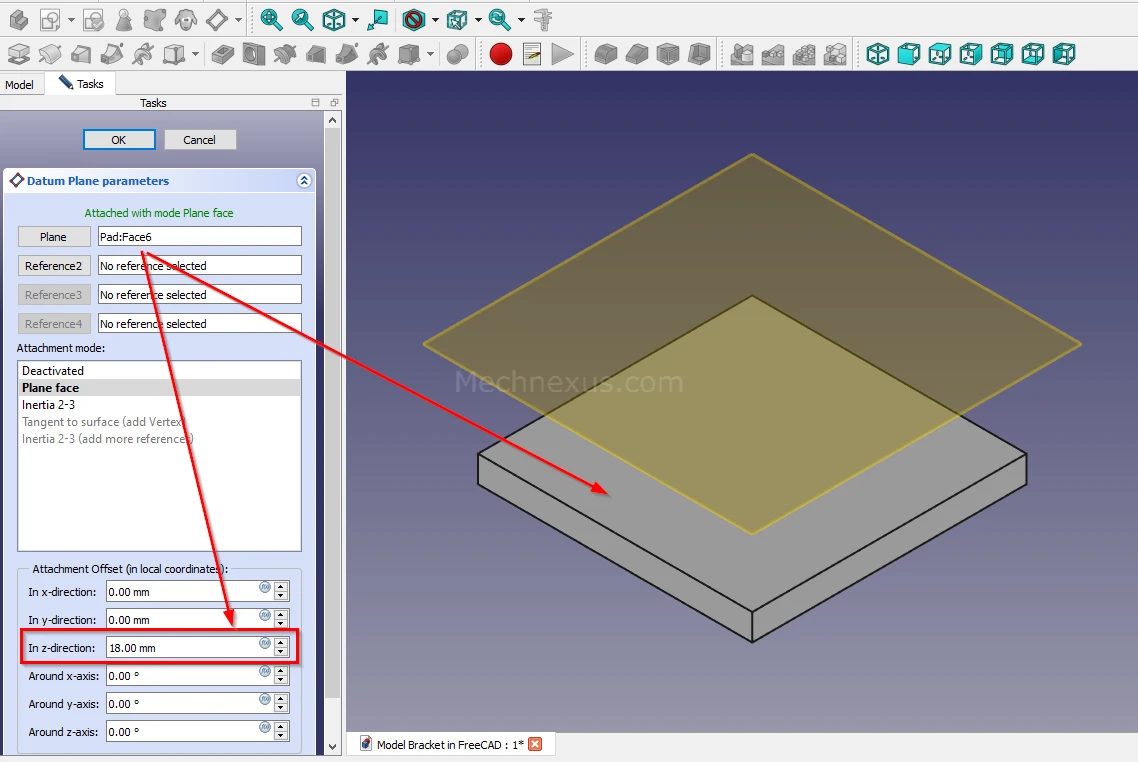

Now select the top face and create datum plane at distance of 18mm in Z direction As shown in below image.

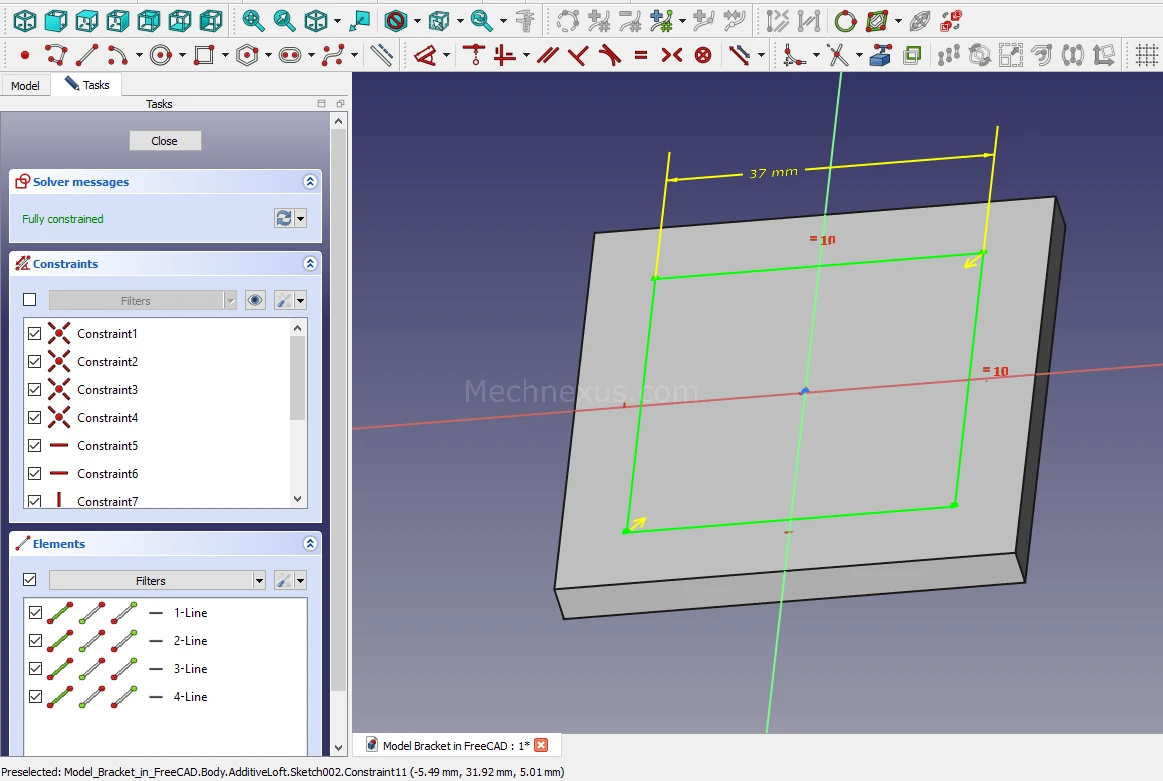

Now select the face and create square of 37mm As shown in below image.

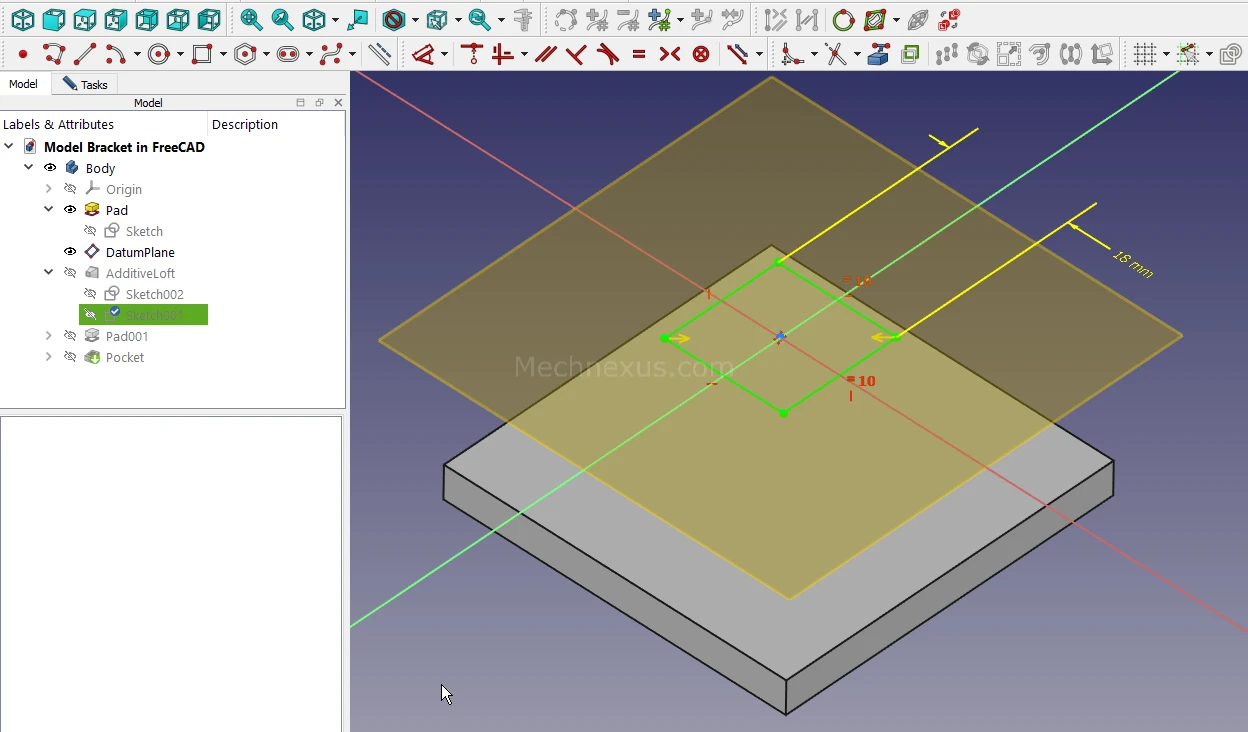

Now select the datum plane and create square of 18mm As sown in below image.

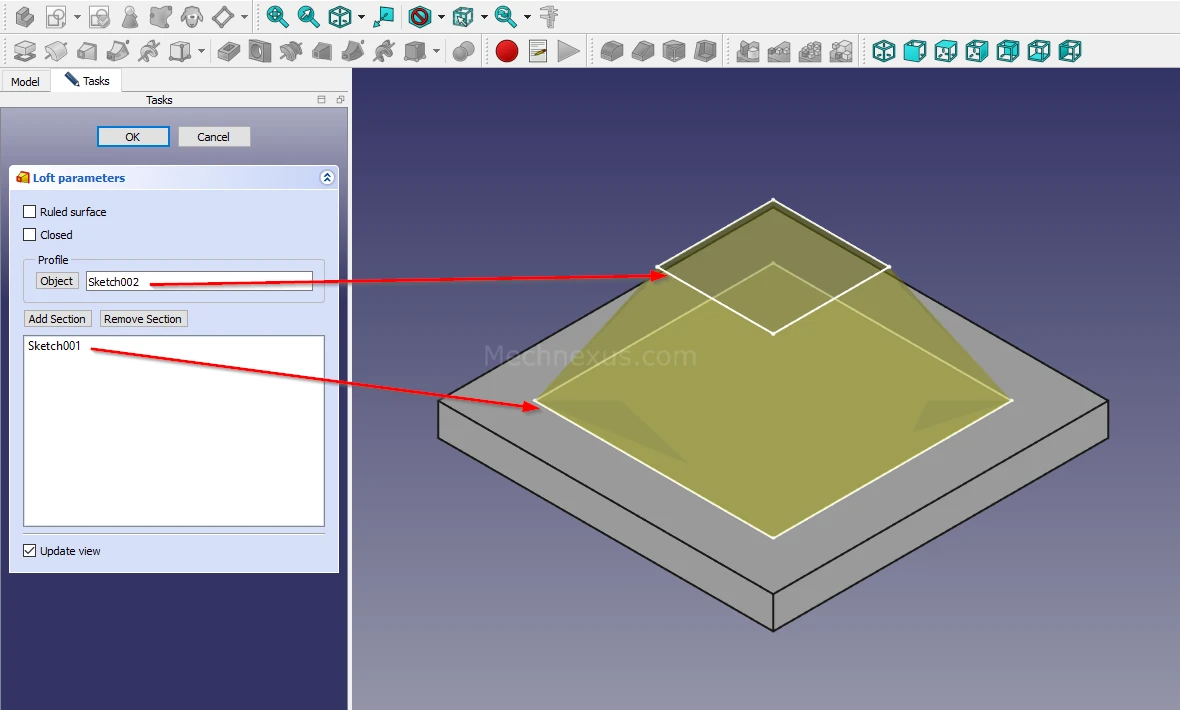

Now create the loft As shown in below image.

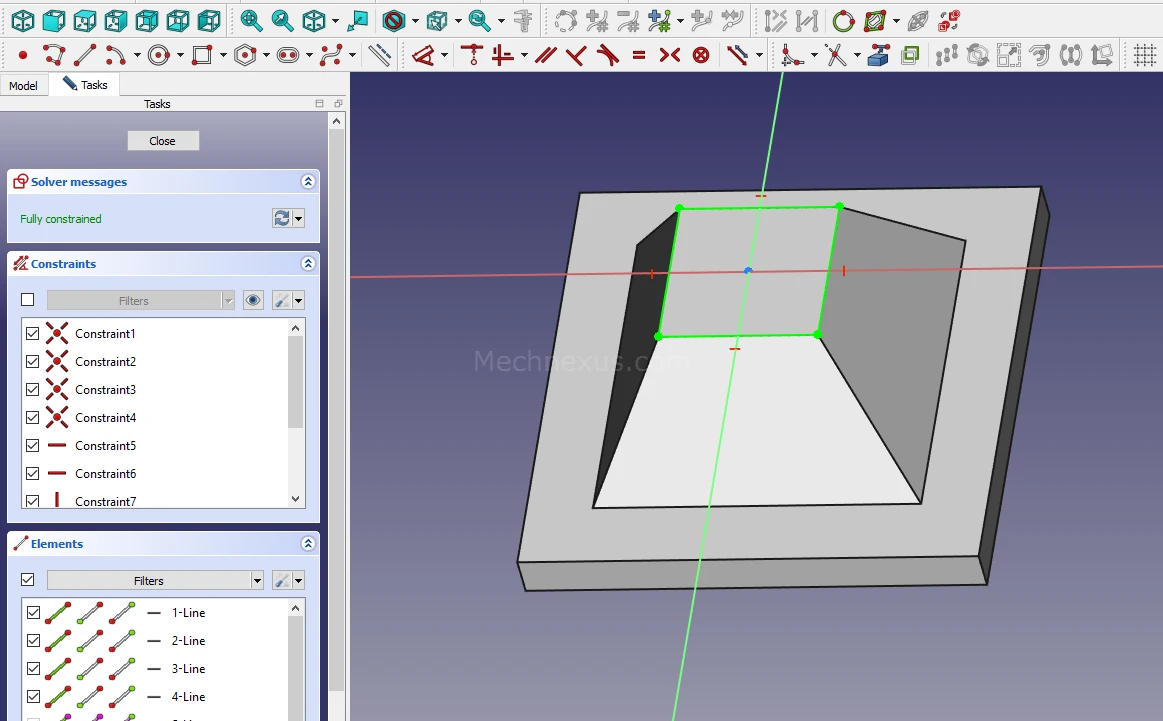

Now select top face of created loft and create below sketch with the help of projected edge.

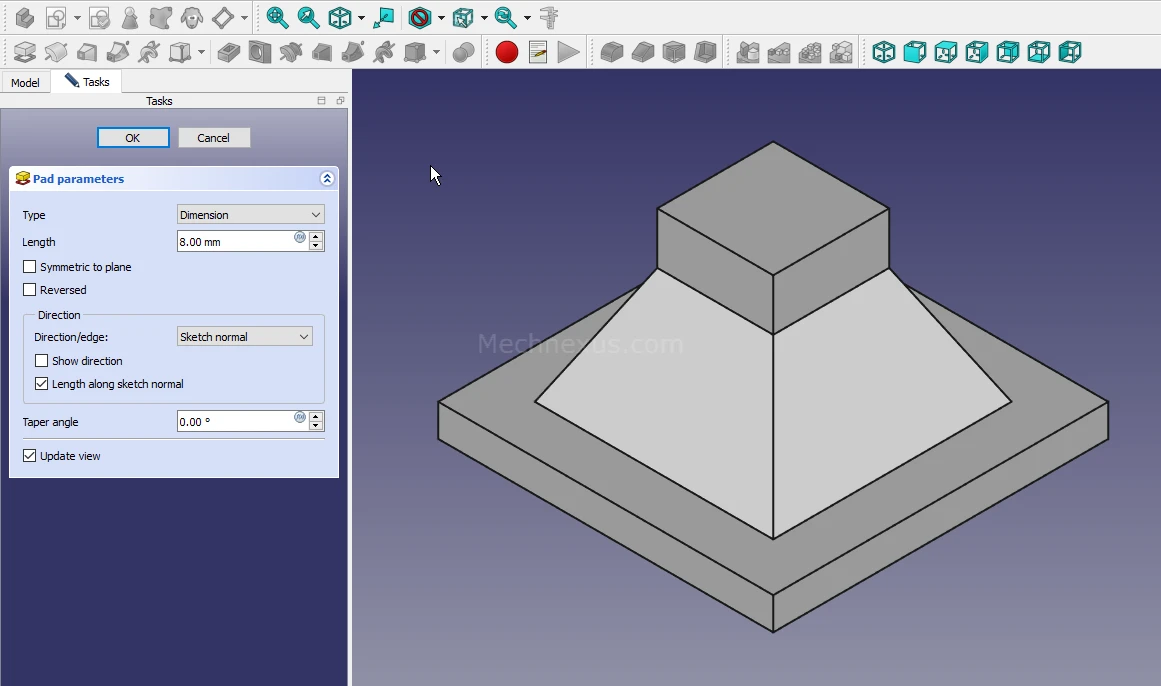

Now create the Pad of 8mm As shown in below image.

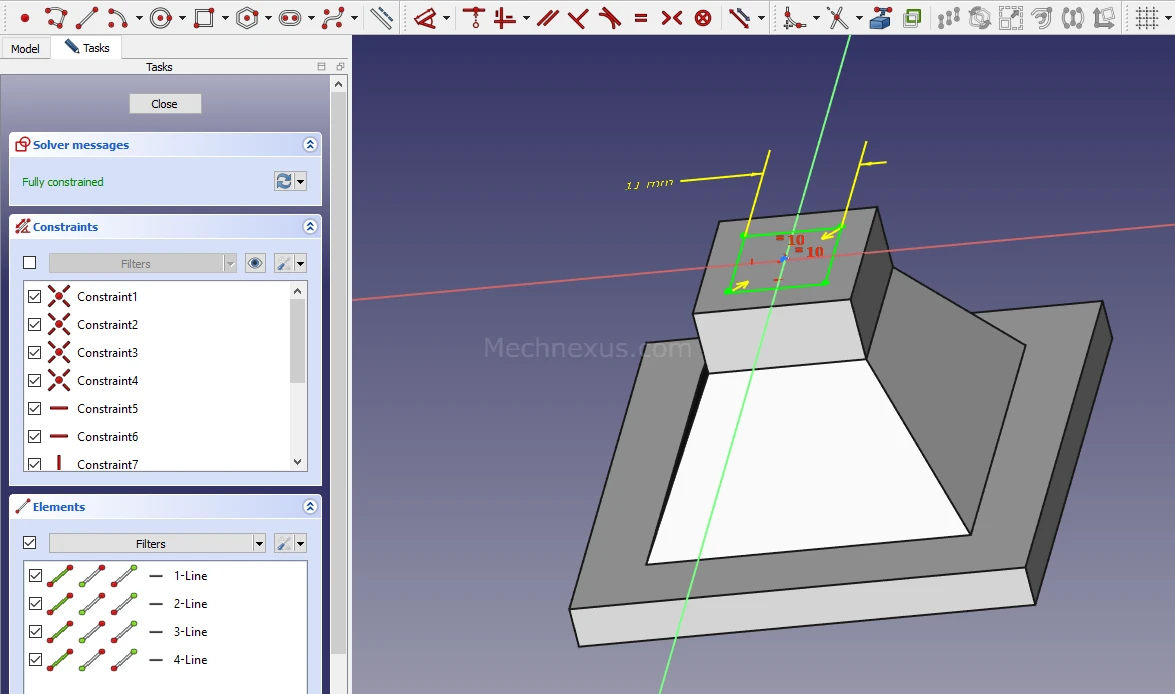

Now select the top face and create square of 11mm As shown in below image.

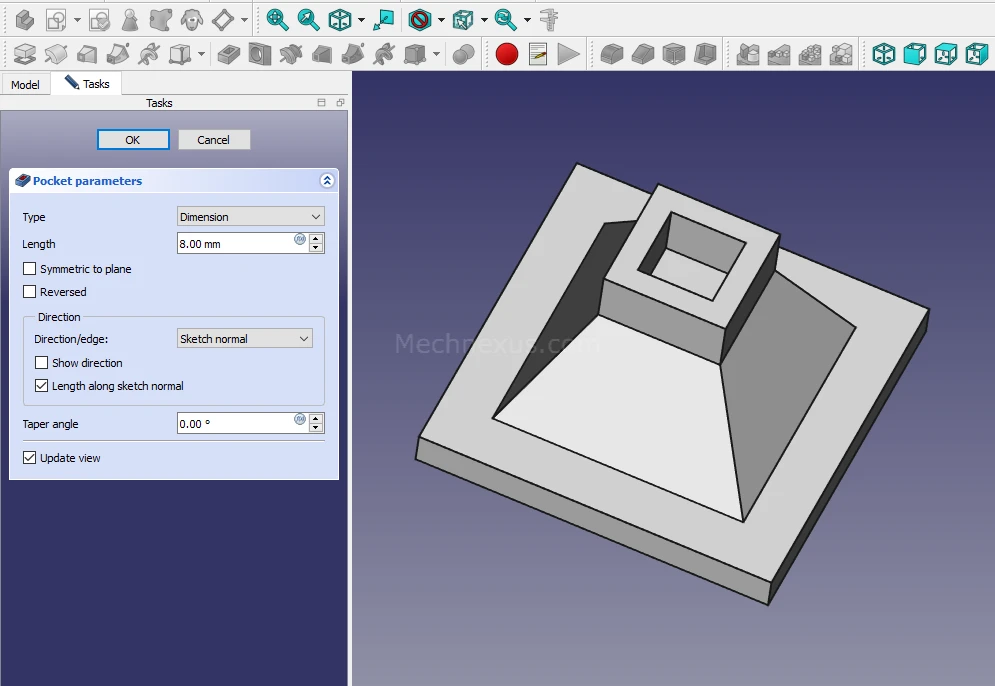

Now create the pocket of depth 8mm As shown in below image.
