Model Chuck Jaw in FreeCAD : (Gallery Serial No.44)

Hello friends welcome to FreeCAD Part Modeling tutorial. In this tutorial we will do modeling of Frame in FreeCAD with the help of Dodo Workbench. If you want to learn FreeCAD from scratch you can buy my Complete FreeCAD 1.0 Course : From Zero to Expert! on Udemy.

Related posts:

• Model Involute Gear in FreeCAD
• Let’s understand FreeCAD Part Workbench
• Let’s Explore the FreeCAD user Interface

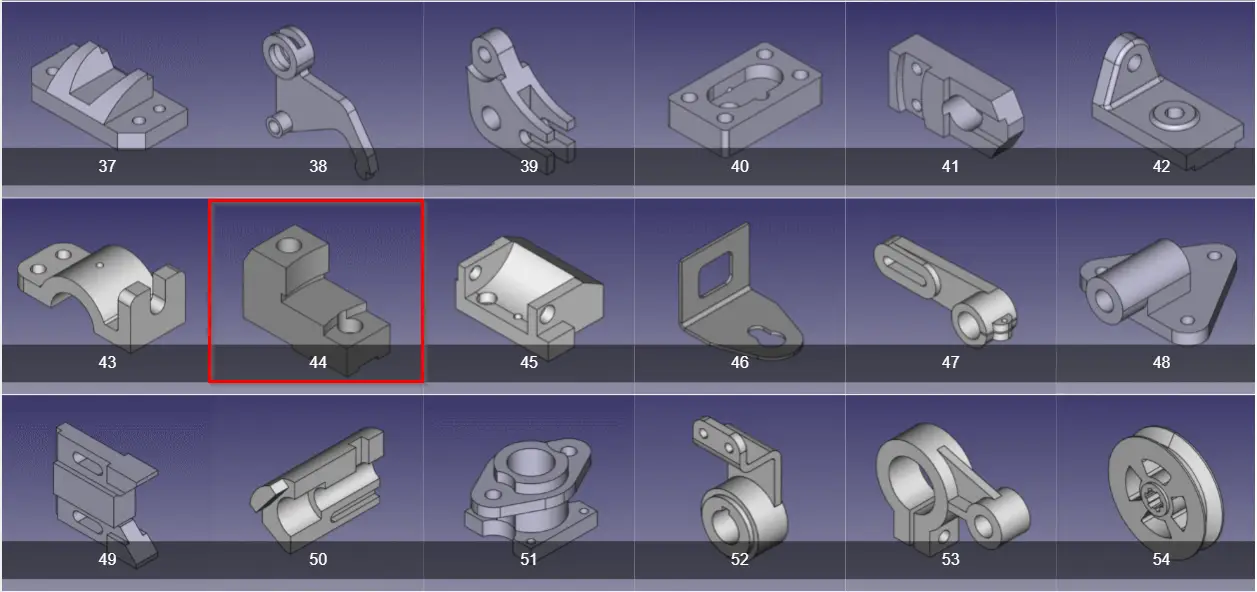

You can download this tutorial FreeCAD model with my FreeCAD 3D Model Library with Serial No.01 As shown in below image. once you click on image you will directed to Google drive folder where you will get FreeCAD model and it’s 2D Drawing. If you like my work please support me on ko-fi.com even if it’s just enough to Buy me a Coffee every little helps and this will be repaid in full through my sharing of knowledge.

Step by Step Video Guide to Model Frame in FreeCAD-:

Select the XZ plane and create the below profile.

Now extrude above profile to 1.75 inch as shown in below image and keep symmetric.

Now select the face and create the below rectangular profile.

Create the cut as shown.

Now select the top face and create the below profile.

Create the cut of 1 inch as shown in the below image.

Set the view to wireframe and create the below profile.

Now create the cut of 0.31 inch as shown in below image.

Now project the external geometry and create the below profile.

Create the cut of 0.31 inch as shown in below image.

Now select the front face and create below sketch.

Remove the material as shown.

Now select the face and create the below profile.

Now remove the material as shown.

Now create hole sketch profile as shown.

Noe create the counter bore hole as shown.

Now select the face and create sketch for hole.

Now create counter bore hole as shown in below image.
