Model Frame Guide in FreeCAD : (Gallery Serial No.43)

Hello friends welcome to FreeCAD Part Modeling tutorial. In this tutorial we will model Model Frame Guide in FreeCAD with the help of Part Design Workbench. If you want to learn FreeCAD from scratch you can buy my Complete FreeCAD 1.0 Course : From Zero to Expert! on Udemy.

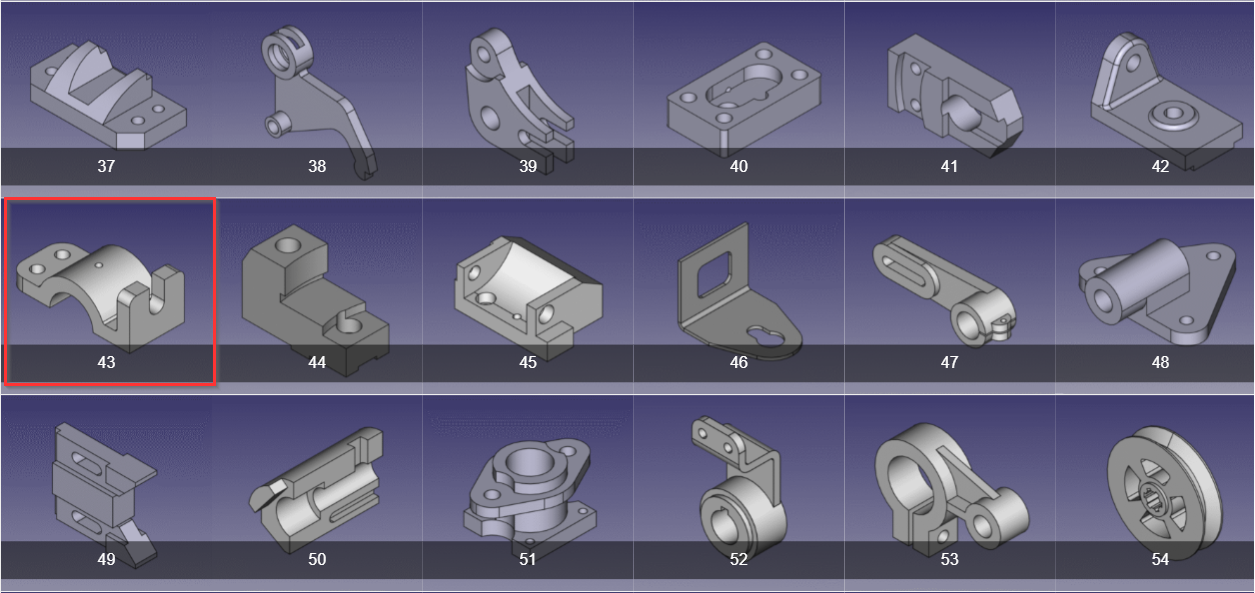

You can download this tutorial FreeCAD model with my FreeCAD 3D Model Library with Serial No.43 As shown in below image. once you click on image you will directed to Google drive folder where you will get FreeCAD model and it’s 2D Drawing. If you like my work please support me on ko-fi.com even if it’s just enough to Buy me a Coffee every little helps and this will be repaid in full through my sharing of knowledge.

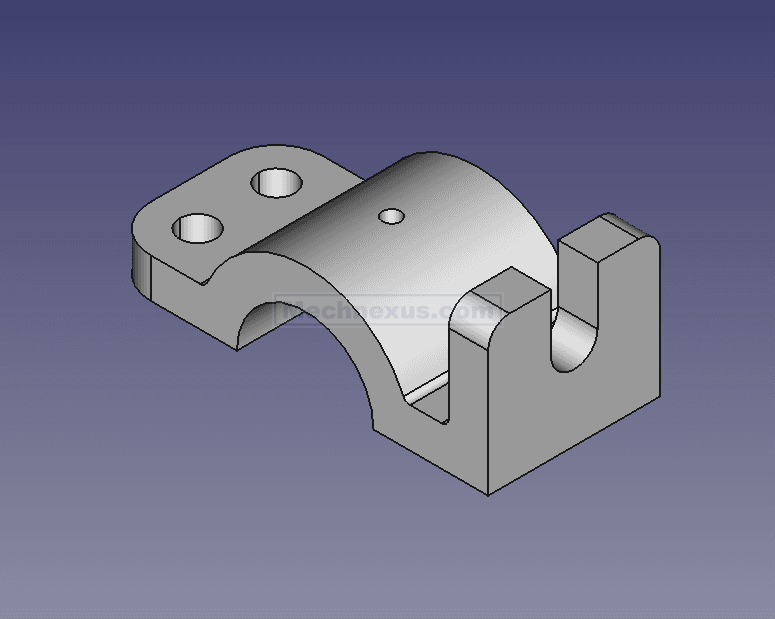

Step by Step Guide to Convert below drawing into 3D Model -:

Now select XY plane and create below profile.

Now extrude the above profile to 48mm as shown in below image.

Now select the face and create below profile.

Now remove the material and set end condition up to face.

Now select the face and create sketch for Hole.

Now Remove the material as shown in below image.

Now select the edge and give fillet of 13 mm.

Select edge and give fillet of 6mm.

Now create a datum plane at distance of 30mm as shown in below image.

Now create the hole sketch as shown in below image.

Now create the hole as shown.

Now create fillet of 2 mm as shown in below image.
