Model Hinge Block In SolidWorks : (Gallery Serial No.07)

Hello friends welcome to SolidWorks Part Modeling tutorial.  In this tutorial we will do modeling  of Hinge Block in SolidWorks. You can download this SolidWorks Tutorial File from my Ko-Fi Store. If you want to learn SolidWorks from scratch you can buy my SolidWorks Complete Course on Udemy.

You can download this tutorial SolidWorks Part Model with my SolidWorks Part Library with Serial No.07 from library URL SolidWorks 3D Model Library. As shown in below image. once you click on image you will directed to Google drive folder where you will get SolidWorks Model and it’s 2D Drawing. If you like my work please support me even if it’s just enough to Buy me a Coffee every little helps and this will be repaid in full through my sharing of knowledge.

Also Read-:

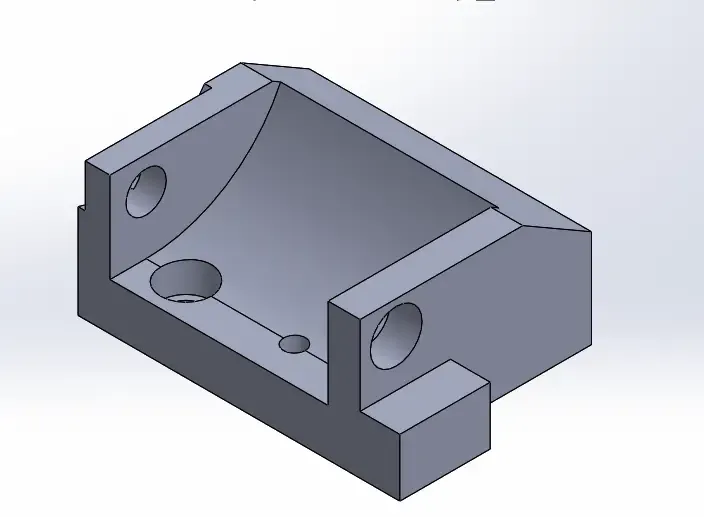

Step by Step Guide to Convert below drawing into 3D Model -:

Select the Front Plane and create below sketch.

Now create the extrude of 64mm as shown in below image.

Now select the mid plane and create below sketch.

Now create the cut as shown in below image and keep it mid plane.

Now select the face and create the below triangular sketch.

Now create the cut as shown in below image.

Now project the inner radius and create the below sketch.

Now create the cut of 2mm as shown in below image.

Now select the below sketch and create the below hole sketch.

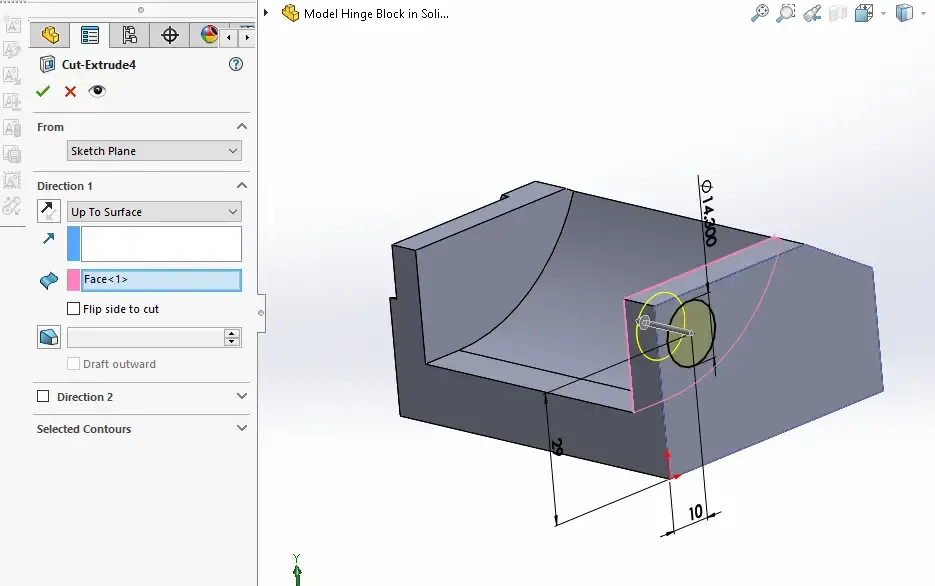

Create the hole and set end condition up-to face as shown in below image.

Now select the inner face and create the below hole sketch.

Create the cut as shown in below image.

Now select the top face and create below sketch.

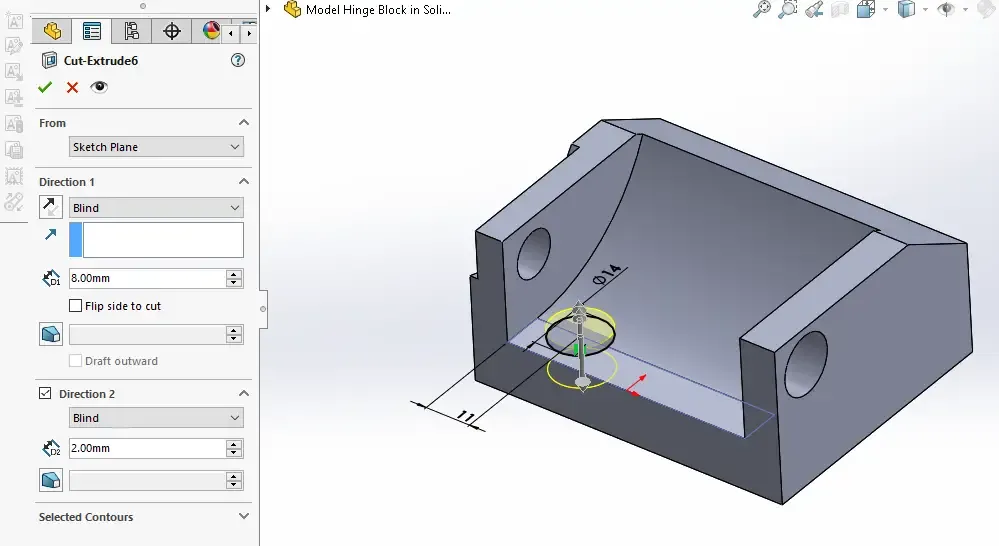

Create the cut as shown in below image to the depth of 8mm as shown in below image.

Now select the inner face and create below sketch.

Now create the cut as shown in below image.

Now select the hole sketch as shown in below image.

Now create the cut as shown in below image.

Now select the face and create the below sketch.

Now create the pad as shown in below image.
