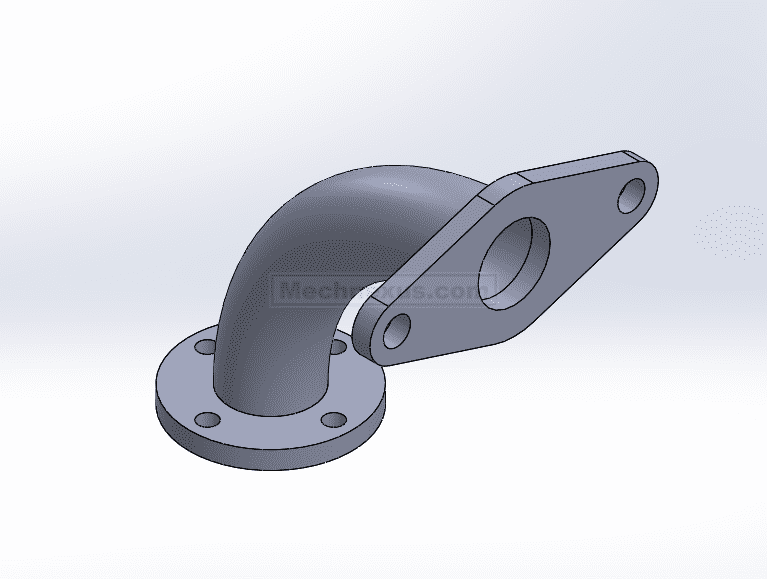

Hello friends welcome to SolidWorks Part Modeling tutorial. In this tutorial we will do Model Pipe with Flange in SolidWorks . You can download this SolidWorks Tutorial File from my Ko-Fi Store. If you want to learn SolidWorks from scratch you can buy my SolidWorks Complete Course on Udemy.

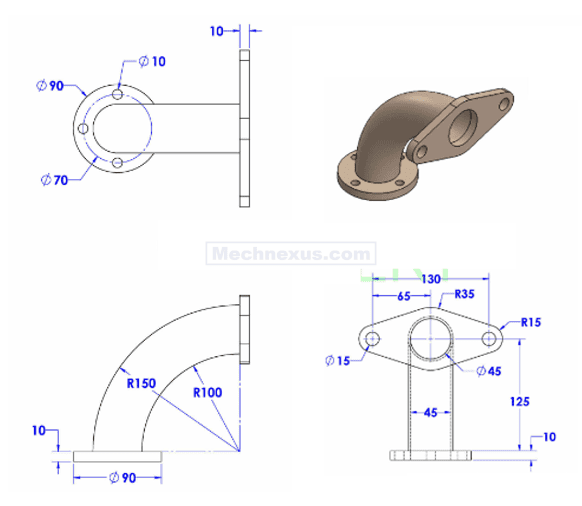

Step by Step Guide to Convert below Drawing into 3D Model -:
Select the top plane and create below sketch.

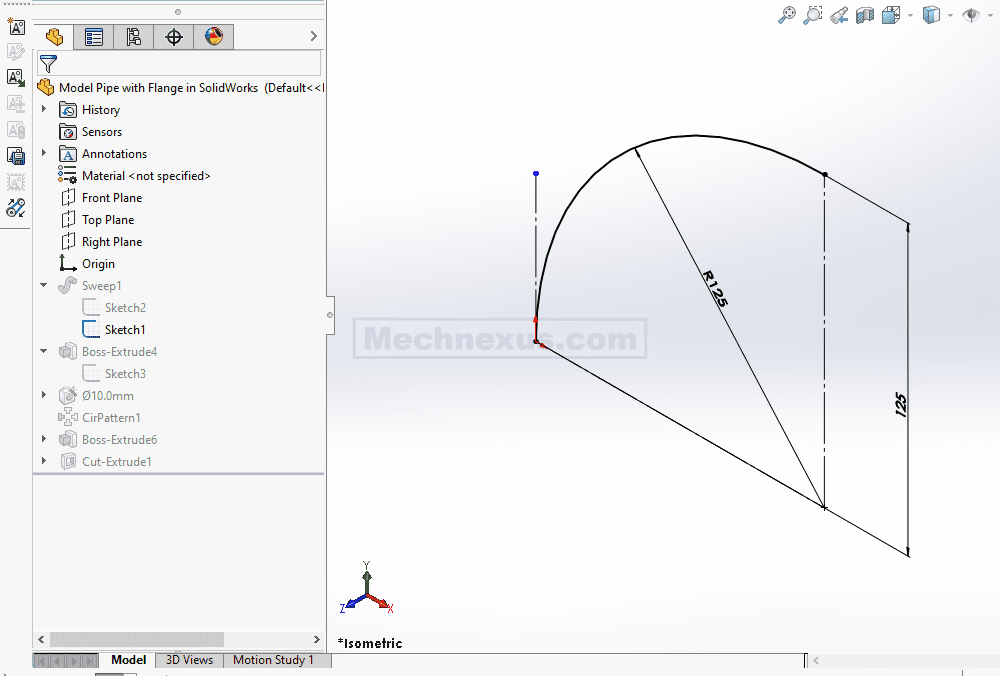

Now create the path of sweep As shown in below image.

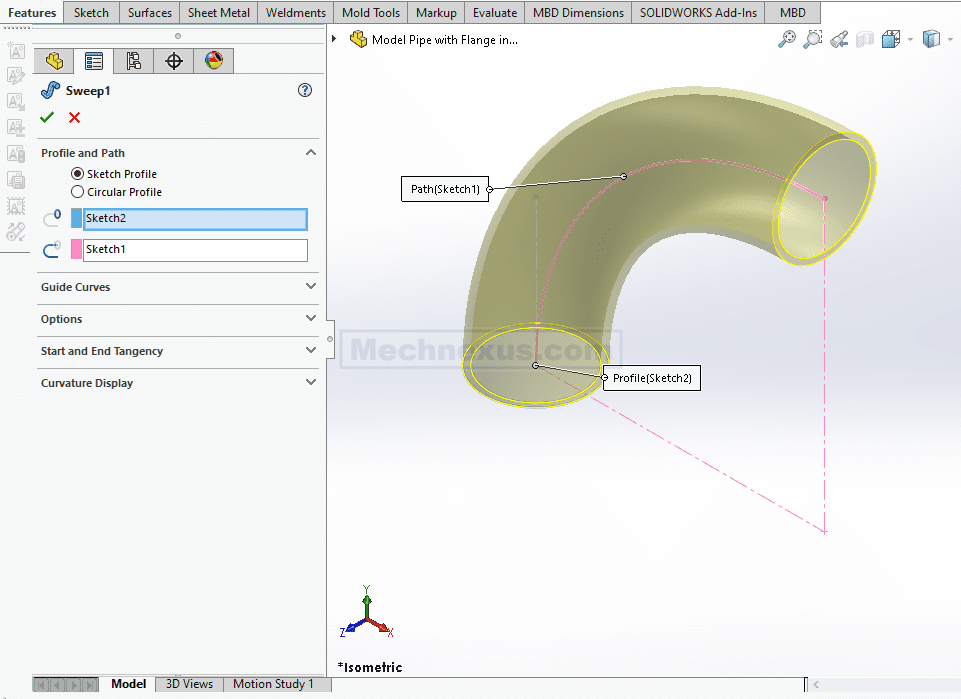

Create the Sweep with profile and path As shown in below image.

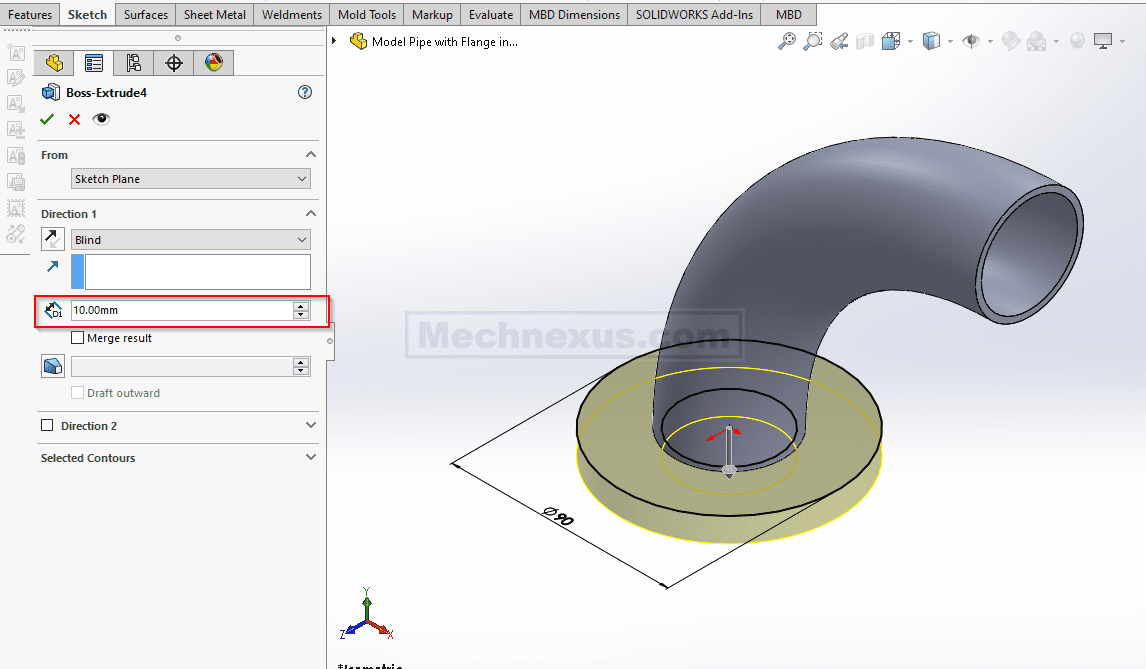

Select the bottom face and and create the below sketch and add the material to 10mm As shown in below image.

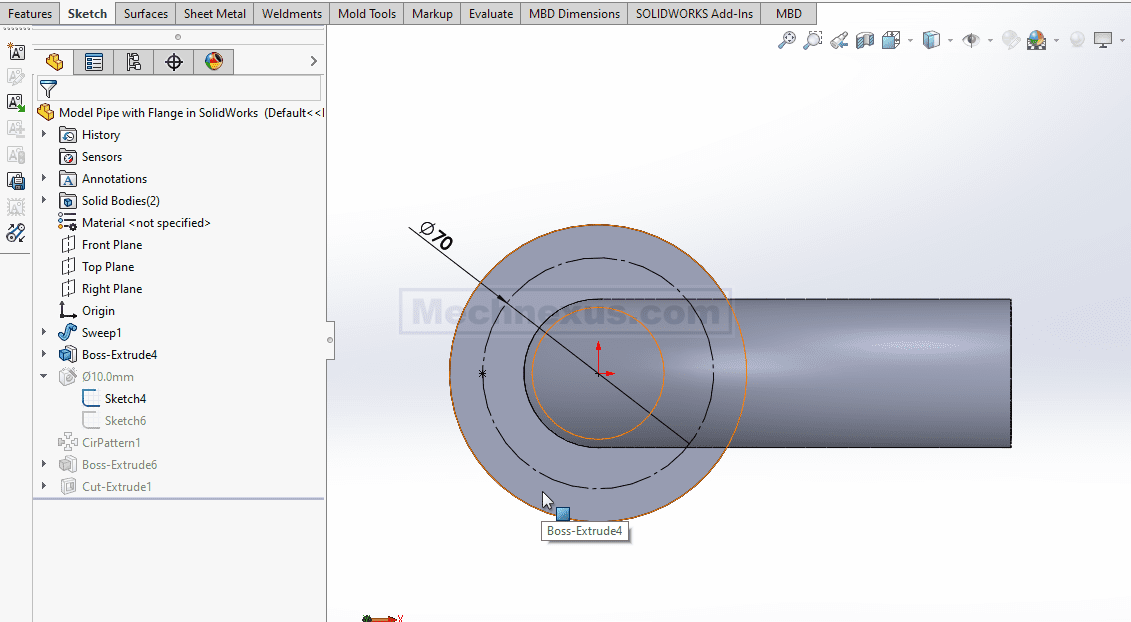

Now use the hole wizard tool and create below sketch.
Give the hole specification As shown in below image.

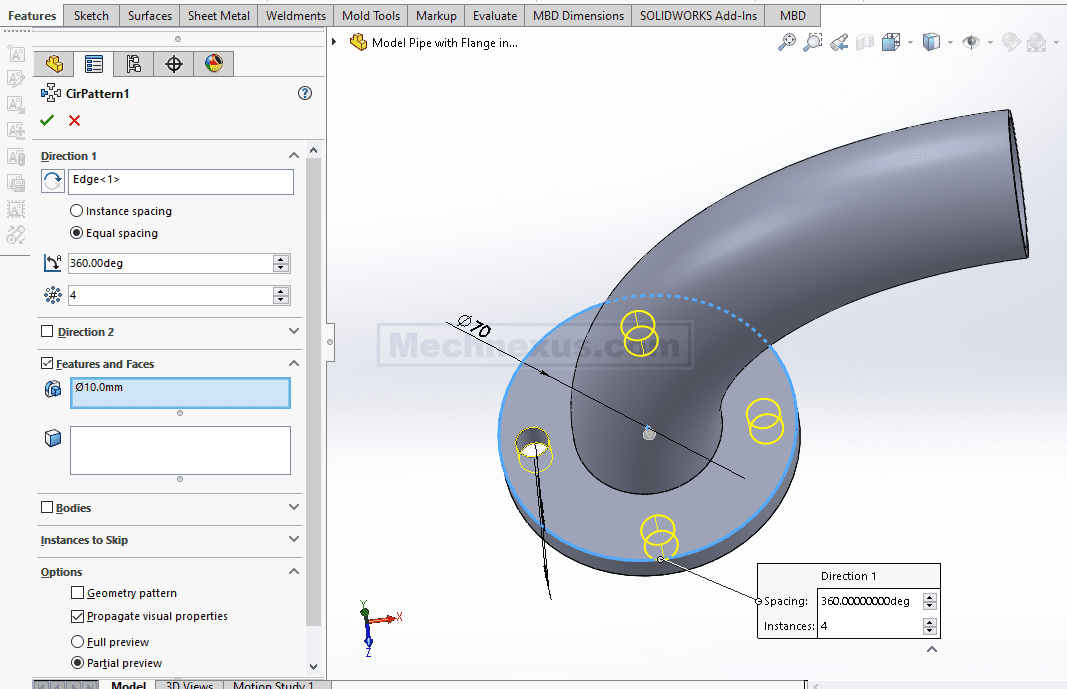

Now create 4 hole with the help of polar pattern feature As shown in below image.

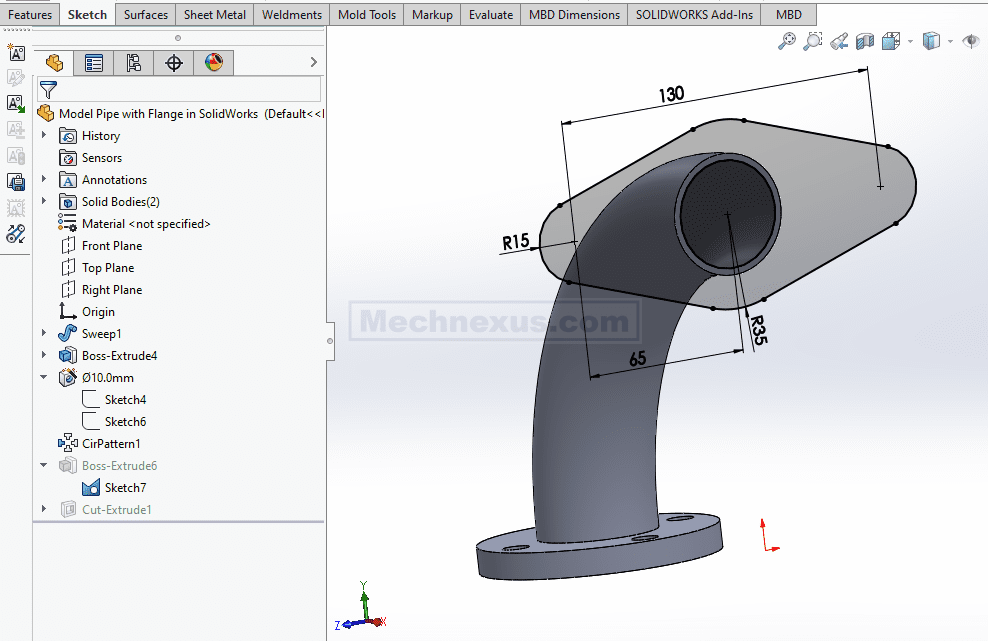

Now select the face and create below sketch.

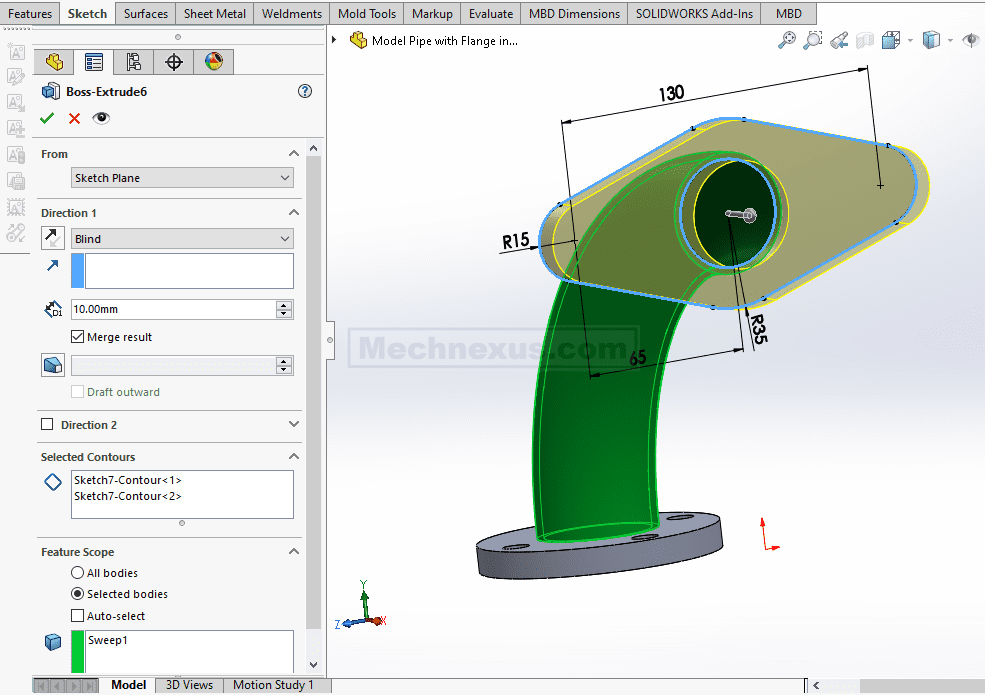

Now create the Pad of 10mm As shown in below image.

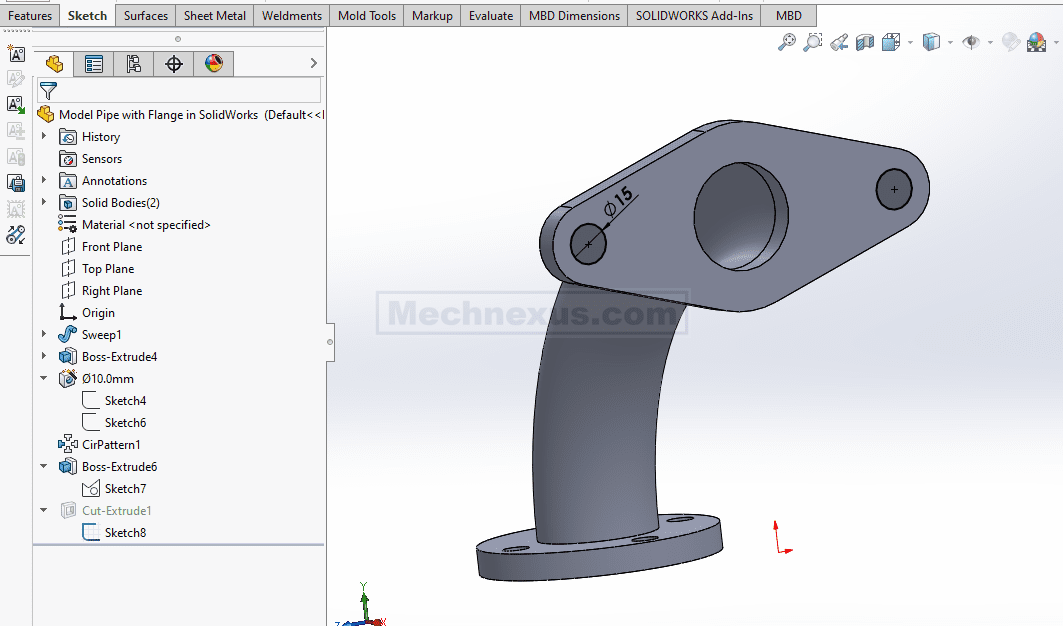

Now create the below hole sketch.

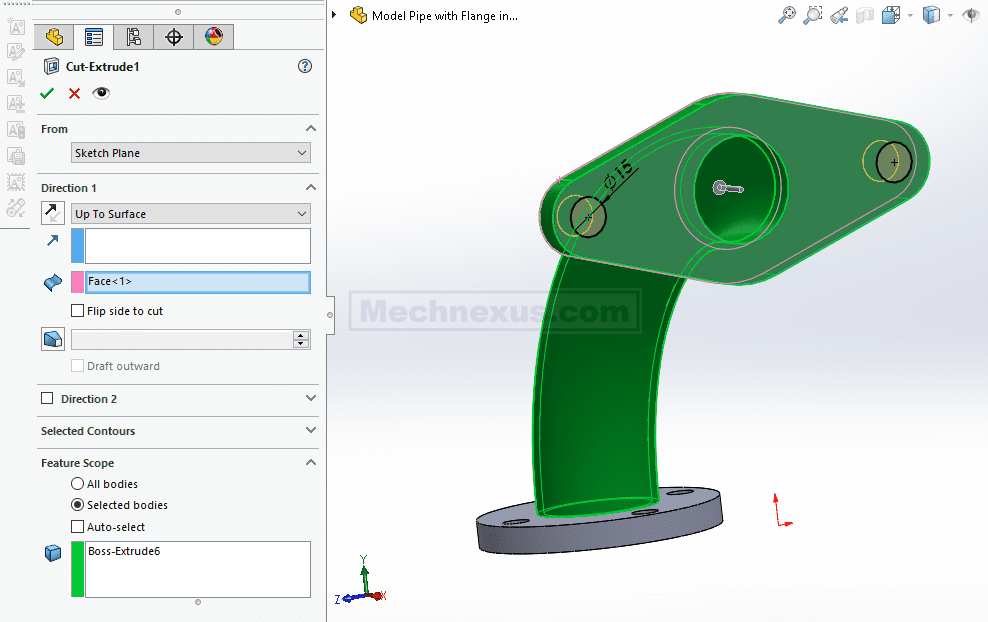

Create the hole As shown in below image.
