Hello friends welcome to FreeCAD Part Modeling tutorial. In this tutorial we will Model Rotor Shaft in FreeCAD with the help of Part Design Workbench. If you want to learn FreeCAD from scratch you can buy my Complete FreeCAD 1.0 Course : From Zero to Expert! on Udemy.

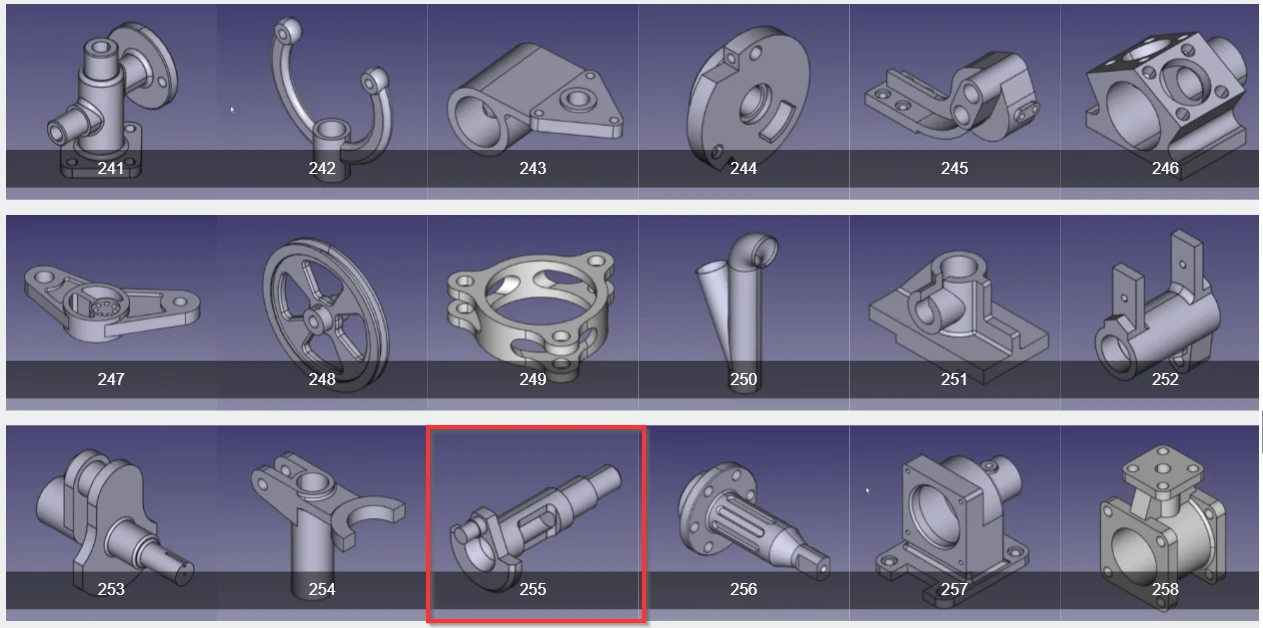

You can download this tutorial FreeCAD model with my FreeCAD 3D Model Library with Serial No.255 As shown in below image. once you click on image you will directed to Google drive folder where you will get FreeCAD model and it’s 2D Drawing. If you like my work please support me on ko-fi.com even if it’s just enough to Buy me a Coffee every little helps and this will be repaid in full through my sharing of knowledge.
Step by Step Guide to Model Rotor Shaft in FreeCAD-:
Select the right plane and create below sketch.
Now Create the Revolve Feature As shown in below image.
Now Select the face and Create the below sketch.
Now Add the material to 3mm As shown in below image.
Now Select the right Plane and create the below sketch.
Now create cut As shown in the below image.
Now select the face and Create below hole sketch.
Now add the material to the 6mm As shown in below image.
Now select the face and create below sketch.
Now create the cut to the distance of 4mm As shown in below image.
Now select the top face and create the below sketch.
Now Create the cut As shown in below image.
Now create the chamfer As shown in below image.
Now create the fillet of 3mm As shown in below image.
Now create the fillet of 1mm As shown in below image.
Now create the fillet of 1mm As shown in below image.
Now create the chamfer of 0.5mm As shown in below image.
