Part Modeling & Drafting in FreeCAD 200-03 | FreeCAD Tutorial | 3D Modeling | | Mechnexus |
9 views
Jun 29, 2025
#freecad #freecadtutorial #freecaddrawing In this video I have explained How to Part Modeling and Drafting in FreeCAD. ▶️ Get my Complete FreeCAD Course : From Zero to Expert ! https://www.udemy.com/course/freecad-course-for-beginner/?referralCode=3BA9B526A12F96295D44 ▶️ Join my channel membership and keep supporting my work: https://www.youtube.com/channel/UCcn6z2whMaFu-_LDsEXCfVA/join ▶️ Visit my website for more info on FreeCAD-: https://mechnexus.com/ ▶️ Download Source File of Tutorial-: https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus
View Video Transcript
0:02
hello friends welcome to free tutorial and in this tutorial we will do this uh
0:07

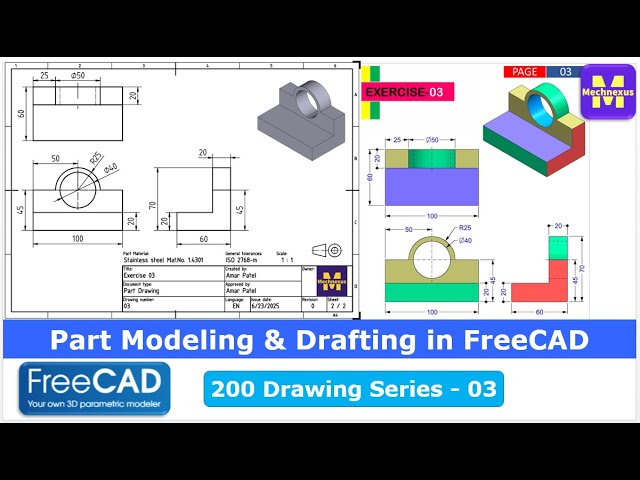

exercise where we will uh convert this uh drawing into the 3D model and we will
0:14
also create a drawing with respect to the dimension shown so for this tutorial
0:20
I am using the free version 1.0 so you must have at least 1.0 0 or uh higher
0:28
version than 1.0 if you wanted to learn Frecad from the
0:33
scratch then you can buy my complete Frecad 1.0 course from zero to expert i
0:40
have designed this course from very basics like uh introductions to free fread customizations
0:47
sketching in frecad part modeling in frecad creating a assembly in frecad and also
0:53
creating a technical drawing at the end you will find some projects which you
0:58
can do it by following my videos best part is that uh this course is rated 4.1
1:05
out of five and more than 400 plus students given their ratings and more
1:12
than 2,000 students purchase this course this course comes with a lifetime access
1:19
and I update this course on a regular interval of a time as you can see that
1:25
uh I have created this course on the basis of a 1.0 0 which is a latest
1:32
release at the time of creating this video and in futures when the new
1:37
release of a free CAD will come I will update this course and uh you do not
1:42
have to pay the money because this course comes with a lifetime access with
1:48
some others features like you can access it on a mobile and TV you will also get
1:54
a certification of completions this course is having the some demo lectures
2:00
which you can watch you will find the course link in a video description as
2:07
well as pin comments you can also visit my website macexus.com
2:13
where I write articles and tutorials on free and you can also access my 3D part
2:21
library of a free CAD you can download the part from here and you can use in
2:28
your projects with modifications you can also access my 2D drawing
2:35
library where you can uh download this 2D drawings and uh you can create 3D
2:44
models with respect to these drawings you can also support me on coffi.com you
2:53
can buy me a cup of coffee your small support will uh help this channels to
2:59
grow and it will motivate me to create more awesome content on uh free cat you
3:06
can find my Kofi donation page link in a video description as well as you can
3:13
also see my Kofi page URL on this header
3:18
so let's come back to our tutorial and you can see that a part design
3:23
workbench is active now I will create a new file and here I will uh insert the
3:30
body now this is a very simple part so
3:35
we will uh create our first feature on a right plane and we will create this
3:41
profile and then we will extrude it to the distance of 100 mm so now I will on
3:48
the origin plane and I will select this YZ plane and click on the sketch now
3:54
here I will uh off the origin plane and here I will uh create a simple rectangle
4:03
and then I will select a line tool draw one vertical line and one horizontal
4:09
line and click on the trim now let's read the dimensions so this is
4:17
a very simple drawing so drawing dimensions reading will be very easy so
4:22
we can easily see that horizontal is 60 and vertical is a 70 so select a smart
4:28
dimension and uh provide it a 60 mm
4:34
and uh vertical 70 and uh provide this horizontal
4:40
dimension 20 mm and here
4:45
instead of giving 20 mm dimensions to this vertical line we will give the
4:52
constraint we will select the both and we will give the equal constraint
4:58
so our uh sketch is fully constrained we will come out of it and we will click on
5:04
the pad and we will give the distance of 100 mm and we will keep it symmetric to
5:11
the plane and now say okay so the base feature we have created so
5:20
let's save our part save it
5:28
so our model is saved now let's create the next feature so next feature
5:35
we will add a material here so first we will do the material
5:41
addition operations and then we will do the material subtraction operation so
5:47
now I will select the front face and click on the sketch and let's switch to
5:52
the isometric view and now here we can do one thing
6:00
here if you see the color so this portion is already included here which
6:06
means that we have already added the material if you wanted to add a material
6:12
extra here so we will keep this dimension 45 so instead of creating a
6:20
cut we will make this vertical dimension 45 so we will close this sketch and go
6:27
to the pad option and here I will make it a 45
6:35
and now I will close it and now I will go to the sketch
6:41
press zero from your keyboard and now we will add this material
6:46
because why I choose this options if I go with a cut to keep this dimension 70
6:52
then I have to create a cut on one side then I have to mirror it so one feature
6:58
will be get increased in my tree browser which I do not want i wanted to keep as
7:04
much as less features in my browser so now
7:09
I will uh simply click on the project geometry and project this age and switch
7:14
to the front view and now we will read the dimensions so we can see that uh
7:20
this uh center of this uh 50 mm diameter is in a line with the age of 45 so here
7:29
I will create a circle i will create away and then I will apply the
7:36
constraint because sometimes uh snap point does not pick up so select it and
7:45
apply the coincidence relations and this is of R
7:51
25 so we can give the both the dimension either radius or diameter so let's go
7:57
with the radius and provide it a 25
8:04
and now if we wanted to trim it then we can also
8:10
trim it but we will directly extrude it select the sketch and click on the pad
8:17
and here click on the reverse and define the end condition up to face to the back
8:24
side and say okay
8:30
now we will uh create the cut so this is of a diameter 40 so for a larger diameter
8:40
create it with a cut but if the diameter is of a 10 20 then use the whole wizard
8:47
tool so select the face and click on the sketch press zero and here we will uh
8:54
simply project the radius and this is the cutff of 40 mm so we
9:00
will uh select the circle options and constrain it with a diameter 40 now we
9:09
will close it select the sketch click on the pocket and say through all
9:18
so now you can uh see that uh we have successfully created the model if you
9:25
wanted to apply the color then uh you can also do it in freeat for example
9:30
let's consider this red face so I will select the face and uh switch to the
9:35
part workbench and uh click here color per face and now face is not added so I
9:43
will select the face so once I click on the face face is added and I will go in
9:48
a custom appearances and uh let's select the color
10:00
let's drag it to the
10:06
approximate color and click on close so you can see that more or less uh we have
10:11
created but this is very time consuming if you wanted to decorate your model as
10:17
it is like that then select the each faces and apply the color now
10:25
I will uh set it to the default so I will go to the custom appearances and
10:30
set to the default and close so we have created very simple model and
10:37
now we will create the drawing
10:43
now we will create a drawing of this model so for this we have to switch to
10:49
the tech draw workbench and you can see that I have activated the tech draw workbench to create a drawing we require
10:56
a template so in freet there are the two options one is of default options which
11:02
will create a blank template and one another one is to use the installed
11:09
template so always go with the second option because once you click on this you will get a lots of a template if you
11:16
are creating a bigger drawing then you can use the A Z A1 A2 and A3 used for
11:24
the midsize of a drawing and A4 is used for the small size of a drawing so our
11:31
part is very small so we will select this uh A4 landscape minimal and press
11:38
the enter so you can see that uh a template has been inserted now
11:46
we will switch to the front view and uh this is our base view so we will select
11:51
the body and here is a projection group so here we will uh select the template
11:59
page 001 if you have inserted the multiple page click on okay so now you
12:06
can see that our first view is a place and now we will uh place this view so
12:12
click on the side one so here you can see that it is a first angle of
12:19
projection so I will switch to the third angle
12:25
and uncheck this one and check this one also check the
12:32
if you hover your mouse you will see here this is the right this is the left
12:37
so in this drawing what happened is that uh
12:43
those who have created this drawing they have placed the right view on a right
12:48
side so we will uncheck this and we will drag it to the other side and now
12:56
I will create a bottom view and this top view I will move to the top
13:05
now if you see here we have placed the all three view
13:11
so we will change our scale so to change
13:16
the scale uh keep your scale type on a page and say okay
13:24
now if you see here we will move it and
13:33
and let's see now it is not disturbing we can lock our
13:38
view positions but uh we will do it once we set our view so here
13:45
our uh drawing is going outside of a border so we will uh go to the page and
13:53
inside of this page you will see the scale options so here we will keep our
14:00
drawing not to scale so I will make it 7
14:05
so you can see that every time this view get disturbed
14:11
so we will fix it so let's let's see uh once the our view fit in the page we
14:18
will log the view so here you can see the cord points the
14:27
benefit of this chord point is to create a dimensions but if you are facing
14:32
difficulty with this quadpoint go to the frame options and hide it so once you go
14:38
out of the frame then this will be get hidden so here we can see that we have
14:44
placed the our three required view and now first thing which we will do is to
14:49
insert a center mark so select the diameter and here you will see the option of add a center marks
14:58
so add a circle center line so once you click on add a center line it will add horizontal and vertical center line and
15:06
now we will give the dimensions so let's start with a from a side view so here I
15:14
will uh press the control key select these two horizontal edges and uh
15:19
provide the vertical dimension now the font size and arrow size you can
15:27
change it you go to the edit and then preferences and here go to the dimensions and here
15:35
you will see the option of arrow size and font size you can adjust it
15:41
now let's select this line and uh go to the dimension option and provide the
15:47
horizontal dimension now here is a 45 dimension is shown
15:56
so I will select this two horizontal line select it and give the vertical
16:01
dimension of a 45 select this line and provide this uh 20
16:06
mm dimension provide the horizontal dimension
16:12
and uh this one is also 20
16:20
now here let's uh on the frame and shift
16:26
this view to the here and move this right
16:31
view little right hand side
16:36
and let's make this front view now we do not want that uh our view get disturbed
16:44
so we will lock it so this is the front view which is our parent so we will
16:49
click on the right view and here is a lock symbol so
16:55
once you click on the lock symbol this view position get locked now if you drag
17:00
it you won't be able to move it but on the other hand this view is unlocked so
17:07
I can move it now let's also lock the top view
17:14
click on the lock symbol and now of the frame so we have given the all the dimension
17:22
of a side view now let's give the dimension in a front view so select this
17:28
line select the smart dimension give the 100 mm and now
17:37
provide this uh dimensions 20 mm so here some of the dimension are
17:43
repeated like uh 20 mm is repeated here 20 mm repeated
17:49
here as well so this is the basic drawing tutorial we are not creating a
17:54
technical drawings where we have to avoid the duplicate dimensions this tutorial is for the drafting purpose how
18:01
to create a view and give the dimensions and now uh I will on the frame and uh I
18:07
have observed that uh there is a less space is there so I want to move my
18:13
right view little bit right hand side so
18:19
first I have to remove the lock so select the view and click on the lock symbol so lock will be get disappeared
18:26
and now drag this view little bit right hand side and once you got the
18:32
appropriate positions then again lock it now
18:37
of the frame and uh here
18:43
if you see the frame here so chord point is small because I have a change in my
18:50
setting to do that you can go to the edit and preferences
18:57
and uh here is a vertex scale so initially my
19:03
vertex scale was a five so I set it three and if you reduce is to the two or
19:10
one then this chord point will be the smaller so this is how you can change it
19:16
but I prefer the dimension by of the frame but if you are uh okay with this
19:22
chord point because this chord points help a lot by selecting the end point
19:30
now we have given the 20 and quad point is very useful i can uh select these two
19:36
points and uh give the dimension but if
19:41
you off it you will be also be able to give it so in this case if you are
19:48
offing the frame then you have to select the line but if you are oning the chord points
19:54
then chord point will be get visible so that is totally depend upon how comfortable you are so let's uh on and
20:03
off the frame now let's give the diameter 40 so just
20:10
select the diameter and select the smart dimension and give the 40 select this and uh give the R25
20:20
and uh from this age to the center is of a 50 so select this vertical edge and
20:28
this vertical center line
20:33
so here sometimes this is smart dimension misbehave so to avoid it press
20:40
the control key and select this and specific select the horizontal dimension
20:48
so if you see the smart dimension once you go with the smart dimension then you move your mouse then your horizontal
20:55
dimensions change to the vertical and vertical change to the horizontal based on your mouse position now
21:02
if you see here there is a hidden line is shown but in our top view hidden line
21:07
is off so we cannot select the view until and unless frame is on so we have
21:15
to on the frame and click on the frame boundary and go to the
21:21
data tab and here you will find that hard hidden is a false so we have to
21:27
make it true to on the hidden line so make it true and it will take some time
21:33
and our hidden line will be get visible
21:39
so you can see that it is updated now I will off the frame and now I will insert
21:44
one center line to insert a center line in Frecad select these two lines and go
21:51
here and click on add center line between two lines and click on okay
22:00
now our center line and hidden line is on now let's give the diameter so I will
22:07
uh select this vertical line and this vertical
22:12
line and provide the horizontal dimension
22:18
so now here one thing you observe that it is a diameter but diameter symbol is
22:23
not inserted so we can easily insert it select the dimensions and here you will
22:31
see the options to insert prefix diameter so click on it so once you
22:37
click on it diameter symbol will be get inserted now let's give this 25 mm
22:44
dimension so select this vertical line and this
22:50
vertical line and provide the horizontal dimension of 25
22:57
now select this horizontal line and this horizontal line and provide the vertical
23:03
dimension of 20 now select this horizontal line and this
23:10
horizontal line and provide the vertical dimension of 60
23:18
and let's move this dimension 20 mm inside now
23:27
now we will cross check if there any dimension is missing so we have given the 60 70 45 20 and 20 we have given 100
23:35
20 and 45 we have given this diameter 40 and
23:41
this radius we will give again select it and select the insert the radius
23:47
dimension and move it this is the 50 and 100 given
23:52
now in the top view diameter 50 25 20 so we have given all the dimensions and now
23:59
we will insert the one isometric view so to insert isometric view go to the
24:06
model tab press zero from your keyboard or click on here isometric options and
24:13
set our model to the fit all condition and now
24:18
here you will see one camera option insert the active view
24:24
click on it and here we have drawn on the page 001 say okay and now here click
24:32
on the crop image and if you wanted to insert the solid background or any
24:38
background 3D background you can use it but uh as my paper color is a
24:44
white so I I want to keep my view as a transparent background so click on okay
24:51
and now move to the our page so you can see that view is inserted but we cannot
24:58
move it so we have to on the frame and uh drag this active view
25:05
to the corner now let's reduce the scale little bit so go
25:13
to the active view here and here scale is of
25:20
1 to 1 so we will make it 8 and here if you see that this active view boundary
25:28
is overlapping on our right view so we will uh
25:34
change it here so instead of 128 we will give it 100 and
25:42
let's see so you can see that uh it updated now
25:49
width 100 instead of 100 let's reduce is to the 85 and let's see okay now height
25:57
height we can see that uh there are the extra spaces so instead of 102 let's
26:03
make it 85 as well 85 by 85 let's make it uh 75
26:12
and uh let's make it uh 80 and now
26:18
let's move our active view to the side view and uh let's reduce the height to the 70
26:30
let's make it a 60 directly let's see so it is a cropping the view so make it 65
26:38
or slowly we can increase it to the 68
26:45
press enter so 70 will be the right one
26:51
now let's move it and here
26:58
we do not want this overlapping so we will move this dimension here and we
27:06
will move this uh 70 mm dimension
27:12
why I'm uh clearing this portion because uh when you
27:17
export this drawing to the PDF if this boundary is overlap here then that
27:23
portion will not come in the PDF and now here let's uh move our base view
27:34
okay and now here to create extra space I will move this 20 mm dimensions to the
27:40
right hand side and move this 60 mm dimension here now let's
27:49
off the frame and here we can see that still it is a
27:54
cutting so we will go to the our drawing tab and go to the
28:02
active view and here height we will keep it uh 75
28:09
and now we will on the frame yes so you can see that uh we have uh created this
28:18
drawing from the scratch and we have uh
28:23
detailed this part and now if I see here 45 and 70 dimension are very close so I
28:29
will simply move this 45 dimensions to the other side now off the frame so
28:36
drawing should be neat and clean and dimension should be easily readable and
28:42
now let's go to the title block field and now here I will insert my logo and I
28:48
will change the title block field so here is my material is of uh stainless
28:54
steel i am fine with it uh title is exercise 03 okay but uh this drawing is
29:00
not assembly drawing this is a part drawing so we will edit a title block field so here you will see the uh blue
29:08
line which means that now the title block field is editable
29:13
if uh you are in a frame mode then only you can edit the title block field if you are not in a frame mode if you do
29:21
anything you will not be able to change it so always on the frame when editing the title block and instead of a
29:28
assembly drawing I will uh make it part drawing
29:35
and uh drawing number uh drawing number my exercise is 03 so uh I will make uh
29:45
03 number and this is
29:51
created by I will put here my name Amar Patel
29:57
approved by me so here I will give the my name
30:06
Amar Patil say okay now language of my drawing is
30:11
English so if you're using the German French or other language then you can
30:17
simply change it date is automatically took by the free revision so this is a
30:24
fresh drawing so revision will be the zero
30:29
And here sheet two of two so here we will delete this page which is extra one
30:38
and now we will go to the tri uh our page revision is zero and uh now we will
30:46
insert the logo so go to the tech draw workbench and uh here you will see the
30:54
option insert the bit map image so here I will insert my logo and uh let's
31:00
browse my logo in exercise two I have uh my logo here
31:12
and I will insert it so you can see that uh my logo is inserted now I will move
31:18
it but this is very large as compared to the title block so as we have a scaled
31:24
our isometric view we will also scale out this image so here is a scale 1 to 1
31:30
we will make it a 0.5 or uh let's see the make it a 0 4 and uh
31:38
I will move it
31:43
and now I will off the frame so you can see that we have successfully created
31:50
this beautiful drawing with respect to the our reference drawing and uh in this
31:56
tutorial we have learned the lots of thing how to lock the view how to on the hidden lines how to insert the image and
32:03
how to edit the title block field now you can easily convert this drawing into
32:09
the PDF all you have to go with a file and then export to the PDF and here
32:17
I will select my folder and I will give the PDF name 03
32:25
and let's see our the PDF
32:40
so PDF is loading so you can see that uh our drawing converted into the PDF and
32:47
it's look so beautiful so nice dimension are very clear information is very
32:54
precise date revision everything and you can also convert this drawing into the
33:01
some other format like SVG and DXF so this is all about this tutorial
33:08
thank you for watching and thank you for your valuable time
33:17
heat [Music]
33:40
heat [Music]
