Hello friends welcome to Free care
0:02
tutorial and in this tutorial we will
0:05
learn the revolve tool under the part
0:08
design workbench Revol tool is basically
0:10
used to create a circular object it may
0:14
be Shaft or flange or anything else
0:18
which is circular in a
0:21
shape you can also visit my website Mech
0:25
nexus.com where I write articles and
0:28
tutorials on free ad you can download my
0:32
tutorial source file from the here if
0:35
you like my method of teaching then
0:38
please support me on coffee.com you can
0:41
buy me a cup of coffee your small
0:44
support will help these channels to grow
0:47
and it will motivate me to create more
0:52
freead I will provide my website and my
0:56
Kofi donation page Link in a video
0:58
descriptions so so let's come back to
1:02

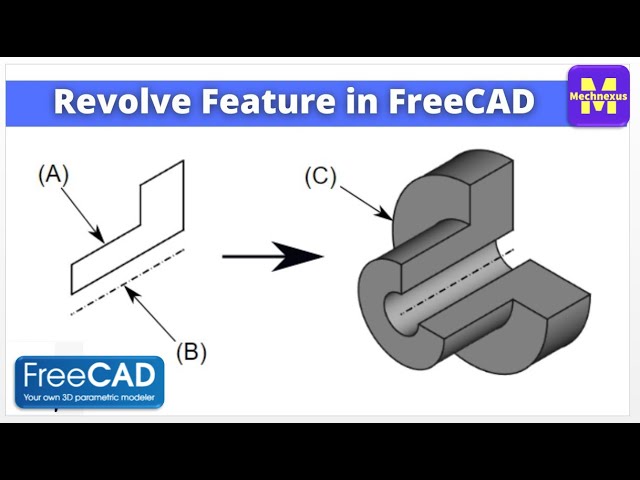

tutorial so if we see the this image
1:12
AIS and uh this profile Revol with
1:16
respect to AIS and here is a circular
1:21
created so we will see the what are the
1:24
others options in a Revol
1:27
tool if you have used the any other cat
1:31
software like solid works Autodesk
1:33
Inventor CA UGI or solid H then you may
1:38
have G through this Revol tool this
1:42
tools having the different name in a
1:48
here in freeat it's known as a
1:52
revolutions so for this we will uh
1:56
understand how to use it under the the
2:04
available so first I will uh create a
2:08
body and I have activated the part
2:16
now I will on my origin
2:19
plane and here we have the three planes
2:22
so we will create uh sketch on any of
2:26
the plane but I will select this y z
2:29
plane and create a sketch and I will go
2:32
to the model tab press the space bar and
2:36
plane now here I will uh select the
2:39
polyline tool and uh create a rough
2:54
profile and now I will uh give the
3:01
so before giving the dimensions uh I
3:03
will select a line tool and I will draw
3:06
a horizontal line and I will make it a
3:10
construction I will select it and I will
3:13
make it a coincident relation and
3:17
now I will give the dimensions I will
3:20
select this one and give some
3:25
Dimension let's say I give 10 mm
3:32
and now I will give the total length I
3:35
will select it and give the horizontal
3:42
60 and from origin point to this point
3:47
vertical one give the
3:55
now I will select the top points and
3:59
origin points and give the dimension of
4:06
45 now I will give this horizontal
4:09
dimension of 10 mm so our sketch is
4:16
constrained I will switch to the
4:21
view now I will uh close my
4:27
sketch now we will will select our
4:30
sketch and click on the Revol tool so
4:34
here uh freeat automatically took this
4:38
uh Z axis if you see with respect to our
4:42
UCS so when we Revol freead
4:46
automatically took some access but here
4:50
we can select our own access for example
4:54
here we have the construction line which
4:57
we have created in our sketch
5:00
if you select it then you can see that
5:02
the shape has been changed apart from
5:06
that you can select any axis like
5:15
axis so if it is revolve is not possible
5:18
with respect to x-axis so it will not be
5:21
revolved but if I select the J axis it
5:24
has been selected and we have one more
5:27
options which is known at a select
5:30
if you click on the select reference
5:32
then you can click on your own reference
5:36
so here possibilities is that this part
5:38
may be revolved with respect to zed Axis
5:41
or with respect to Y AIS so here I can
5:46
AIS so we have a multiple options here
5:51
now if we go here we have the angle
5:55
options this is a 360° revolve but I
5:59
want it half so I can give the angle 180
6:05
that it has been revolved
6:08
180° now if I keep the Symmetry to the
6:11
plane then it will consider this uh Z y-
6:17
AIS plane and it will make it a
6:20
symmetric if I uncheck it then it will
6:23
be un Symmetry and we can change the
6:26
angle as per our requirement either we
6:34
full so this is how you can use the
6:37
reval tool in freeat so now I will keep
6:44
360° and always check on this update
6:47
View and click on okay so this is the
6:51
very small tutorial how to use the reol
6:55
fread I hope you have liked this
6:57
tutorial thank you for watching and
7:00
thank you for your Val good
