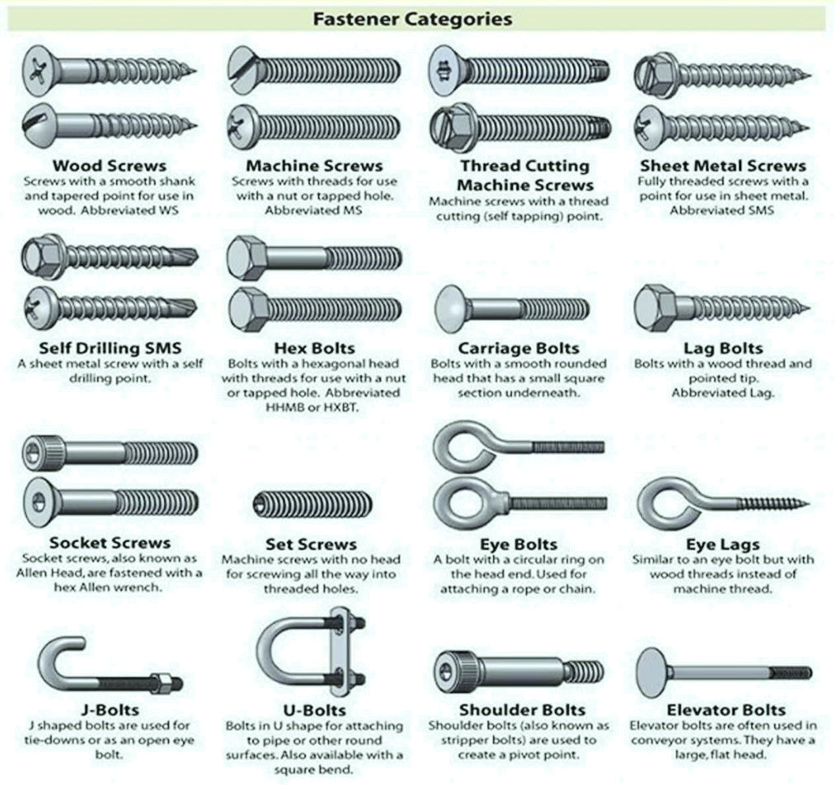

Fasteners are hardware devices used to join or secure materials together. They come in various types, shapes, and sizes, each designed for specific applications. Below is a breakdown of common fasteners and their uses.
1. Bolts & Nuts
Bolts
-
Hex Head Bolt – Standard hexagonal head, used with a wrench.
-
Carriage Bolt – Smooth rounded head with a square neck to prevent spinning.
-
Flange Bolt – Has an integrated washer-like flange for better load distribution.
-
Allen Bolt (Socket Head Cap Screw) – Driven by an Allen key (hex key).
-
Eye Bolt – Has a loop for attaching cables or hooks.
Nuts
-
Hex Nut – Standard six-sided nut.
-
Lock Nut (Nyloc Nut) – Contains a nylon insert to prevent loosening.
-
Wing Nut – Has “wings” for hand-tightening.
-
Flange Nut – Built-in washer for better grip.
2. Screws
-
Wood Screw – Coarse thread for gripping wood.
-
Machine Screw – Fine thread, used with nuts or threaded holes.
-
Self-Tapping Screw – Cuts its own thread into materials like metal or plastic.
-
Sheet Metal Screw – Sharp threads for thin metal sheets.
-
Drywall Screw – Bugle head to prevent paper tearing.
-
Lag Screw (Lag Bolt) – Heavy-duty screw for wood, requires a wrench.
3. Washers
-
Flat Washer – Distributes load and prevents damage.
-
Spring Washer (Lock Washer) – Prevents loosening due to vibration.
-
Fender Washer – Large outer diameter for thin materials.
4. Rivets (Permanent Fasteners)
-
Pop Rivet – Used where only one side is accessible.
-
Solid Rivet – Requires hammering or pressing for installation.
-
Blind Rivet – Similar to pop rivets but used in tight spaces.
5. Anchors (For Walls & Concrete)
-
Plastic Anchor – Expands when a screw is inserted.
-
Toggle Bolt – Wings expand behind hollow walls.
-
Concrete Anchor (Sleeve Anchor) – For heavy-duty masonry fixing.
6. Specialty Fasteners
-
Threaded Rod (Stud Bolt) – Long rod with threading, used in construction.
-
U-Bolt – U-shaped for attaching pipes or round objects.
-
Clevis Pin – Used with a cotter pin for pivot points.
Fastener Materials
-
Steel (Common, strong)
-
Stainless Steel (Rust-resistant)
-
Brass (Corrosion-resistant, decorative)
-
Aluminum (Lightweight, corrosion-resistant)
-
Nylon/Plastic (Non-conductive, lightweight)
Key Considerations When Choosing Fasteners
✔ Material Compatibility (Avoid galvanic corrosion)
✔ Load Requirements (Shear vs. tensile strength)
✔ Environment (Outdoor, marine, high-temperature)
✔ Thread Type (Coarse vs. fine)
✔ Head Style (Flat, pan, hex, etc.)
