BRL-CAD: Open-Source Modeling Software Developed for Military and Defense Engineering

Brl cad open source modeling software developed for military and defense engineering 01

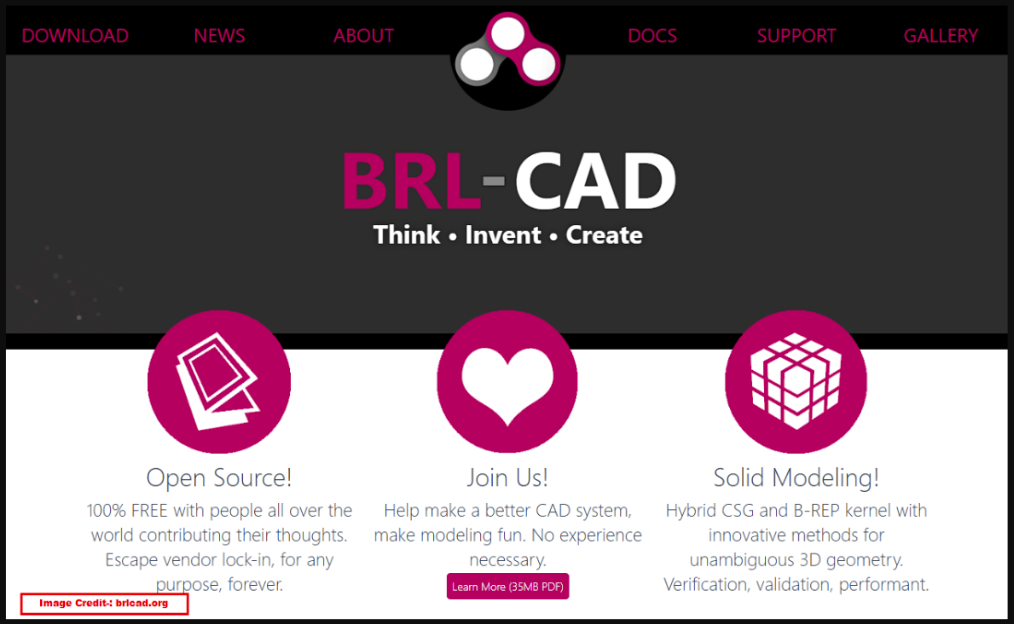

BRL-CAD is one of the oldest open-source software projects in the world, with a codebase that dates back to 1979. It was originally developed by Mike Muuss at the U.S. Army Research Laboratory’s Ballistic Research Laboratory (BRL) for modeling and simulation purposes.

The table below summarizes its core profile:

CategoryDetails
OriginU.S. Army Ballistic Research Laboratory (BRL)
Initial Release1983; Became open-source in 2004
Primary StrengthConstructive Solid Geometry (CSG)
Typical Use CaseBallistic and electromagnetic analysis, system performance validation
LicenseOpen-Source (LGPL 2.1+)

🎯 What Makes BRL-CAD Unique?

BRL-CAD is fundamentally different from many modern CAD systems, which is a direct result of its original purpose for ballistic analysis.

  • Constructive Solid Geometry (CSG) at its Core: Unlike systems that use Boundary Representation (B-Rep), where models are defined by their surfaces, BRL-CAD builds complex objects by combining simple geometric primitives (spheres, boxes, cones, etc.) using boolean operations (union, subtraction, intersection). This method is exceptionally precise and reliable for computing physical properties like volume and mass, which is critical for vulnerability analysis.

  • Designed for Performance and Accuracy: The software was engineered to perform millions of ray-tracing calculations quickly and accurately to simulate how projectiles interact with armored vehicles and other military assets. This focus on high-performance, precise analysis is its defining characteristic.

  • A Complete Package, Not Just a Modeler: BRL-CAD is more than a geometry editor. It is a cross-platform distributed multi-purpose toolkit that includes:

    • Geometry Editors (like mged)

    • Ray Tracing for rendering and analysis

    • Image and Signal Processing tools

    • Network Distributed Framebuffer support

    • Scripting and embedded programming interfaces

💡 Key Applications and Use Cases

While its roots are in defense, its capabilities are applicable to various fields requiring high-precision modeling and analysis.

  • Vulnerability/Lethality (V/L) Modeling & Simulation: Its original and primary use case. Engineers use it to model vehicle armor and simulate the effects of weapons to design better protection.

  • Scientific and Academic Research: Its open-source nature and precision make it a valuable tool in academic settings for teaching computer graphics, geometry, and for various scientific simulations.

  • Ray Tracing and Path Tracing: It includes a high-performance ray tracer (rt) that is used for both photo-realistic rendering and, more importantly, for analytical studies like calculating volume, mass properties, and line-of-sight.

  • System Performance Validation: The software can be used to model systems and validate that they will perform as expected under specific conditions.

🚀 Getting Started with BRL-CAD

  • Availability: As a mature open-source project, BRL-CAD is completely free to download, use, and modify. It is available for Windows, macOS, and Linux.

  • Learning Curve: Be prepared for a different workflow. For users accustomed to the direct, push/pull modeling of modern B-Rep systems, the procedural, history-based CSG approach of BRL-CAD can have a steeper learning curve. However, it teaches foundational principles of 3D modeling that are highly valuable.

  • Community and Support: Development is supported by a dedicated community of developers and users, many of whom have backgrounds in engineering and computer science. Support is available through official documentation, mailing lists, and forums.

In summary, BRL-CAD is not just another CAD program; it is a powerful, precise, and historically significant engineering tool. If your work involves high-fidelity analysis, scientific simulation, or you have an interest in the foundational principles of 3D modeling, it is an exceptionally powerful and free resource. For those seeking a more traditional, design-oriented modeling experience like that offered by ZWCAD or Onshape, the transition to BRL-CAD’s CSG paradigm may require a significant shift in mindset.
