Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned FreeCAD Part Modeling Tutorial 101. In this tutorial we will do modeling  in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Also Read-:

Basics of Loft and Sweep Tool in FreeCAD
Let’s Explore the FreeCAD Workbench
How to Set Default Workbench in FreeCAD

Mechnexus freecad tutorial source file r10

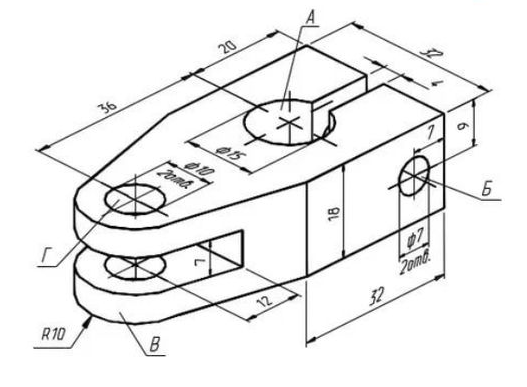

Step by Step Guide to Convert below drawing into 3D Model -:

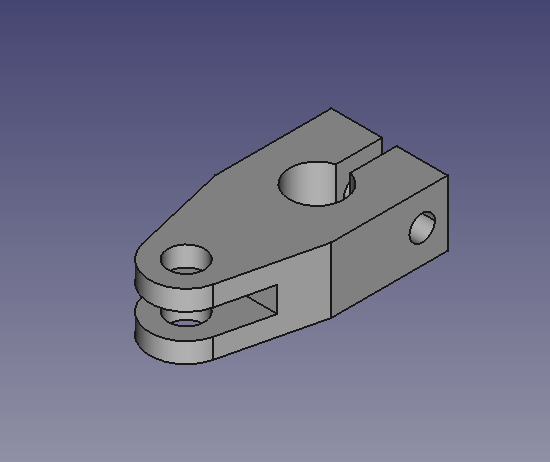

Freecad Part Modeling Tutorial 103

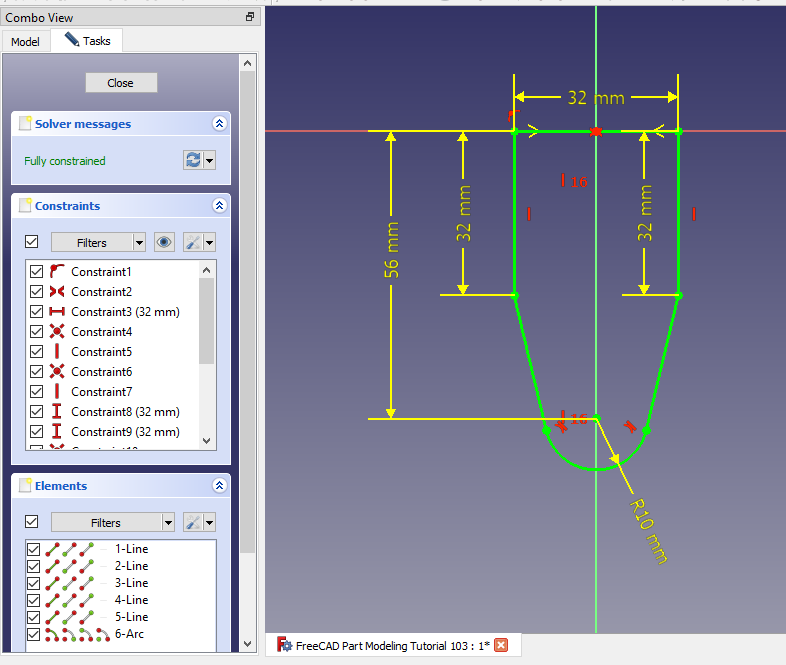

00Select the top plane and create the below sketch.

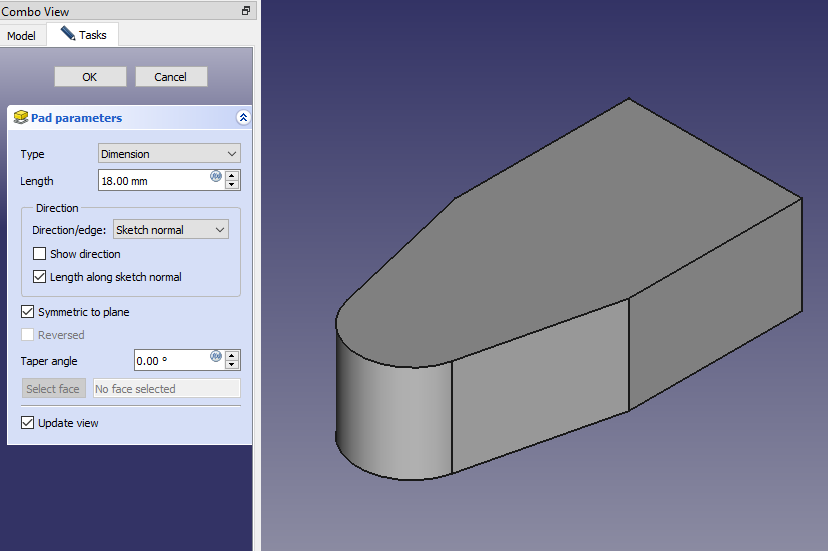

01Create the Pad of 18mm as shown in below image.

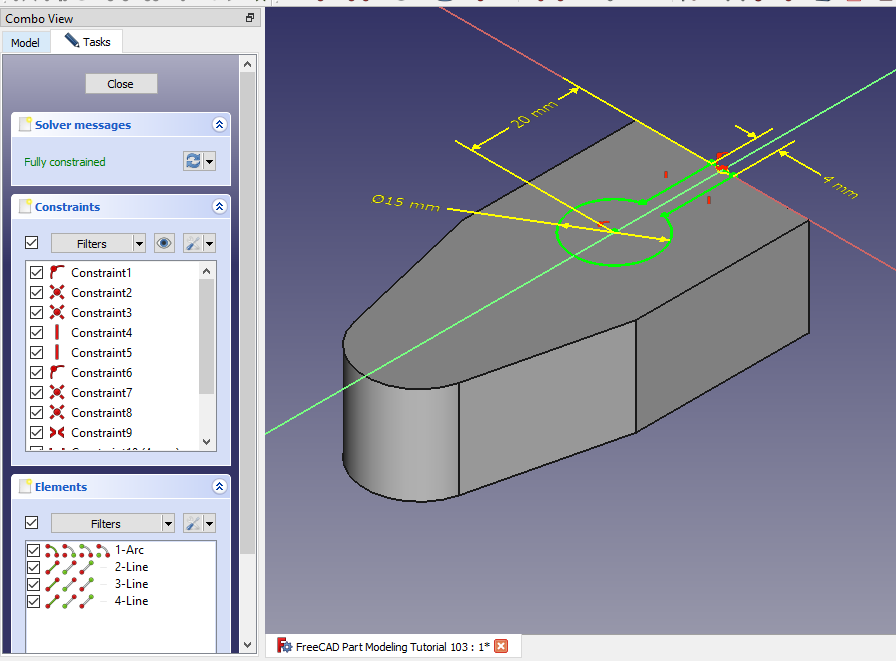

02Select the top face and create the below sketch.

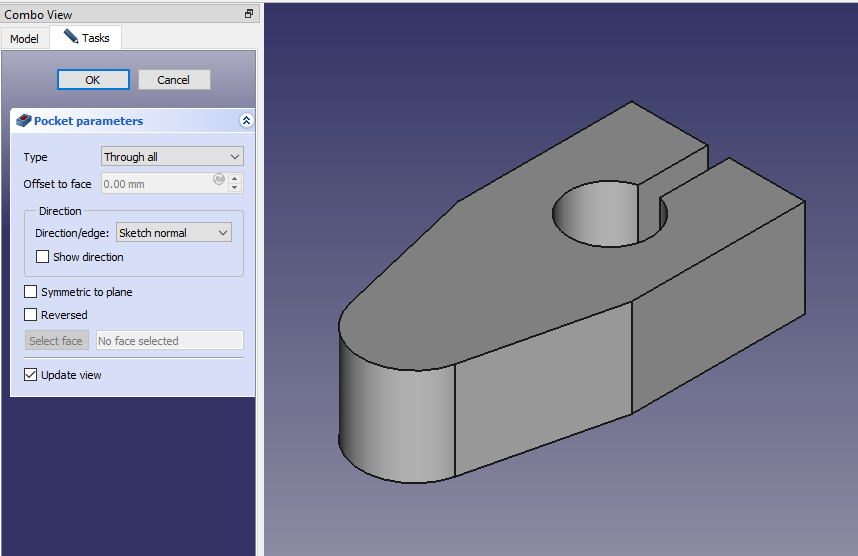

03Create the cut as shown in below image.

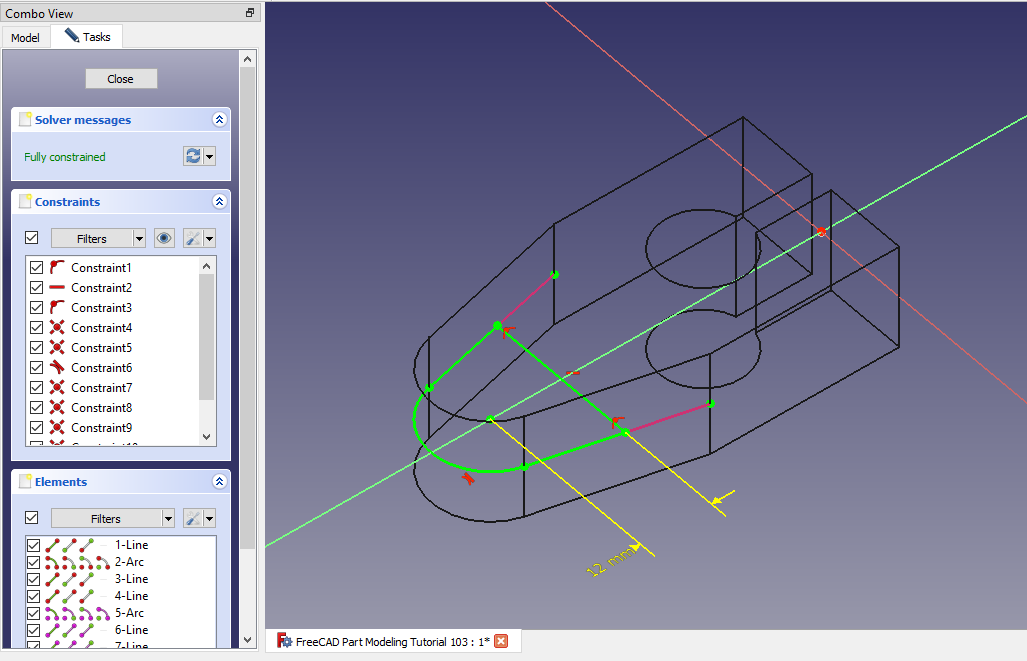

04Select the mid plane and create the below sketch.

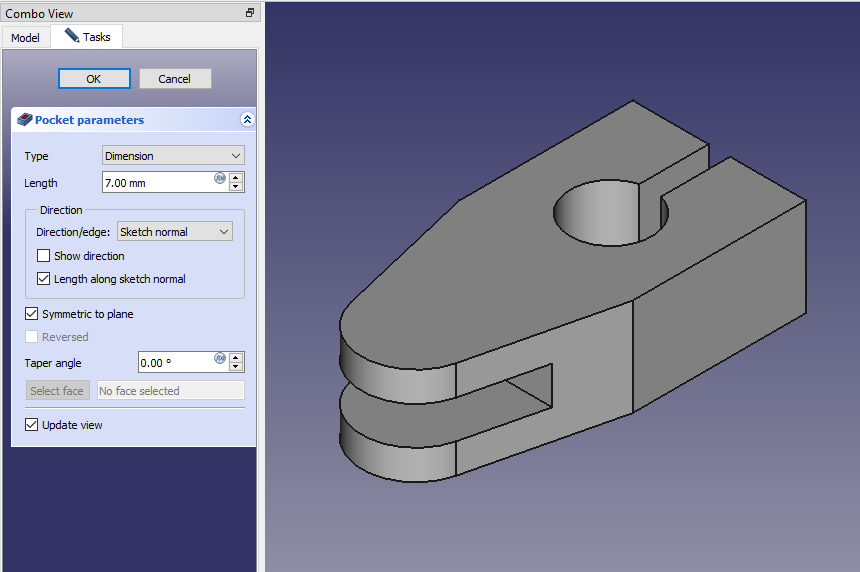

05Now create the cut of 7mm as shown in below image and keep it Symmetric to plane as shown in below image.

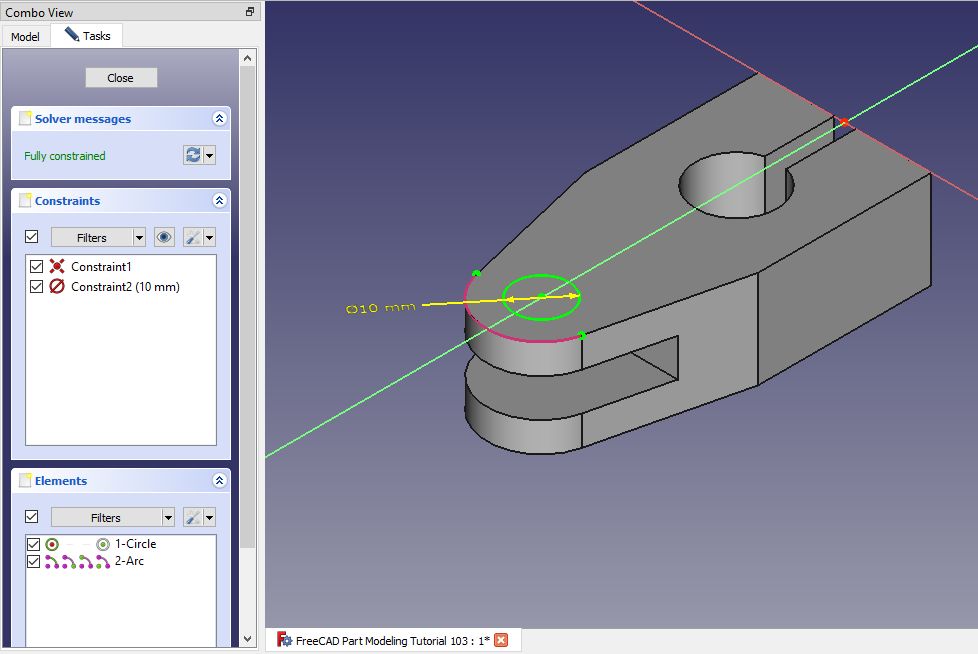

06Project the radius and create hole of diameter 10mm as shown in below image.

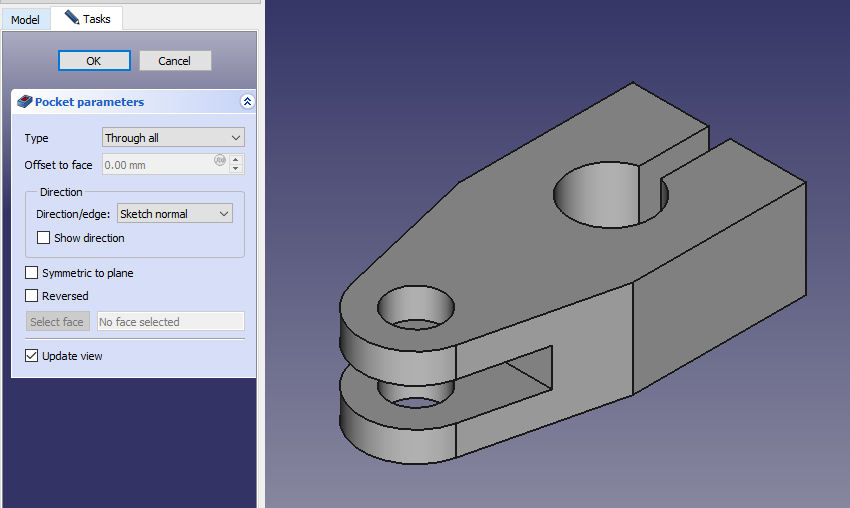

07Create the hole as shown in below image.

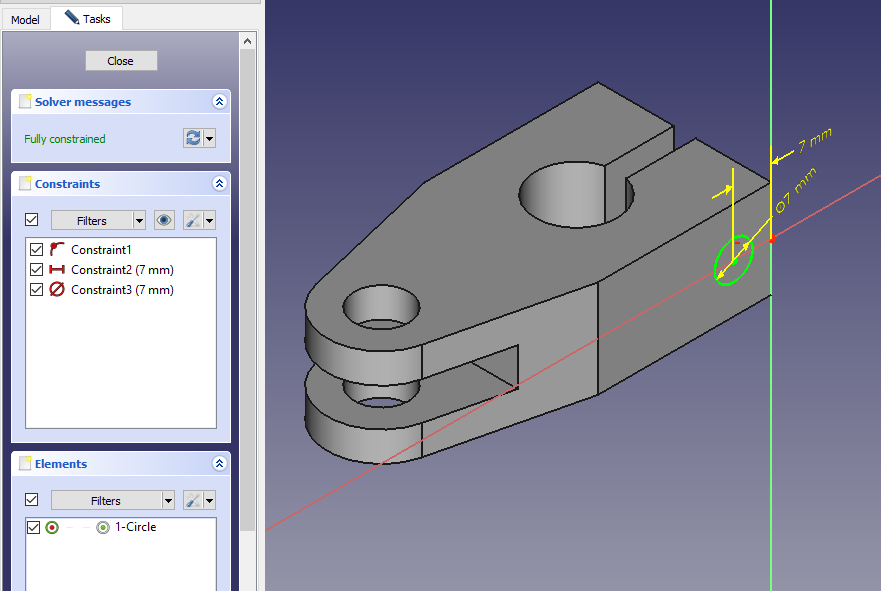

08Select the side face and create the below sketch.

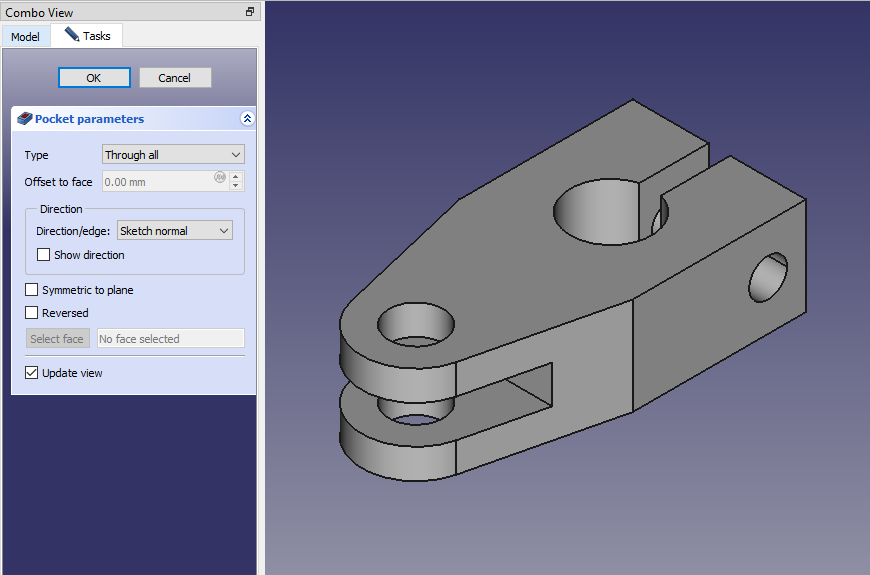

09Create the hole as shown in below image.
10
