Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned FreeCAD Part Modeling Tutorial 106. In this tutorial we will do modeling  in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Also Read-:

Basics of Loft and Sweep Tool in FreeCAD
Let’s Explore the FreeCAD Workbench
How to Set Default Workbench in FreeCAD

Freecad Ad 01

Freecad Part Modeling Tutorial 108

00

Select the Top plane and create below rectangular profile.

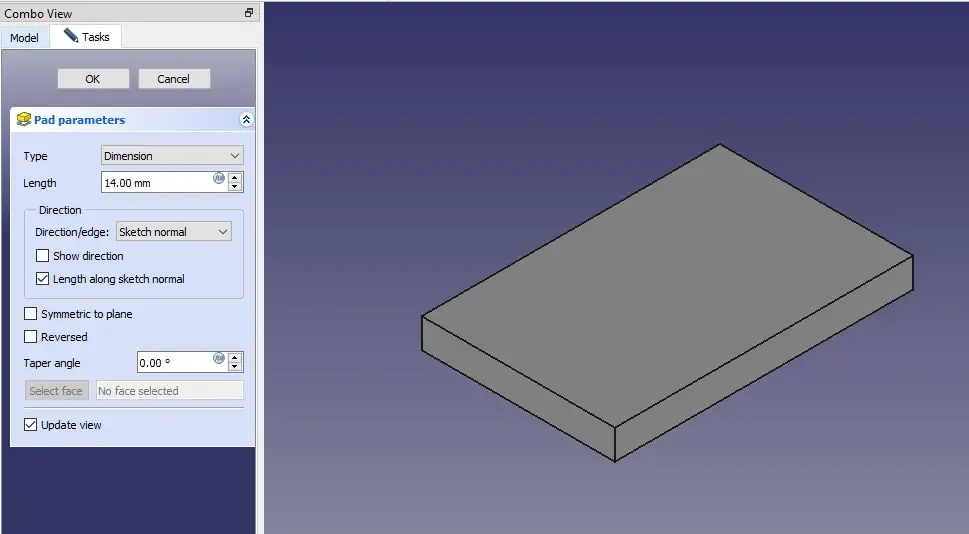

01Create the Pad of 14mm as shown in below image.
02Create the Datum plane at distance of  63.5mm As shown in below image.
03Now on Datum plane create below sketch.
04Create the Pad of 15mm As shown in below image.
05Create the Datum plane at distance of 7.5 As shown in below image.
06Now on Datum plane create below profile by projecting cut radius and inner diameter 30mm.
07Create the Pad of 45mm As shown in below image.
08Create the datum plane at distance of 41mm as shown in below image.
09Now on datum plane and create below profile.
10Create the Pad As shown in below image.
11Select the face and create below triangular profile.
12Create the cut as shown in below image.

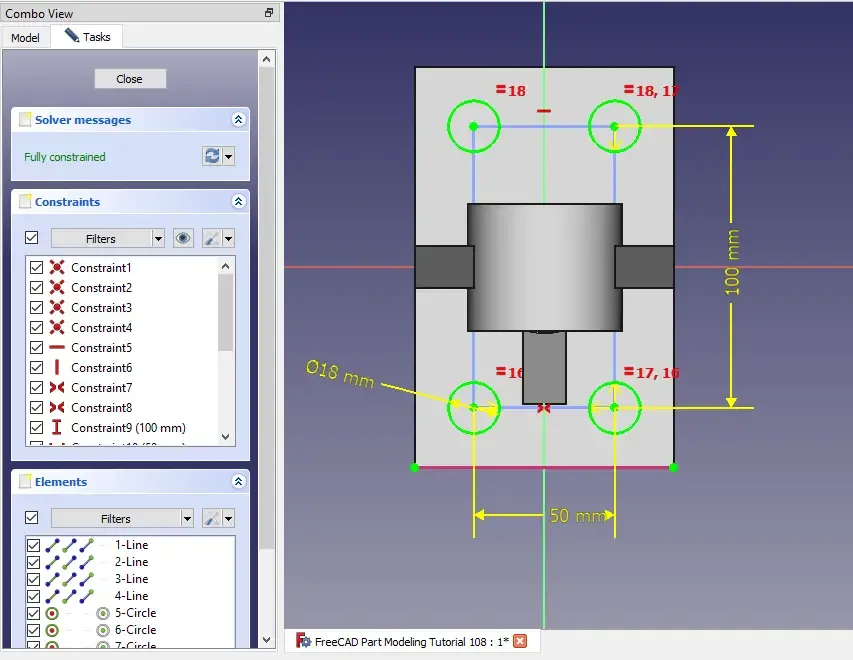

13Select the top face and create below Hole sketch.
14Create the hole as shown in below image.
15Create the Fillet of 10mm As shown in below image.
16
