FreeCAD Part Modeling Tutorial 124

Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned Model Gear Cover in FreeCAD. In this tutorial we will do modeling  in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://www.mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Freecad Ad 01

This part  modeling tutorial is made with FreeCAD 1.0 version if you have not install it download and Run FreeCAD 1.0 from FreeCAD.org.

Freecad Part Modeling Tutorial 124

00As per part orientation select the right plane and create the below sketch.
01now extrude the above profile to the distance of 60mm and keep it symmetric to the plane as shown in below image.
02Now select the face and create below fillet of 30mm As shown in the below image.
03Now project the radius and create the below circle as shown in the below image.

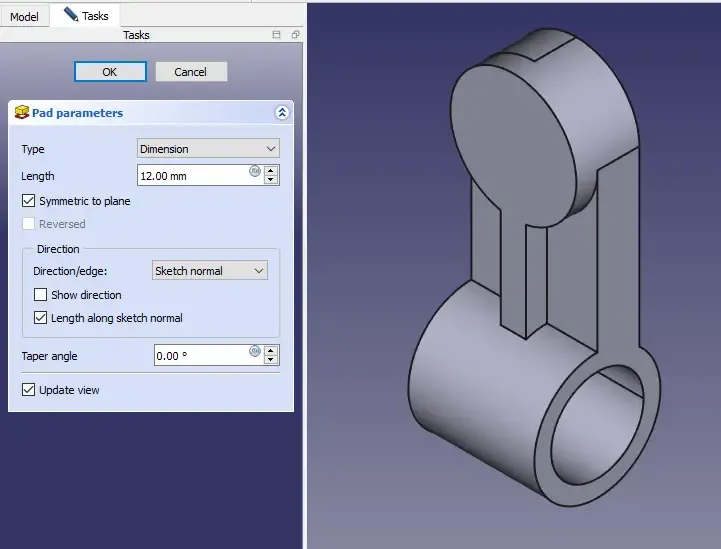

04Create the Pad of 10mm as shown in below image.
05Now select the face and create the below sketch as shown in the below image.
07Now create the Pad as shown in the below image.
08Select the mid plane and create the below sketch.
09Add the material as shown in below image.
10Now select the face and create the below sketch.
11Create the Pad as shown in the below image.
12Now select the XY plane and create the datum plane at distance of 60mm as shown in below image.
13Select the datum plane and create the below profile.
14Now create the Pad of 15mm as shown in the below image.
15Now create the fillet of 30mm as shown in the below image.
16Create the circle of 30mm as shown in the below image.
17Remove the material as shown in the below image.
18Create the hole sketch as shown in below image.
19Create the cut as shown in below image.
20
