Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned FreeCAD Part Modeling Tutorial 136. In this tutorial we will do modeling in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.
Also Read-:
| Insert Surface Finish Symbol in FreeCAD Drawing |
| Create Exploded Assembly with Animation in FreeCAD |
| Model Involute Gear in FreeCAD |

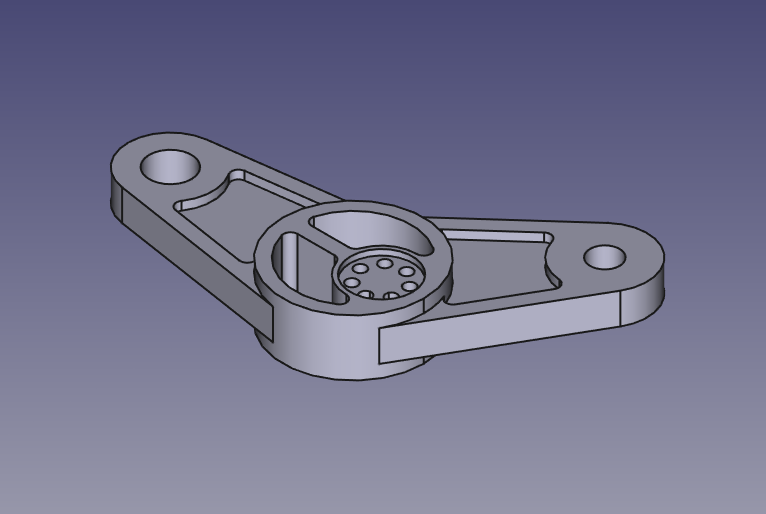

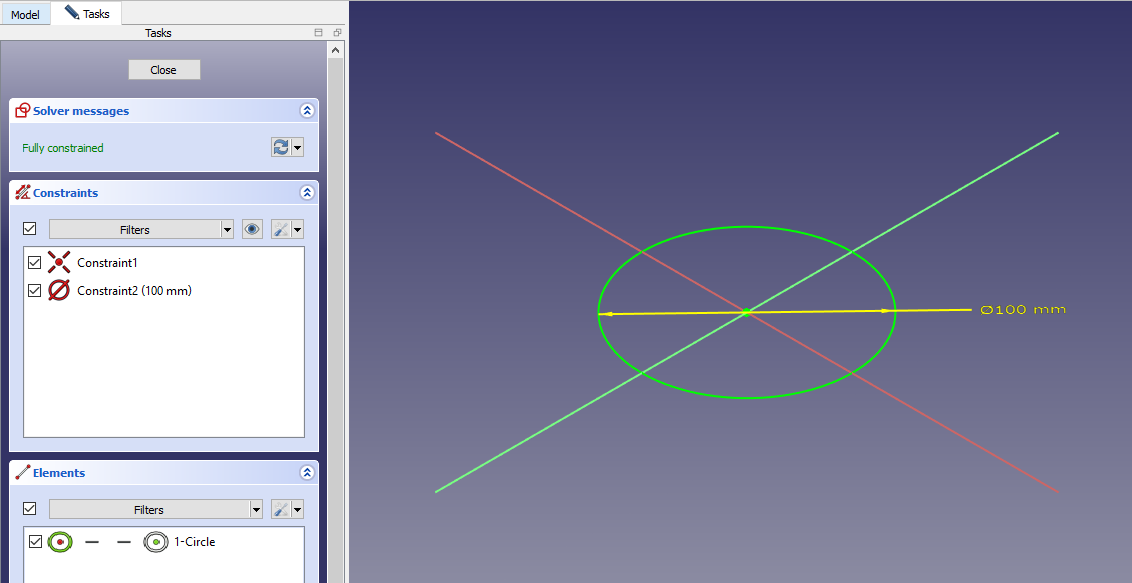

Select the Top plane and Create below circle of diameter 100mm on top plane.

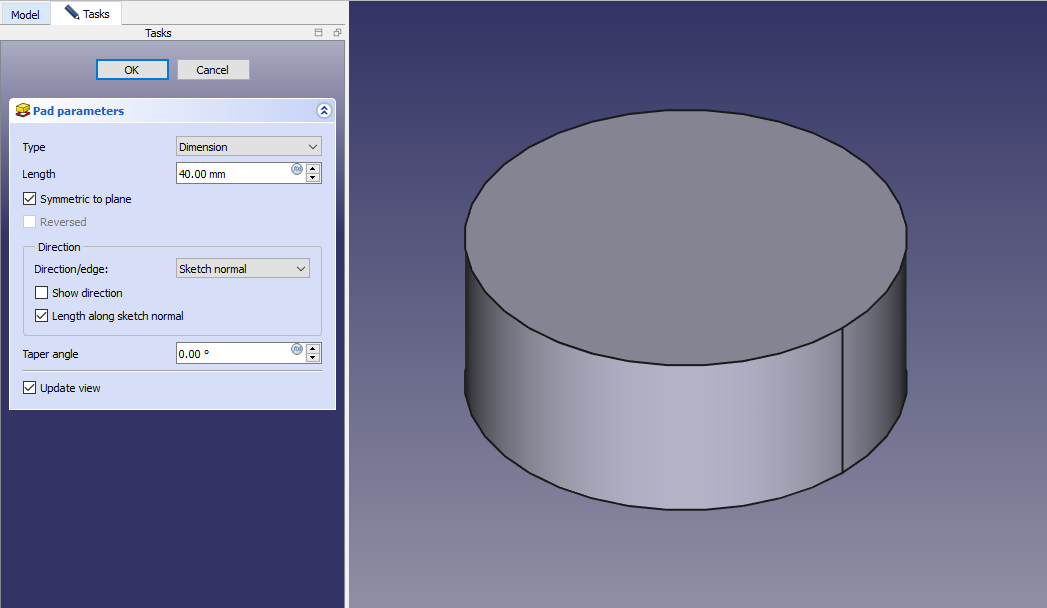

Create the Pad of 40mm as shown in below image.

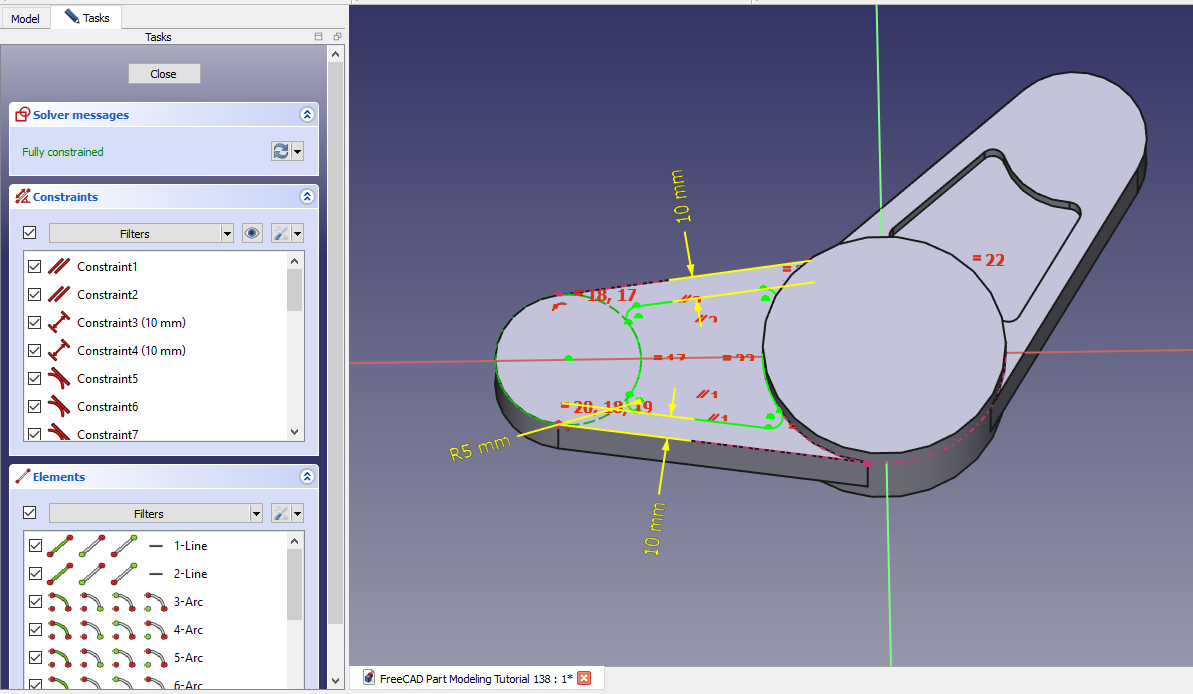

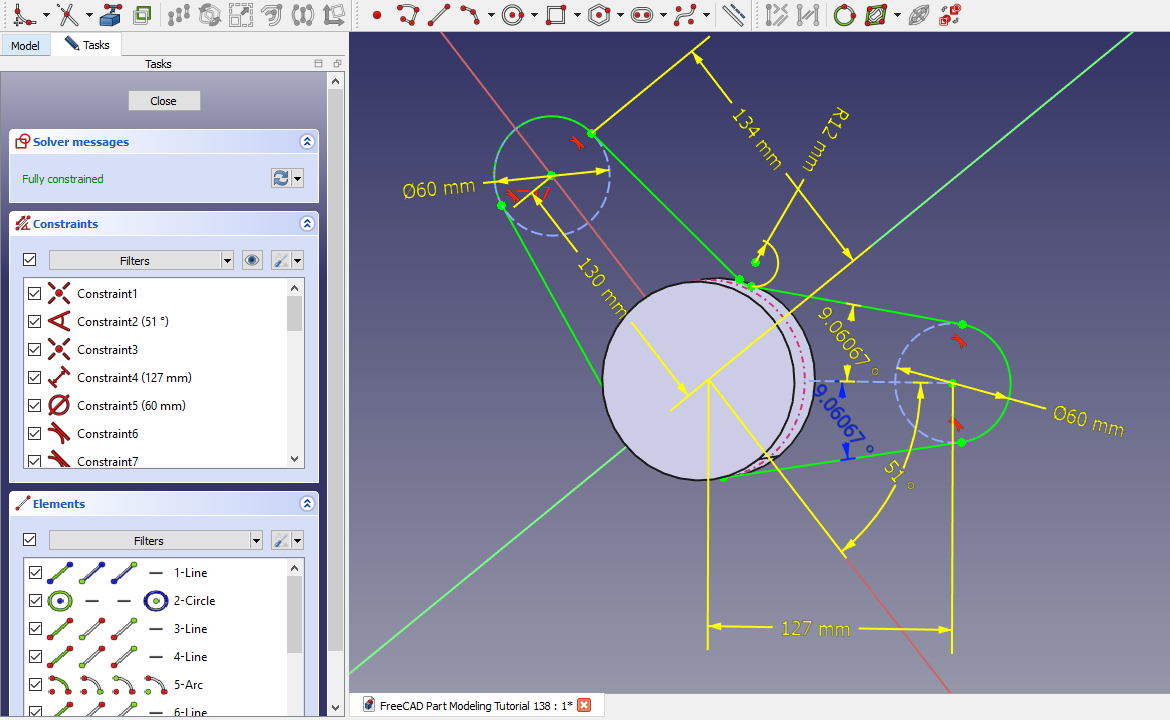

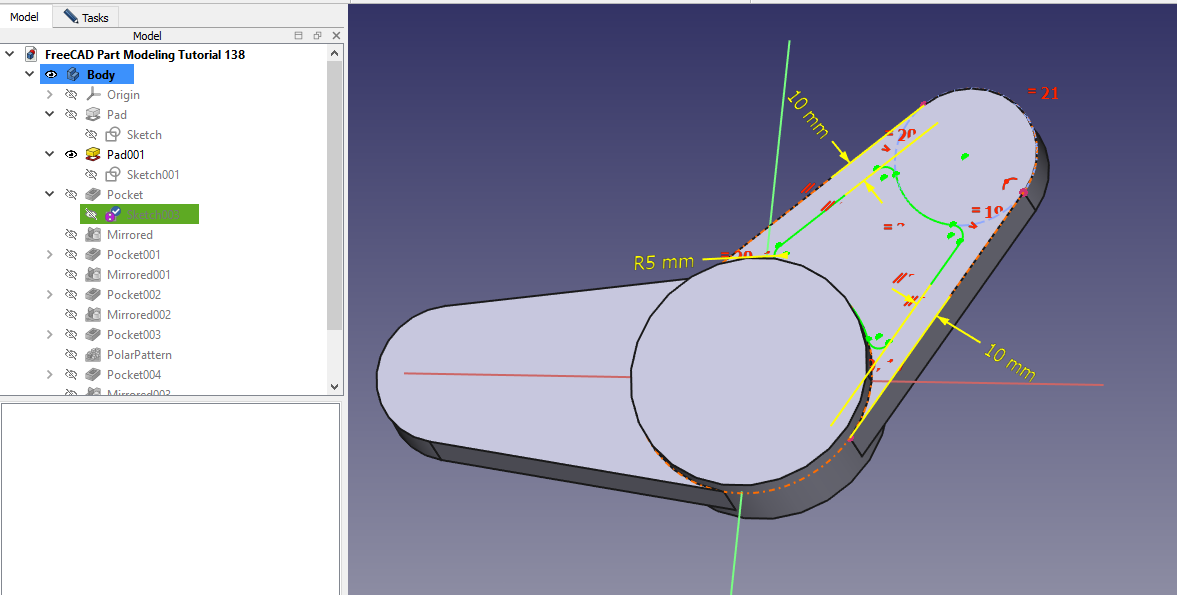

Now select the top plane and create below sketch.

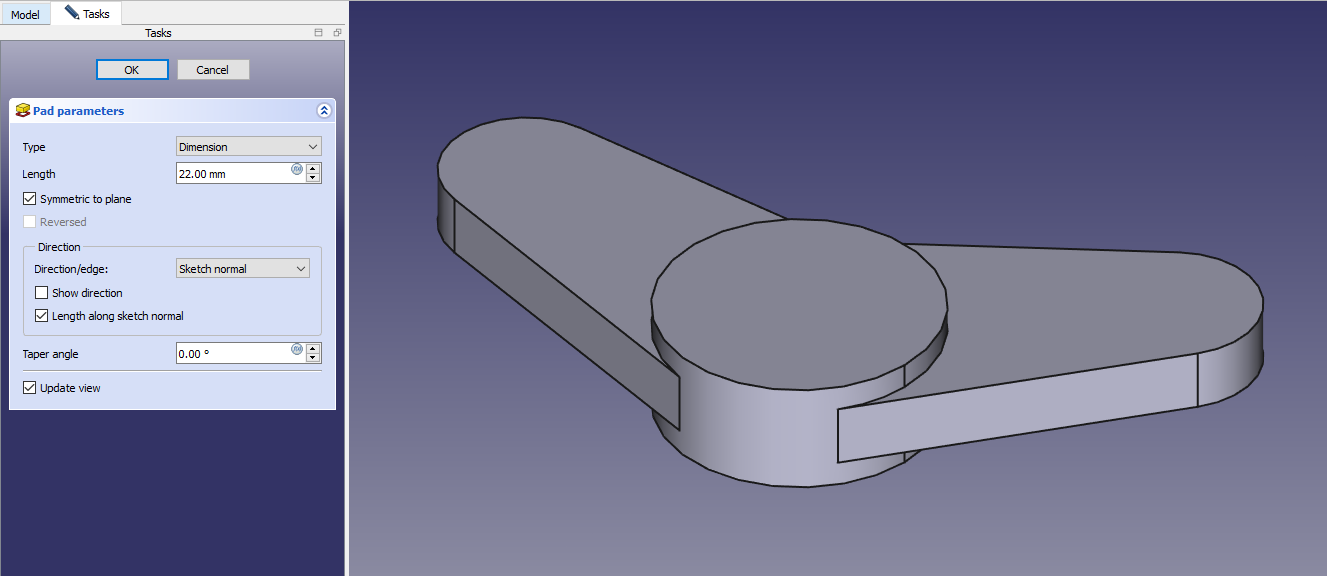

Now create the Pad of 22mm as shown in below image.

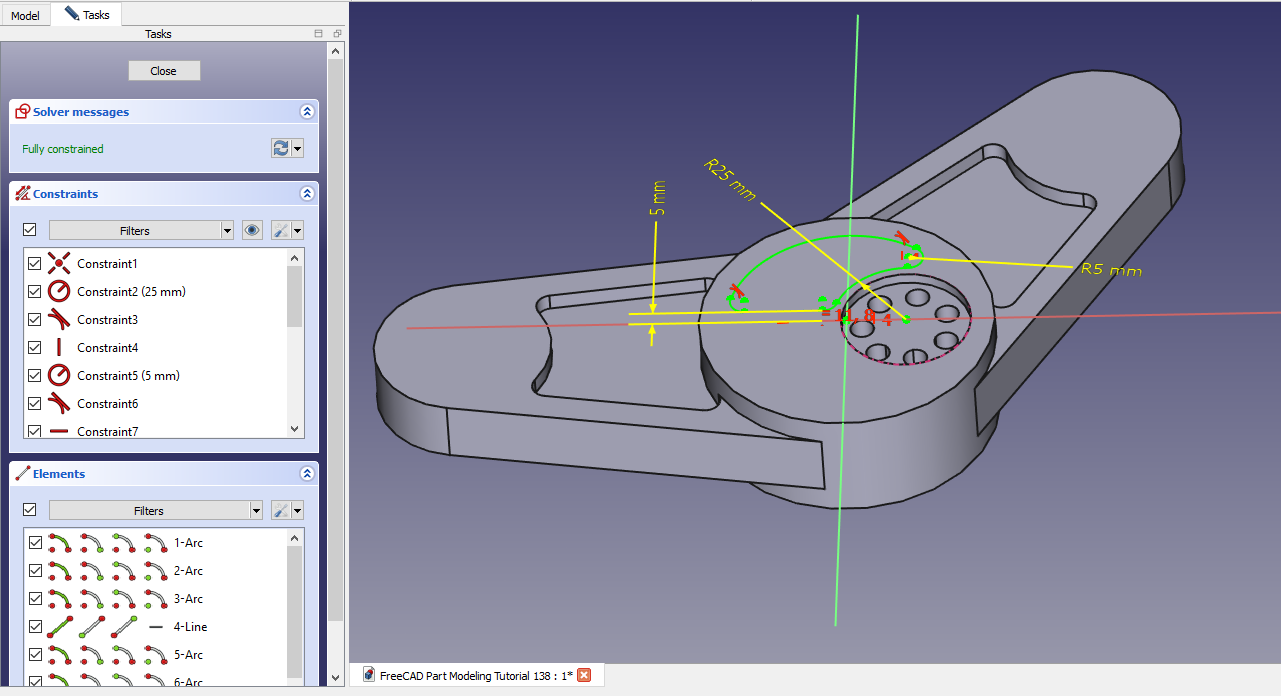

Now select the top face and create below sketch.

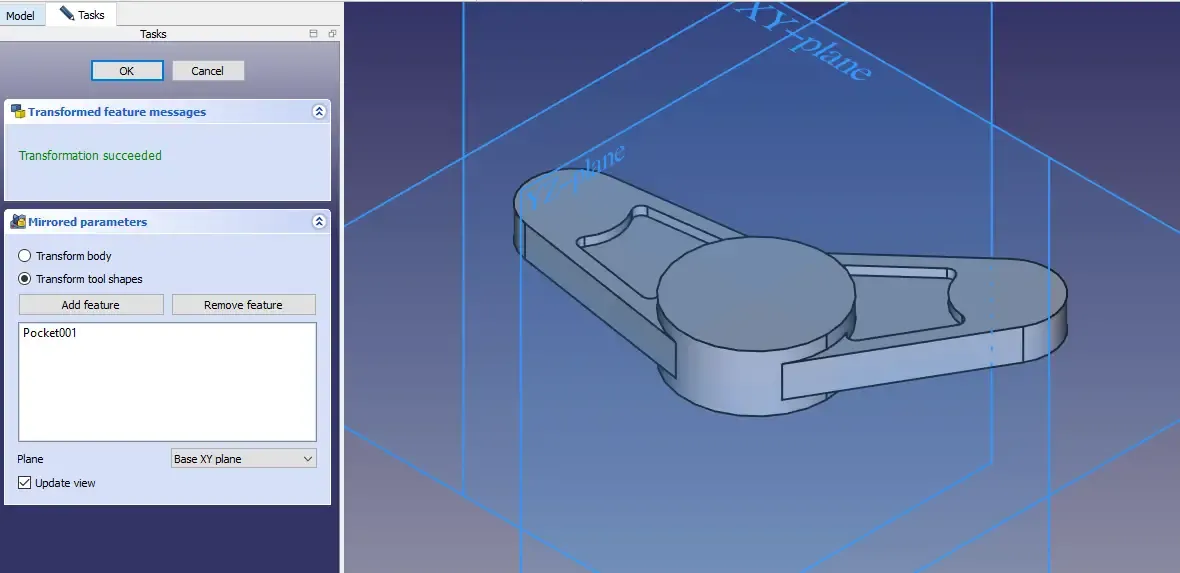

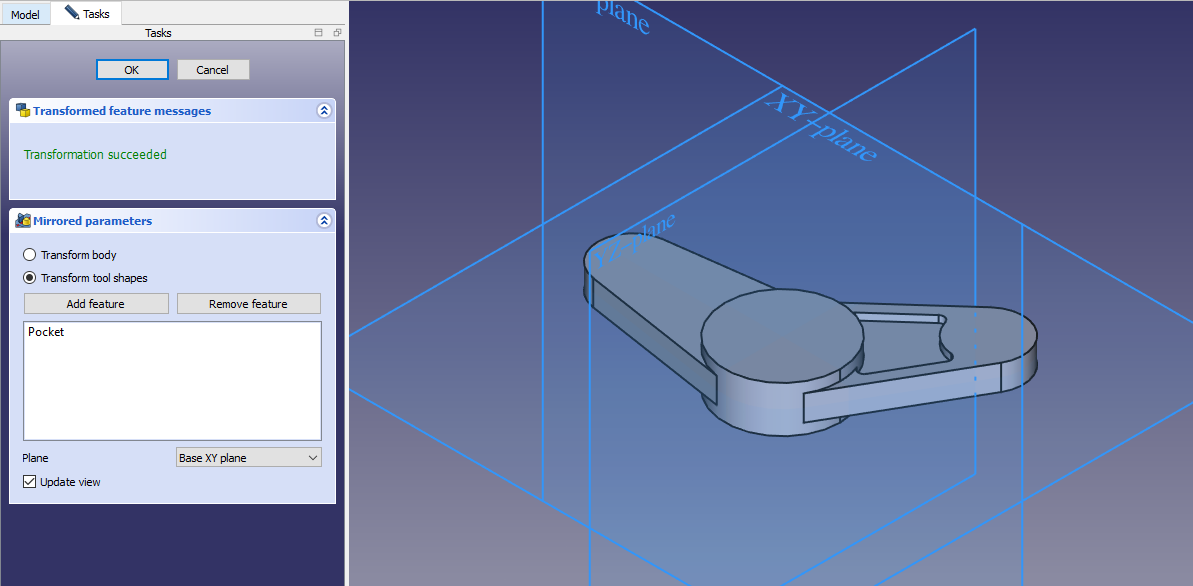

Now create the cut of 6mm as shown in below image & mirror it on other side.

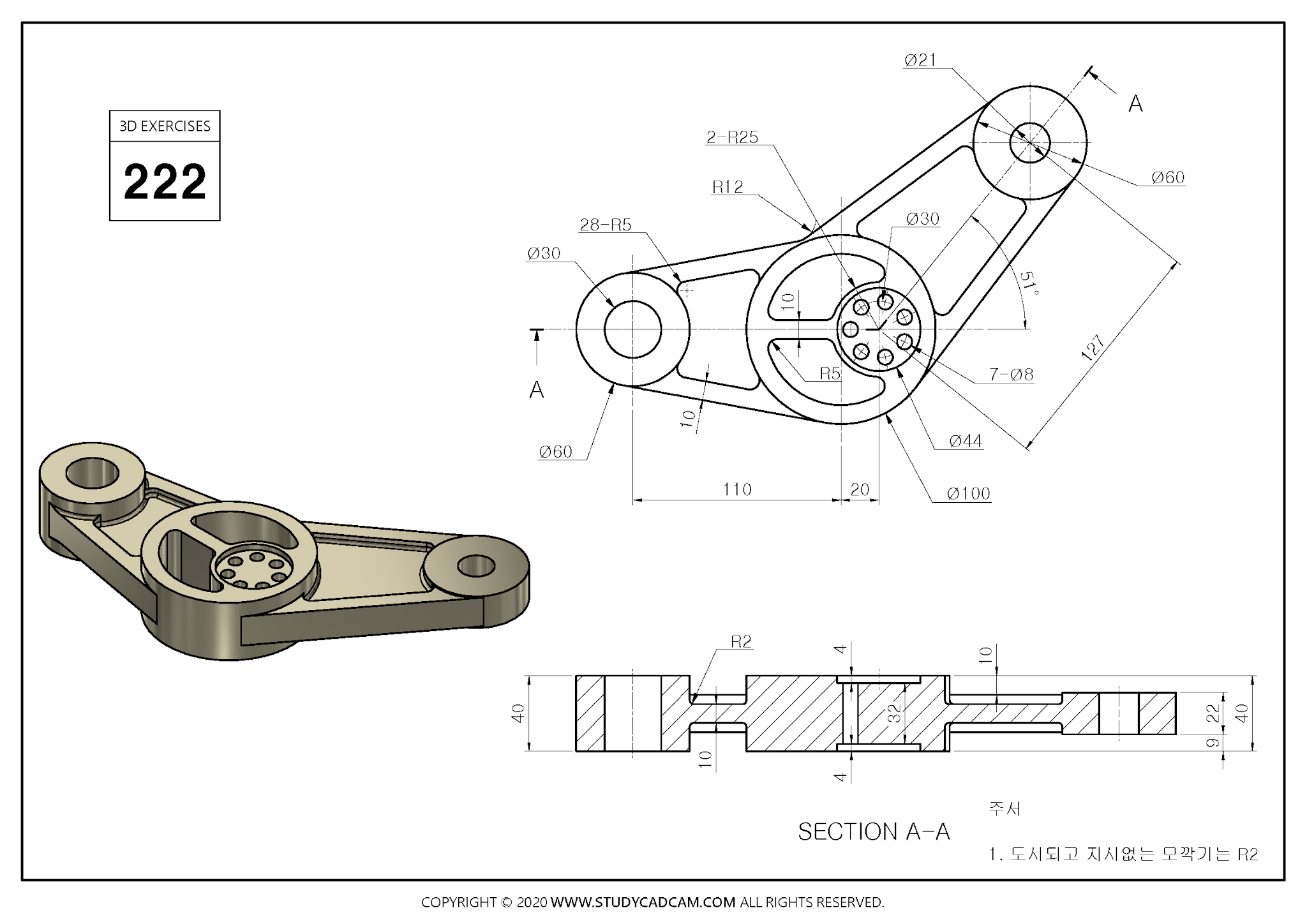

Create the below sketch for cut as per drawing.
Noe create the cut of 6mm and mirror on other side.
Create the hole sketch as shown in below image.
Create the cut of 4mm and mirror on other side.
Create the hole sketch as shown in below image.
Create the polar pattern as shown in below image.
Now create the sketch as shown in below image.

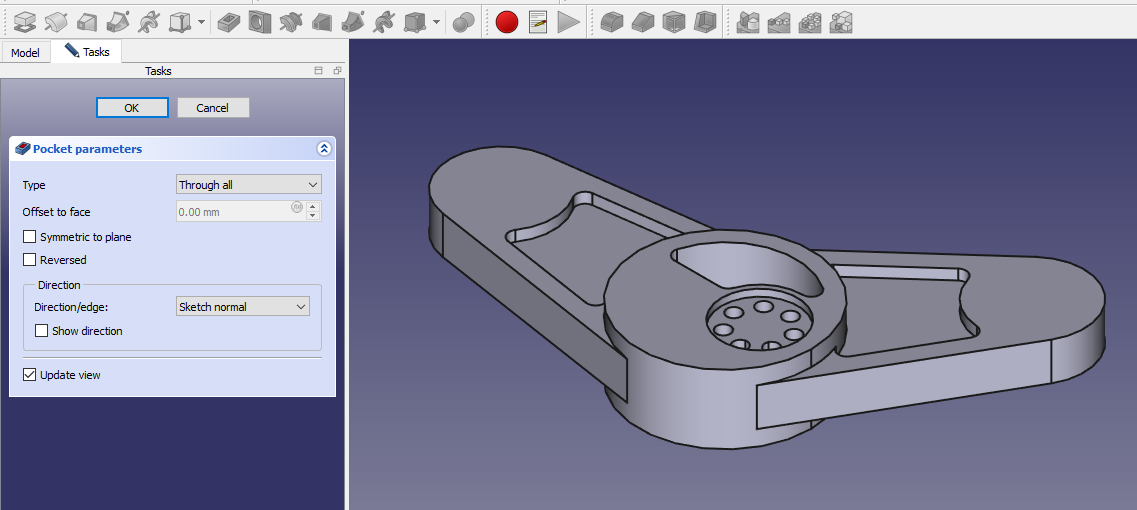

Create the cut and set end condition through all as shown in below image.

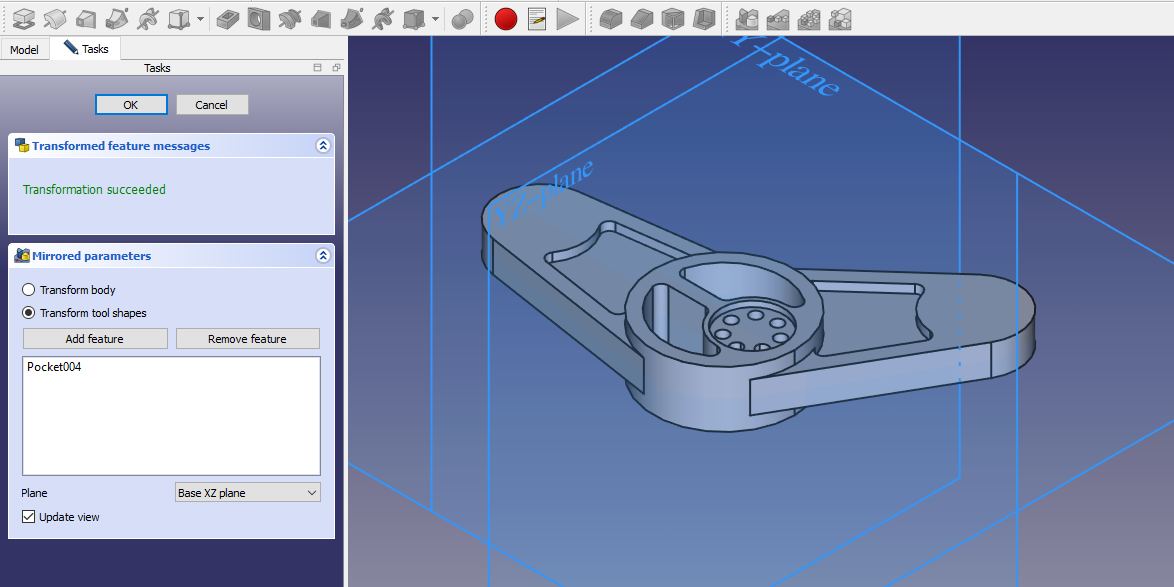

Now mirror the above cut as shown in below image.

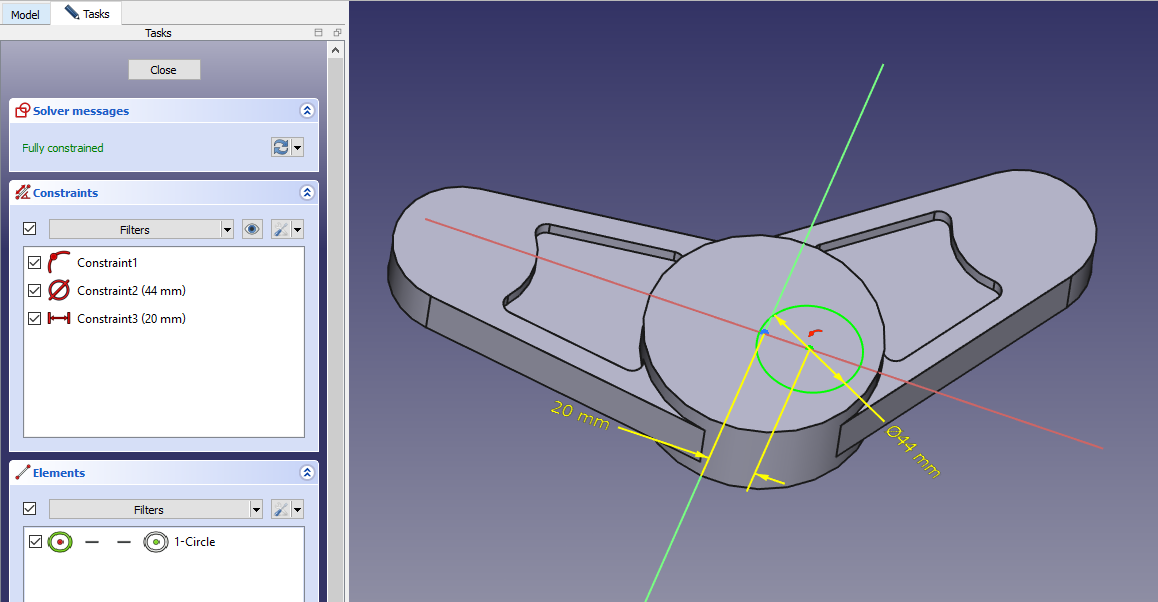

Create the hole sketch as shown in below image.

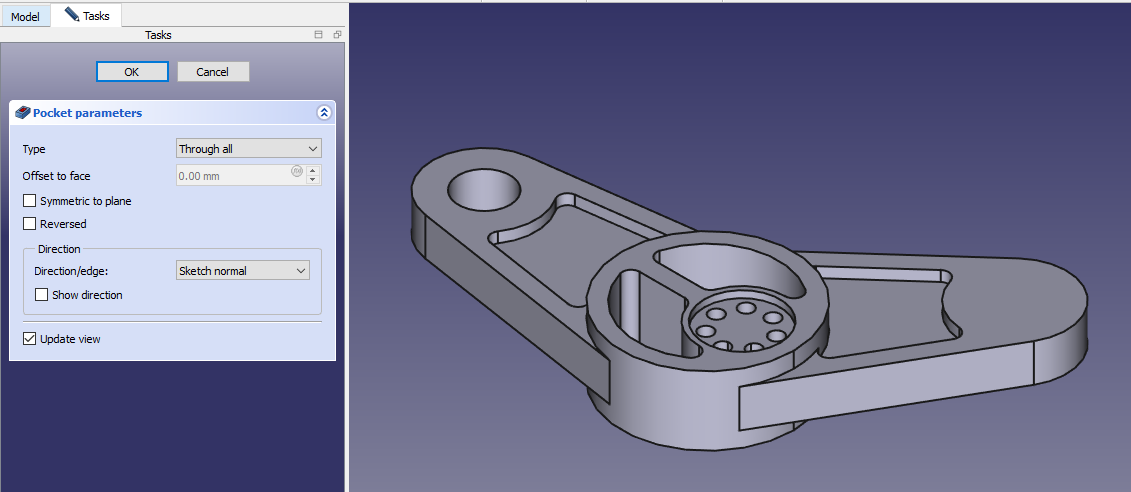

Create the cut as shown in below image set end condition through all.

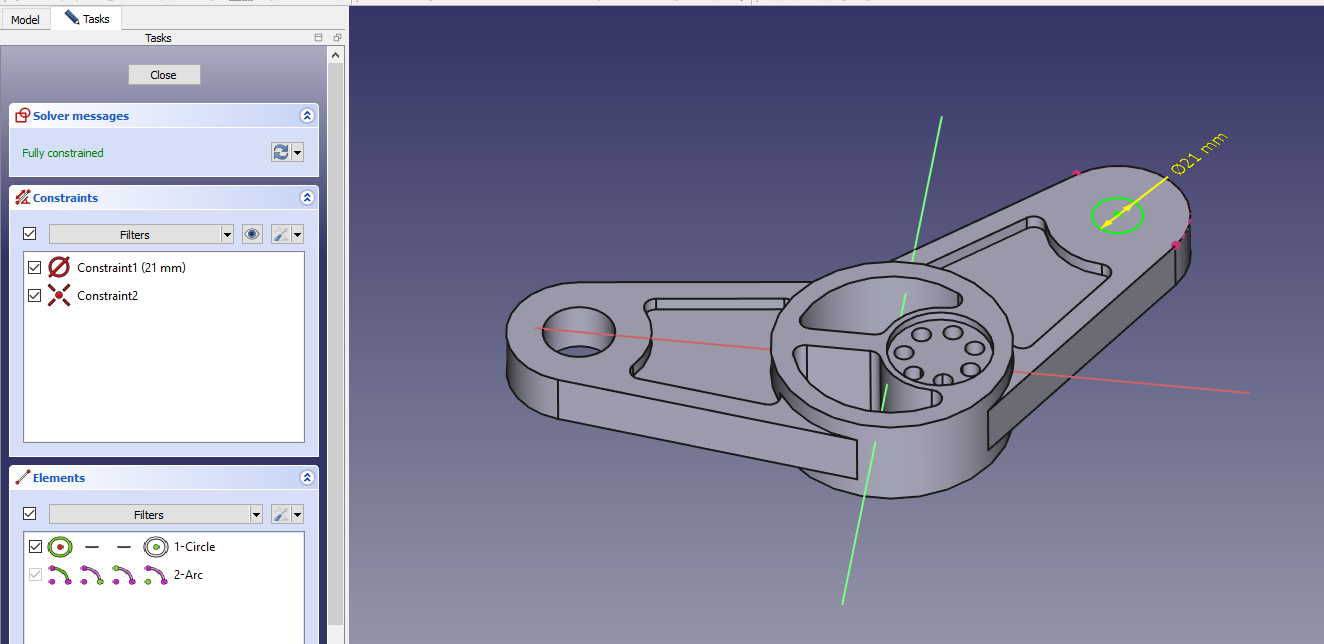

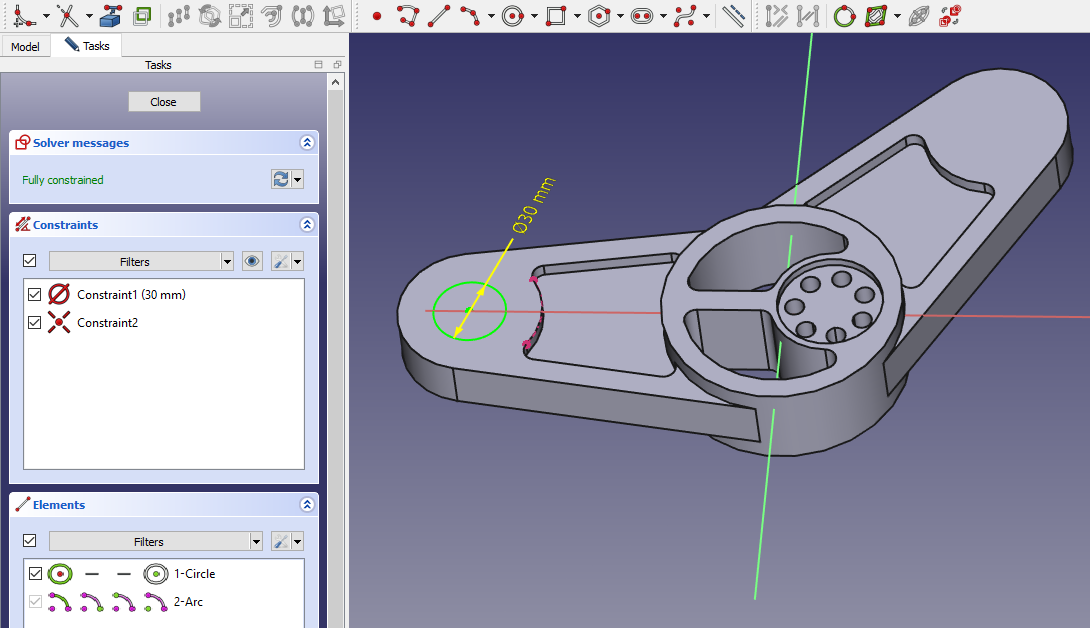

Create the hole sketch as shown in below image
Now create the cut as shown in below image.

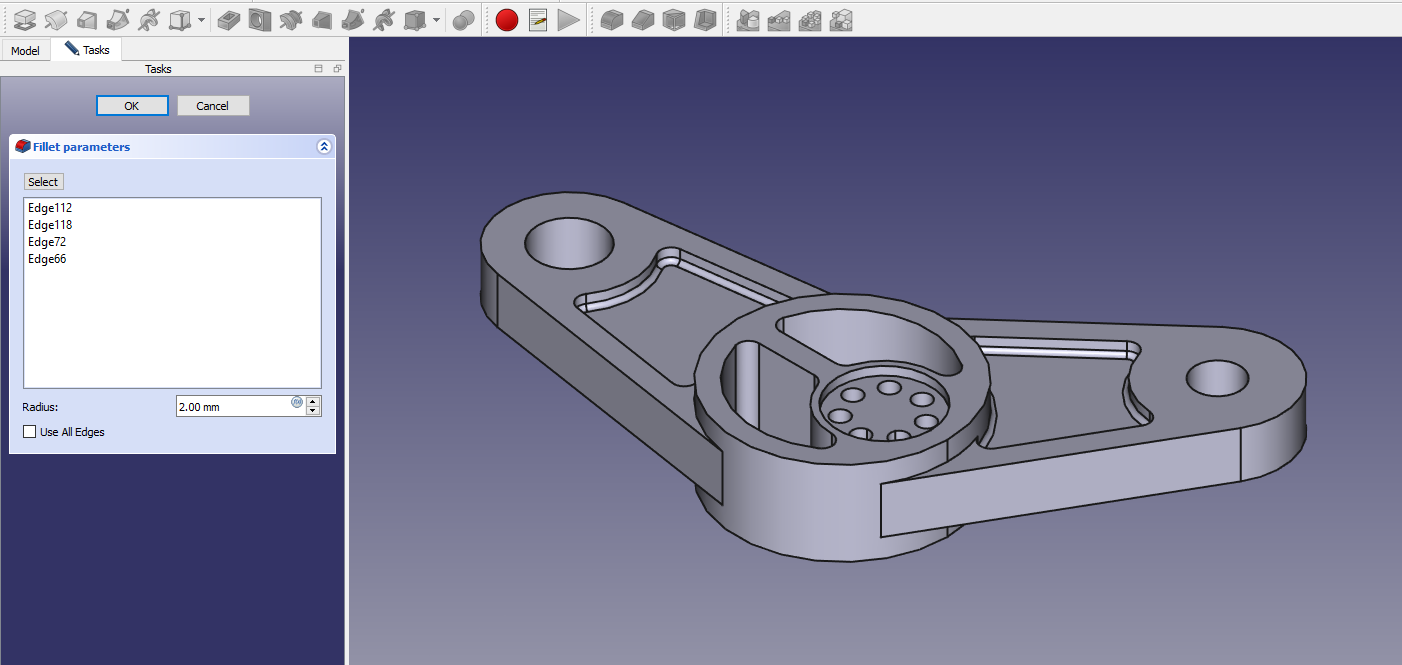

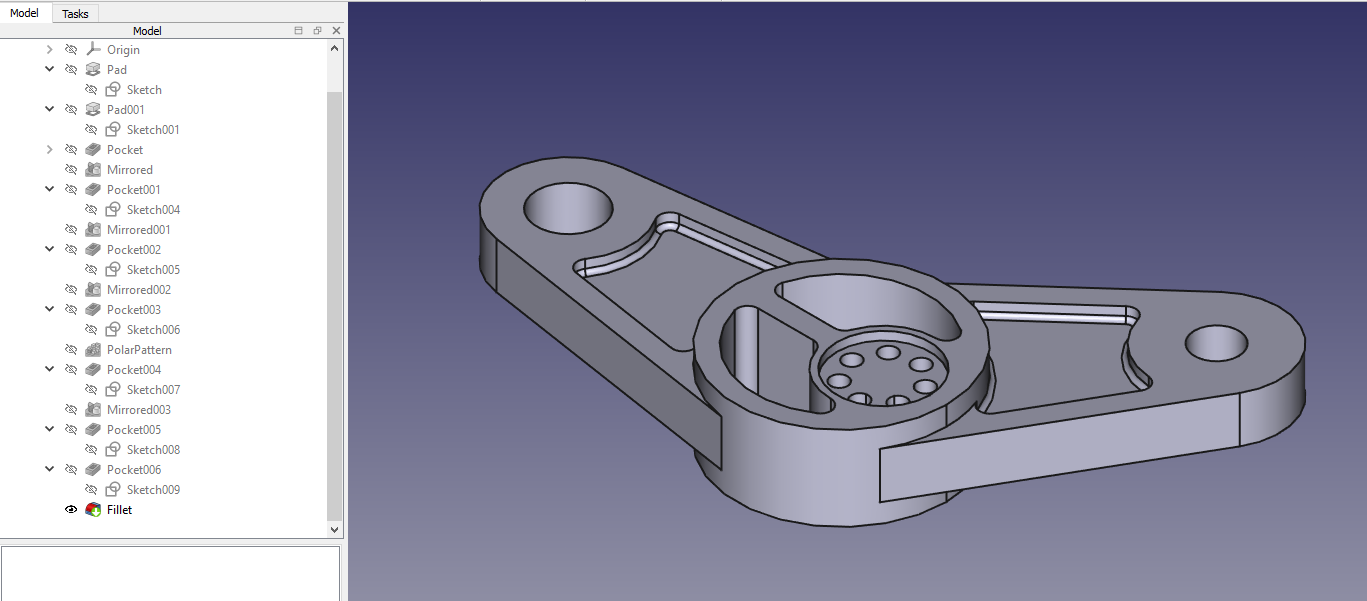

Now create the fillet of 2mm as shown in below image.
