Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned FreeCAD Part Modeling Tutorial 129. In this tutorial we will do modeling in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.
Also Read-:
| Suppress Part Feature in FreeCAD |
| Measure Area, Volume & Center of Mass with Python Script |
| Making a String Solid in FreeCAD |

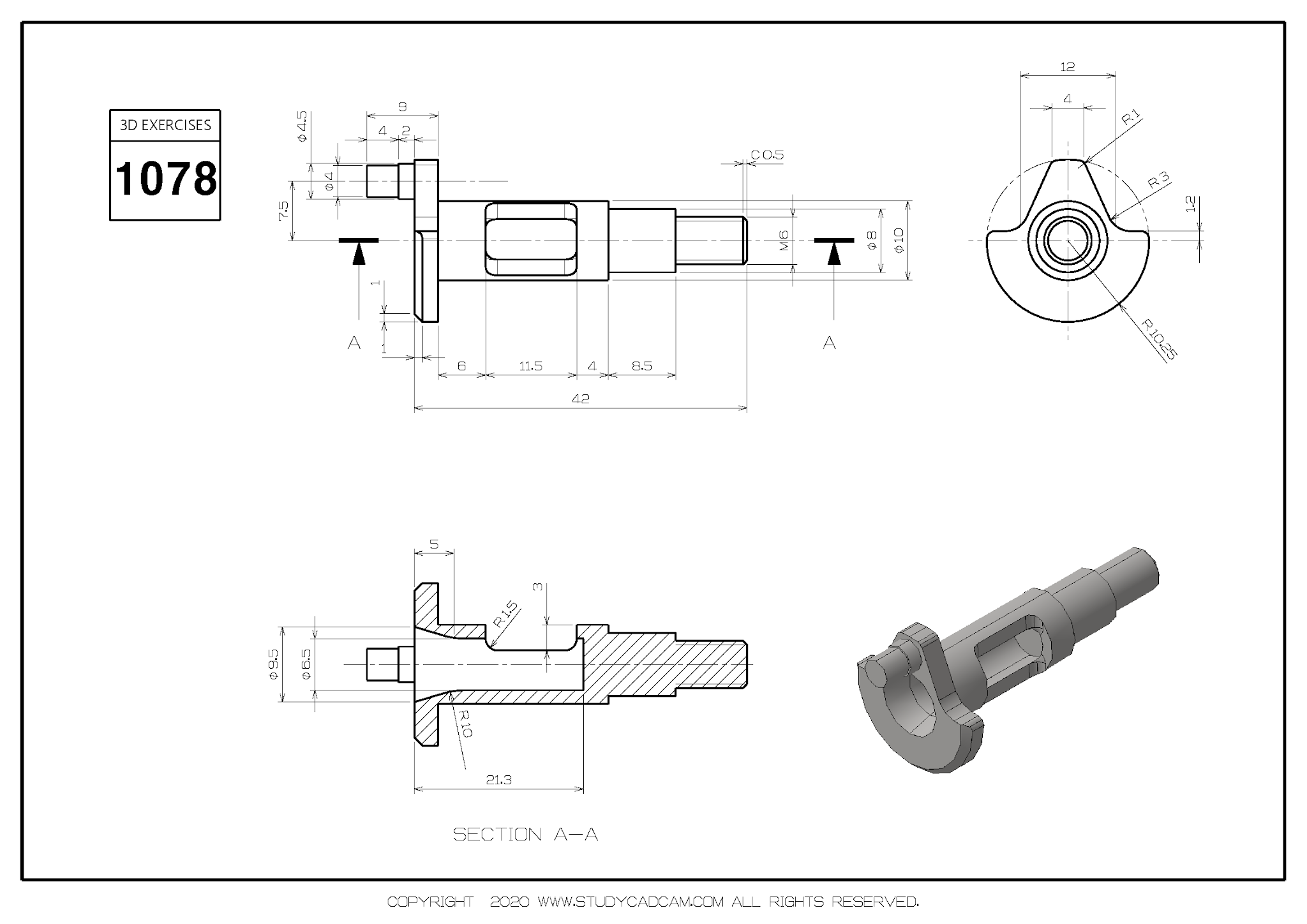

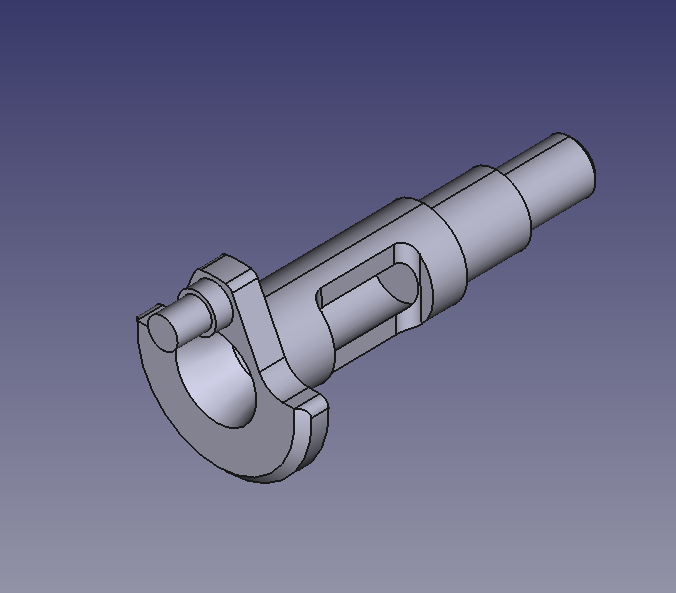

Step by Step Guide to Convert below drawing into 3D Model -:

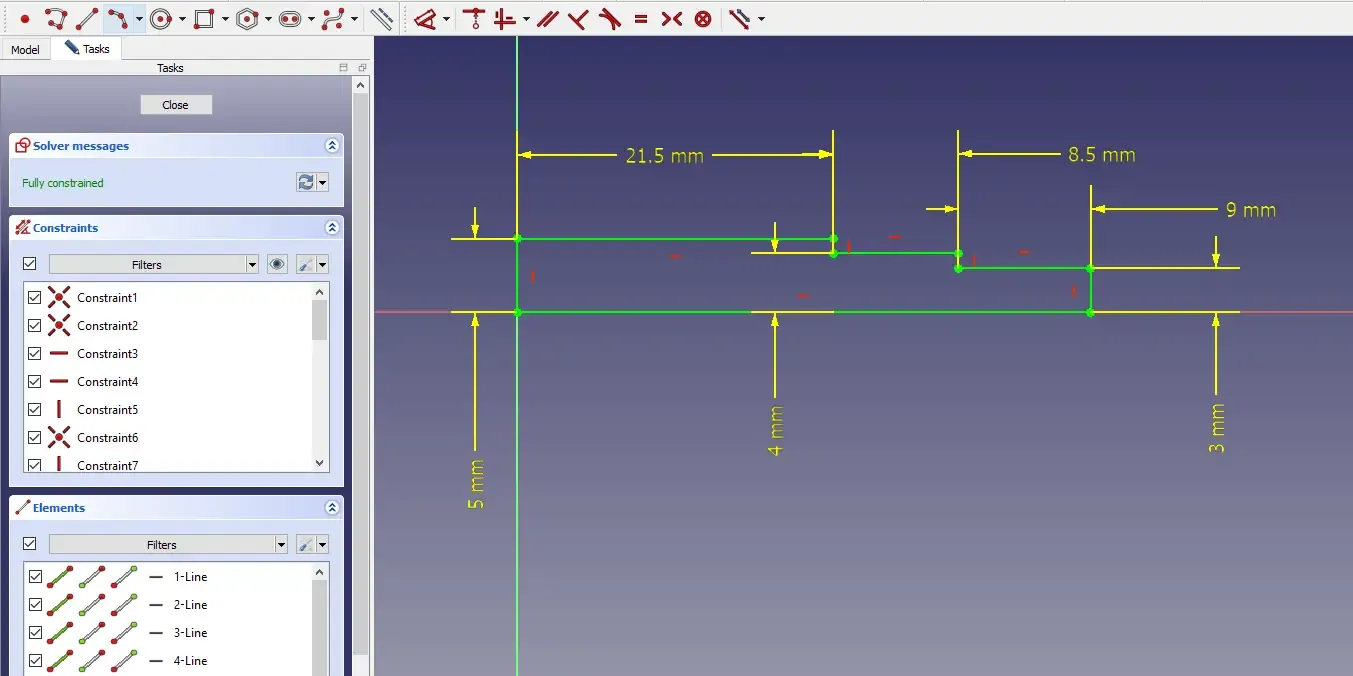

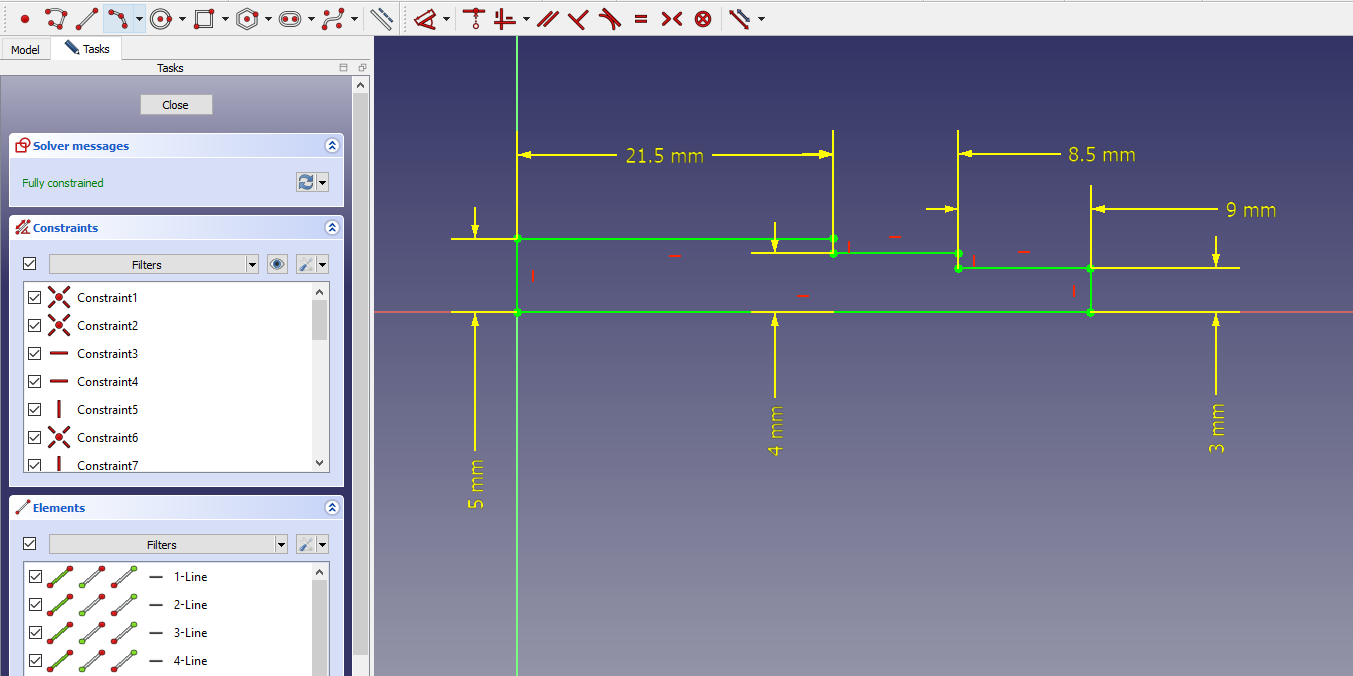

Select the right plane and create below sketch.

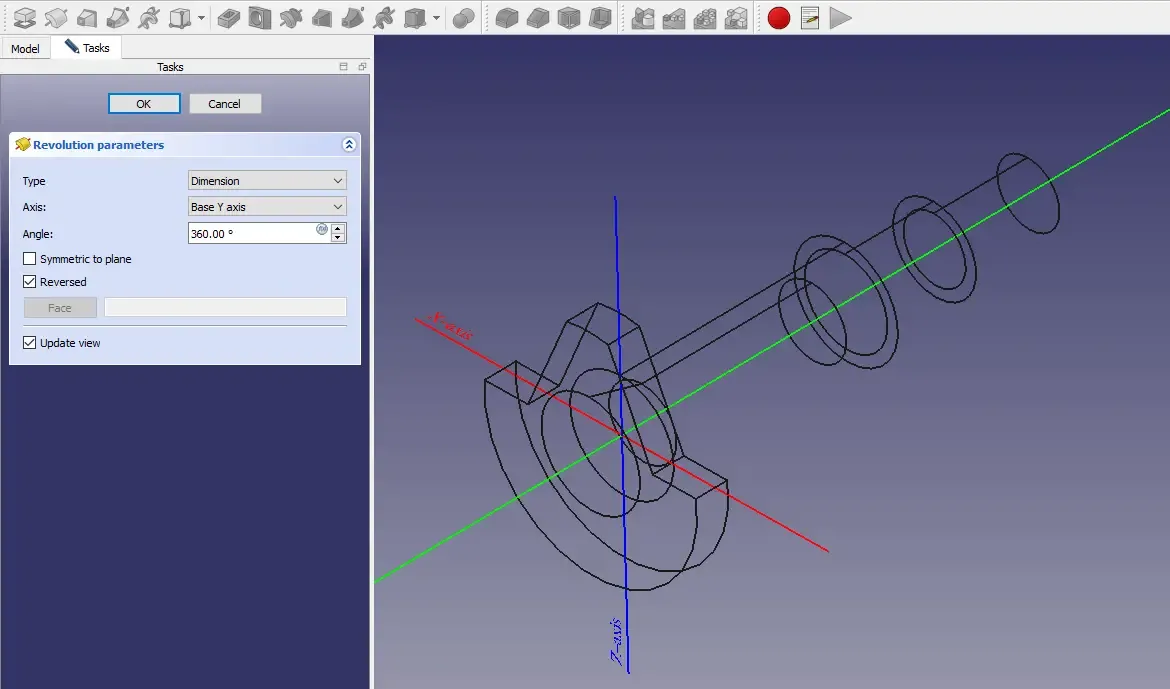

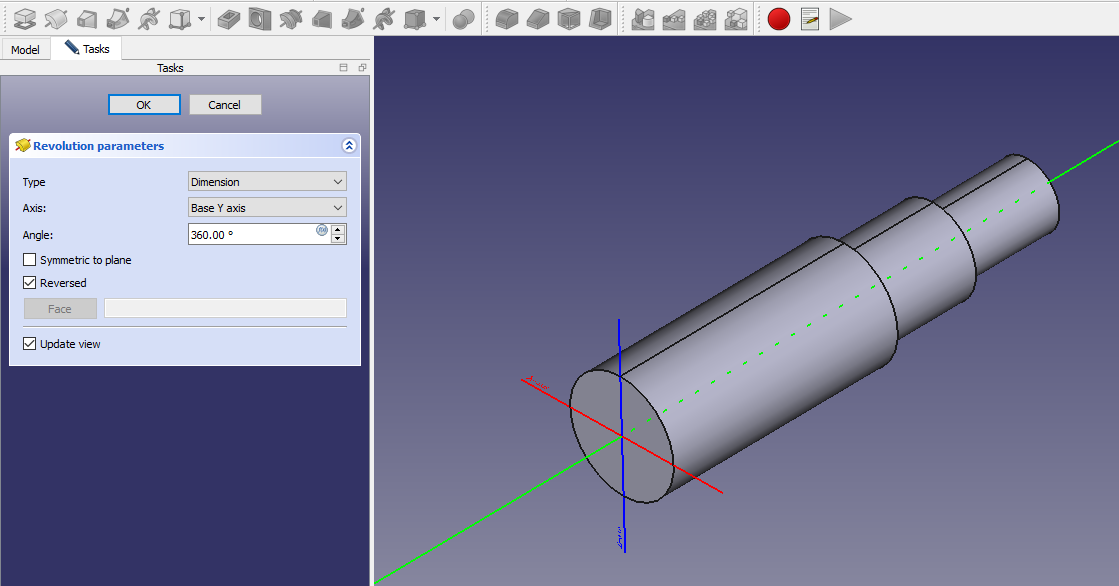

Now Create the Revolve Feature As shown in below image.

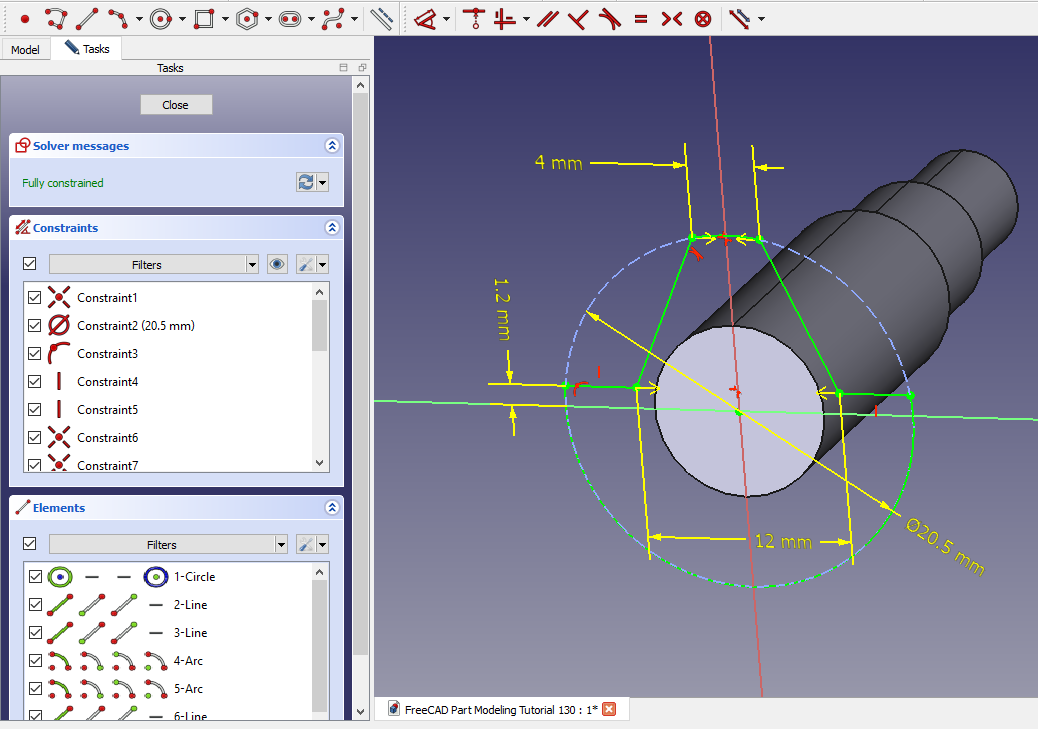

Now Select the face and Create the below sketch.

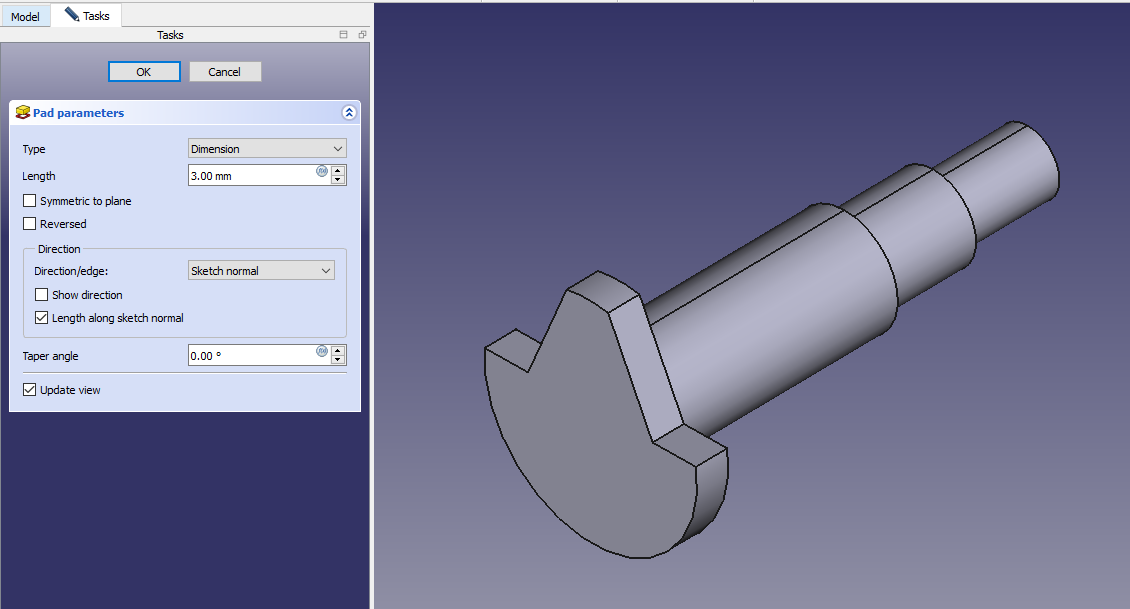

Now Add the material to 3mm As shown in below image.
Now Select the right Plane and create the below sketch.

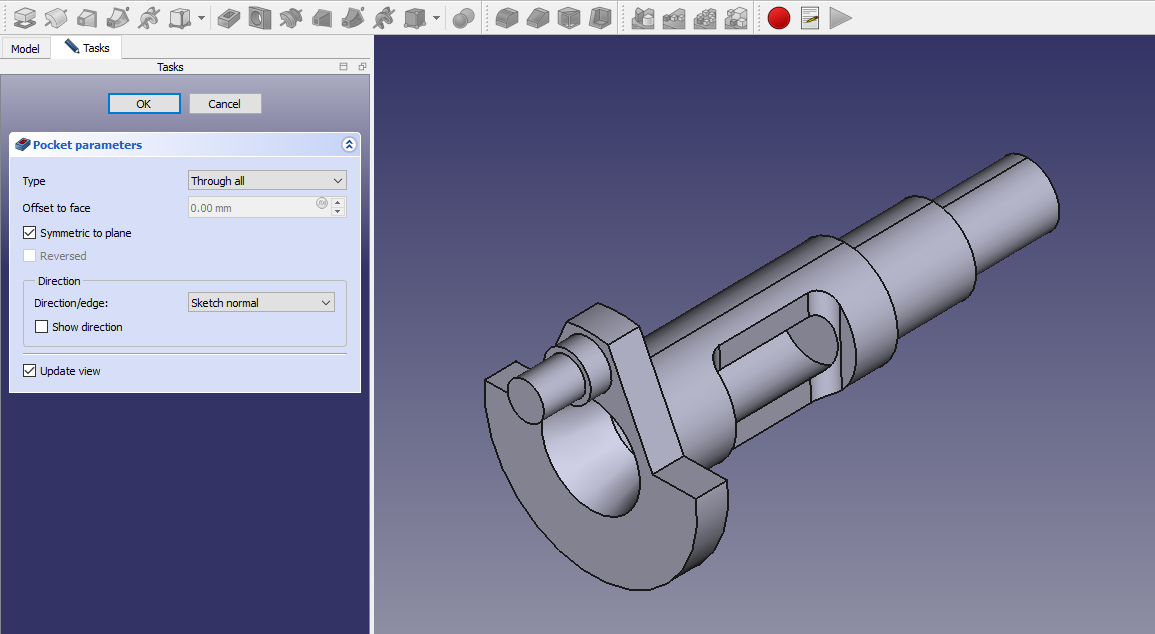

Now create cut As shown in the below image.

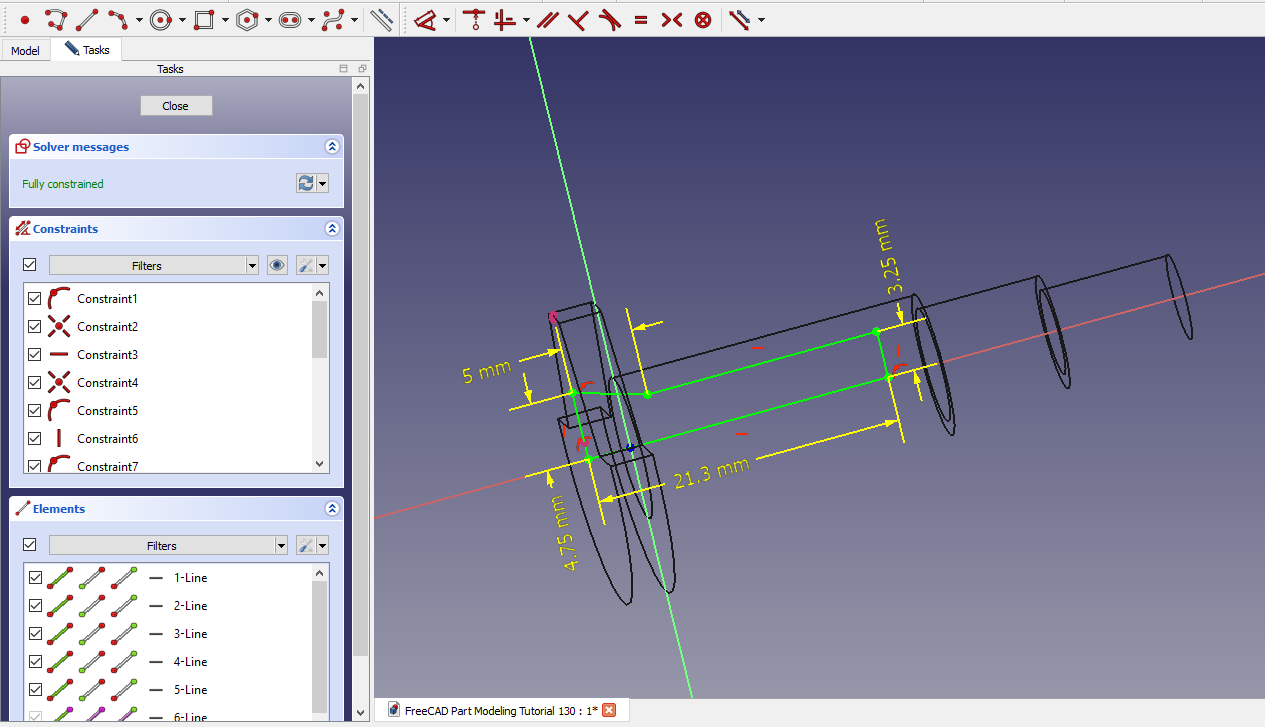

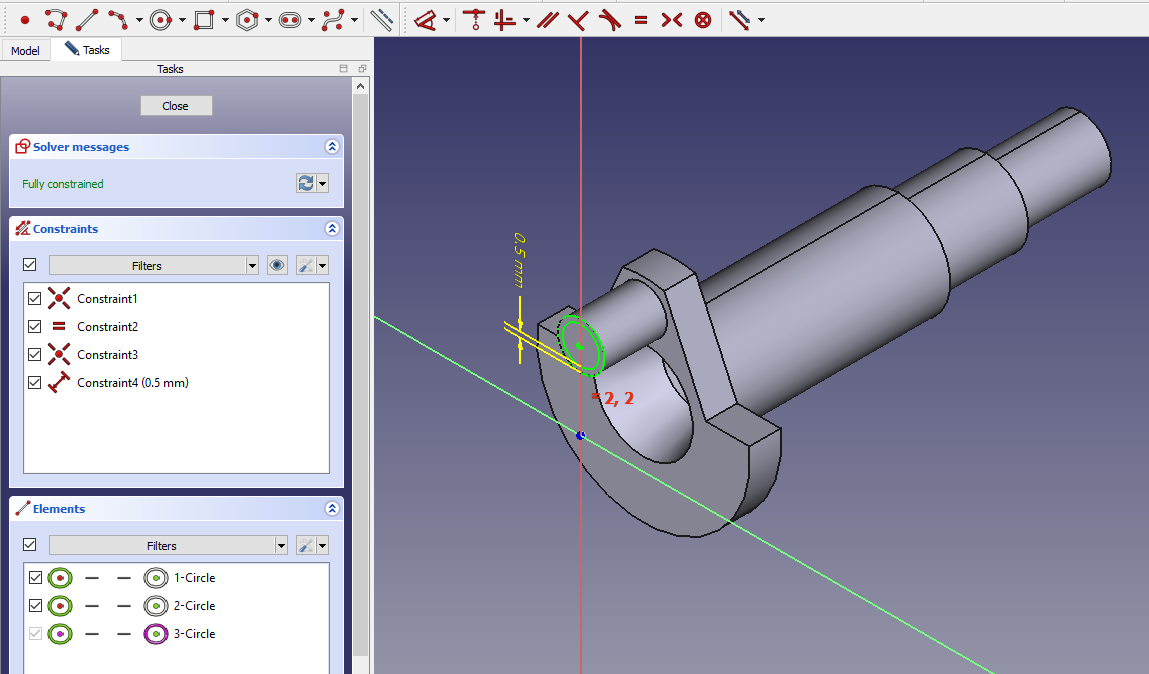

Now select the face and Create below hole sketch.
Now add the material to the 6mm As shown in below image.

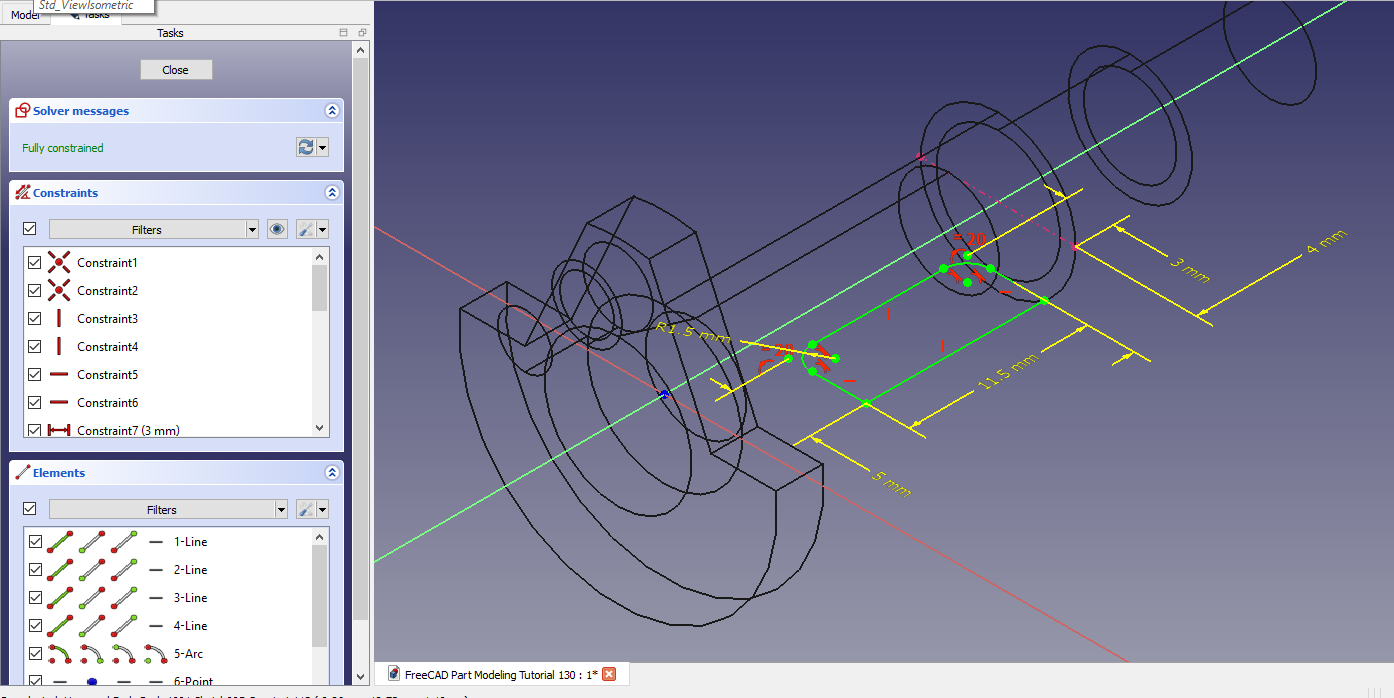

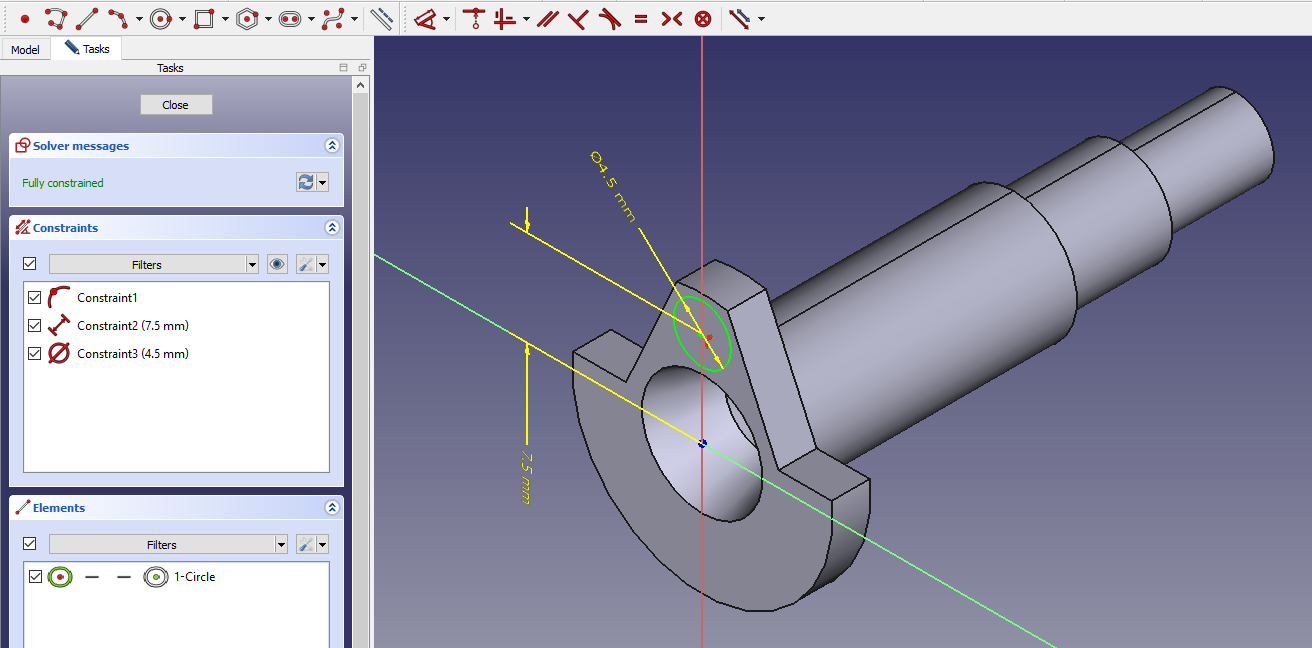

Now select the face and create below sketch.

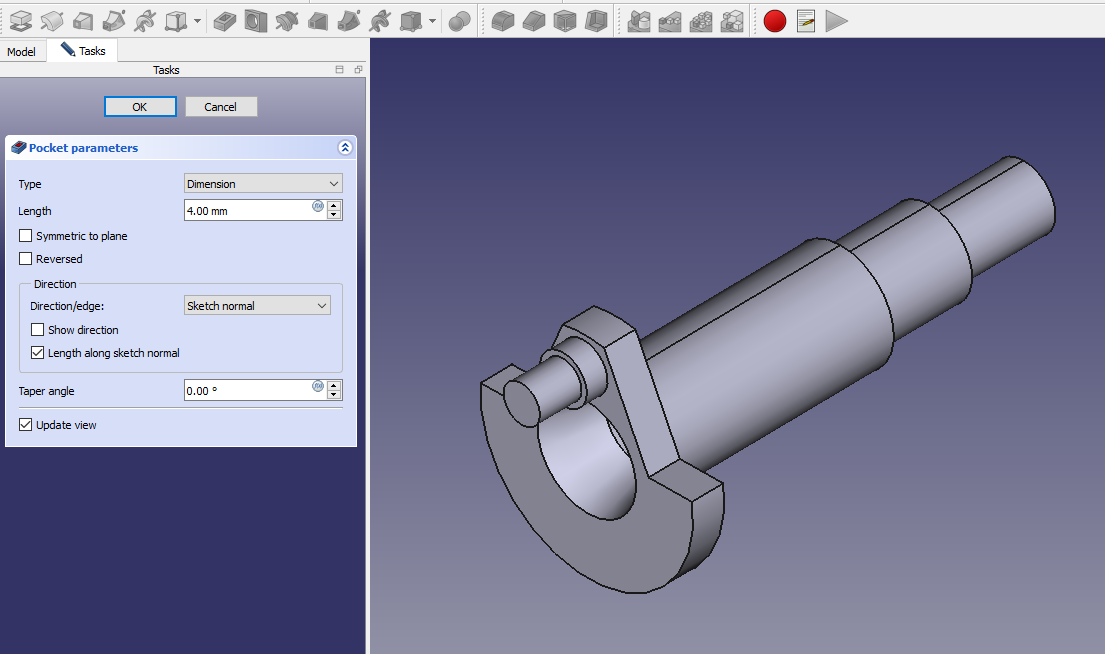

Now create the cut to the distance of 4mm As shown in below image.
Now select the top face and create the below sketch.
Now Create the cut As shown in below image.

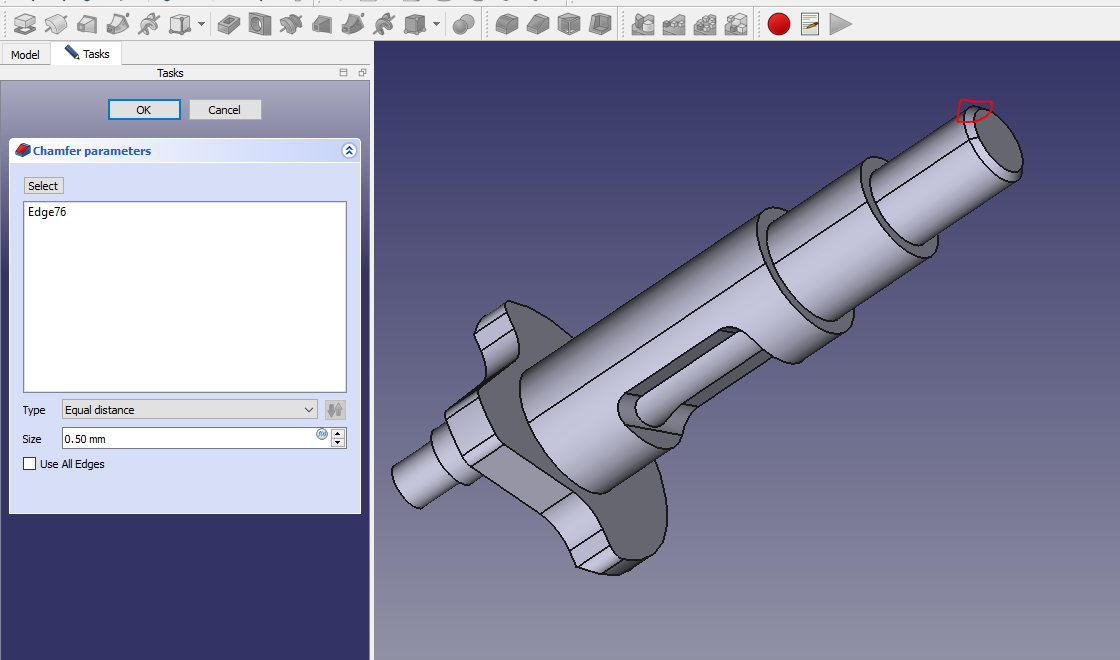

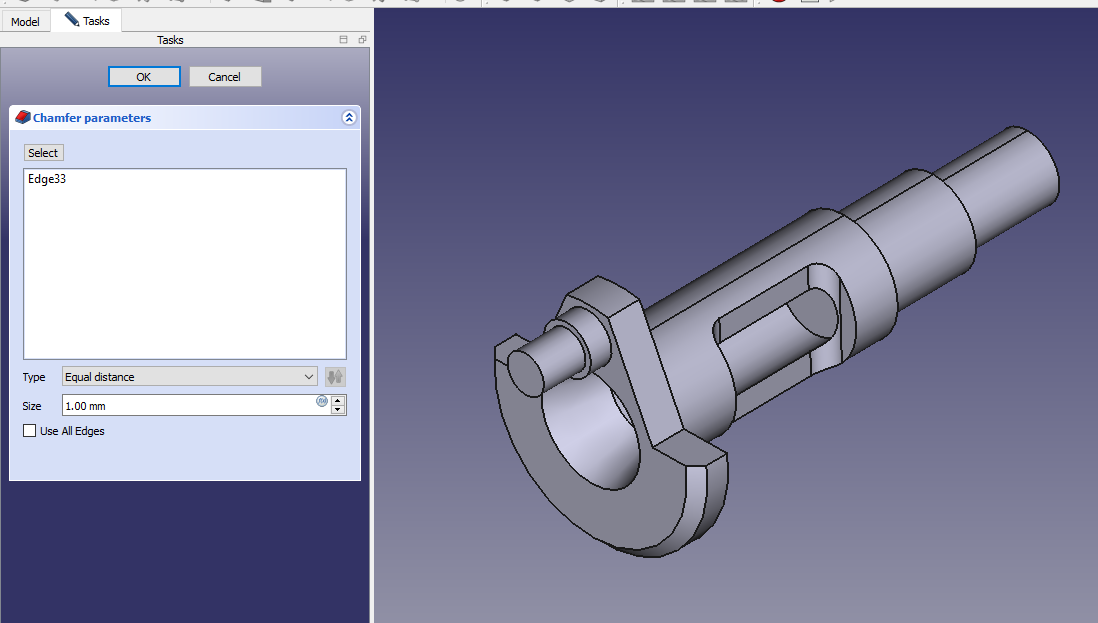

Now create the chamfer As shown in below image.

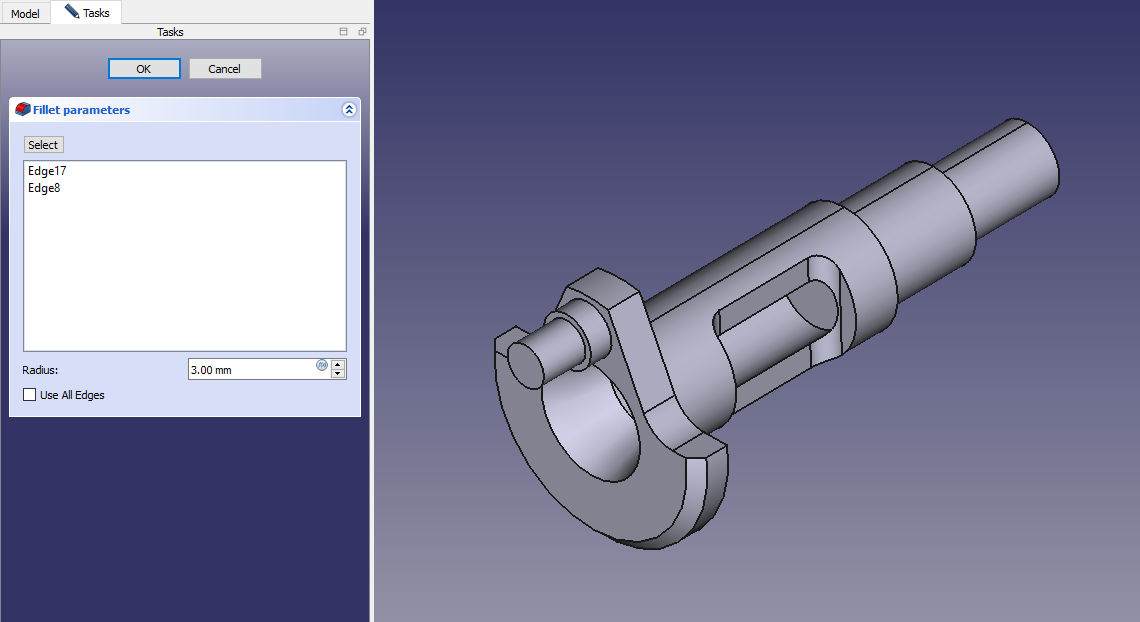

Now create the fillet of 3mm As shown in below image.

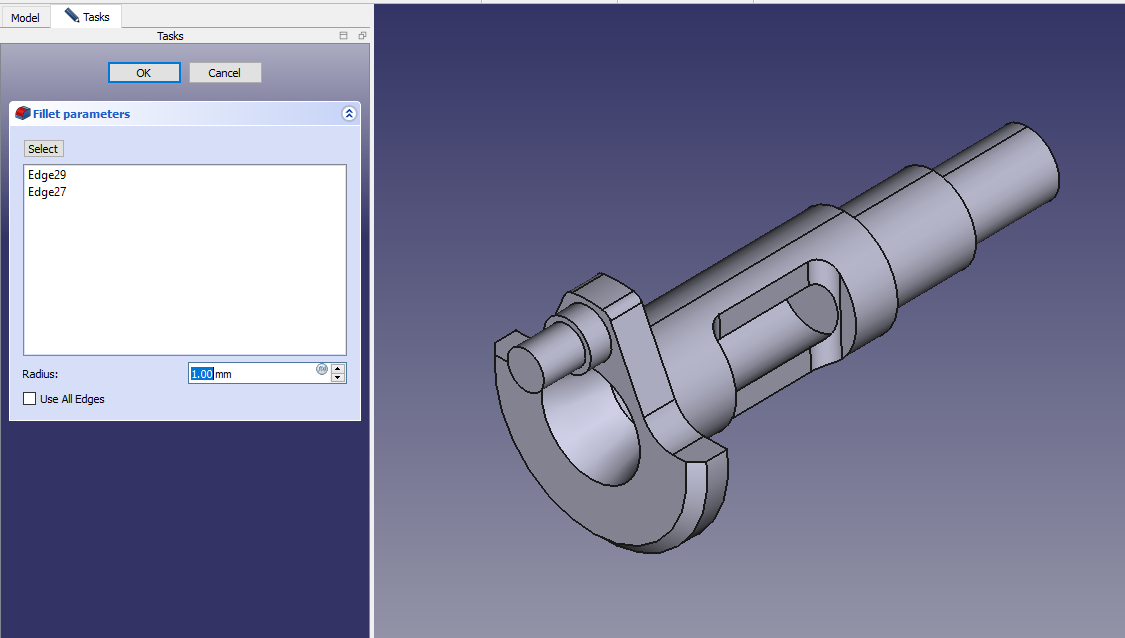

Now create the fillet of 1mm As shown in below image.
Now create the fillet of 1mm As shown in below image.
Now create the chamfer of 0.5mm As shown in below image.
