Hello friends welcome to FreeCAD tutorial in our previous tutorial we have did FreeCAD part modeling tutorial 53 in this tutorial we will do FreeCAD Part Modeling Tutorial 52 with the help of Part design workbench of FreeCAD.  You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Mechnexus freecad tutorial source file r10

Also Read-:

Model V Block in FreeCAD
Model Bearing Bracket in FreeCAD
Model Cross Stop in FreeCAD

Step by Step Guide to Convert below drawing into 3D Model -:

52

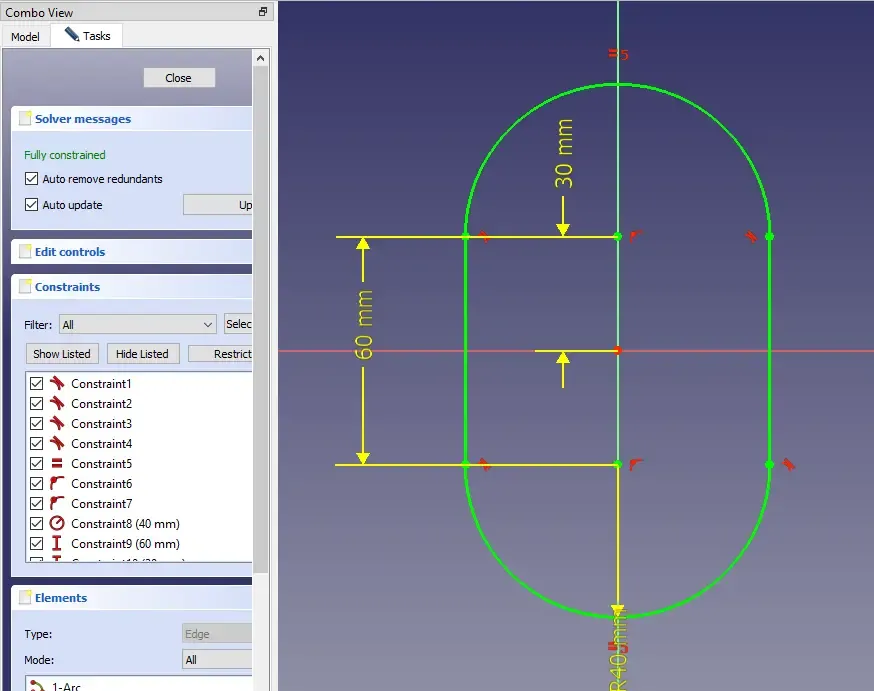

Select XY plane and create below profile.

52_01

Create Pad of 40mm as shown.

52_02

Select the top face and create the shown profile.

52_03

Create Pad of 30mm as shown profile.

52_04

Create the triangle as shown in image.

52_05

Create the pad of 10mm as shown in image.

52_06

Mirror the pad as shown in the image.

52_07

Select the mid plane and create the below profile.

52_08

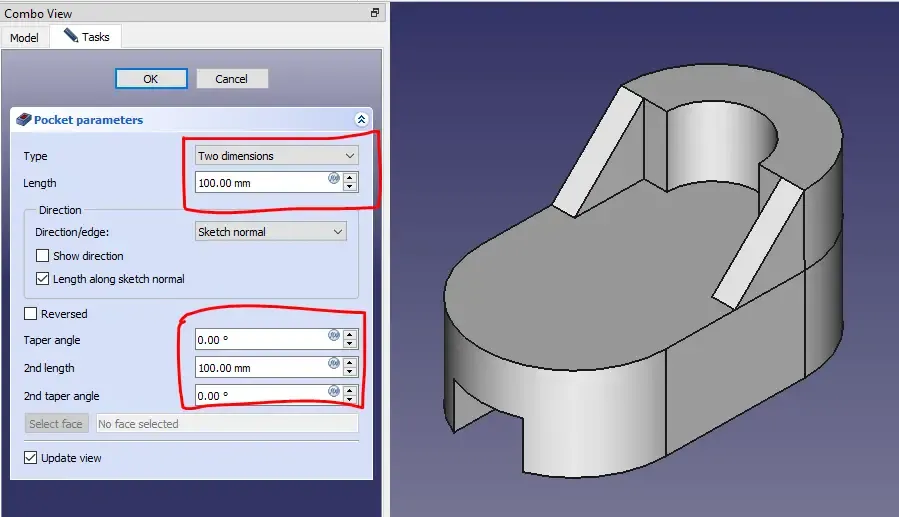

Create the cut in two direction as shown.

52_09

Create circle of diameter 40mm as shown.

52_10

Create the counterbore hole as shown.

52_11

Here complete our tutorial.
