FreeCAD Part Modeling Tutorial 75

Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned FreeCAD Part Modeling Tutorial 74. In this tutorial we will do modeling  in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Also Read-:

Model Socket Bearing in FreeCAD
Model Pipe with Flange in FreeCAD
Model Control Block in FreeCAD

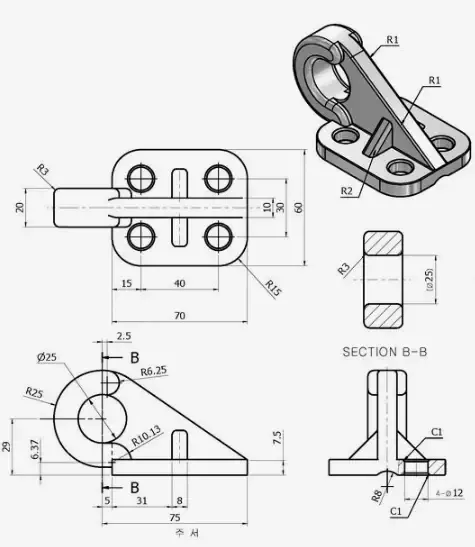

02

00

Select the Top plane and create the below sketch.

01

Now create the Pad of 7.5mm as shown in below image.

02

Now create the fillet of 15mm as shown in below image.

03

Now select the mid plane and create the below sketch.

04

Now create the pad of 10mm as shown in below image.

05

Now create the datum plane at distance of 31mm as shown in below image.

06

Now create the below rib sketch.

07

Now create the pad of 8mm as shown in below image.

08

Now Mirror the Rib as shown in below image.

09

Now Create the Hole sketch as shown in below image.

10

Now Create the cut as shown in below image.

11

Now select the face and create the below sketch.

12

Now create the Pad of 10mm as shown in below image.

13

Now Mirror the pad as shown in below image.

14

Now create the fillet as shown in below image.

15

Now create the fillet of 2mm as shown in below image.

16

Now select the face and create the Hole Sketch.

17

Now remove the material as shown in below image.

18

Now Give Chamfer of 1mm as shown in below image.

19
