FreeCAD Part Modeling Tutorial 85

Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned FreeCAD Part Modeling Tutorial 84. In this tutorial we will do modeling  in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://www.mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Also Read-:

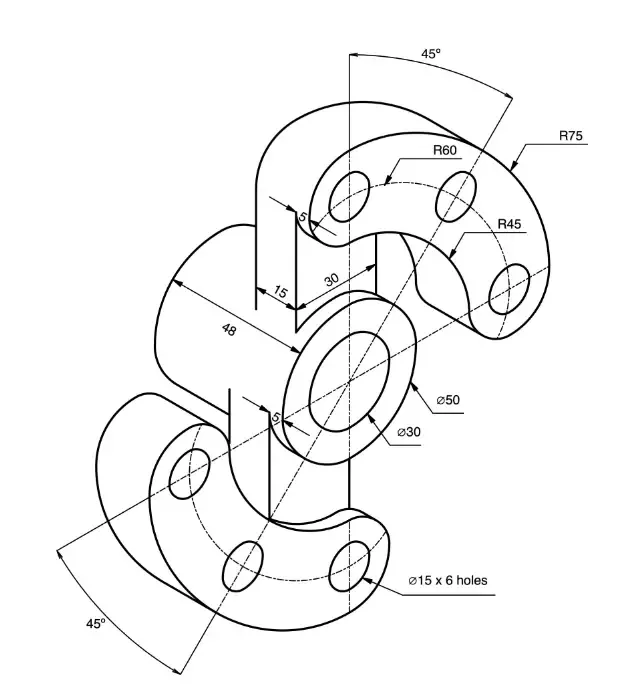

Select Right plane and create the below sketch.

Create the Pad of 48mm as shown in below image.

Select the face and create the Datum Plane as shown in below image.

Select the Datum plane and create the below sketch.

Create the pad of 15mm as shown in below image.

Select the face and create the below sketch.

Create the  cut as shown in below image.

Create the polar pattern as shown in below image.

Create the sketch as shown in below image.

Create the cut of 5mm as shown in below image.

Create the Hole sketch as shown in below image.

Create the Hole as shown in below image.
