Hello friends welcome to FreeCAD Part Modeling tutorial. In this tutorial we will Model Branched Pipe in FreeCAD with the help of Part Design Workbench. If you want to learn FreeCAD from scratch you can buy my Complete FreeCAD 1.0 Course : From Zero to Expert! on Udemy.

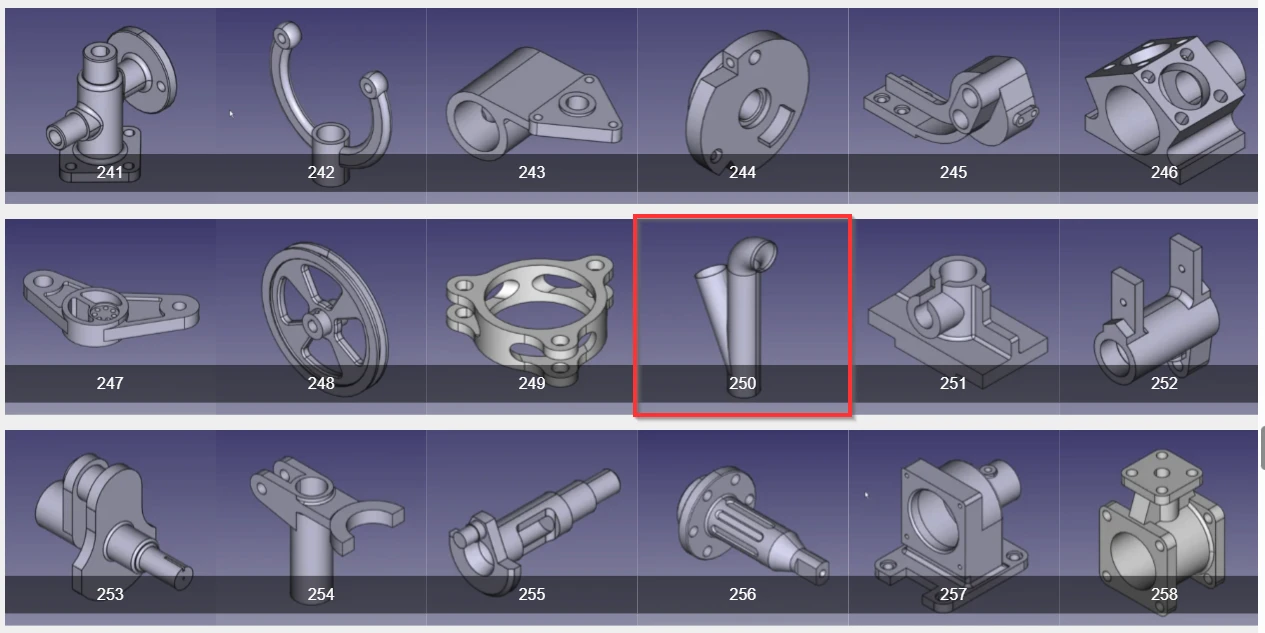

You can download this tutorial FreeCAD model with my FreeCAD 3D Model Library with Serial No.250 As shown in below image. once you click on image you will directed to Google drive folder where you will get FreeCAD model and it’s 2D Drawing. If you like my work please support me on ko-fi.com even if it’s just enough to Buy me a Coffee every little helps and this will be repaid in full through my sharing of knowledge.
Step by Step Guide to Model Branched Pipe in FreeCAD -:
Select the front plane and create below sketch.
Now select the top plane and create pipe profile.
Now create the Sweep profile as shown in below image.
Now create datum plane at distance of 65mm as shown in below image.
Now create Datum line (Axis) as sown in below image.
Now create the datum plane at angle as shown in below image.
Now project the datum plane and axis and create below profile.
Now create the revolve profile as shown in below image.
Now create the cut as shown in below image.
Give approximate distance of 300mm for cut as shown in below image
Now create the cut profile as shown in below image.
Now create the cut as shown in below image and set end condition upto face as shown in below image.
