FreeCAD Part Modeling Tutorial 76

Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned FreeCAD Part Modeling Tutorial 75. In this tutorial we will do modeling  in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Also Read-:

Model Chuck Jaw in FreeCAD
Model Centering Wedge in FreeCAD
Model Locating Finger in FreeCAD

03

00

Select Top plane and Create below sketch.

01

Create the pad of 10mm as shown in below image.

02

Now select the Right Face and create below sketch.

03

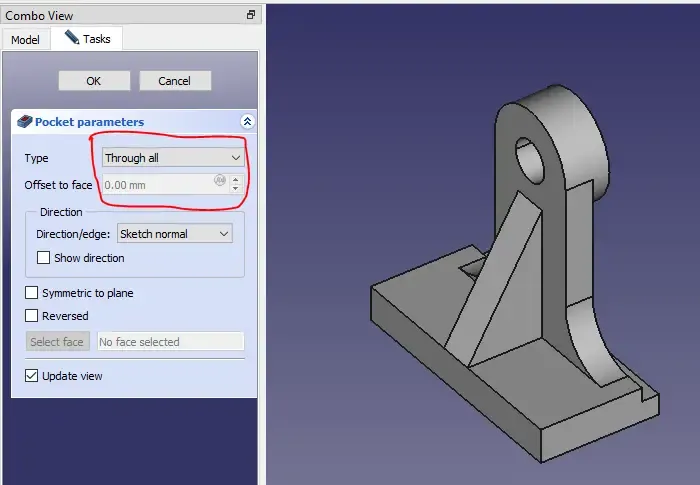

Now remove the material and remove the material Through all.

04

Now select the face and create the below sketch as shown in below image.

05

Now create the Pad of 8mm as shown in below image.

06

Now select the face and create sketch as shown in below image.

07

Now Create the Pad of 5mm as shown in below image.

08

Now select the mid plane and create below sketch.

09

Now Create the Pad of 10mm as shown in below image.

10

Now select the face and create below sketch.

11

Now create the Hole as shown in below image.

12

Now create fillet as shown in below image.

13

Now create Hole sketch as shown in below image.

14

Now create the Hole as Shown in below image.

15
