FreeCAD Part Modeling Tutorial 107

Freecad main blog post image

Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned FreeCAD Part Modeling Tutorial 106. In this tutorial we will do modeling  in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Also Read-:

Easily Rotate Sketch in FreeCAD
Create Keyboard Short cut in FreeCAD
Easily Slice Part with Plane in FreeCAD

Freecad Ad 01

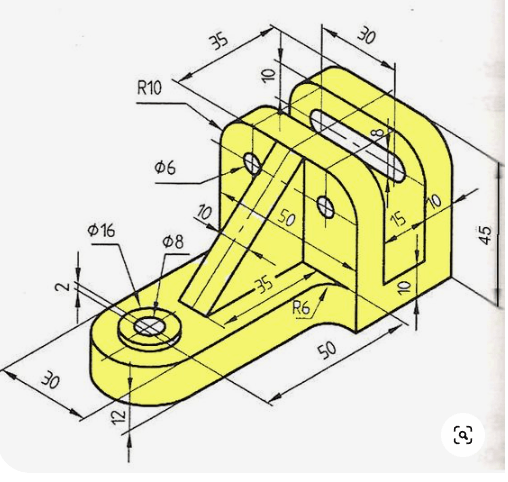

Freecad Part Modeling Tutorial 107

00Select the top plane and create below sketch.
01Create the Pad of 10mm as shown in below image.
02Select the side face and create below sketch.
03Create the Pad as shown in below image.

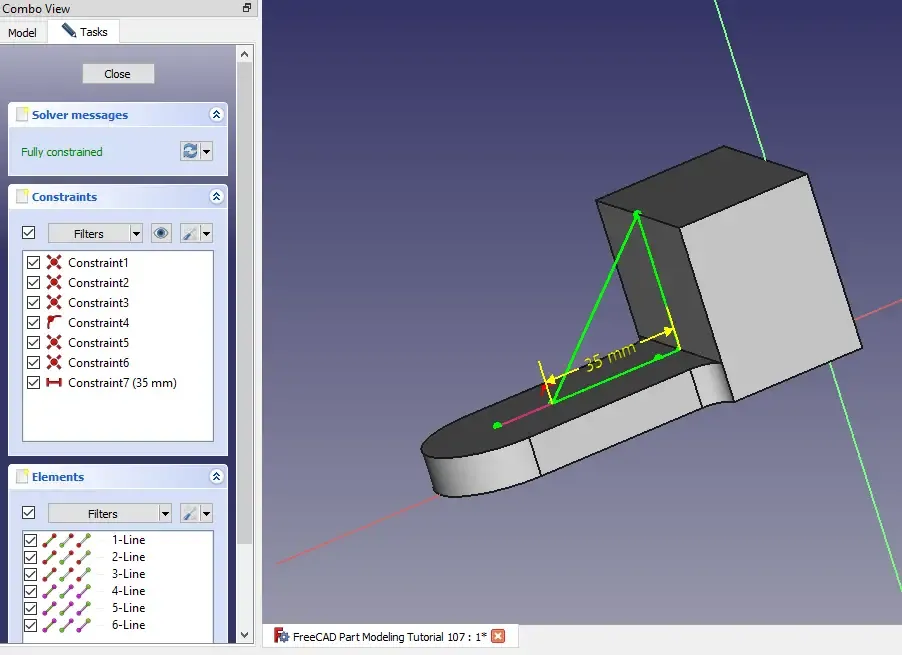

04Select the mid plane and create below triangle profile.
05Create the Pad of 10mm As shown in below image.
06Create the below cut profile as shown in below image.

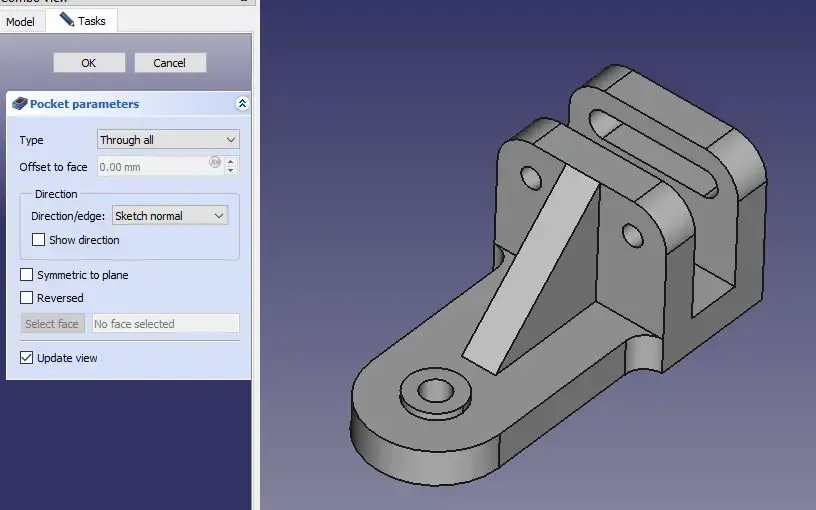

07Create the cut set end condition through all as shown in below image.
08Give  the fillet of 10mm as shown in below image.
09Create the slot profile as shown in below image.
10Create the Cut as shown in below image.
11Project the outer radius and create below hole profile as shown in below image.
12Create the hole as shown in below image.
13Project the outer radius and create below profile.
14Create the pad of 2mm of above profile as shown in below image.
15Select the top face and create hole of 8mm as shown in below image.
16Create the hole cut as shown in below image.
17
