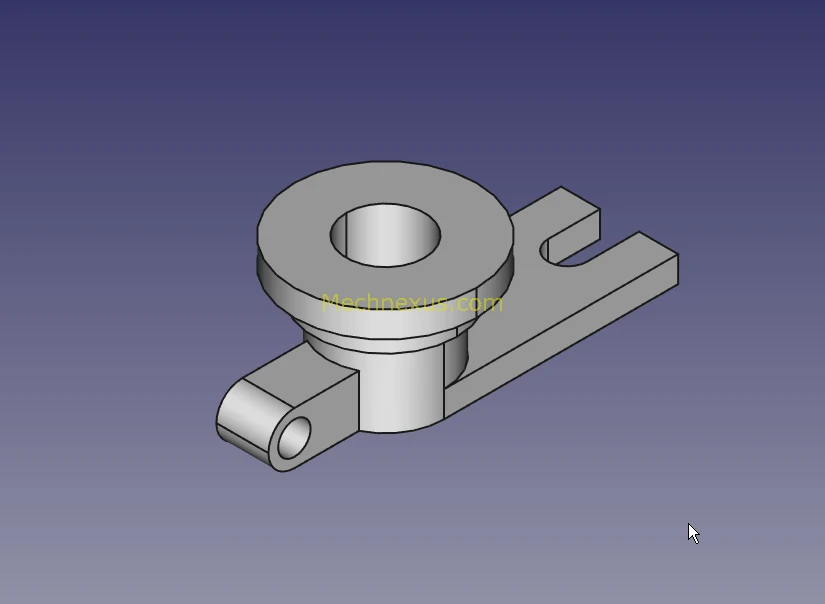

Hello friends welcome to FreeCAD Part Modeling tutorial. In this tutorial we will model Model Bracket in FreeCAD with the help of Part Design Workbench. If you want to learn FreeCAD from scratch you can buy my Complete FreeCAD 1.0 Course : From Zero to Expert! on Udemy.
Related Posts-:
- Things Anyone can do with FreeCAD
- Get Mass Properties, Weight, Volume and Area etc. in FreeCAD
- Mastering FreeCAD: Insider Secrets from an Industry Expert

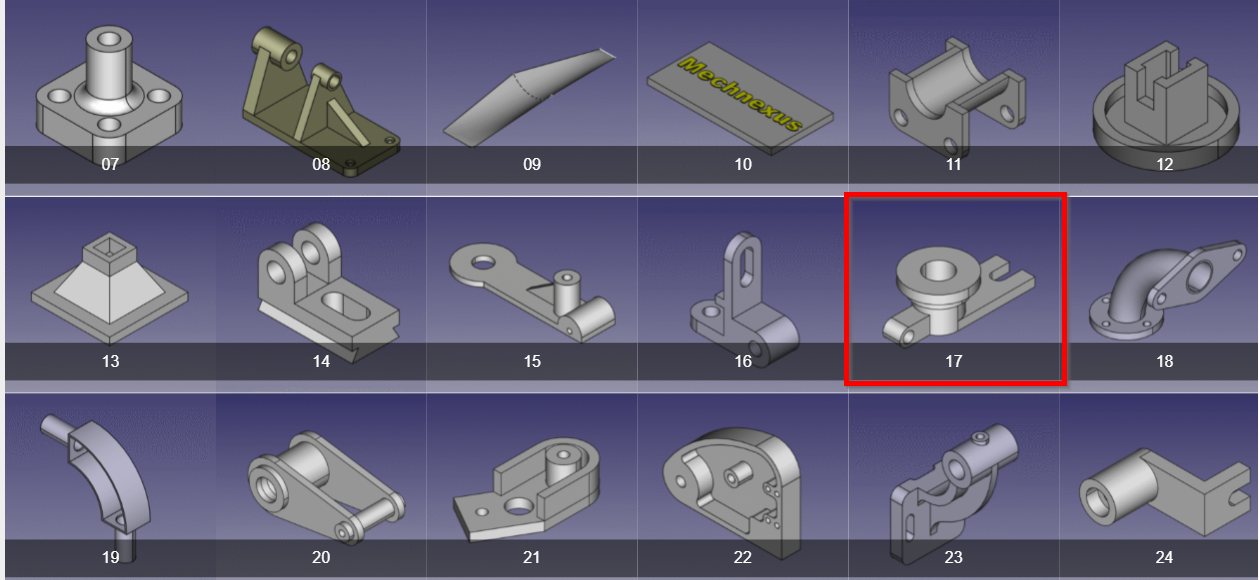

You can download this tutorial FreeCAD model with my FreeCAD 3D Model Library with Serial No.17 As shown in below image. once you click on image you will directed to Google drive folder where you will get FreeCAD model and it’s 2D Drawing. If you like my work please support me on ko-fi.com even if it’s just enough to Buy me a Coffee every little helps and this will be repaid in full through my sharing of knowledge.
Follow Step by Step Guide to Model Bracket in FreeCAD-:

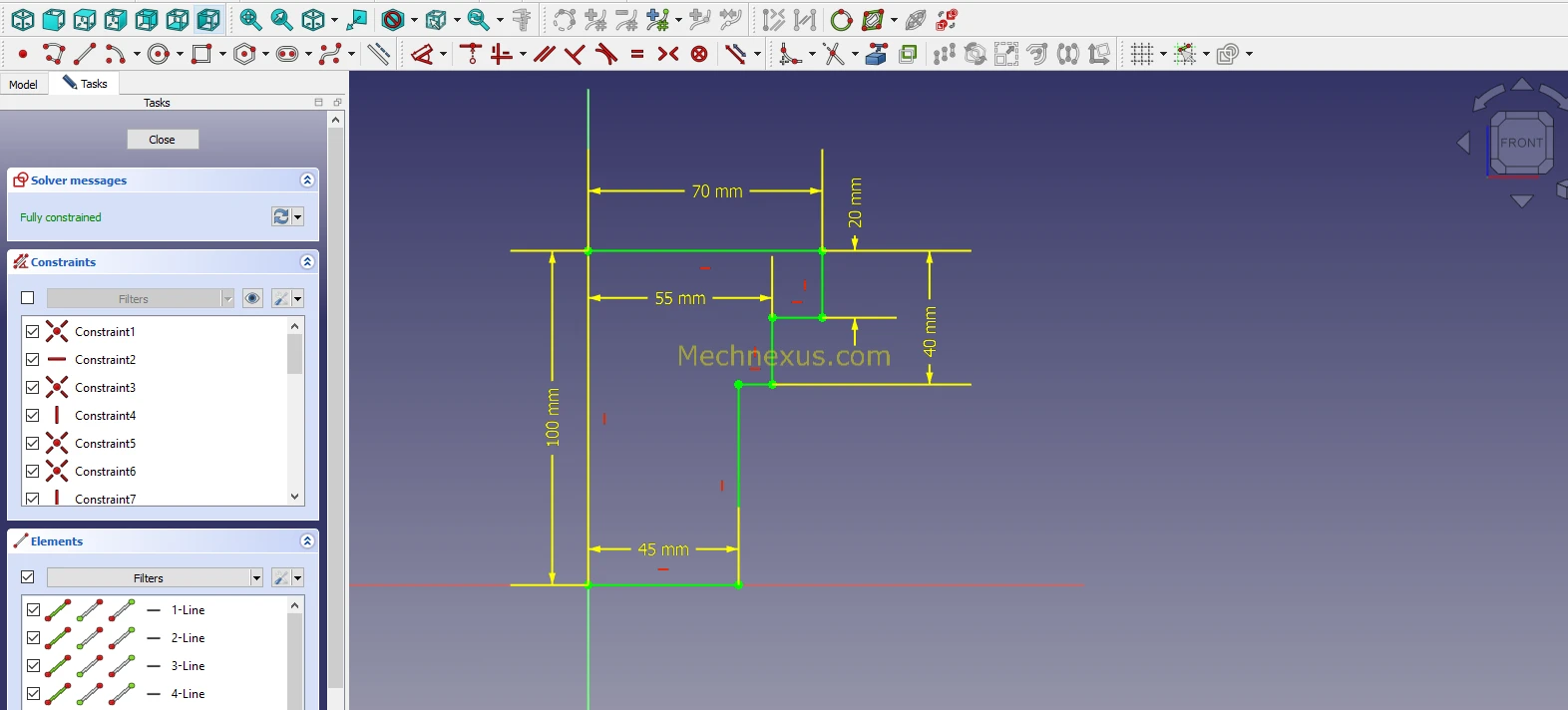

Select the Front plane and create below sketch.

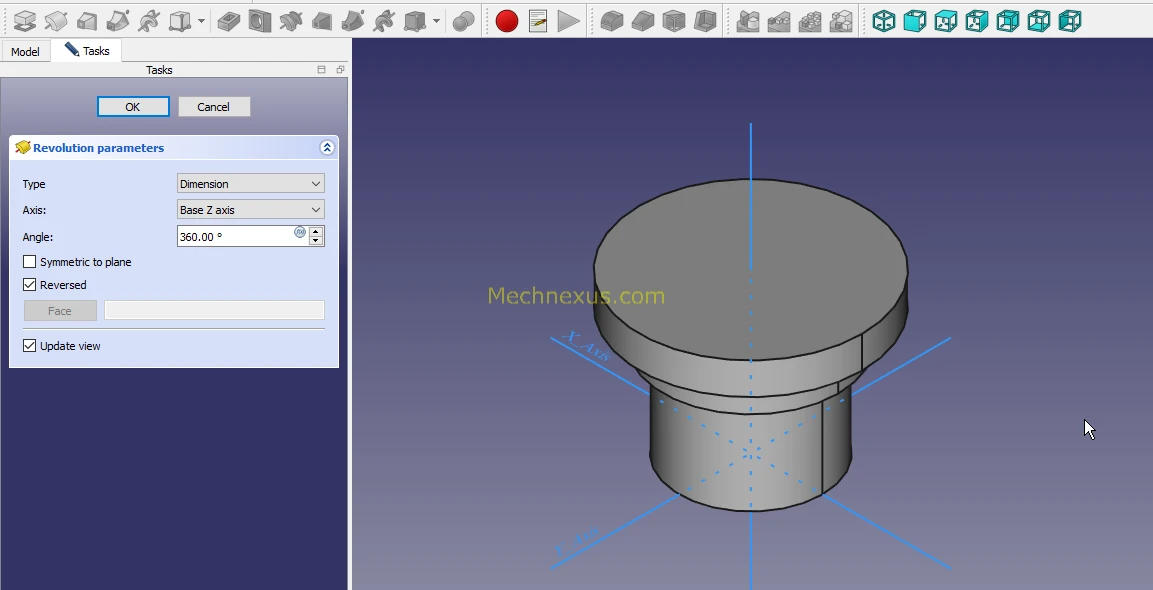

Now Create Revolve feature As Shown in below image.

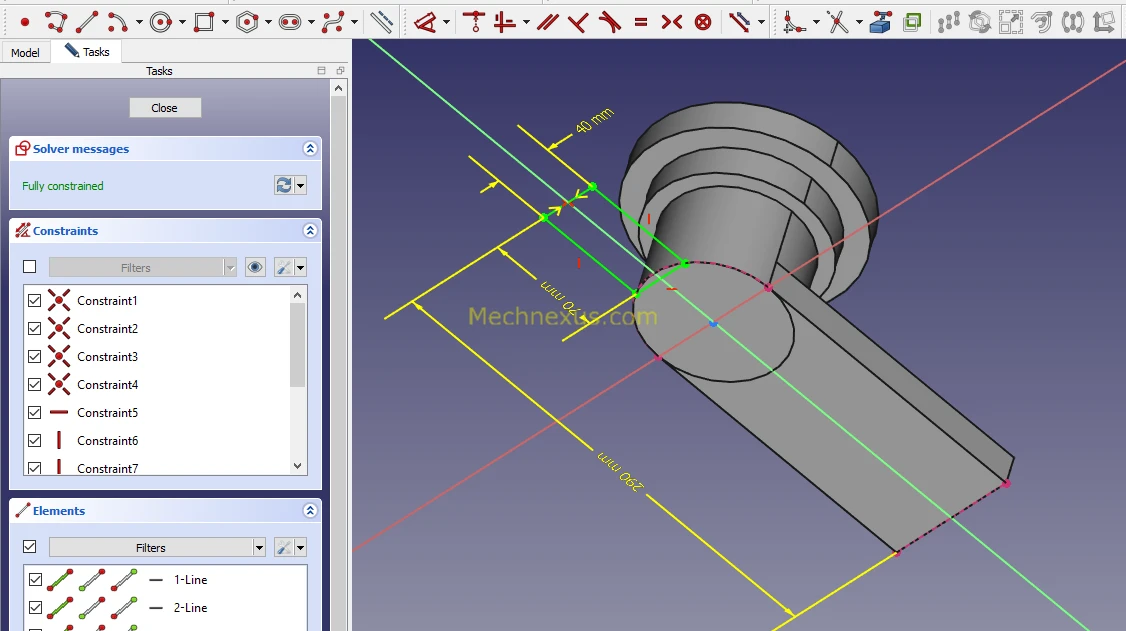

Now select the bottom face and create below sketch.

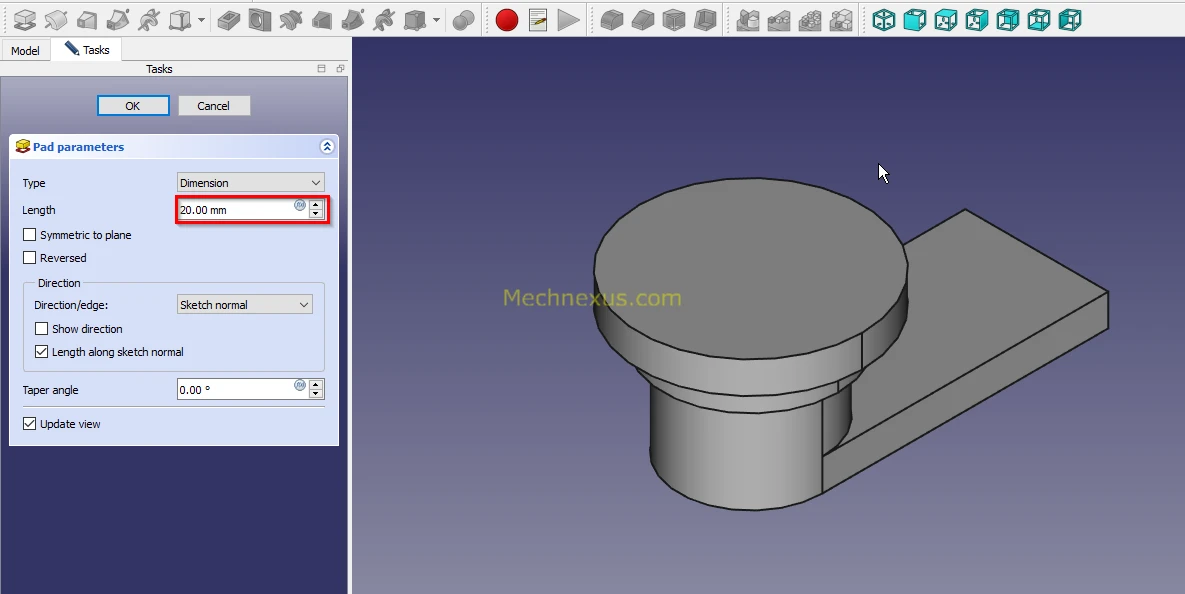

Now create the Pad of 20mm As shown in below image.

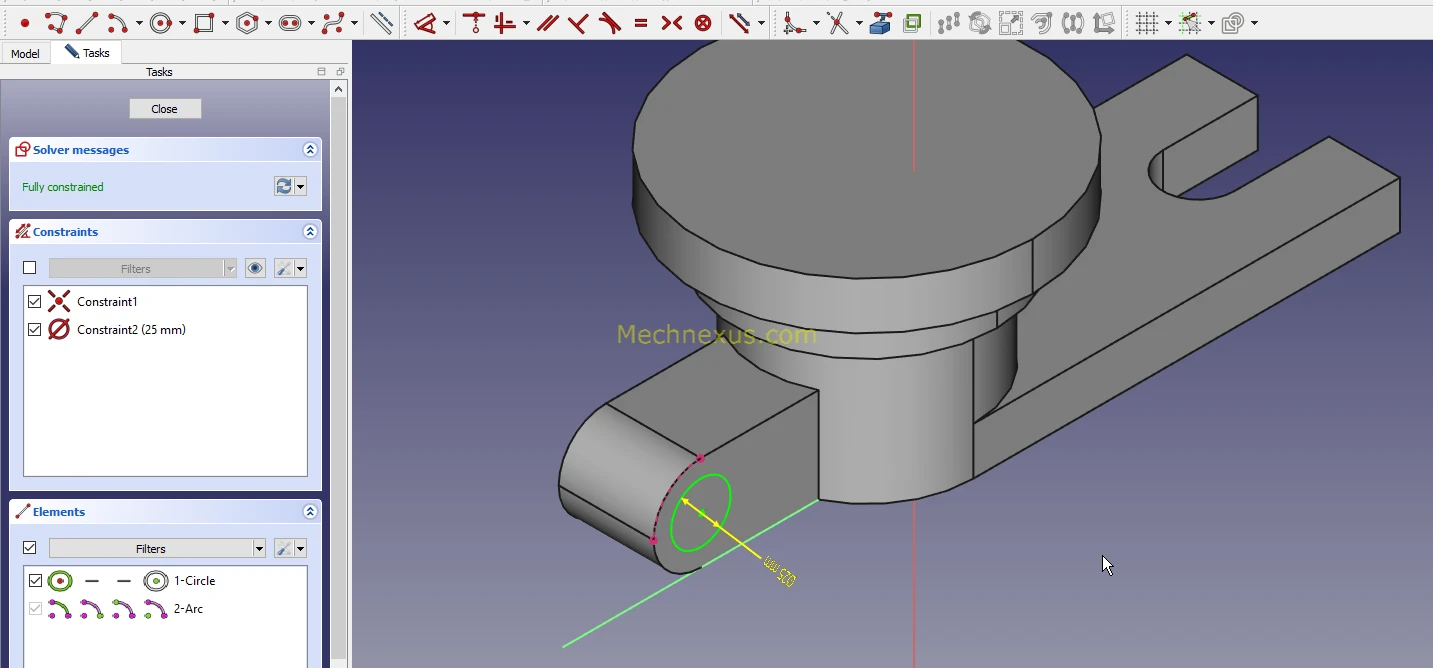

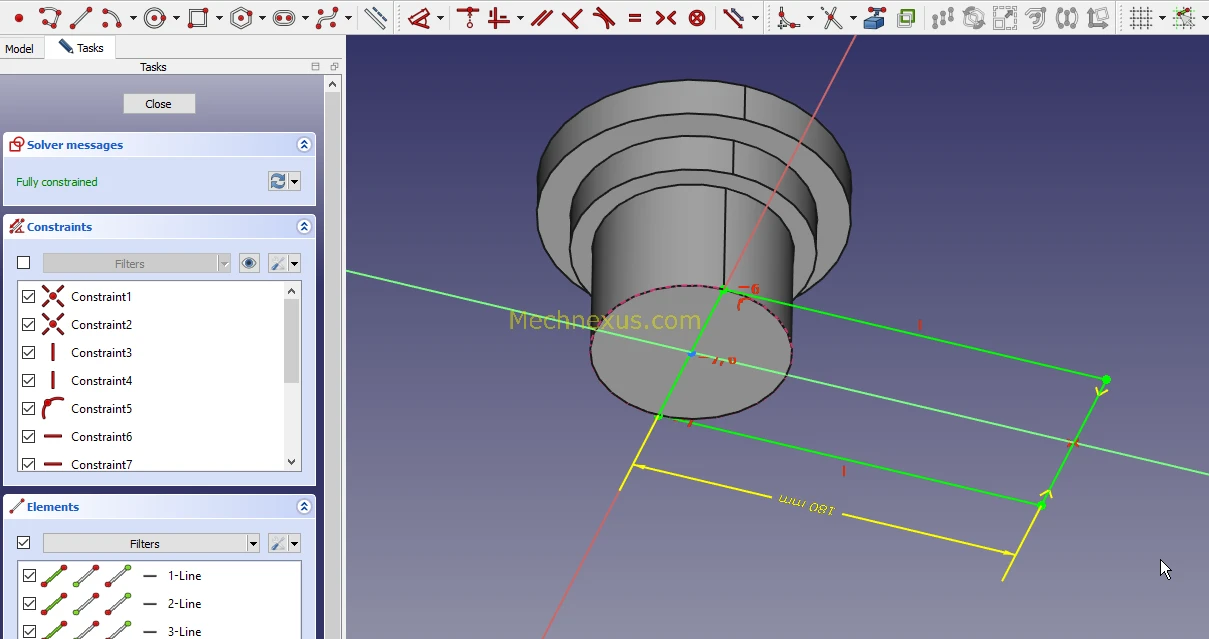

Again select the bottom face and create below sketch.

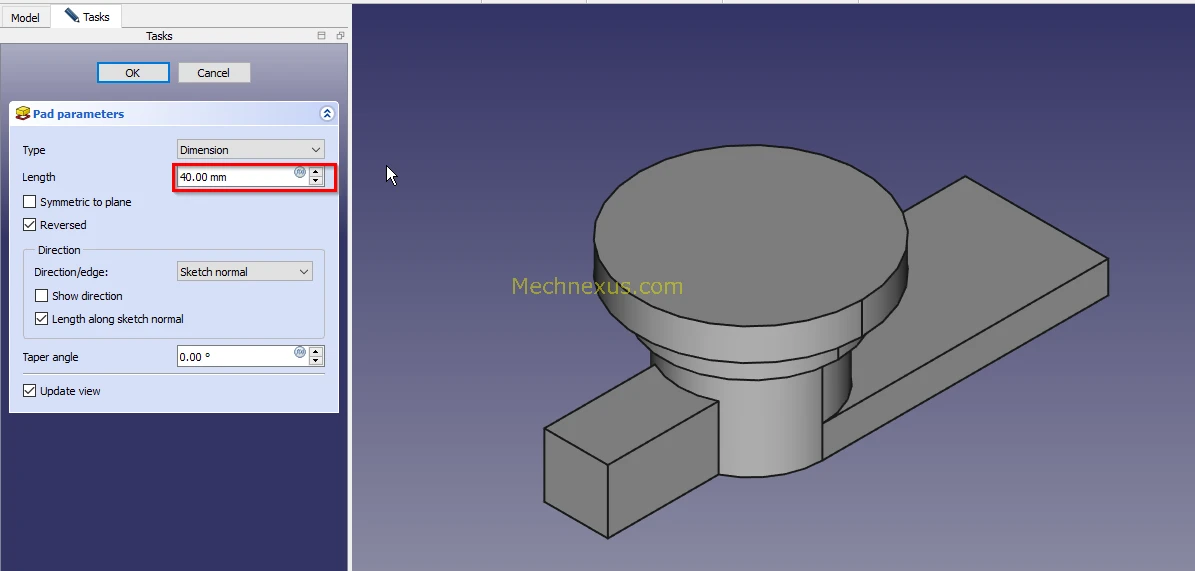

Now create the pad of 40mm As shown in below image.

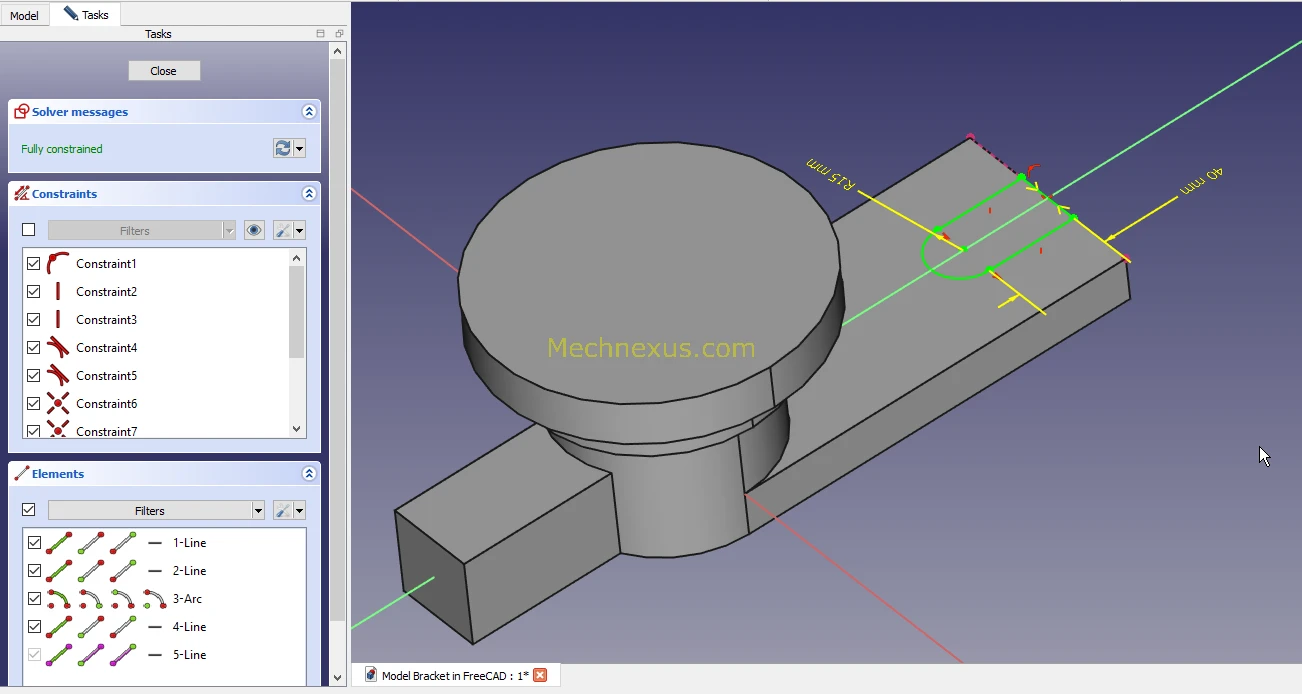

Now select the top face and create below slot sketch.

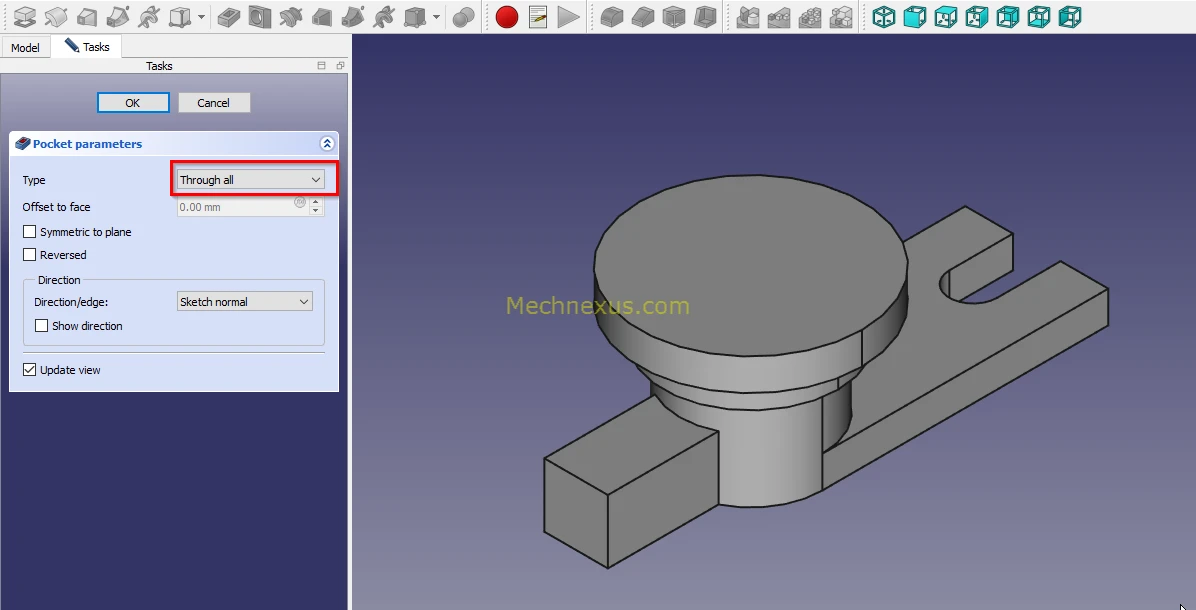

Now create the cut As shown in below image.

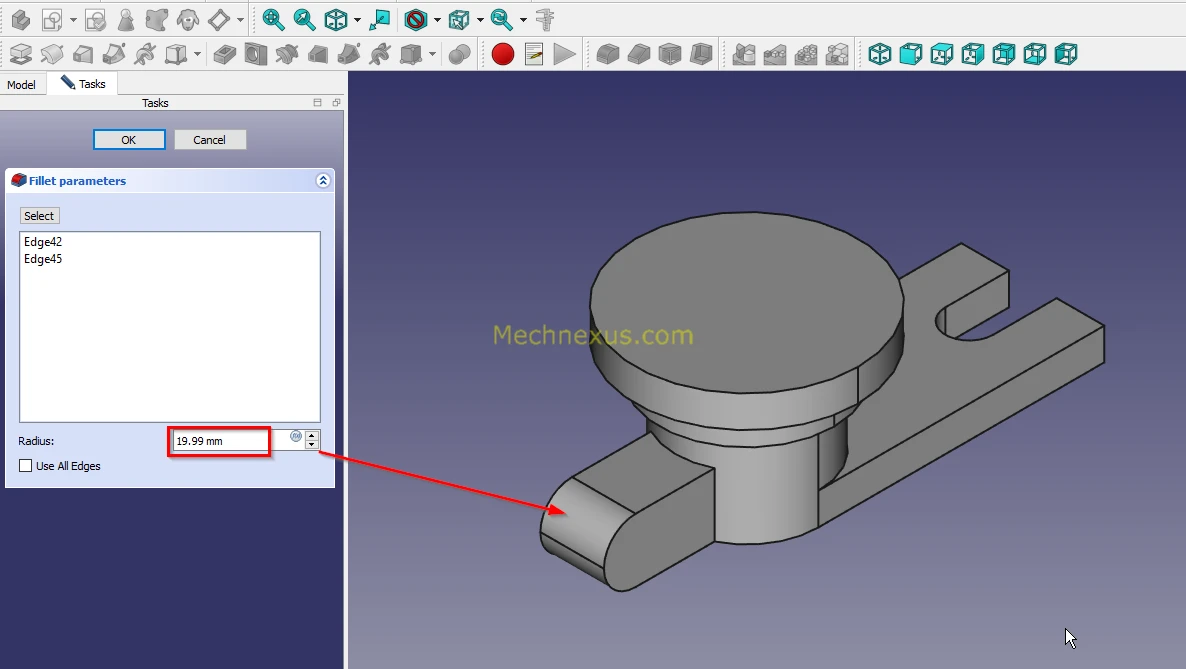

Now select the face and create the below sketch.
Select the side face and create below sketch.

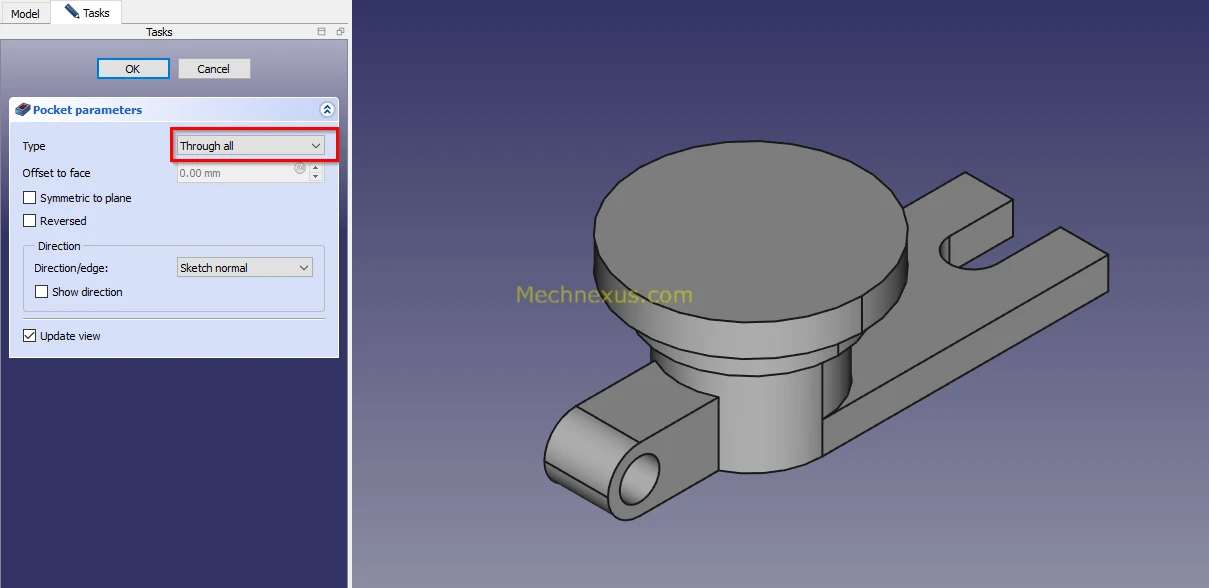

Now create the hole As shown in below image.

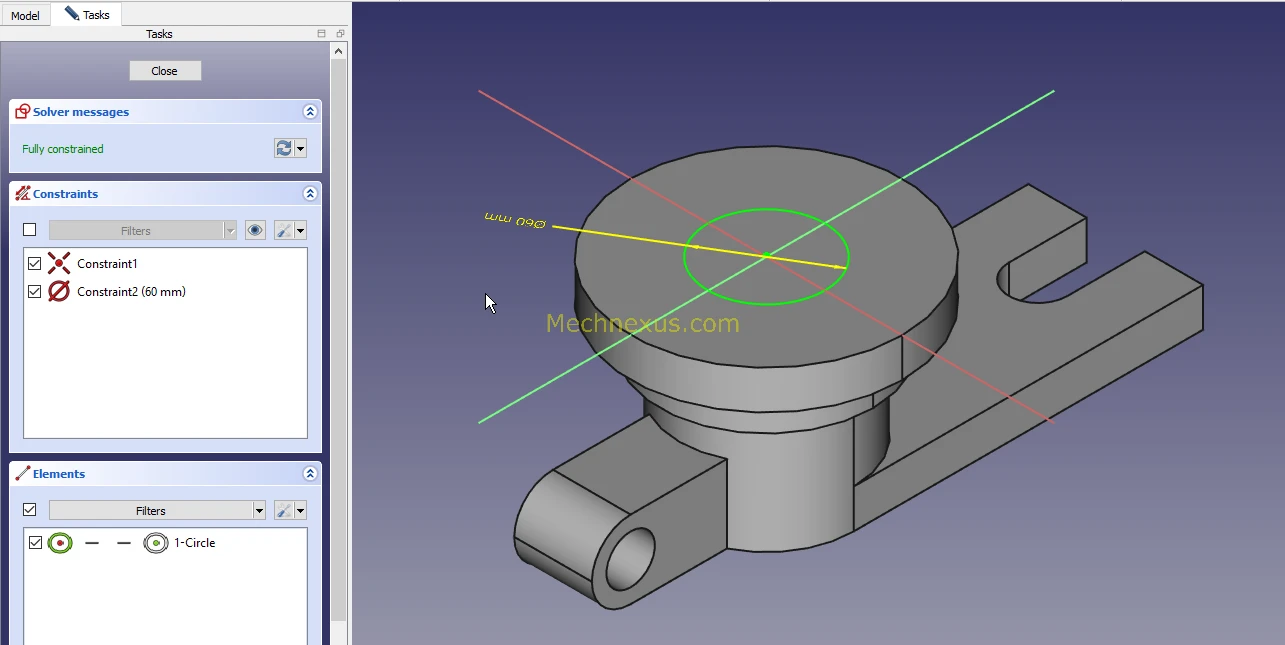

Now select the top face and create circle of 60mm As shown in below image.

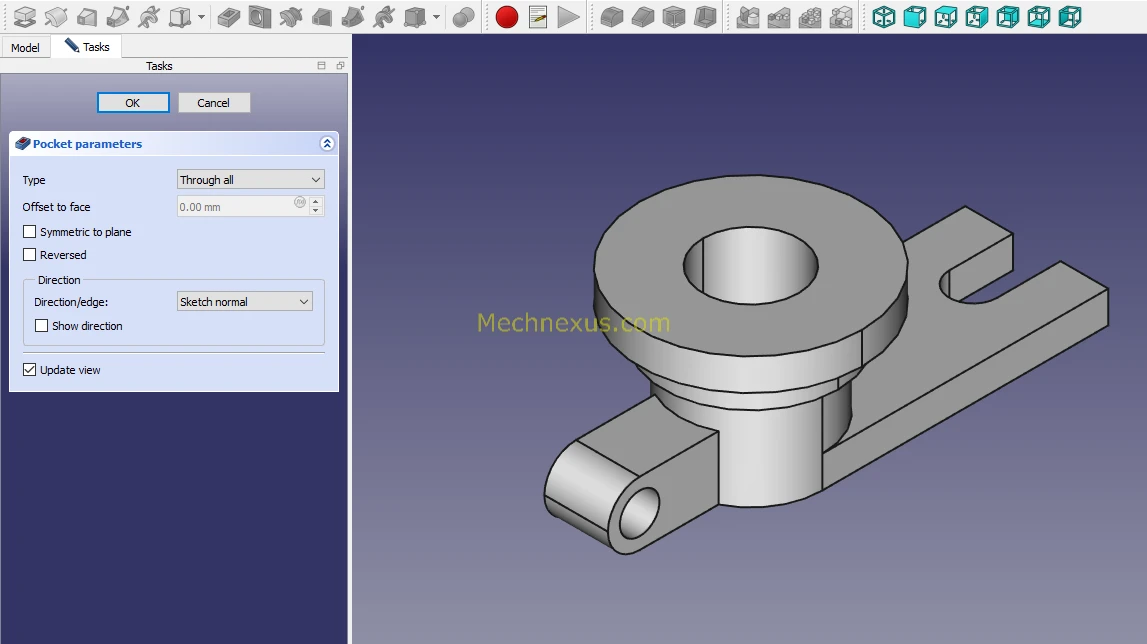

Now create hole As shown in below image.
