Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned Model Shifter in FreeCAD. In this tutorial we will do modeling of Model Feed Guide in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://www.mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.
Also Read-:
| Create Exploded Assembly with Animation in FreeCAD |
| Model Involute Gear in FreeCAD |
| How to Easily Array Body in FreeCAD |
Select front plane and create below sketch.
Now create the pad as shown in below image.
Now select the face and create the below sketch.
Now create the cut as shown in below image.
Now Create the Fillet as shown in below image.

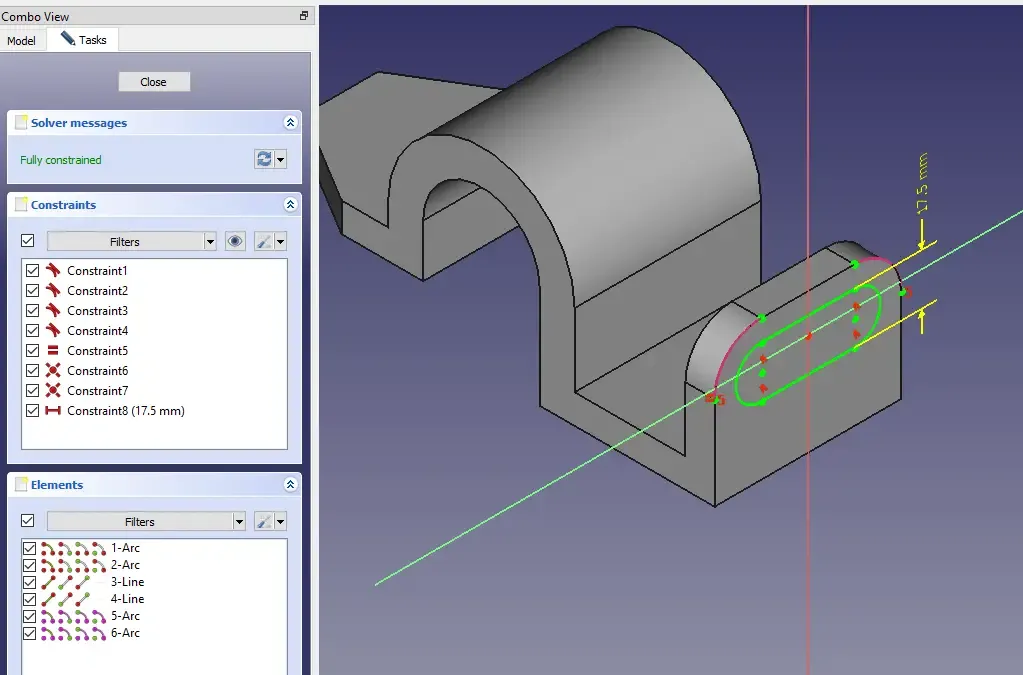

Now create the slot sketch as shown in below image.
Now create slot as shown in below image.
Now select the face and create the below sketch.
Now create the cut as shown in below image.
Now Select the face and create below sketch and Cut.
