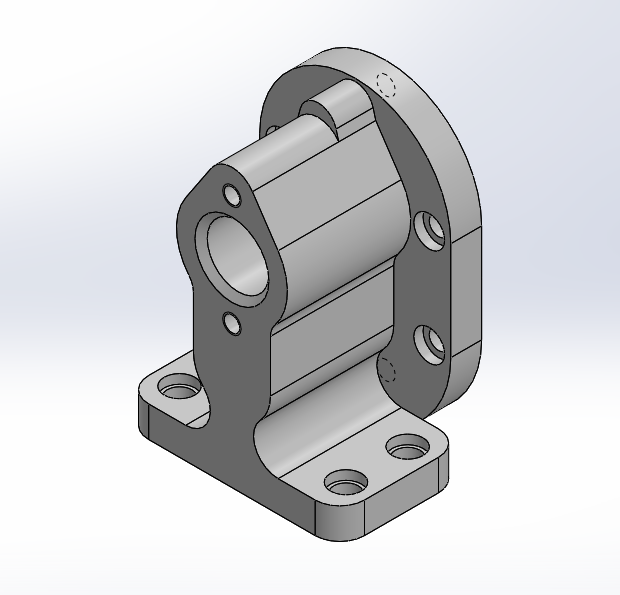

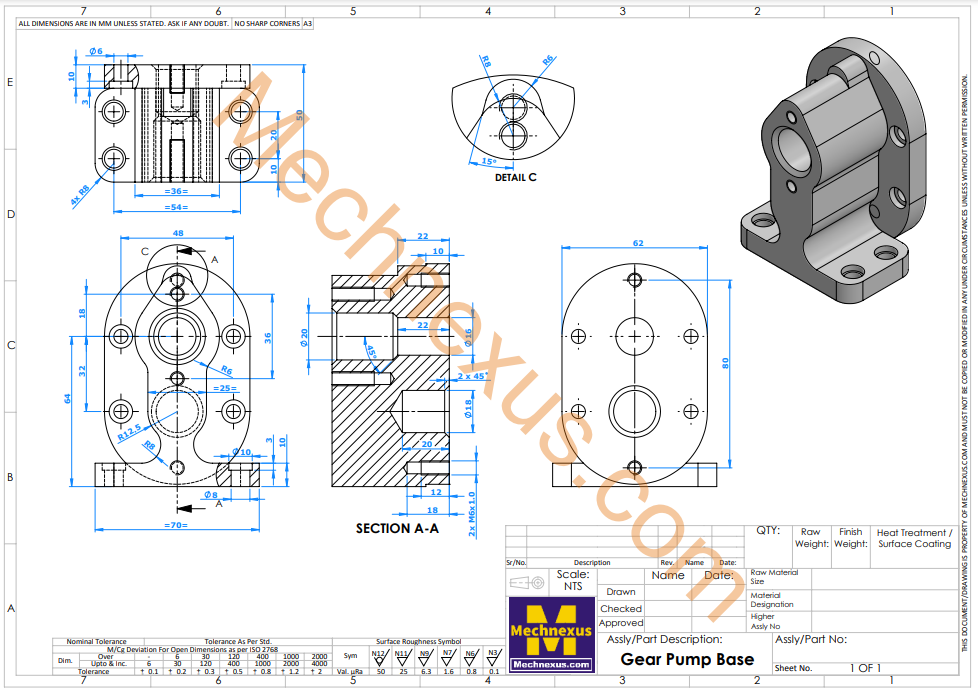

Hello friends welcome to SolidWorks Part Modeling tutorial. In this tutorial we will do Model of Gear Pump Base in SolidWorks . You can download this SolidWorks Tutorial File from my Ko-Fi Store. If you want to learn SolidWorks from scratch you can buy my SolidWorks Complete Course on Udemy.

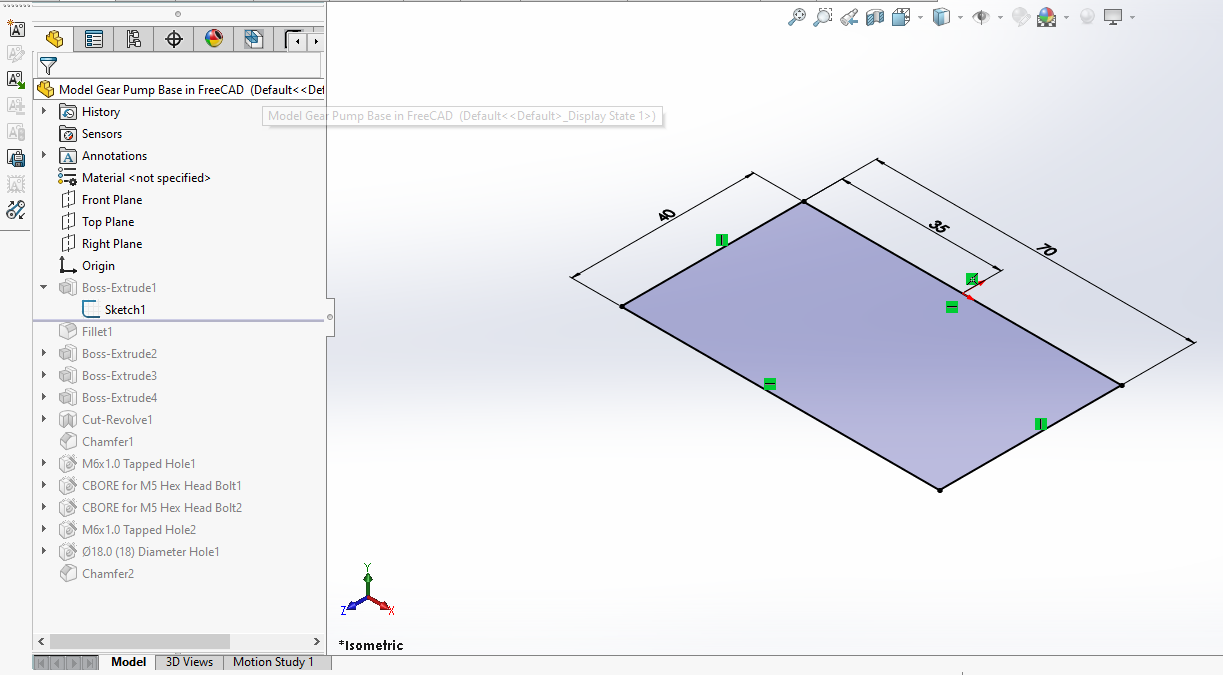

Select Top plane and create below sketch.

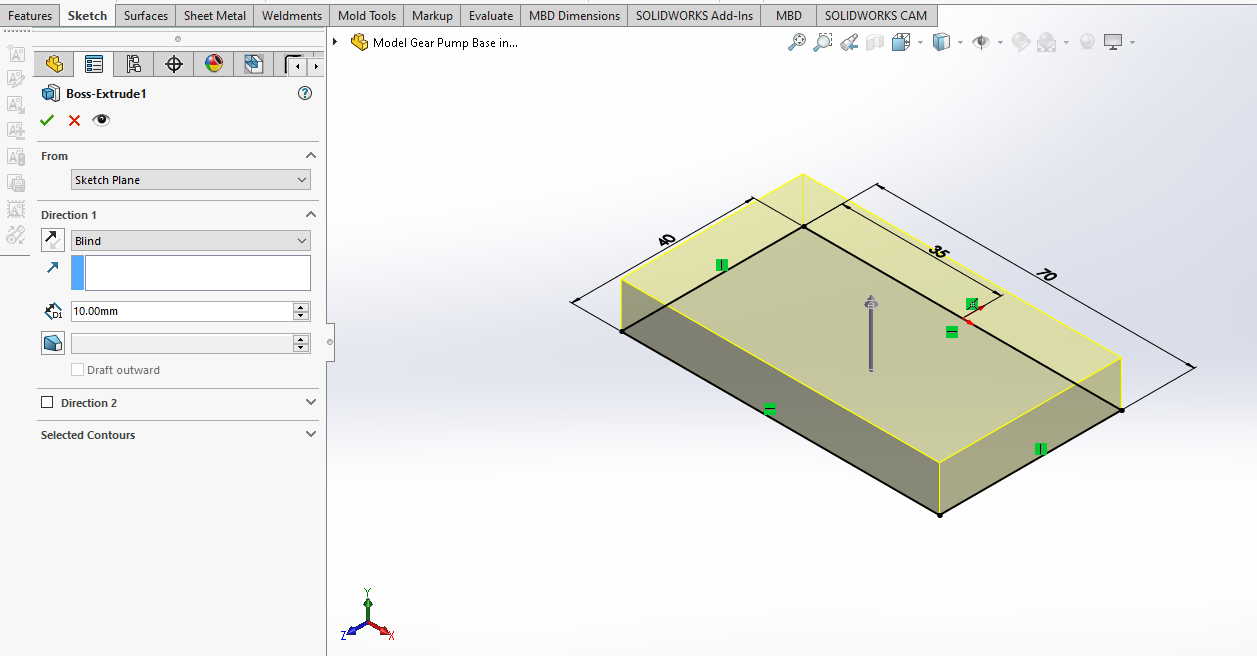

Now create the Pad of 10mm as shown in below image.

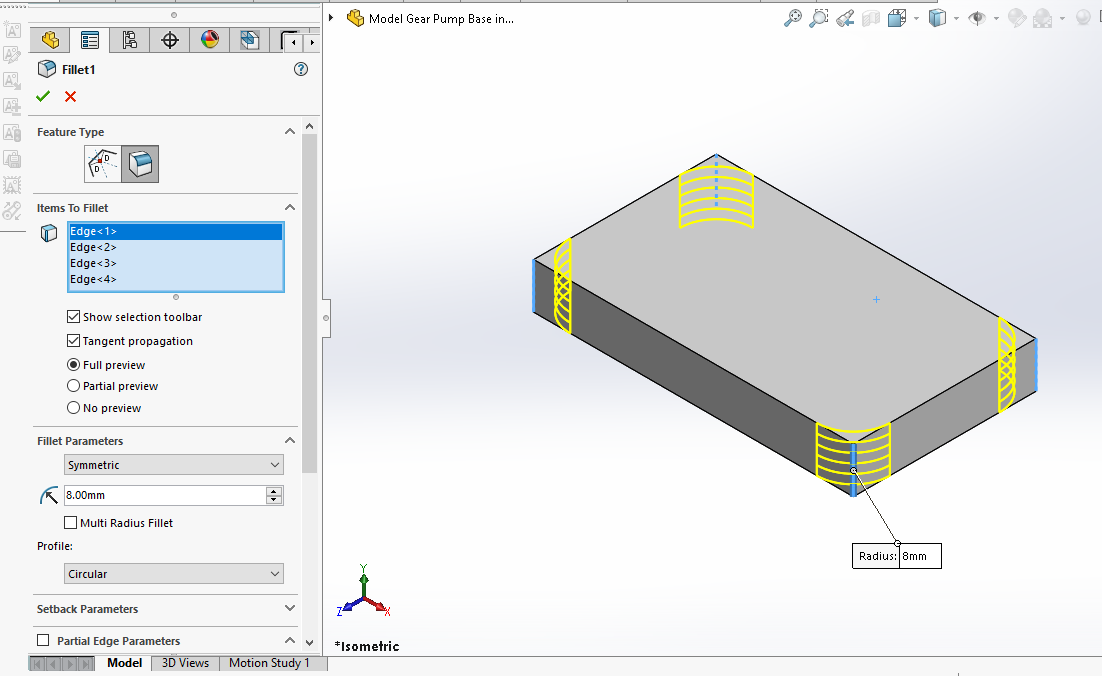

Now create fillet of 8mm at all 4 corner as shown in below image.

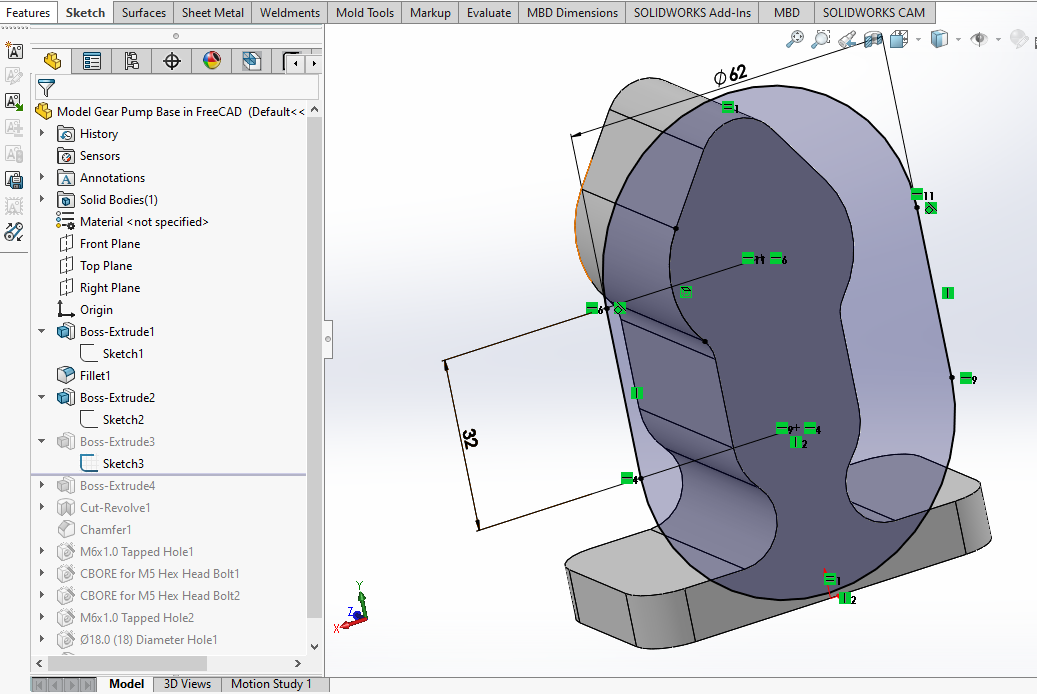

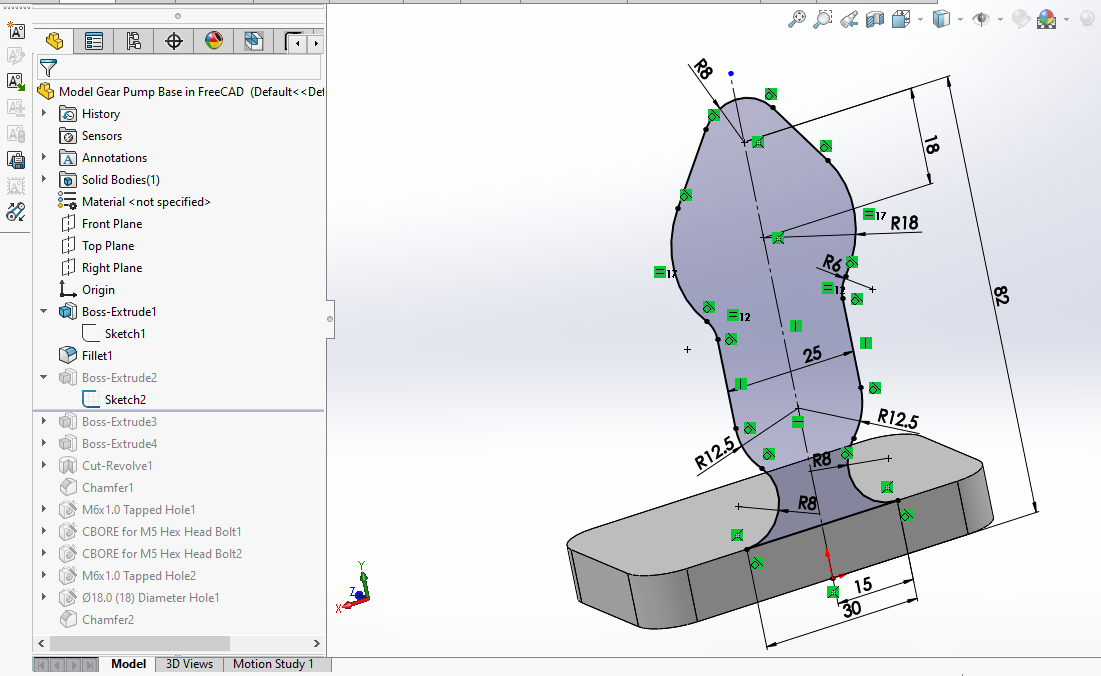

Now select the back face and create below sketch.

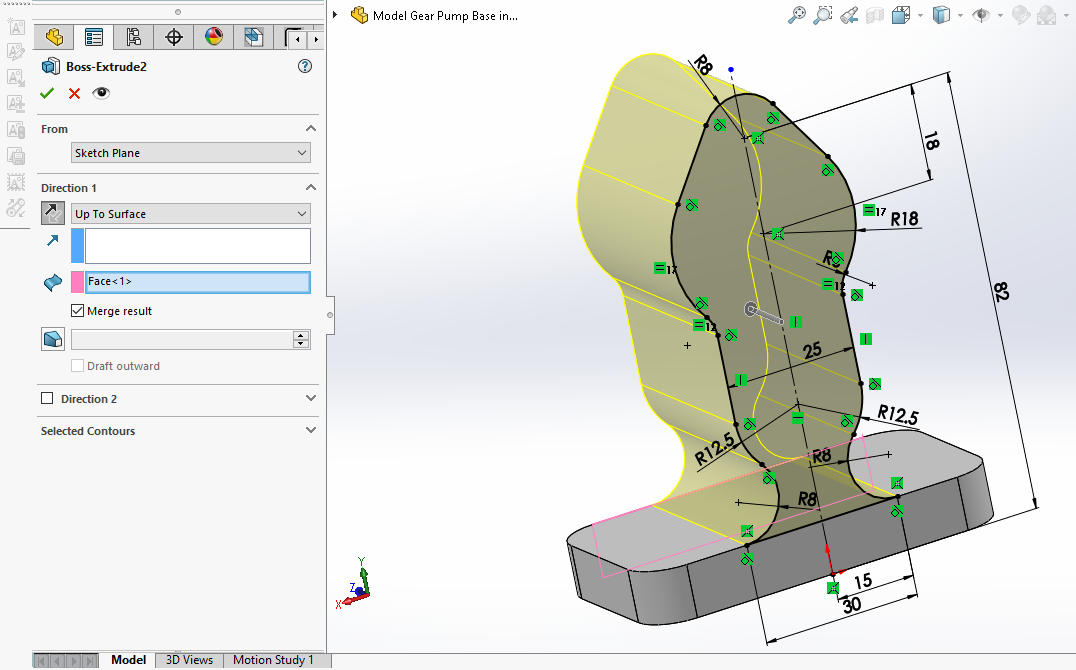

Now create the Pad as shown in below image.
Now select the back face and create below sketch.

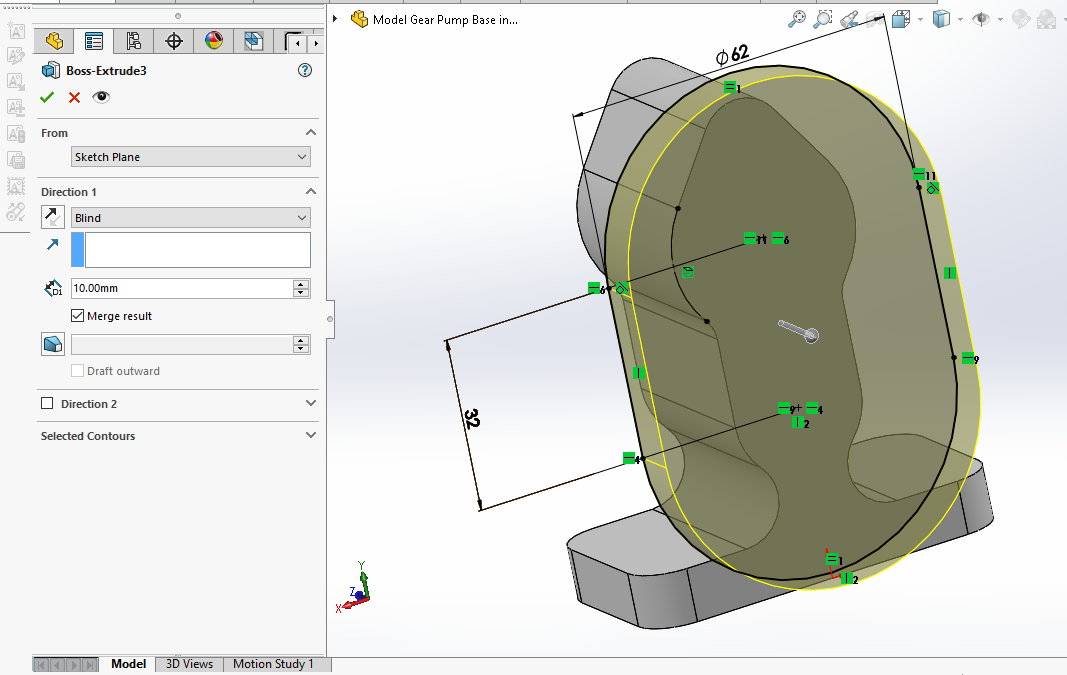

Now create the Pad of 10mm as shown in below image.

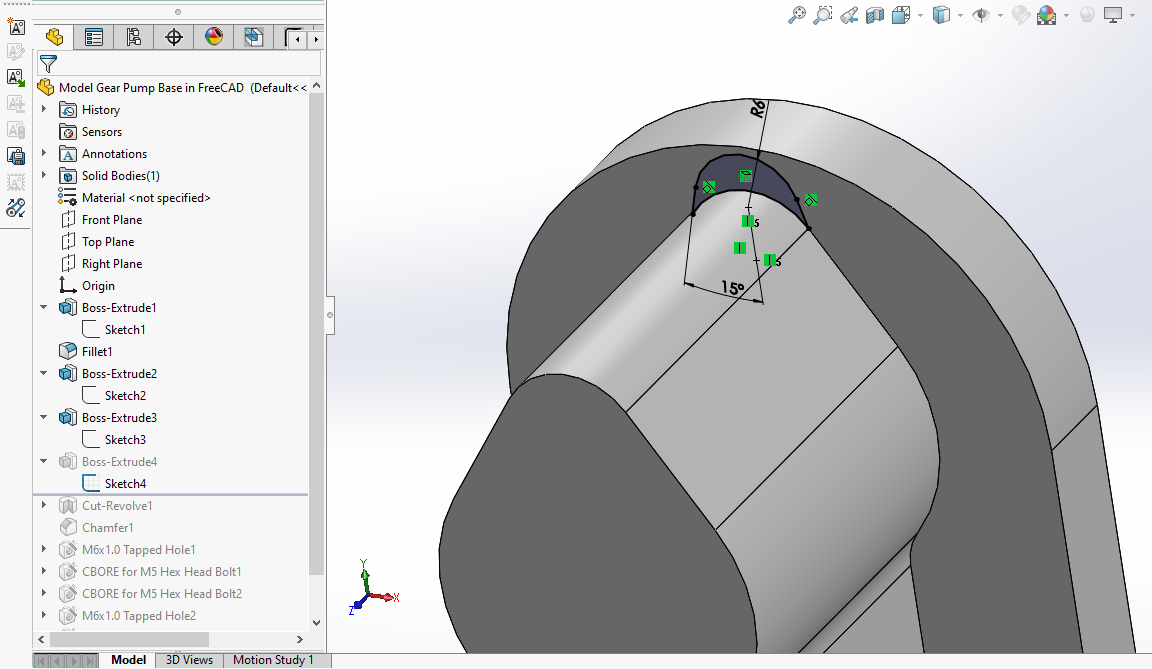

Now select the face and create below sketch.

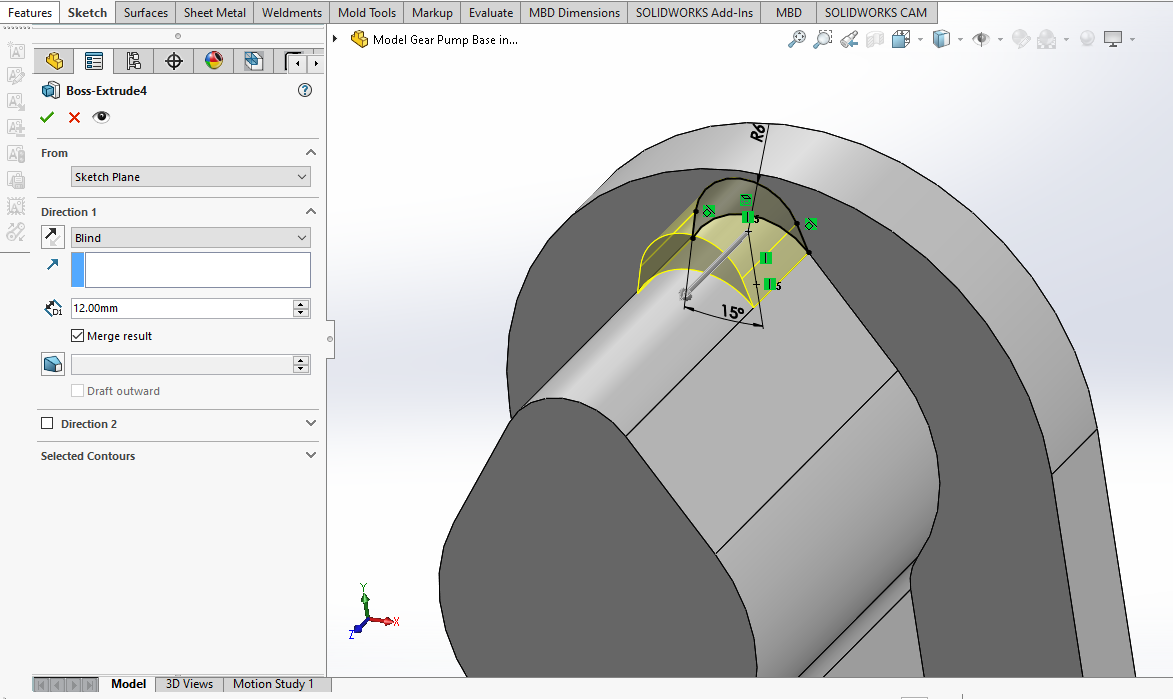

Create the Pad of 12mm as shown in below image.

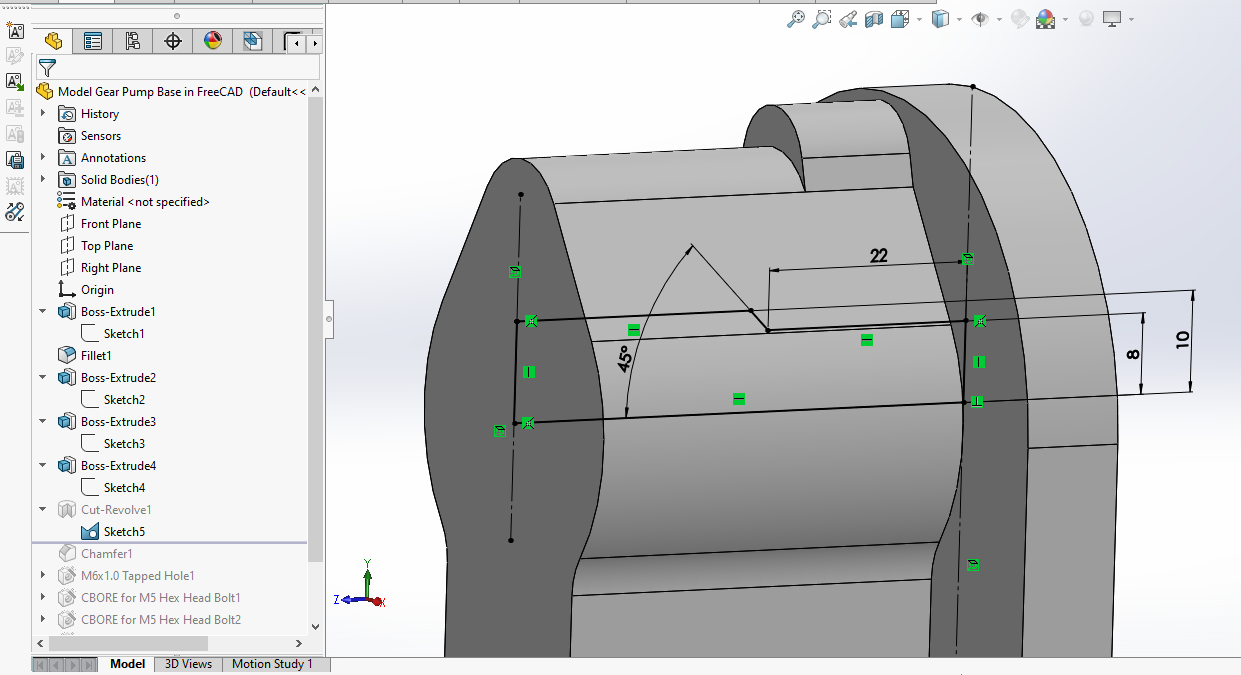

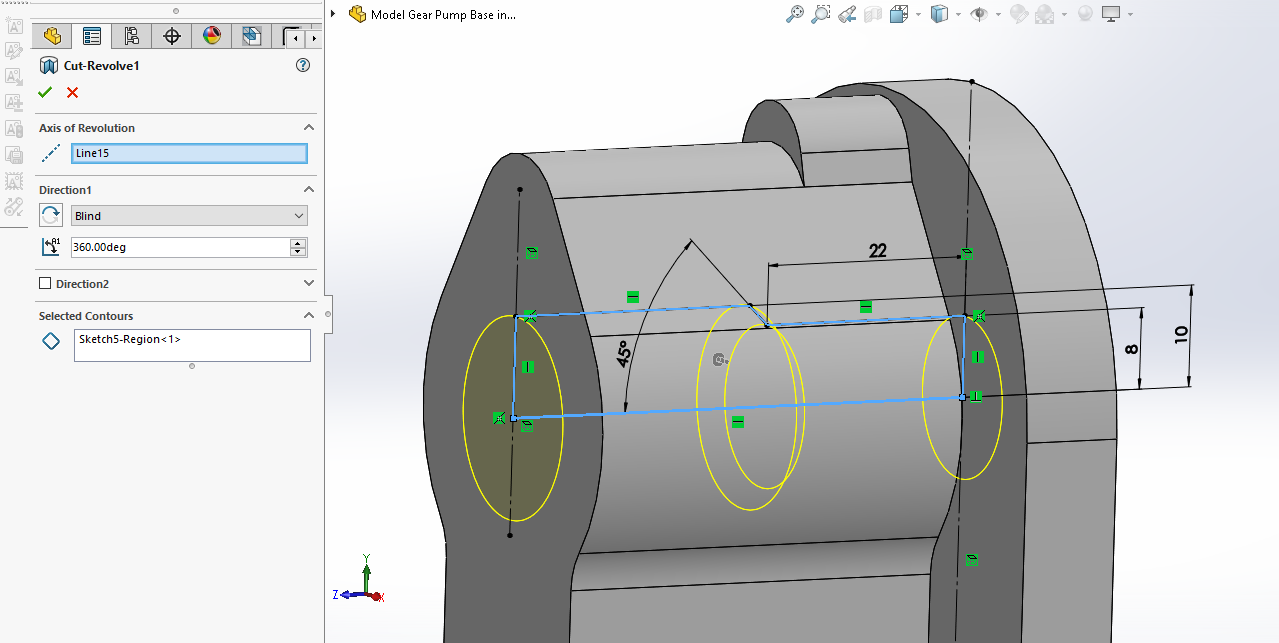

Now select the mid plane and create below revolve cut profile.
Now create the Revolve cut as shown in below image.

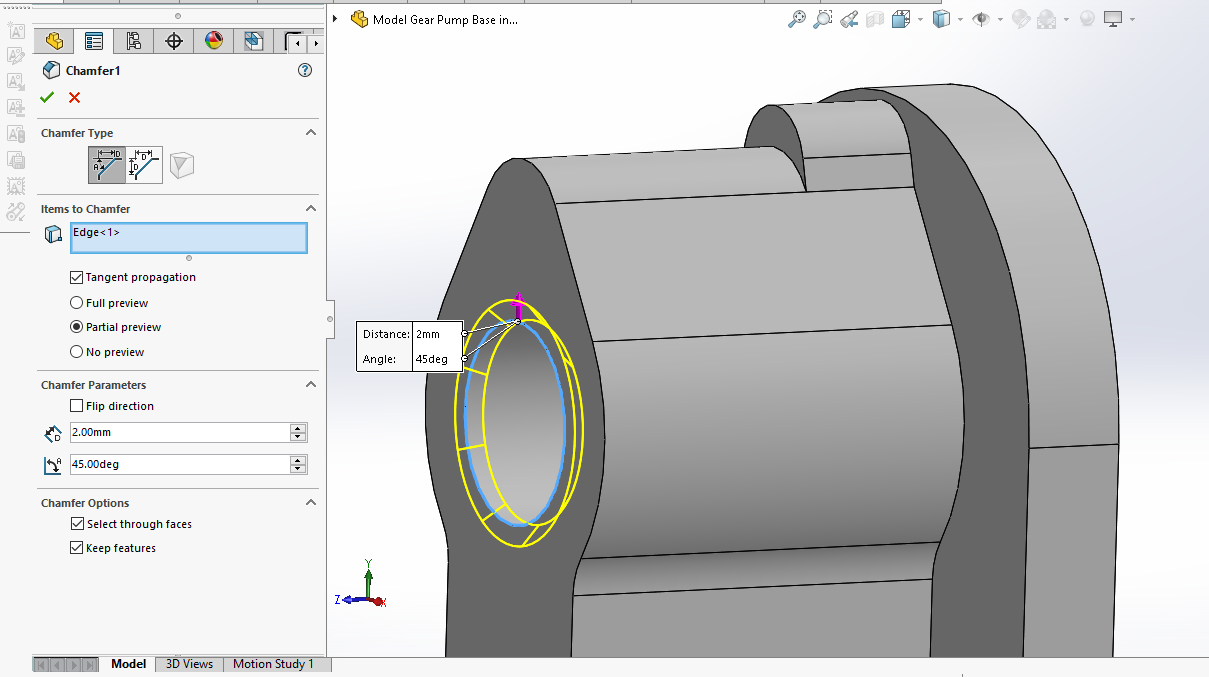

Create the Chamfer as shown in below image.

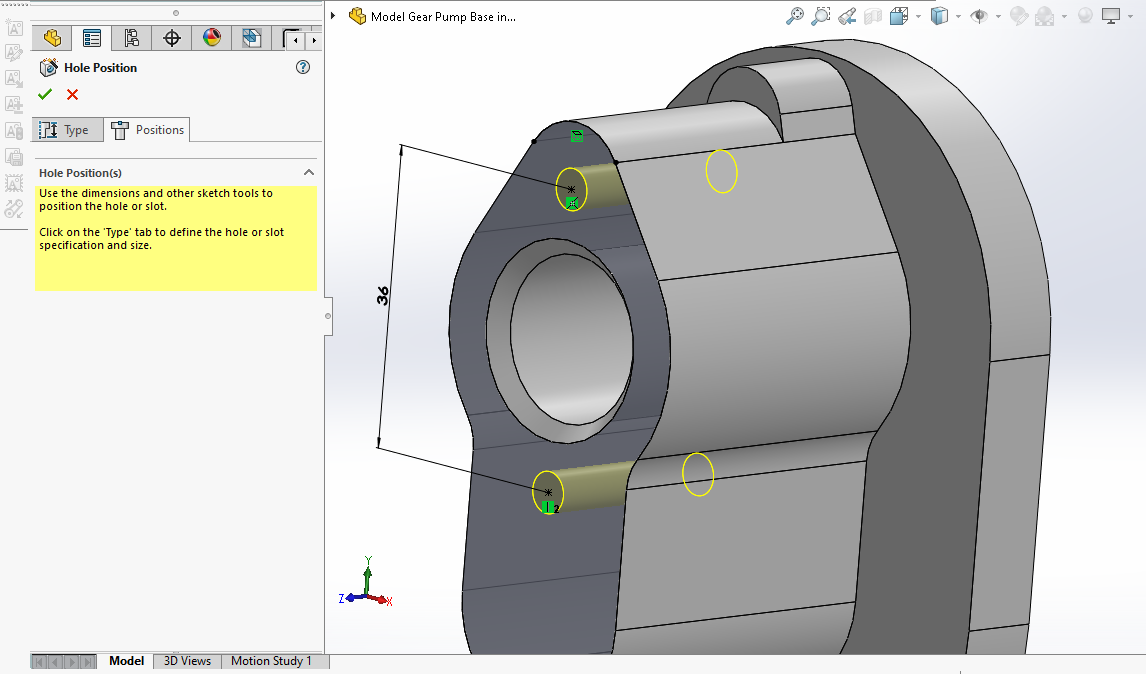

Create the hole sketch as shown in below image.

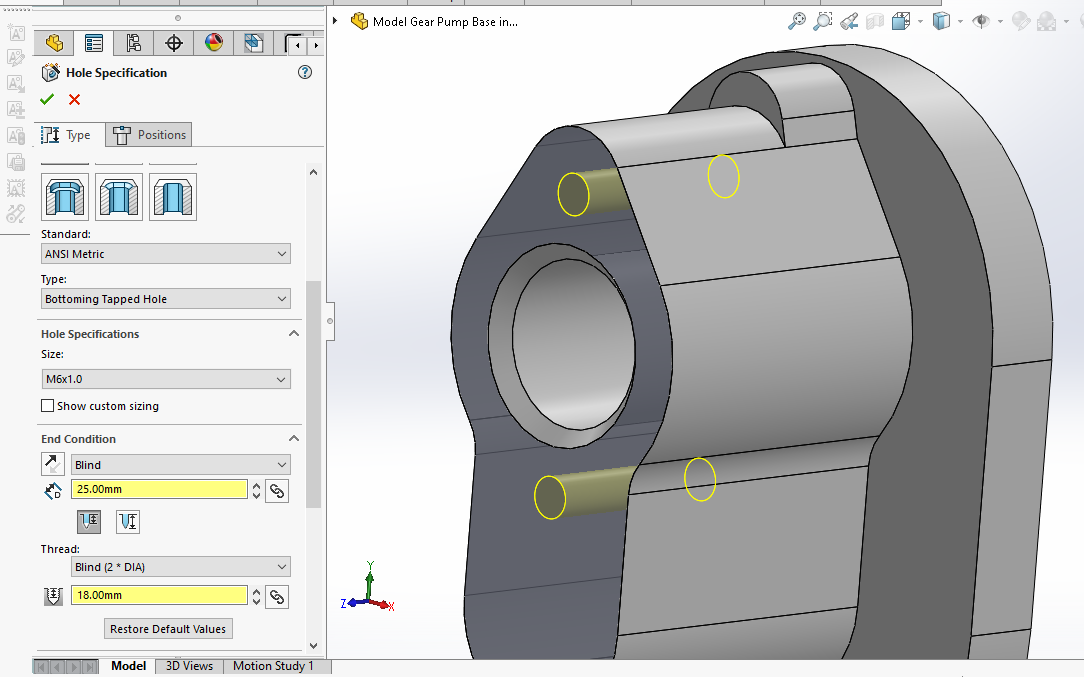

Create the hole depth and size as shown in below image.

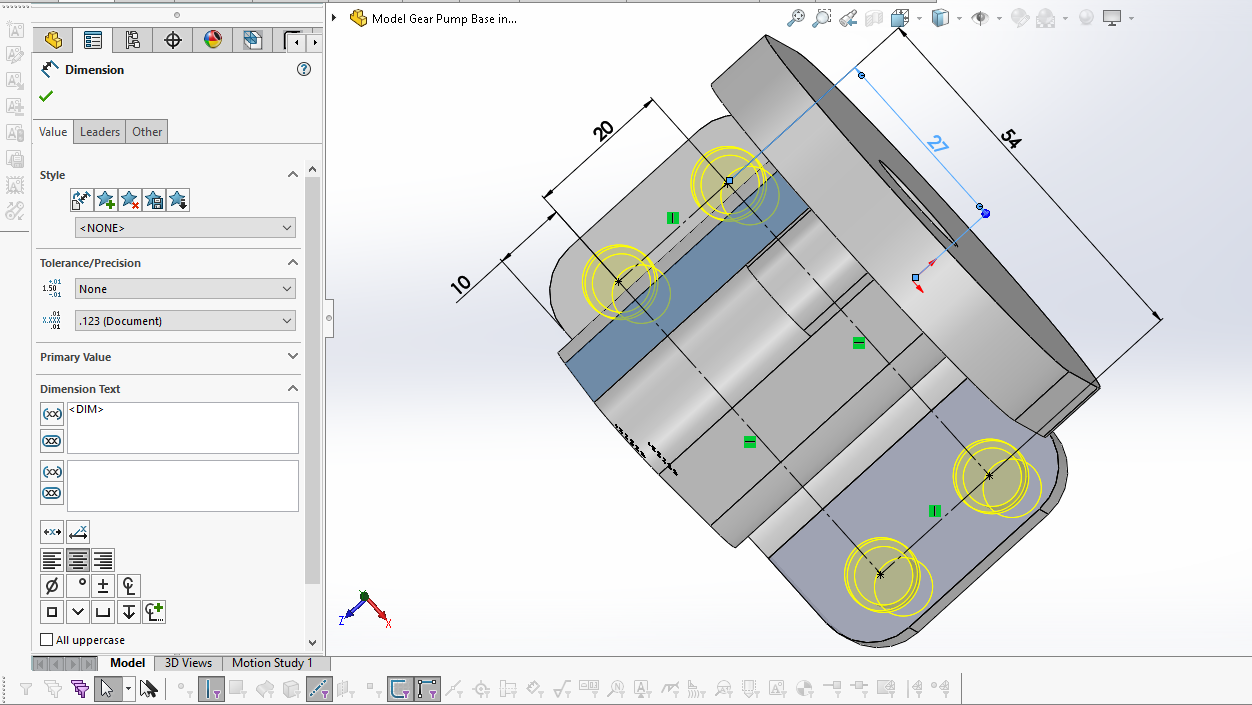

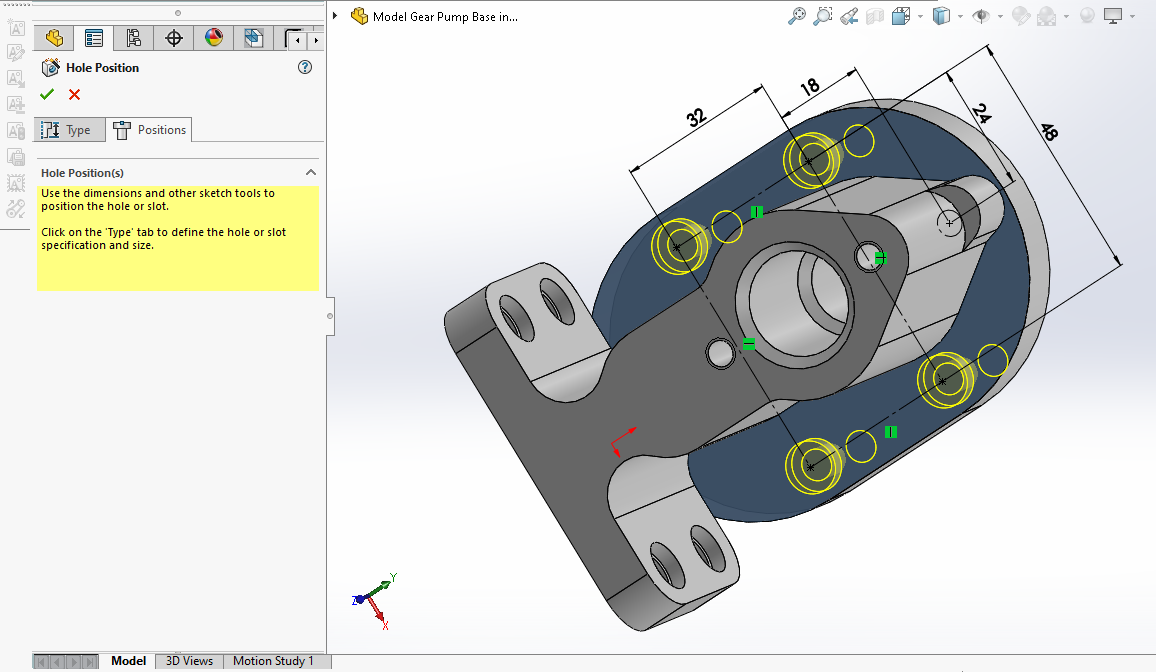

Create counter bore hole sketch as shown in below image.

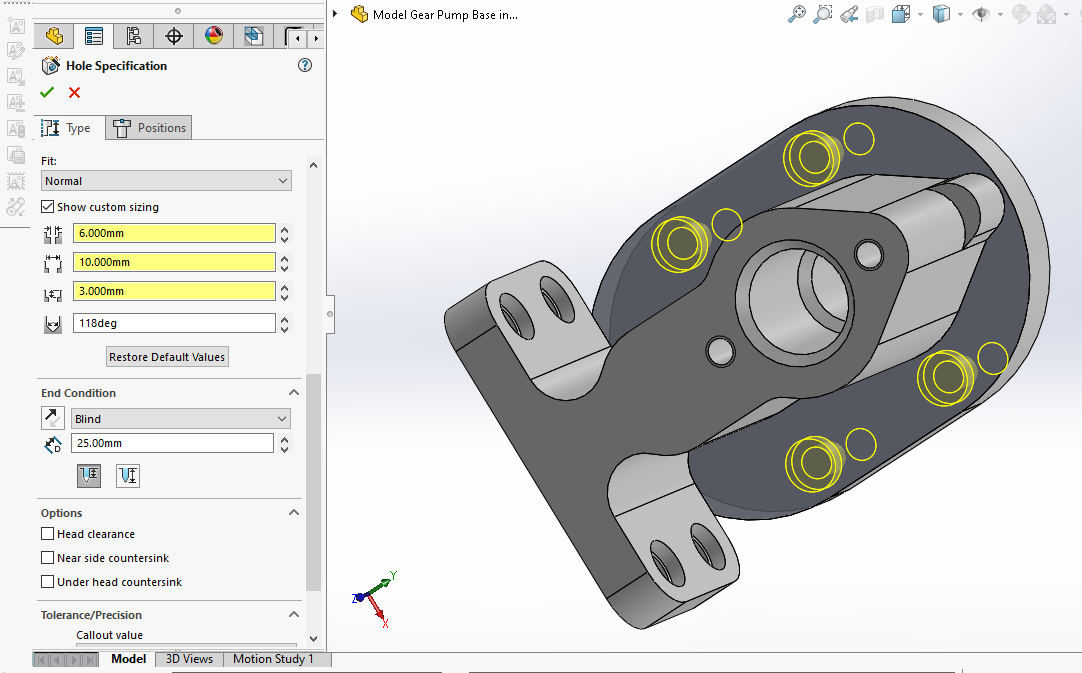

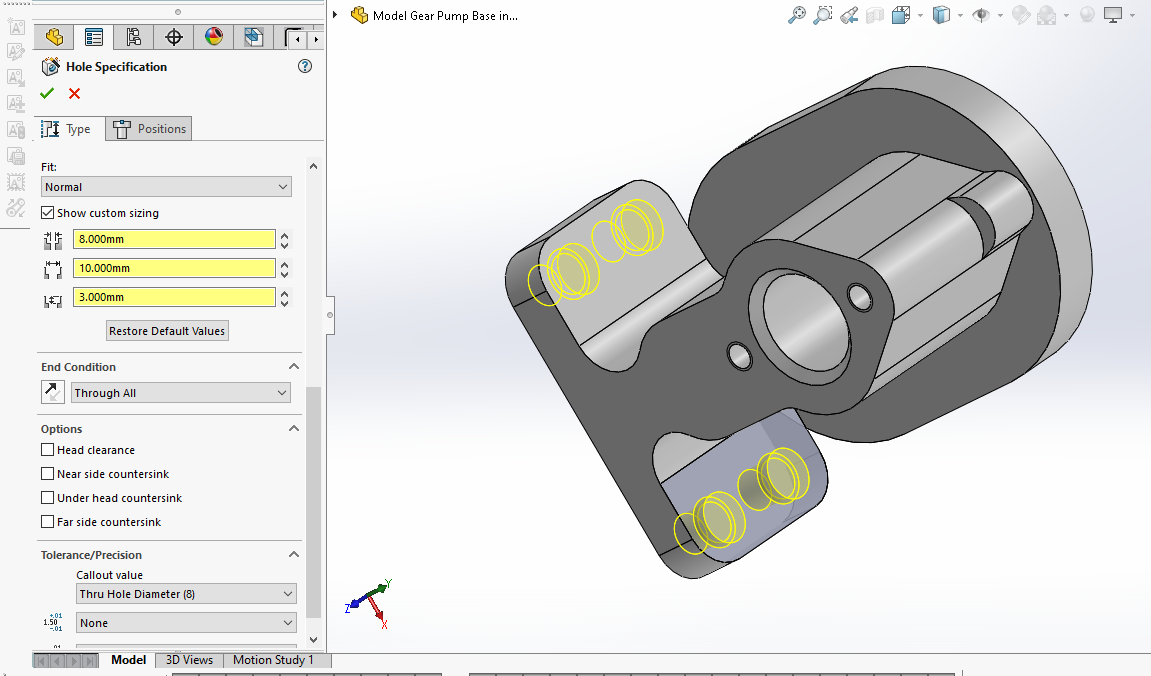

Create Counterbore hole size as shown in below image.
Create Counterbore hole sketch as shown in below image.
Create Counterbore hole size as shown in below image.

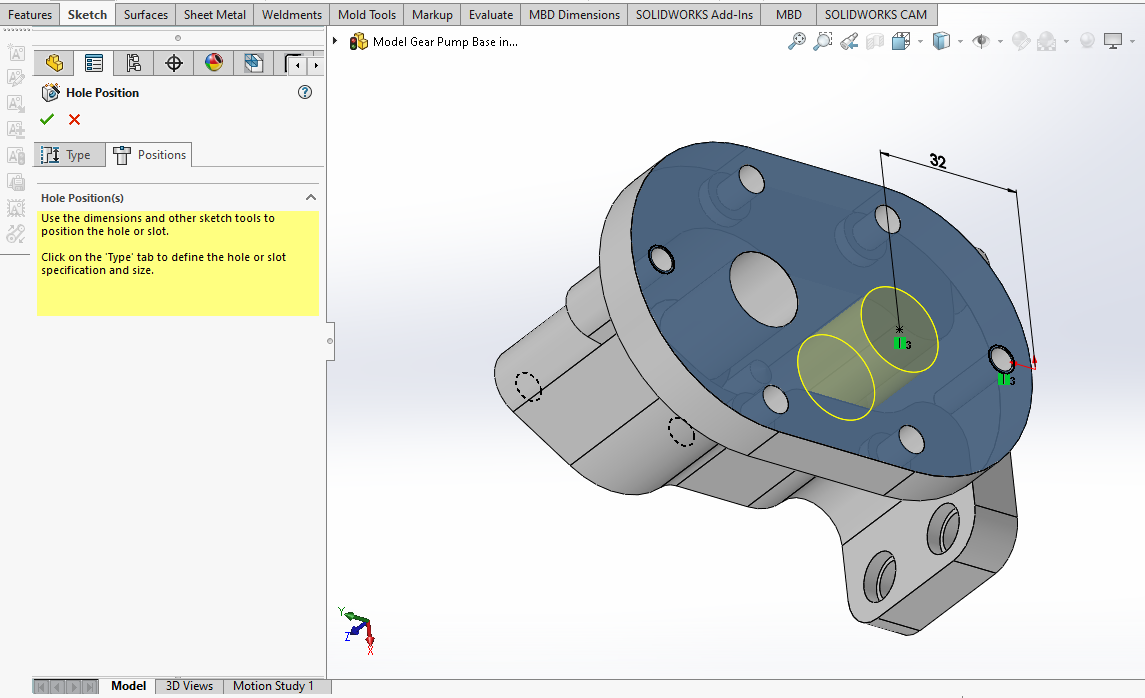

Create the hole sketch as shown in below image.

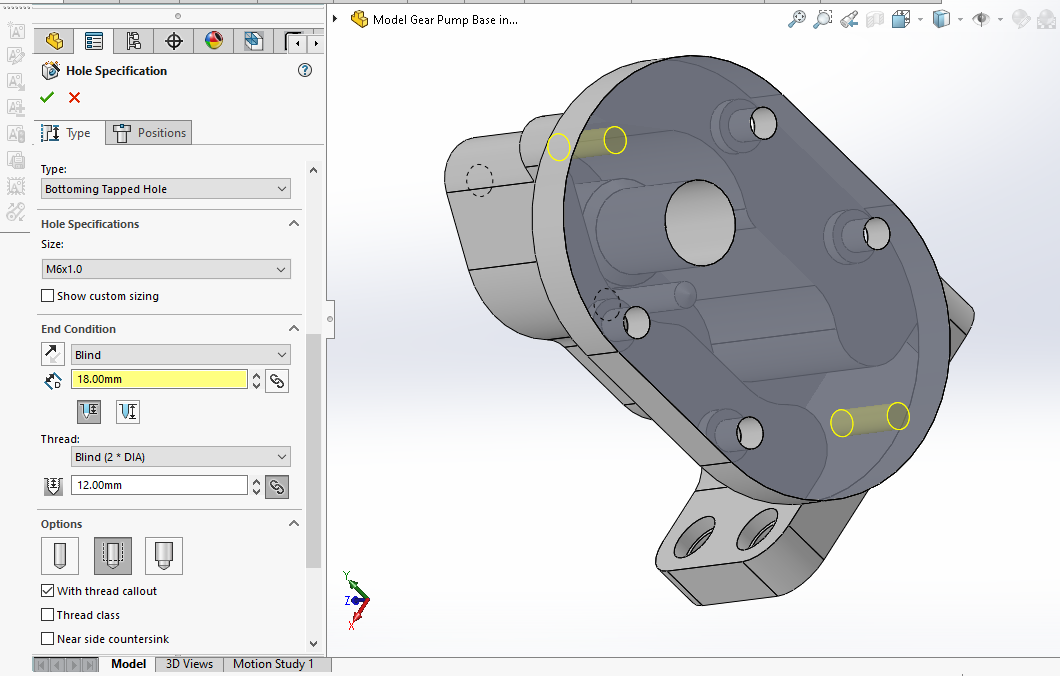

Create the hole depth as shown in below image.

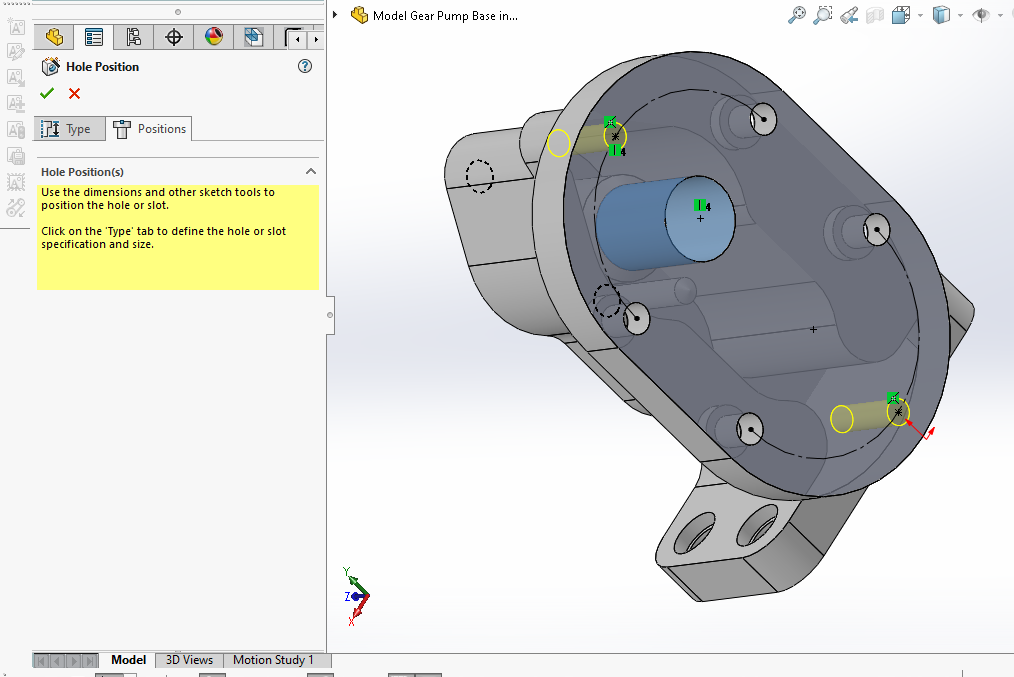

Create the hole sketch as shown in below image.

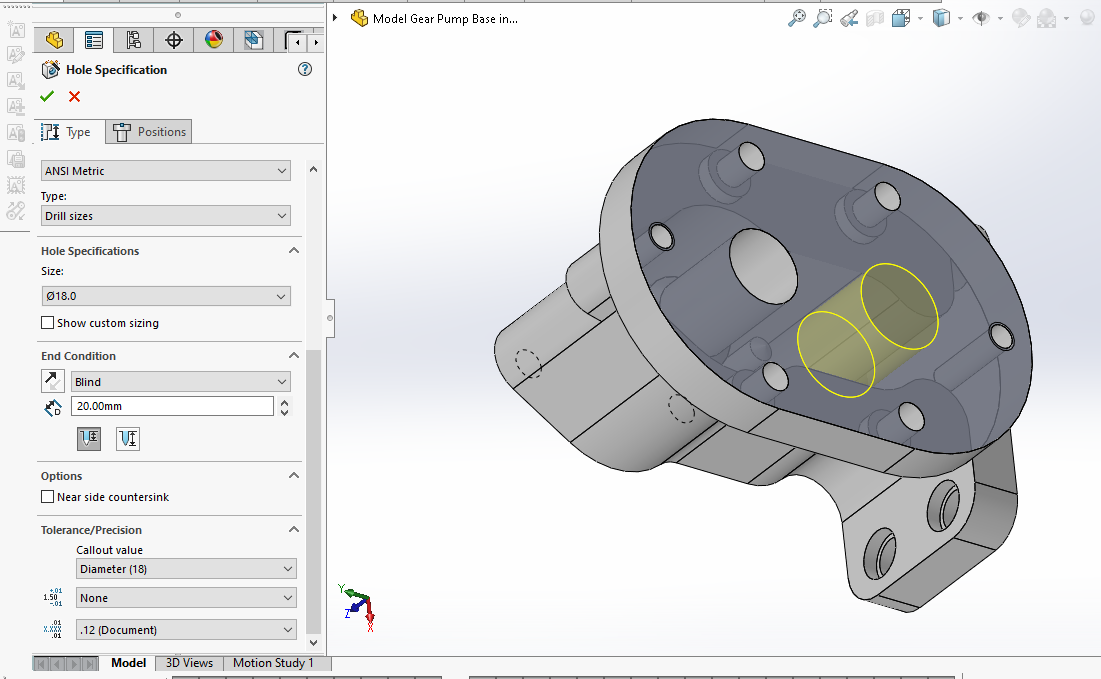

Create the hole depth as shown in below image.

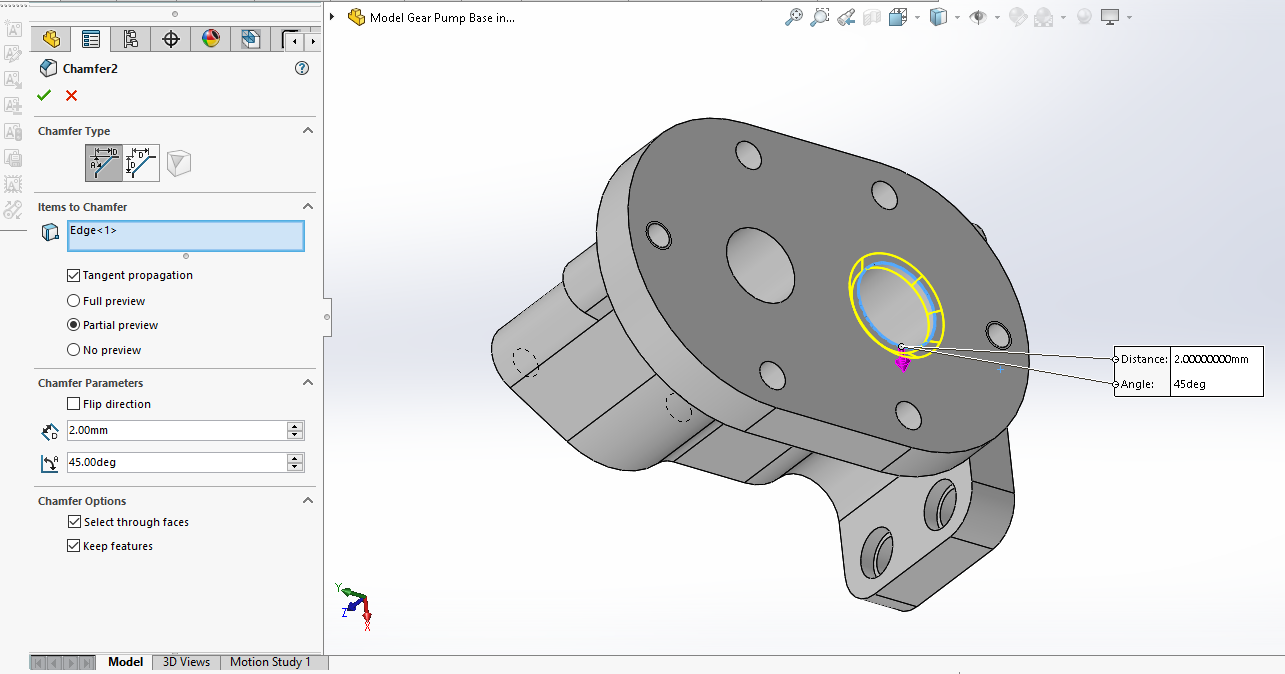

Create the Chamfer as shown in below image.
