Solidworks Part Modeling Tutorial 01

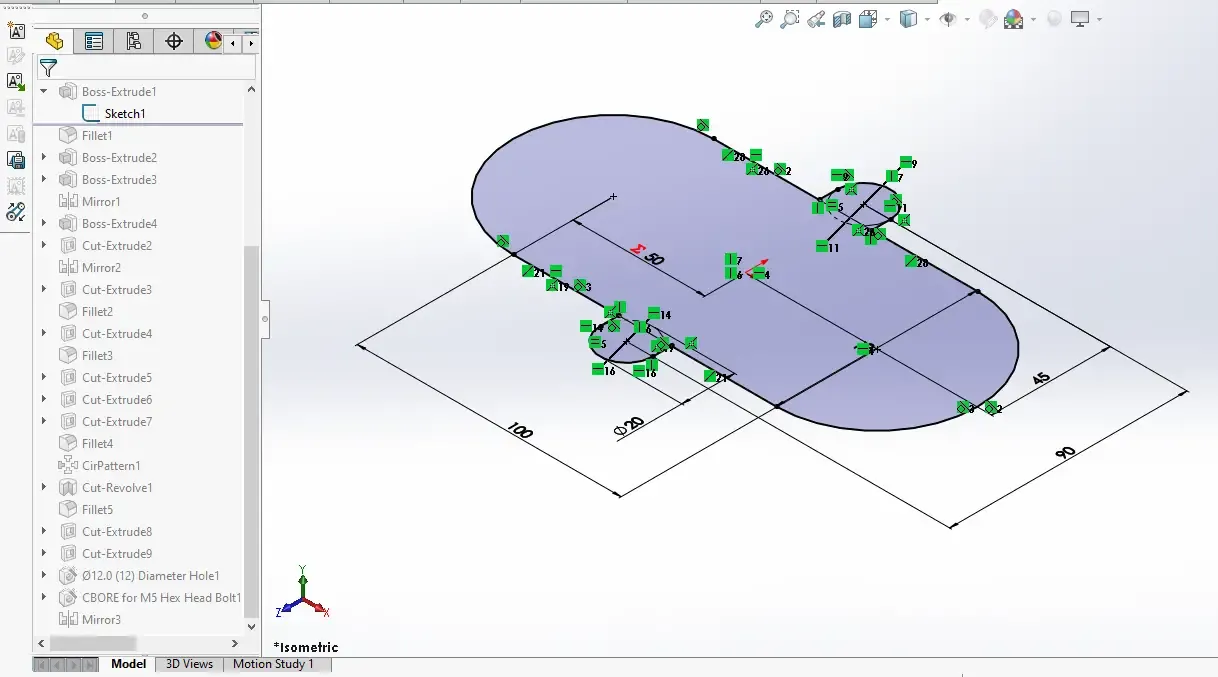

Select the top plane and create the below sketch.

01Now extrude the below sketch to 15mm as shown in below image.
02Now provide the fillet of 12mm at all four corner as shown in below image.
03Now select the top face and create below sketch profile.
04Now extrude the above sketch profile to the distance of 50mm.
05Now select the top face and create the below sketch.
06Extrude the above sketch to distance of 10mm.
07Now mirror the above Pad on other side.
08Now select the top face and create below sketch profile.
09Now extrude it to to bottom face. As shown in below image.
10Now create the below profile and remove the extra material.
12Mirror the above cut on the other side.
13Now select the bottom face and create below profile.
14Now create the cut of 3mm as shown in below image.
15Now create the fillet of 2mm as shown in below image.
16Now create the of diameter 40mm with depth of 27mm as shown in below image.
17Now provide the fillet of 2mm as shown in below image.
18Now select the top face and create the below sketch.
19Now create the cut of 20mm depth As shown in below image.

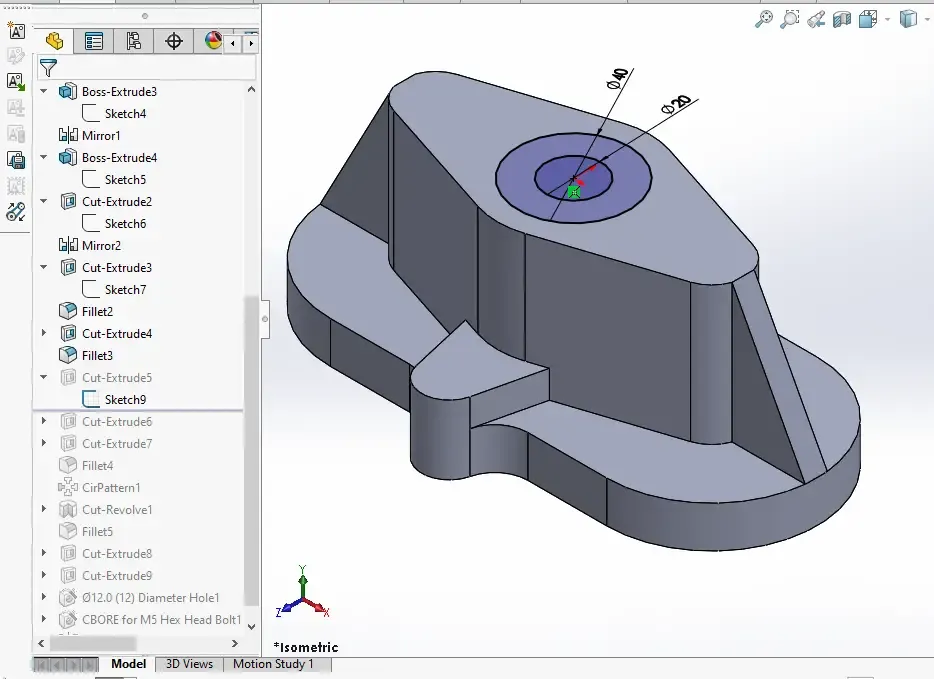

20Now convert the edge and create below circle.
21Now remove the material to the distance of 15mm.
22Now select the inner face and create the below sketch.
23Remove the material As shown in below image set end condition Through all.
24Provide the fillet of 2mm to all four corner.
25Now polar pattern above cut and fillet as shown in below image.
26Now select mid plane and create below sketch profile. and create revolve cut profile.
27Give fillet of 2mm to shown edges in below image.
28Now select the face and create the hole sketch of 10mm.
29Remove the material as shown in below image.
30Now select the face and create hole sketch.
31Create the hole as shown in below image.
32Now create the drill hole as shown in below image.
33Now create Counterbore hole position as shown in below image.
34Create the counterbore hole with side shown in below image.
35Now mirror the above counterbore on other side as shown in below image.
36
